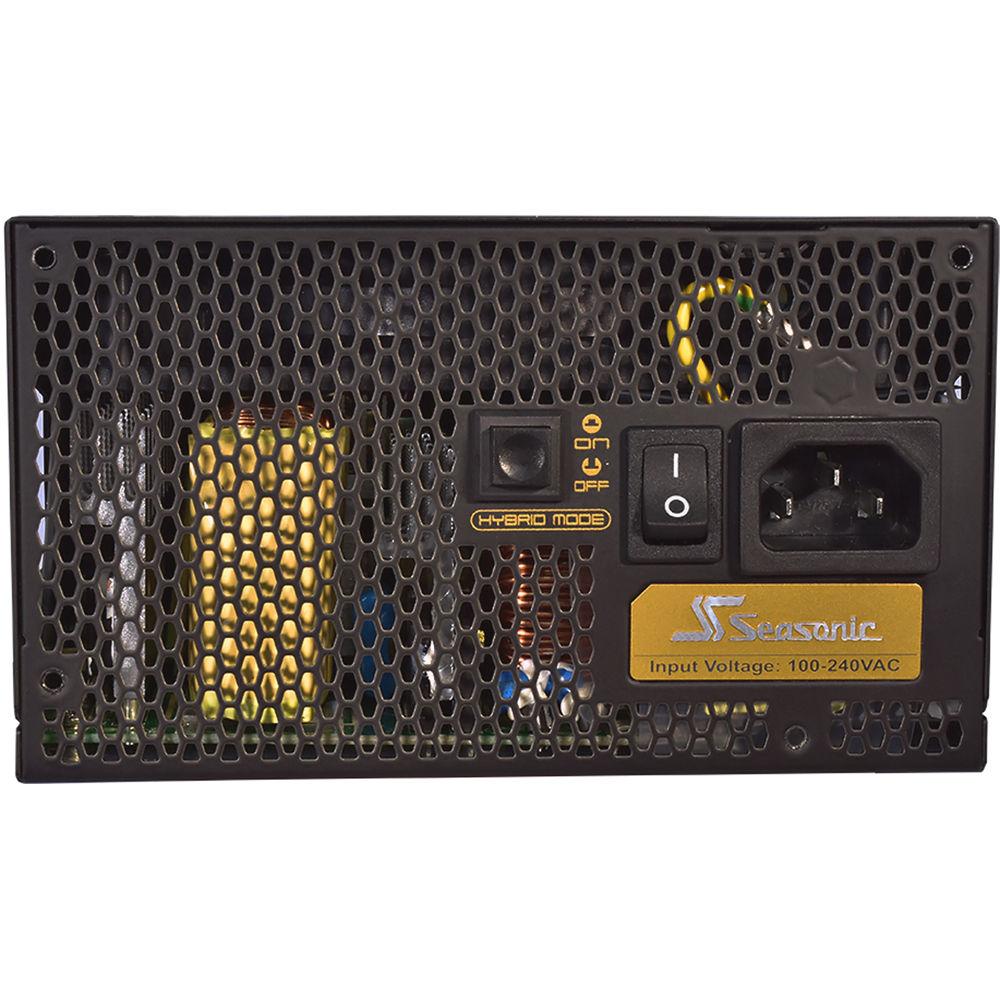

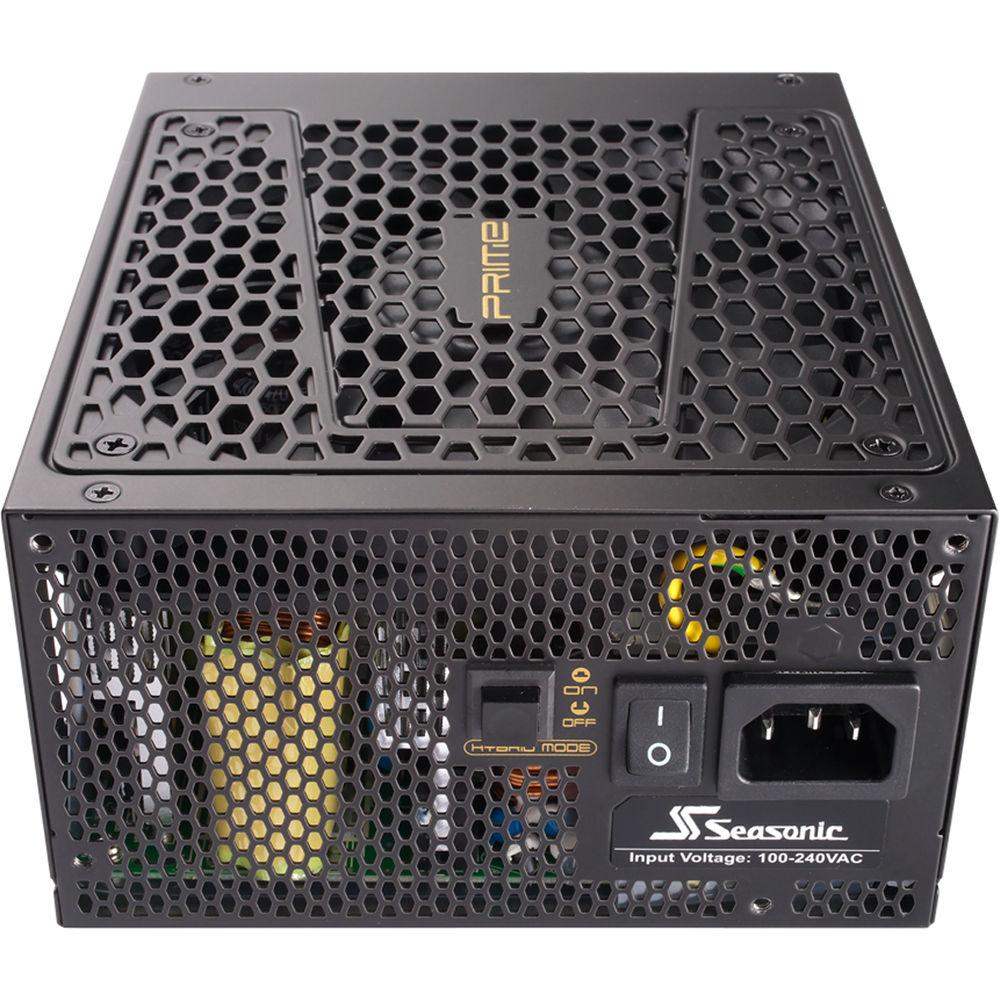

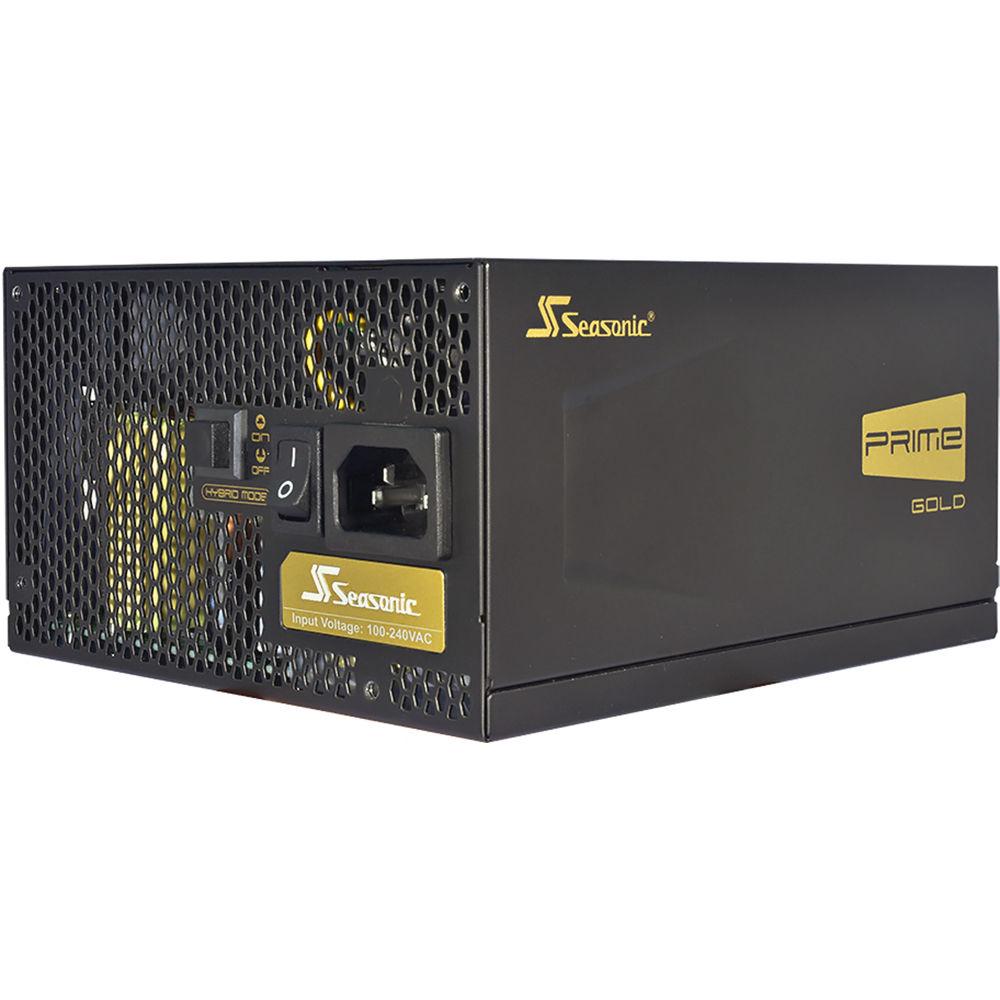

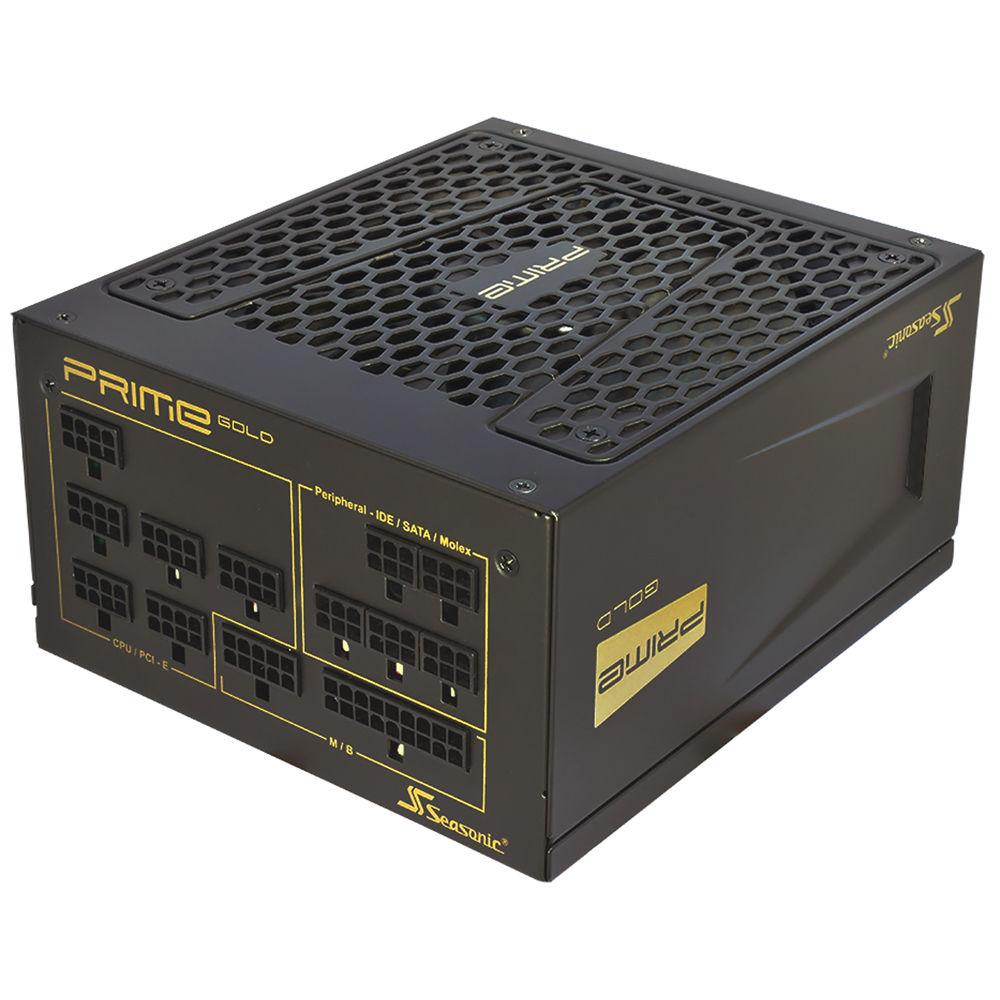

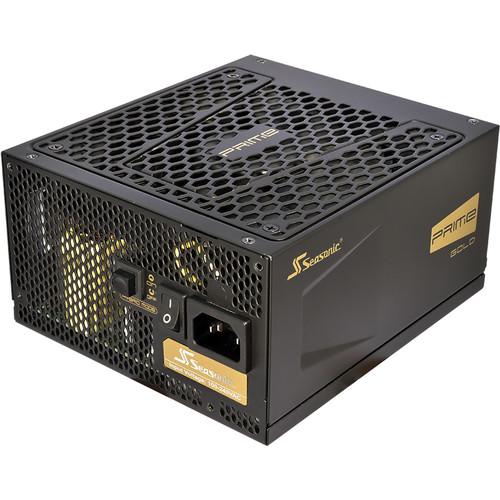

User Manual for SeaSonic Electronics PRIME 750W 80 Plus Gold ATX Modular Power Supply Click to enlarge the picture
Contents of the user manual for the SeaSonic Electronics PRIME 750W 80 Plus
- Product category: Power Supplies SeaSonic Electronics
- Brand: SeaSonic Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaSonic Electronics Power Supplies
 |
User manual for the SeaSonic Electronics PRIME 750W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaSonic Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!
|
Product description The PRIME 750W 80 Plus Gold ATX Modular Power Supply from SeaSonic Electronics helps users achieve a good balance of efficiency, performance, and power, while its wattage range makes it suitable for heavy gaming and overclocking. This power supply features operating efficiencies of greater than 87, 90, and 87% at operating loads of 20, 50, and 100%, respectively. It can operate at temperatures of 32 to 122°F / 0 to 50°C and cooling is accomplished using a 135mm fan with a fluid dynamic bearing. Other features include a single +12V rail with 62 A / 744 W, 4 x PCIe connectors, 8 x SATA connectors, an ATX Form factor, an MTBF of 50,000 hours at 104°F / 40°C, and flat cables. General Features - 80 PLUS Gold
- The efficient 80 PLUS Gold certification guarantees greater than 87, 90, and 87% efficiency at 20, 50, and 100% operating loads, respectively. The advantage of buying a power supply with 80 PLUS Gold rating is the fact that the less energy gets wasted during power conversion, the lower the operating costs will be for the user.
- Fluid Dynamic Fan Bearing
- High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are reliable and generate less operating noise and heat than ball bearing fans. The lubrication of the bearing surface helps reduce friction and vibration and therefore lowers the overall power consumption. Due to the quieter rotations and its robust construction, this reliable fan technology also helps increase the lifespan of the fan.
- How It Works
- When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
- Premium Hybrid Fan Control
- Seasonic's experience in designing silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that helps enable users to keep the overall fan noise at a low level.
- Power Supply Sound
- The Seasonic PRIME Series is designed to have very low-level acoustics with carefully selected components and innovative circuit design to help minimize sound output. Beyond rigorous internal tests, the power supply also goes through external testing with the popular graphics cards to help ensure that the sound at all loads is kept at a low level.
- Micro Tolerance Load Regulation
- Seasonic's design keeps the output voltage within a very tight range, achieving under 0.5% (1% for 1000W and above) load regulation. This electrical performance and stability makes this power supply a good choice for high-performance systems.
- Cable-free Connection Design

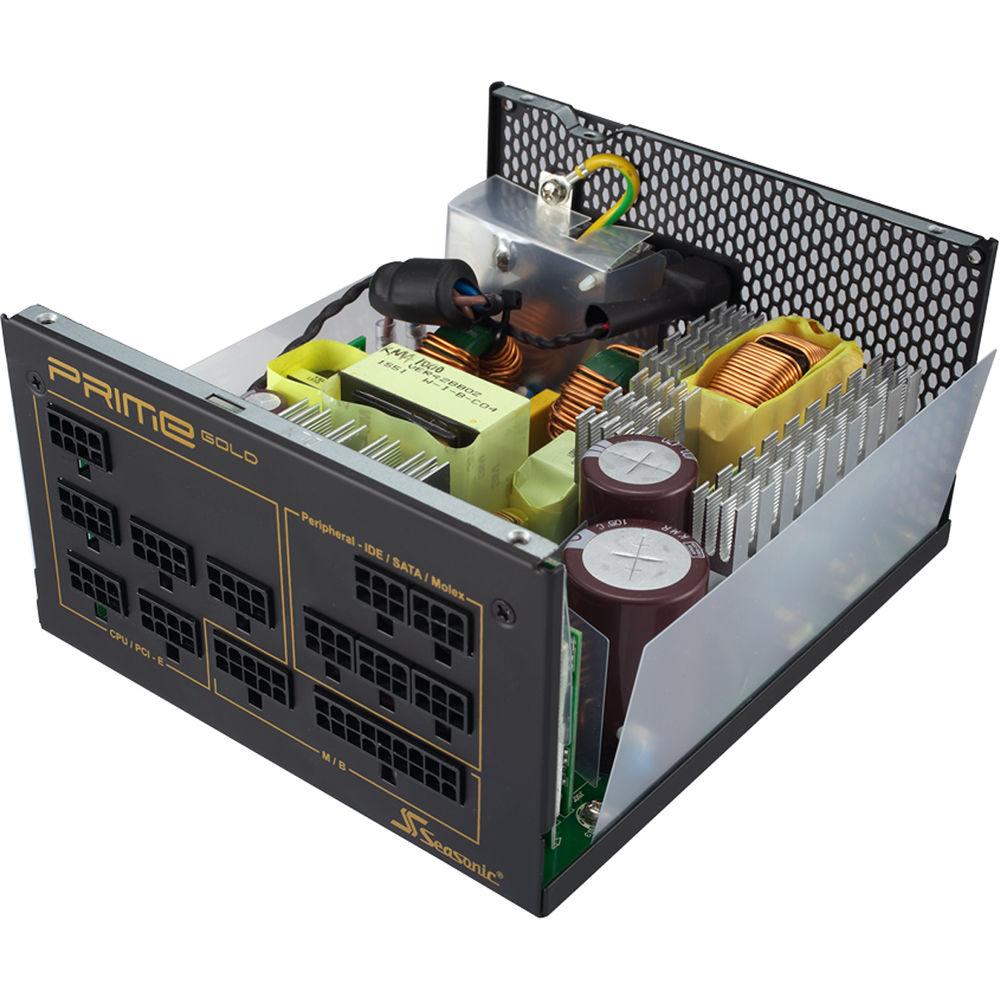

- Seasonic's engineers have implemented a design feature where instead of cables, the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
- Multi-GPU Setup
- This power supply is equipped with 6-pin and 8-pin PCIe connectors to support most GPU platforms.
- Gold Plated Connectors
- Gold plating critical connector pins (motherboard, CPU, and PCIe cables) helps extend the lifetime of the connectors and increase the efficiency of current transmission.
In the Box SeaSonic Electronics PRIME 750W 80 Plus Gold ATX Modular Power Supply Modular Cable Pack AC Power Cord Accessory Bag Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics PRIME 750W 80 Plus Gold ATX Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics SSR-750GD Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
2 x 4+4-Pin EPS
4 x 6+2-Pin PCIe
8 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Flat, Modular | | PCIe Connector Distances | 26.6" / 675 mm
29.5" / 750 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm
31.9" / 810 mm | | Peripheral Connector Distances | 15.7" / 400 mm
20.5" / 520 mm
25.2" / 640 mm | | Floppy Connector Distances | 4" / 101 mm (Adapter) | | ATX Connector Distance | 24" / 610 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 750 W | | Combined Power for +12 V | 744 W | | Max Load for +12 V | 62 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.5 to 9 A | | | | Efficiency Rating | 80 PLUS Gold | | | | Fan Size | 135 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Fan Life Expectancy | 50,000 Hours | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Compliance | ATX 12 V | | Protection | Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | ENERGY STAR, REACH, RoHS, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 150,000 Hours | | Dimensions | 5.9 x 6.7 x 3.4" / 150.0 x 170.0 x 86.0 mm | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 13.2 x 8.0 x 5.4" |
