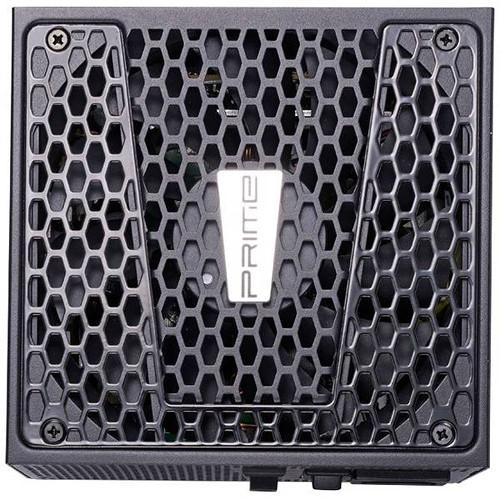

User Manual for SeaSonic Electronics Prime Ultra 750W Platinum Modular Power Supply Click to enlarge the picture
Contents of the user manual for the SeaSonic Electronics Prime Ultra 750W Platinum
- Product category: Power Supplies SeaSonic Electronics
- Brand: SeaSonic Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaSonic Electronics Power Supplies
 |
User manual for the SeaSonic Electronics Prime Ultra 750W Platinum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaSonic Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!
|

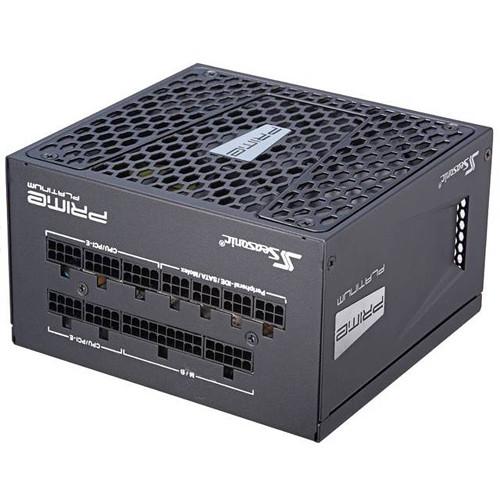

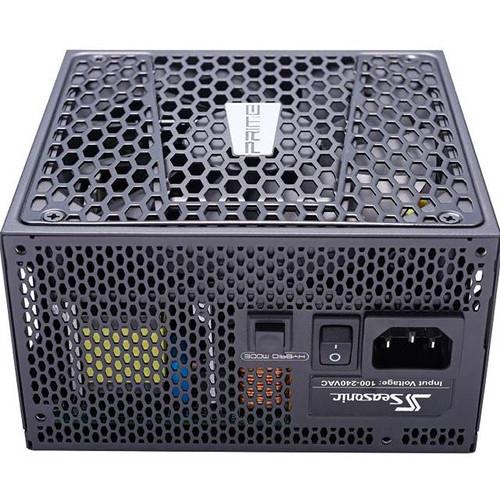

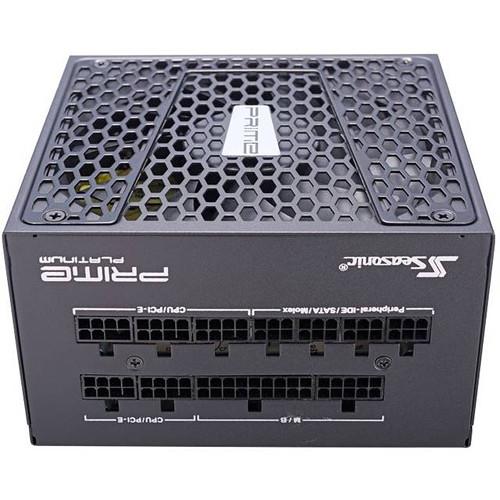

Product description Featuring an ATX form factor, the Prime Ultra 750W Platinum Modular Power Supply from SeaSonic Electronics provides a single +12 V rail for stability and compatibility with current generation hardware. It also achieves 80 Plus Platinum certification, thanks its 92% efficiency at 50% system load. It's built with multiple heavy-duty protection features and the modular design allows you to connect only the cables you need. Unused cables can be stored should you decide to upgrade your system down the road. With less cable clutter, there will be better airflow within the chassis for lower temperatures. A built-in 135mm fan operates silently, thanks to premium hybrid fan control, and provides additional heat dissipation. Features - 80 PLUS Platinum certified
- Micro tolerance load regulation (0.5%)
- Cable-free connection design
- Premium hybrid fan control (fanless until 40% load)
In the Box SeaSonic Electronics Prime Ultra 750W Platinum Modular Power Supply 1 x Main Power Cable (24/20 pins, 610mm) 2 x CPU Cables (8/4 pins, 650mm) 2 x PCIe Cables (8/6 pins, 675mm) 1 x SATA Cable (400mm + 120mm + 120mm + 120mm) 1 x SATA Cable (350mm + 150mm + 150mm + 150mm) 1 x Peripheral Cable (450mm + 120mm + 120mm) 1 x Floppy Cable (101mm) SATA 3.3 Adapter Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics Prime Ultra 750W Platinum Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics Prime Ultra 750 Platinum... Specs | Form Factor | ATX | | Connectors | 1 x Main Power (24/20 pins)
2 x CPU (8/4 pins)
4 x PCIe (8/6 pins)
8 x SATA
3 x Peripheral
1 x Floppy | | | | AC Input | Voltage
100 - 240 V
Current
10 - 5 A
Frequency
50 - 60 Hz | | DC Output | +3.3 V, 20 A (100 W)
+5 V, 20 A (100 W)
+12 V, 62 A (744 W)
-12 V, 0.3 A (3.6 W)
+5 Vsb, 3 A (15 W) | | Continuous Power | 750 W | | | | Fan Size | 135 mm | | Fan Control | Premium hybrid fan control | | Fan Bearing | Fluid dynamic bearing | | Life Expectancy | 50,000 hours @ 40°C, 15 - 65% RH | | | | Operating Temperature | 32 - 122°F / 0 - 50°C
(derating from 100% to 80% from 104 - 122°F / 40 - 50°C) | | Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | | | | Protection | OPP, OVP, UVP, OCP, OTP, SCP | | MTBF | 150,000 hours | | Safety / EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE | | Dimensions | 5.5 x 3.4 x 5.9" / 140 x 86 x 150 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 13.0 x 8.0 x 5.0" |
