Product description The Prime Ultra Titanium Series 750W 80 Plus Titanium Modular ATX Power Supply from Seasonic is designed to provide high-end systems with clean, continuous power. The fully modular design allows you to connect the cables you need and store the rest for less cable clutter and improved airflow. It's built with a 135mm cooling fan and utilizes Seasonic's Hybrid Mode to keep it operating quietly and efficiently. This power supply is both SLI and Crossfire ready and includes plenty of cables and connectors for storage drives and peripherals. - Additional Accessories
- Included with the Prime Ultra series power supplies are a PSU tester and a SATA 3.3 adapter. The PSU tester lets you quickly and easily jump start the power supply, and the SATA adapter supports the "Power Disable" (PWDIS) feature on newer, high capacity hard drives.
- 80 Plus Titanium

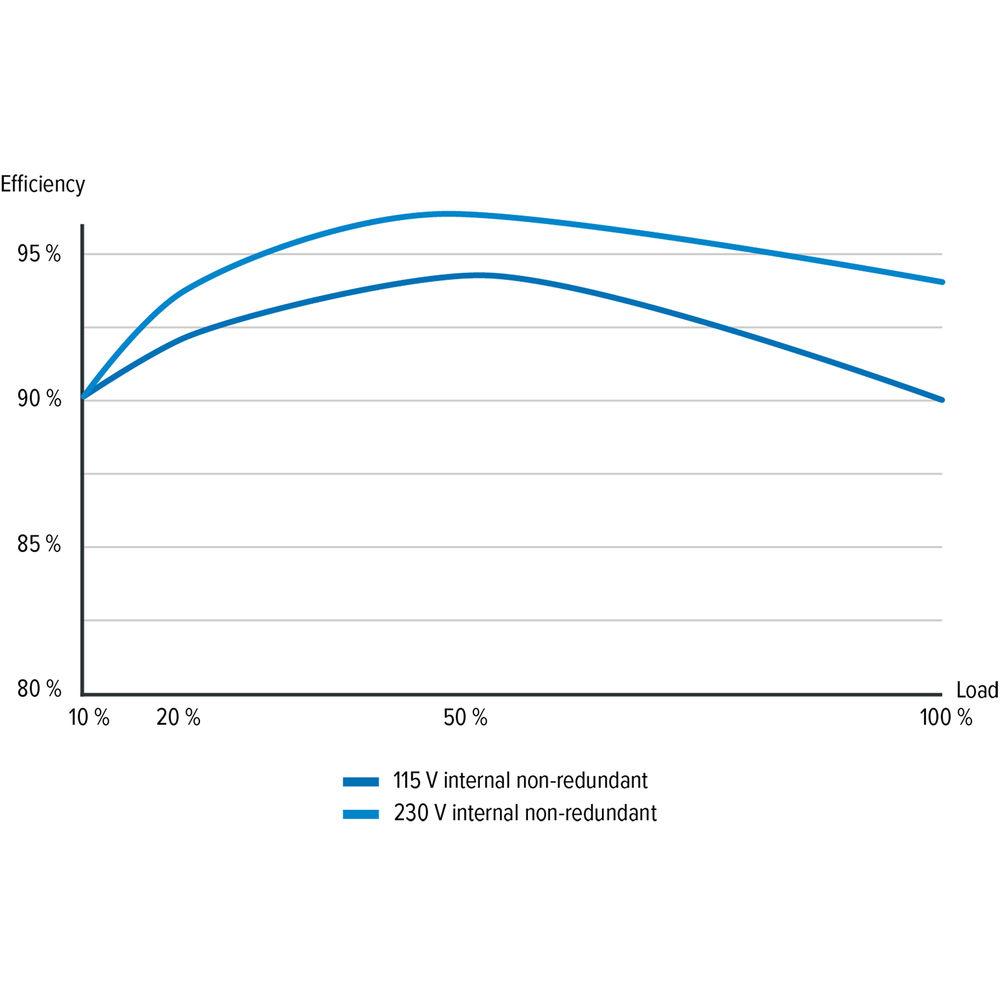

- The Prime Ultra Titanium series has an 80 Plus Titanium rating with a 94% efficiency rating at 50% system load.

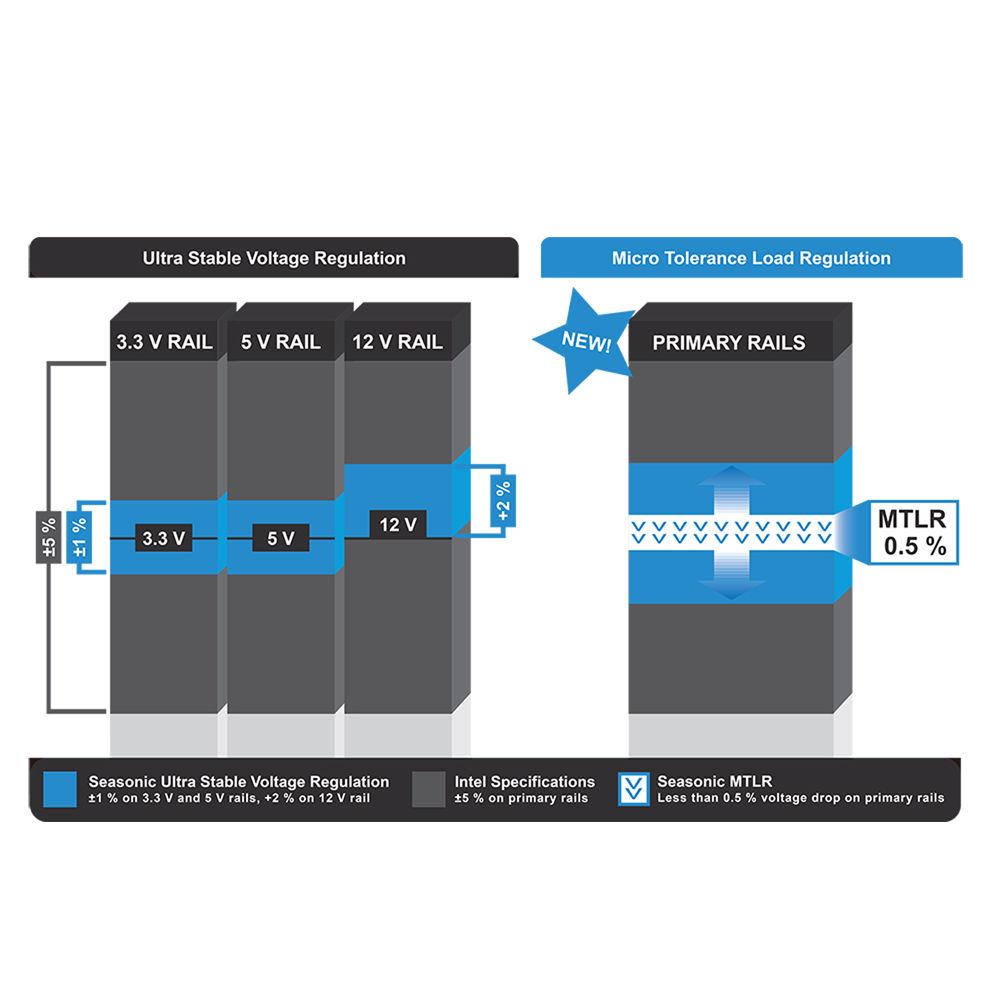

- Micro Tolerance Load Regulation
- Micro Tolerance Load Regulation keeps output voltage within a tight range of under 0.5% load regulation for stable power.
- Hybrid Fan Control

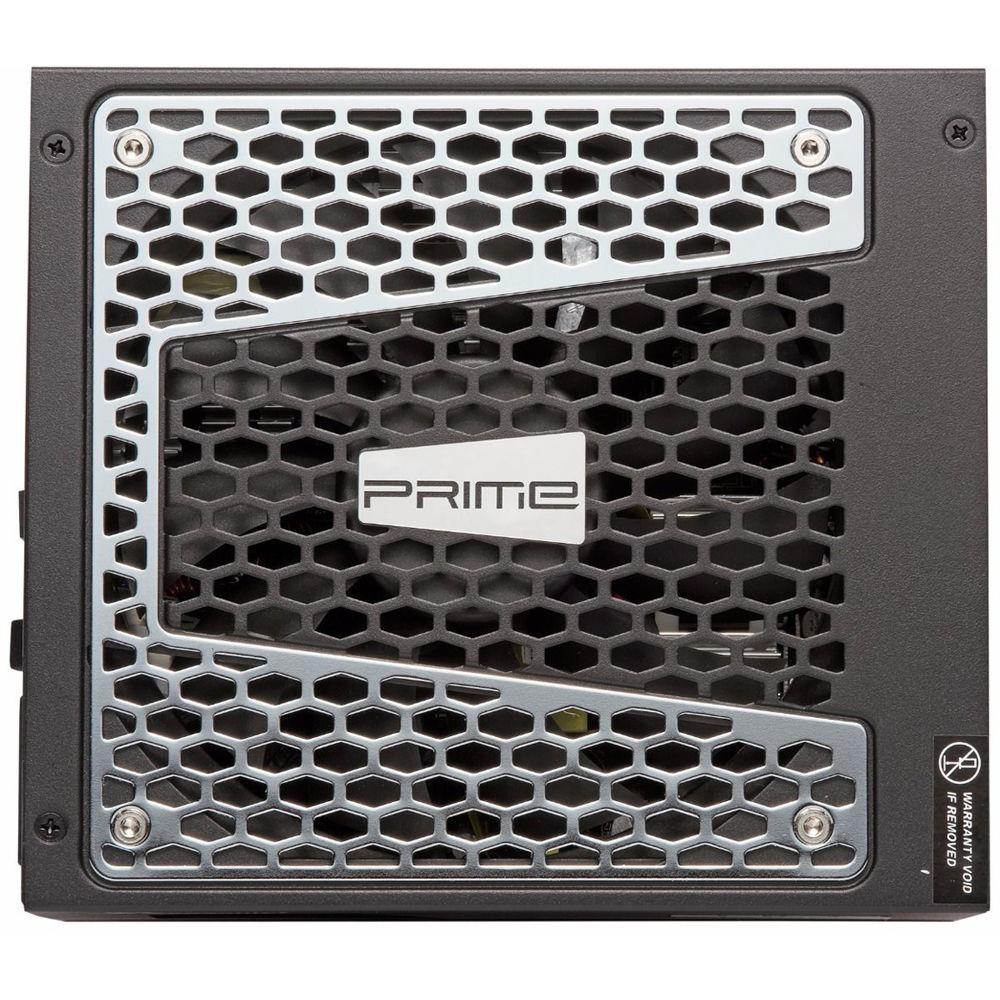

- Seasonic's Hybrid Fan Control provides you with silent and efficient cooling that doesn't kick in until it reaches 40% load.
- Cable-Free Connection Design

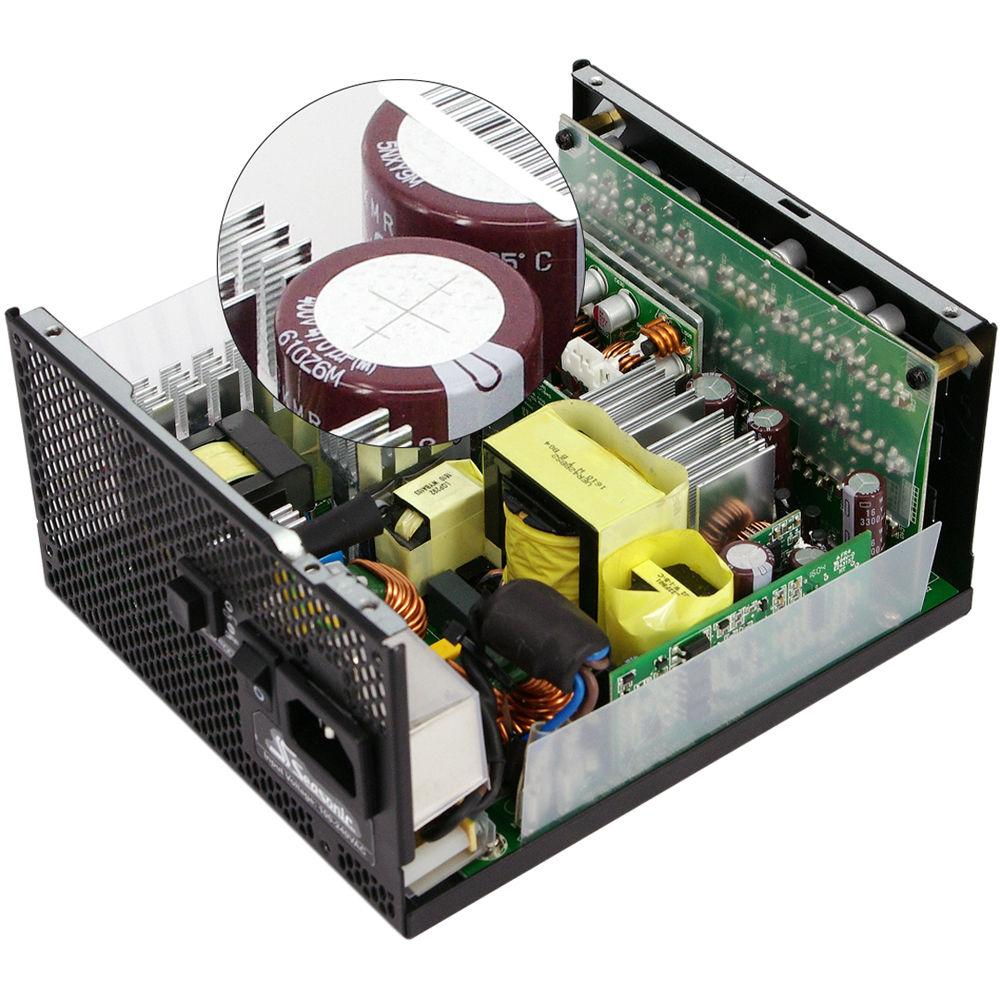

- Instead of cables, the back panel and PCB are connected by a copper plate to reduce production errors and improve output power quality.

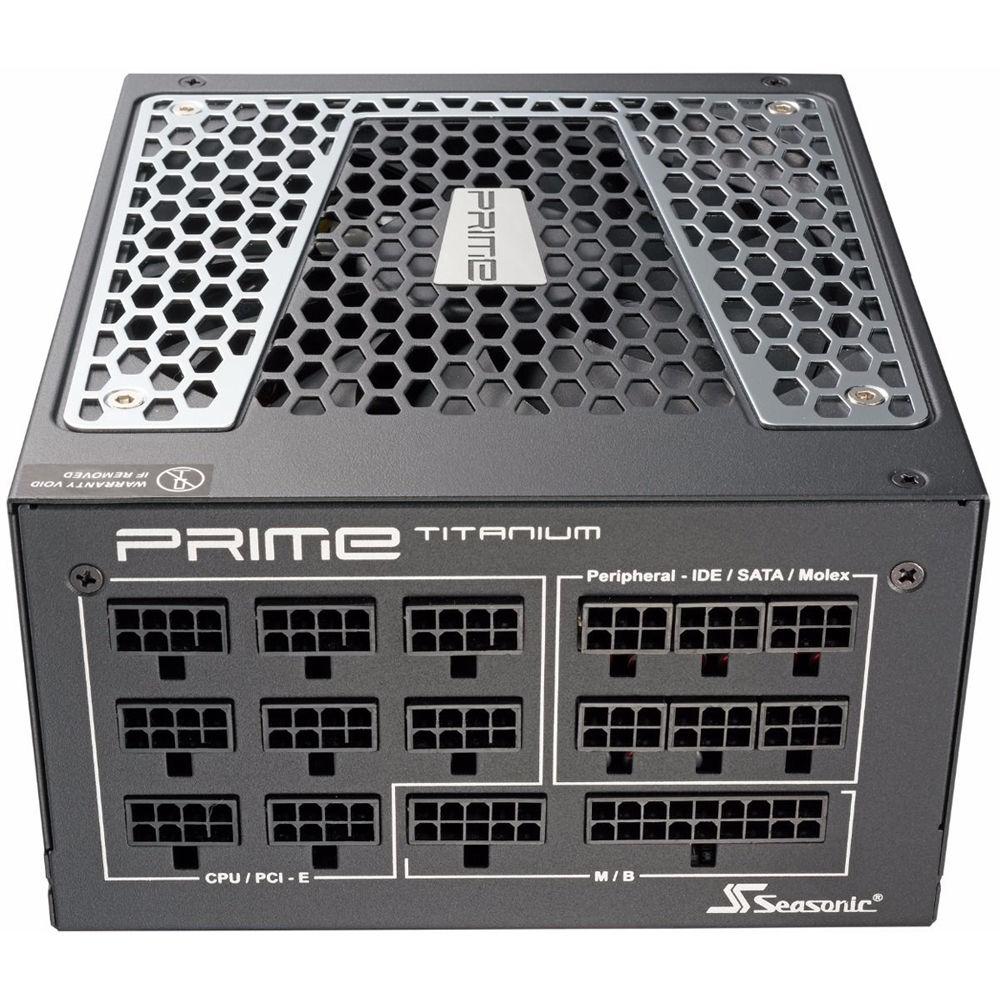

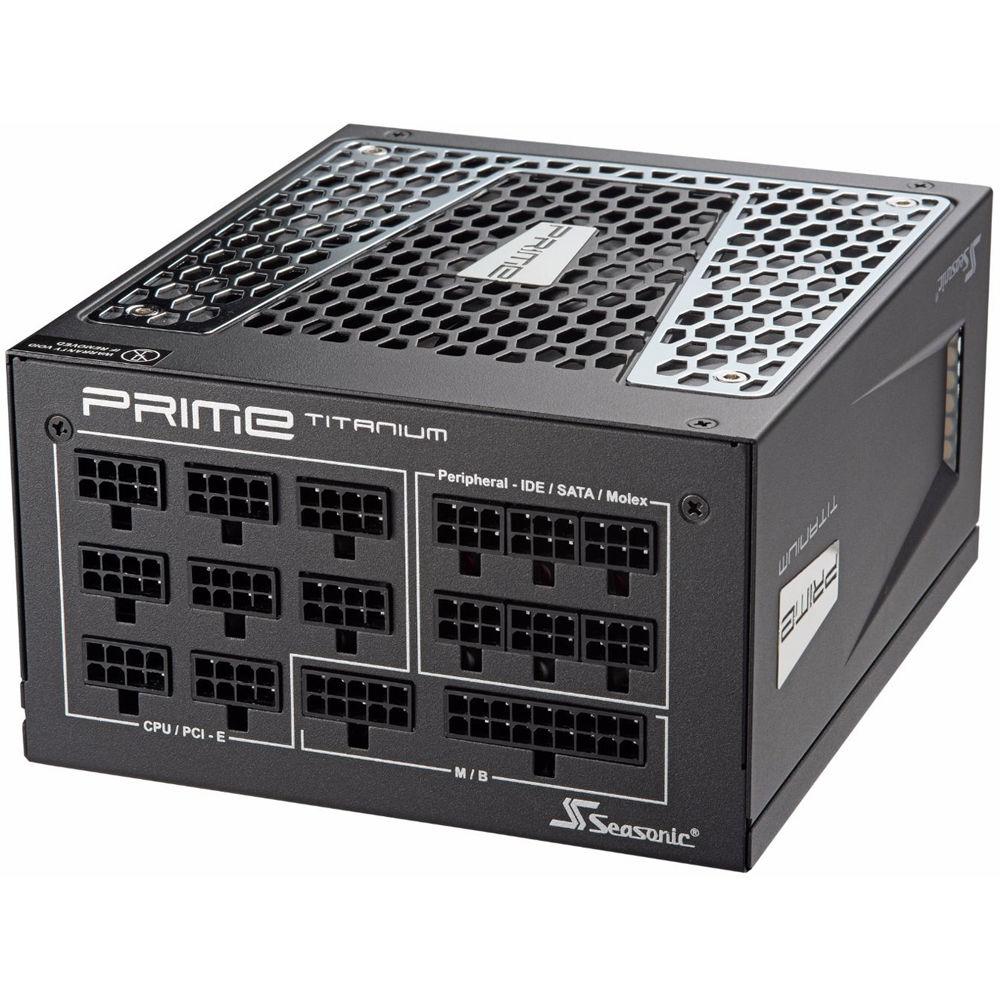

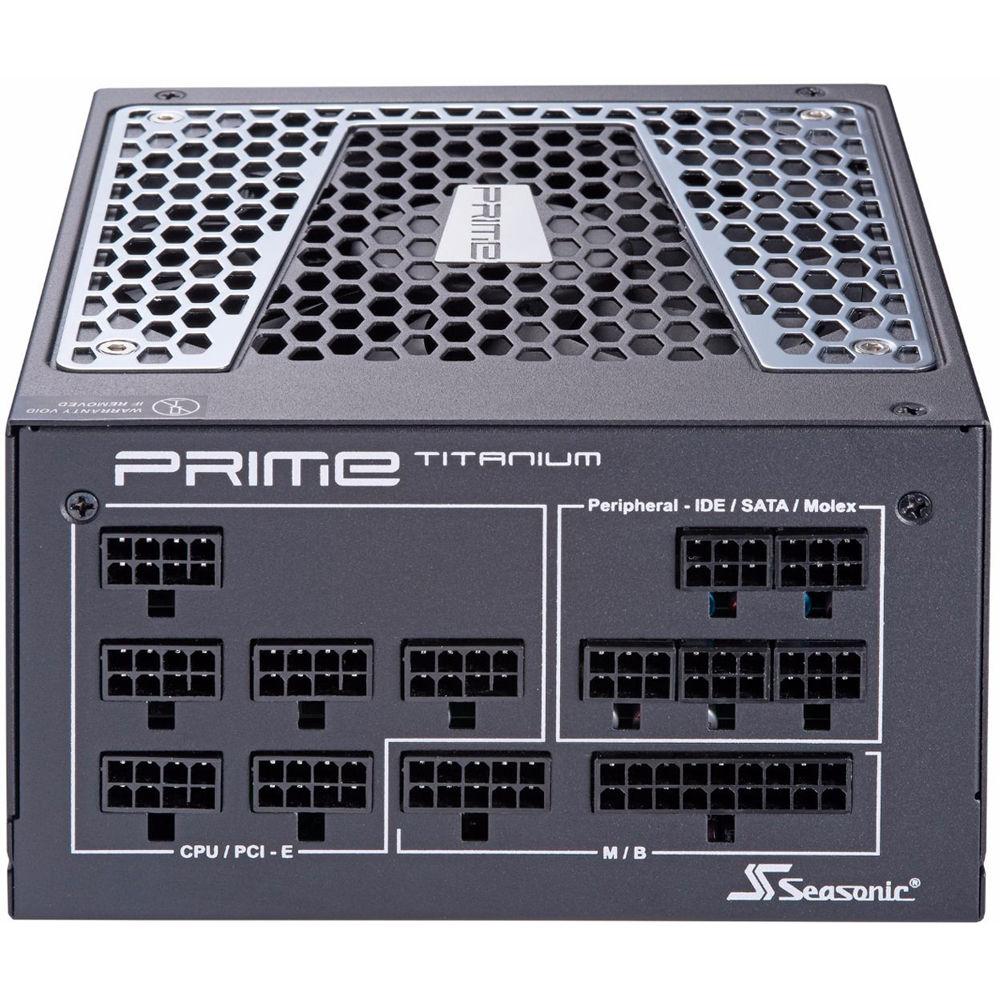

In the Box SeaSonic Electronics Prime Ultra Titanium Series 750W 80 Plus Titanium Modular ATX Power Supply 24/20-Pin ATX Connector 2 x 8/4-Pins CPU Connectors 4 x 8/6-Pin PCIe Connectors 10 x SATA Connectors 5 x Peripheral Connectors Floppy Connector PSU Tester SATA 3.3 Adapter Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics Prime Ultra Titanium Series 750W 80 Plus Titanium Modular ATX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics PRIME Ultra SSR-750TR Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
2 x 4+4-Pin CPU
4 x 6+2-Pin PCIe
10 x 15-Pin SATA
5 x 4-Pin Peripheral / Molex
1 x (Unspecified Pin Count) Floppy | | Cable Design | Flat, Modular | | PCIe Connector Distances | 29.5" / 750 mm | | SATA Connector Distances | 31.5" / 800 mm
29.9" / 760 mm
17.7" / 450 mm | | Peripheral Connector Distances | 27.2" / 690 mm
18.5" / 470 mm | | Floppy Connector Distances | 4" / 101 mm (Adapter) | | ATX Connector Distance | 24" / 610 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 750 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 744 W | | Max Load for +12 V | 62 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.5 to 9.5 A | | | | Efficiency Rating | 80 PLUS Titanium | | | | Fan Size | 135 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Fan Life Expectancy | 50,000 Hours | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Form Factor | ATX | | Compliance | ATX 12 V | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, EAC, ENERGY STAR, ErP Lot 6, REACH, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 150,000 Hours | | Dimensions | 6.7 x 3.4 x 5.9" / 170.0 x 86.0 x 150.0 mm | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 13.1 x 7.9 x 5.5" |
