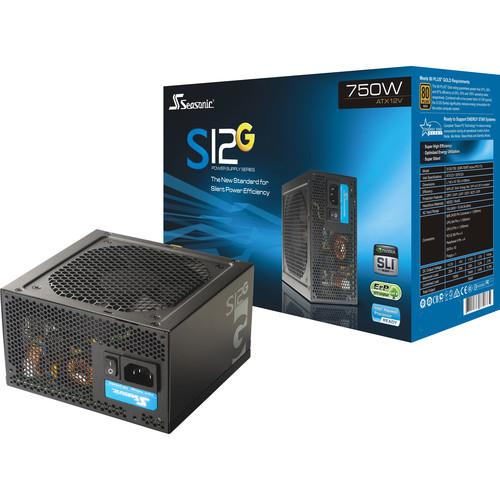

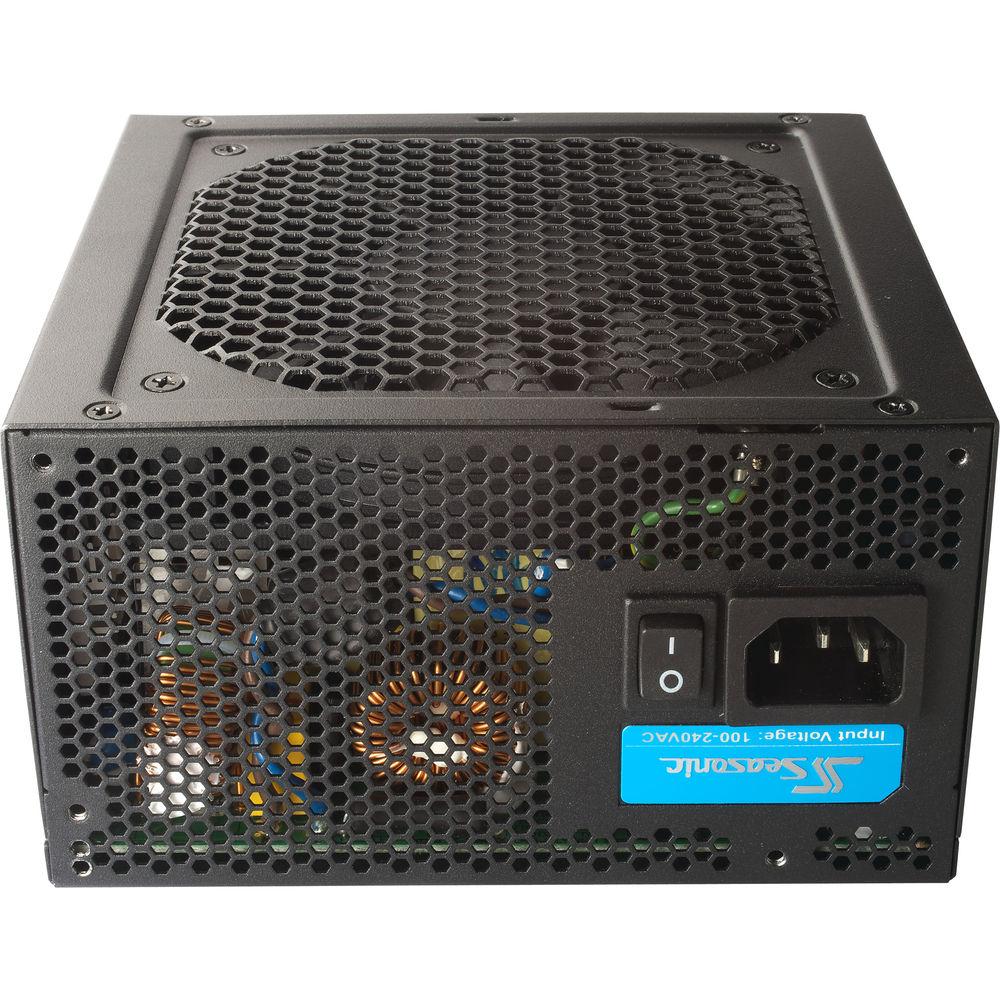

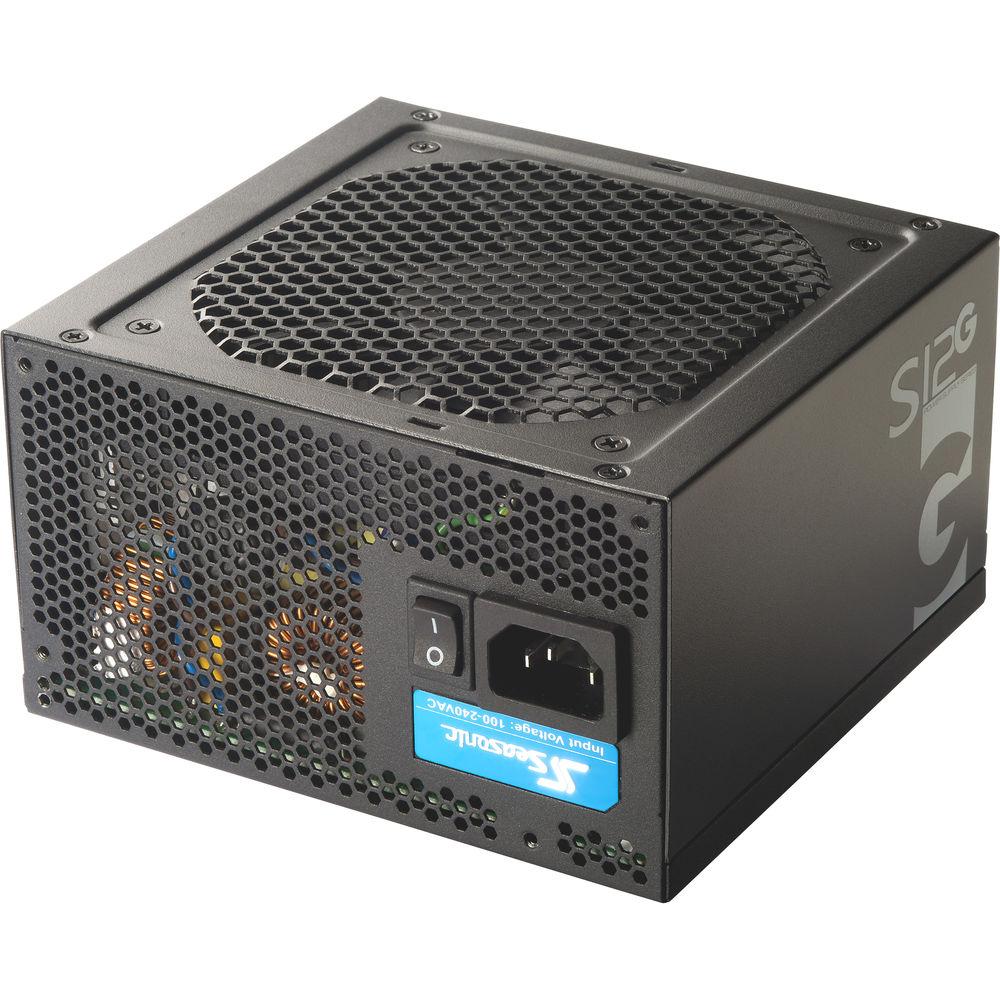

Product description The S12G Series SSR-750RT Active PFC F3 750W Power Supply Unit from Sea Sonic Electronics is designed for midrange PCs where reliability is essential. The unit comes with a 120mm double ball bearing fan that enables a longer life span for the power supply while reducing the noise output and fan rotation speed. It employs Smart & Silent Fan Control (S2FC) system that ensures balance between silence and cooling. The 80 PLUS Gold-certified power supply ensures up to 90% efficiency and power savings. In addition, it uses high-quality conductive polymer aluminum solid capacitors and 221°F (105°C) Japanese aluminum electrolytic capacitors, ensuring stable operation under extreme conditions and extended life. It is compliant with Intel ATX 12V and EPS 12V standards and supports dual 8-pin PCIe and dual 6-pin PCIe connectors. - 80 PLUS Gold efficiency ensures power savings with up to 90% efficiency
- DC to DC converter design provides high dynamic response and system stability, and maximizes the 12 VDC rail output
- High-quality conductive polymer aluminum solid capacitors and 221°F (105°C) Japanese aluminum electrolytic capacitors ensure operation stability under extreme conditions and extend the PSU's life
- Smart & Silent Fan Control (S2FC) ensures an optimal balance between silence and cooling
- Active PFC (power factor correction) up to 99% reduces line loss and power distortion
- High +12V current output capability increases utilization possibilities by ensuring that there is adequate power to support all the power-hungry system components
- 120mm double ball bearing fan increases airflow and product lifetime while reducing the noise output and fan rotation speed
- 6-pin and 8-pin PCIe connectors support all GPU platforms and multi-GPU installations
- Honeycomb shaped ventilation holes optimize airflow for improved cooling and reduced noise
- Gold-plated high current terminals reduce current transmission resistance for increased efficiency
- Full range 100 to 240 VAC input for safe use anywhere in the world
In the Box SeaSonic Electronics S12G Series SSR-750RT Active PFC F3 750W 80 PLUS Gold Certified Power Supply Unit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics S12G Series SSR-750RT Active PFC F3 750W 80 PLUS Gold Certified Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics S12G-750 SSR-750RT Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
1 x 8-Pin EPS
4 x 6+2-Pin PCIe
10 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 21.7" / 550 mm | | | | Total Wattage | 750 W | | Combined Power for +12 V | 744 W | | Max Load for +12 V | 62 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 to 10 A | | | | Efficiency Rating | 80 PLUS Gold | | | | Compliance | ATX 12 V, EPS 12 V | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | ENERGY STAR, ErP Lot 6, RoHS, WEEE, as per Manufacturer | | Dimensions | 5.5 x 5.9 x 3.4" / 14.0 x 15.0 x 8.6 cm | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 11.26 x 7.48 x 4.882" |
