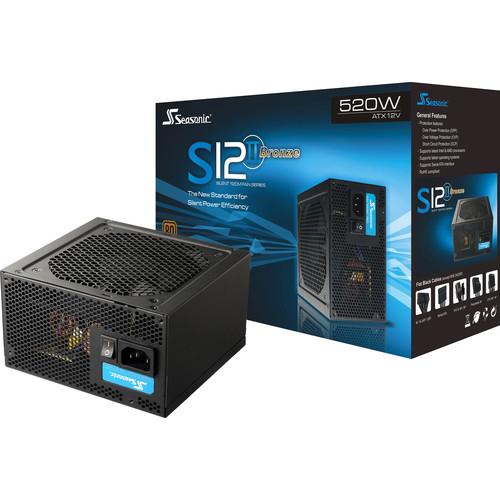

User Manual for SeaSonic Electronics S12II Series SS-520GB 520W 80 Plus Bronze Power Supply Click to enlarge the picture
Contents of the user manual for the SeaSonic Electronics S12II Series SS-520GB 520W
- Product category: Power Supplies SeaSonic Electronics
- Brand: SeaSonic Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaSonic Electronics Power Supplies
|
User manual for the SeaSonic Electronics S12II Series SS-520GB 520W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaSonic Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!
|
Product description The S12II Series SS-520GB 520W 80 Plus Bronze Power Supply from Sea Sonic Electronics is designed for basic desktop computers that require low noise and simple installation. It has a 80 Plus Bronze rating, ensuring up to 87% efficiency and power savings. The 120mm fluid dynamic bearing (FDB) fan utilizes Smart & Silent Fan Control for a balance between silence and cooling, and is built to last longer than traditional sleeve bearing fans. In addition, the unit uses high-quality 105°C Japanese aluminum electrolytic capacitors, ensuring stable operation under extreme conditions and extended life. Included are all the cables you would need for a standard system build; however, this power supply unit is not modular so you'll have to organize and hide any unused cables. - 120mm double ball bearing fan with FDB (Fluid Dynamic Bearing) for reduced noise output and extended fan life
- High-quality 105°C Japanese aluminum electrolytic capacitors ensure operation stability under extreme conditions and extend the PSU's life
- High +12V current output capability increases utilization possibilities by ensuring that there is adequate power to support system components
- Active PFC (power factor correction) up to 99% reduces line loss and power distortion
- Double forward converter design for high efficiency
- Smart & Silent Fan Control (S2FC) ensures an optimal balance between silence and cooling
- Honeycomb shaped ventilation holes optimize airflow for improved cooling and reduced noise
- All-in-one DC cabling design provides multifunctional support for PCs, IPCs, workstations, and server systems
- Easy swap connectors can be unplugged easily, quickly, and safely
- Full range 100 to 240 VAC input for safe use anywhere in the world
UPC: 882016000829 In the Box SeaSonic Electronics S12II Series SS-520GB 520W 80 Plus Bronze Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics S12II Series SS-520GB 520W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics SS-520GB Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 8-Pin EPS
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Flat | | PCIe Connector Distances | 21.7" / 550 mm
25.6" / 650 mm | | SATA Connector Distances | 15.7" / 400 mm
19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm | | Peripheral Connector Distances | 15.7" / 400 mm
19.7" / 500 mm
23.6" / 600 mm
27.6" / 700 mm | | Floppy Connector Distances | 3.9" / 100 mm (Adapter) | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 21.7" / 550 mm | | | | Total Wattage | 520 W | | Number of +12 V Rails | 2 | | Combined Power for +12 V | 480 W | | Max Load for +12 V | 20 A (Per Rail) | | Combined Power for +3.3/+5 V | 130 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 24 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 9.6 W | | Max Load for -12 V | 0.8 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 9 A | | | | Efficiency Rating | 80 PLUS Bronze | | | | Fan Size | 120 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Fan Life Expectancy | 50,000 Hours | | | | Operating Temperature | 104°F / 40°C | | | | Form Factor | ATX | | Compliance | ATX 12 V | | Protection | Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, C-Tick, CB, CCC, CE, ENERGY STAR, ErP Lot 6, FCC, REACH, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.5 x 5.9 x 3.4" / 14.0 x 15.0 x 8.6 cm | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 10.9 x 7.2 x 4.5" |
