SeaSonic Electronics Snow Silent-750 Active PFC 750W Power Supply Unit SeaSonic Electronics Snow Silent-750 Active PFC 750W Power Supply Unit SeaSonic Electronics Snow Silent-750 Active PFC 750W Power Supply Unit
User manual for the SeaSonic Electronics Snow Silent-750 Active PFC contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any SeaSonic Electronics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!



Product description

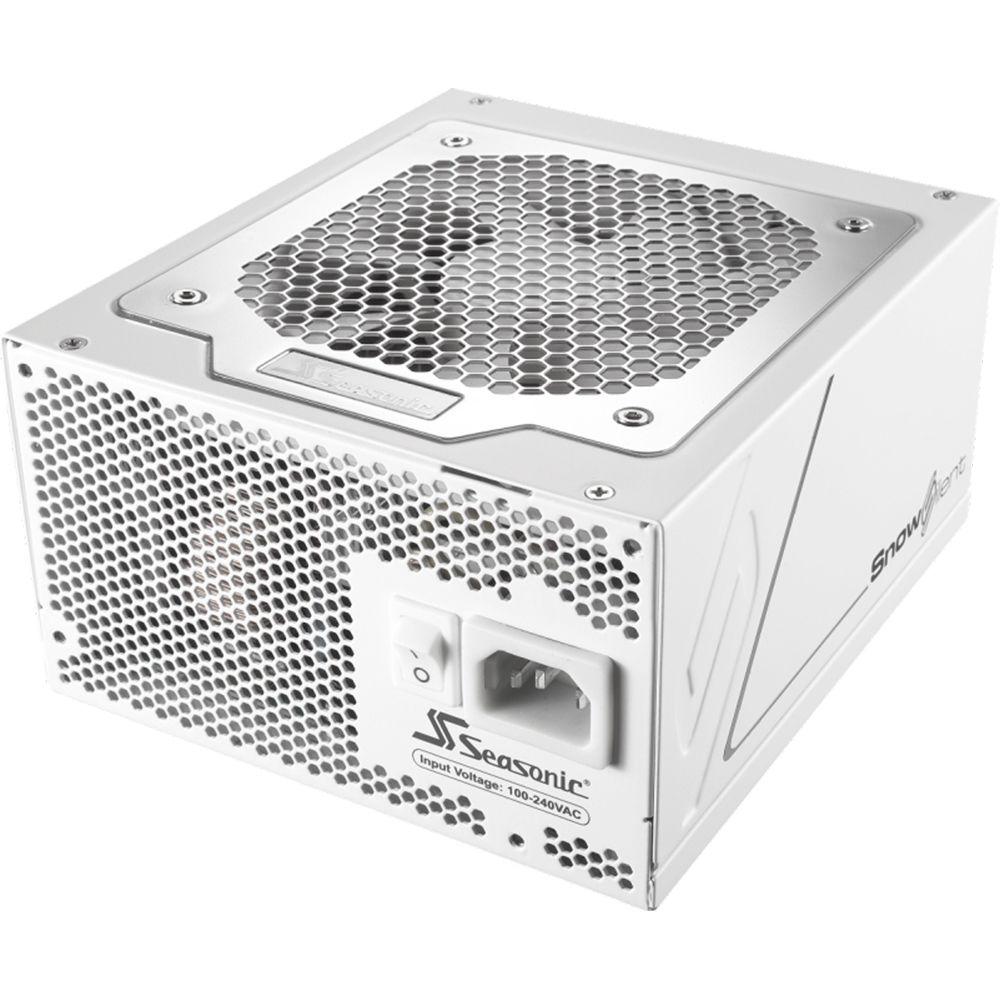

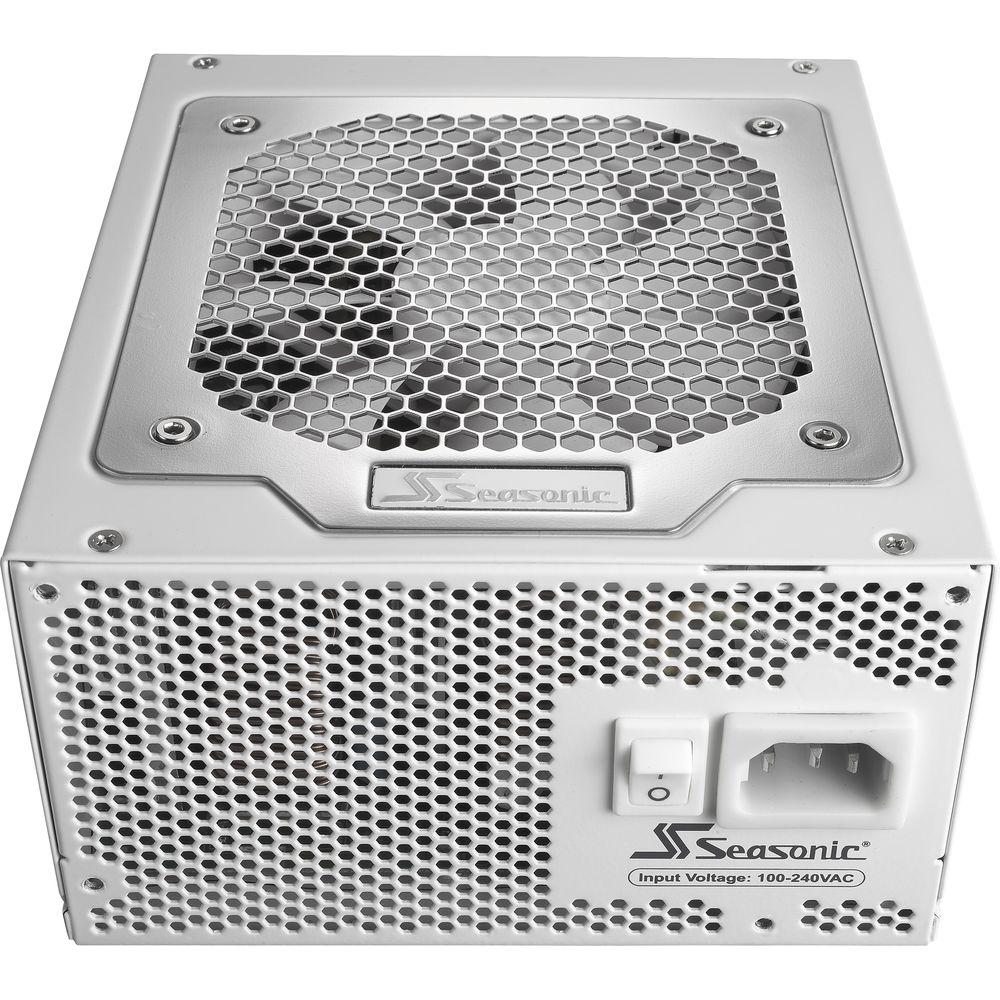

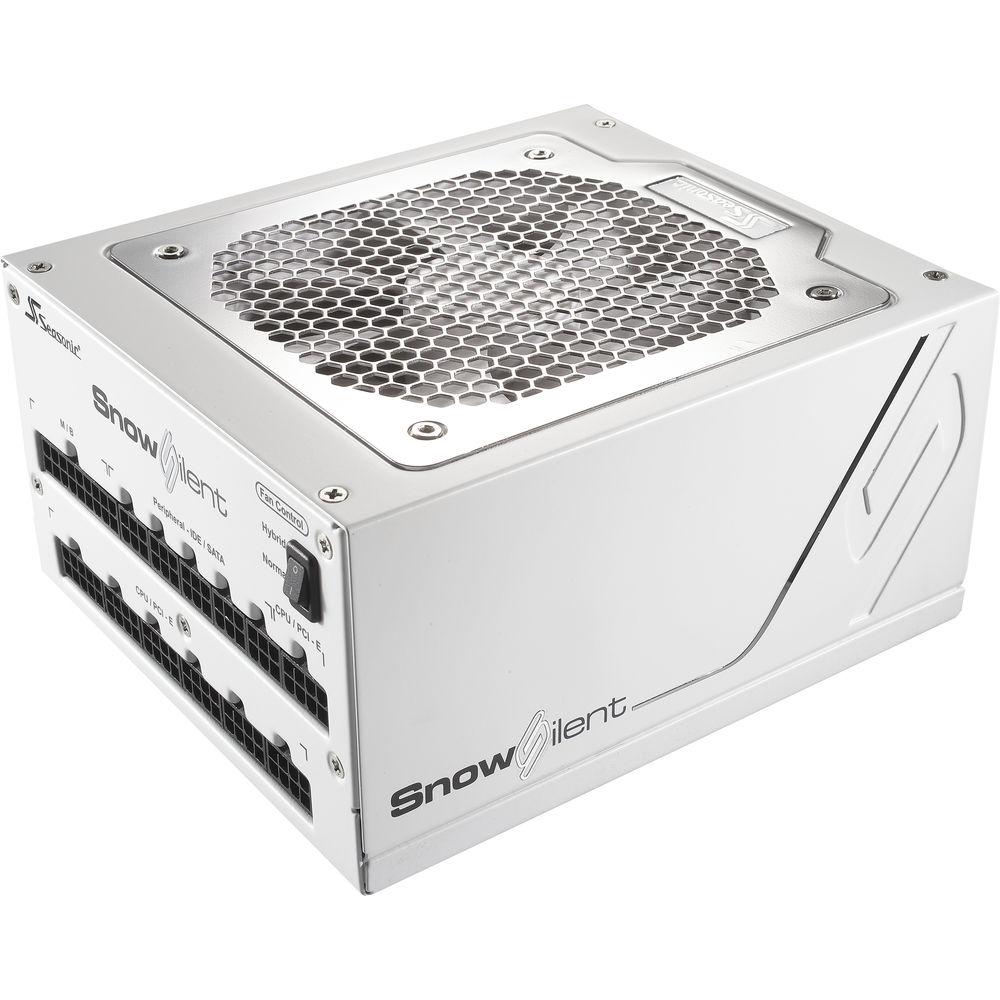

The Snow Silent-750 Active PFC 750W Power Supply Unit from Sea Sonic Electronics delivers reliable and stable power to your desktop's components. Besides the standard motherboard, floppy, and CPU power connectors, it also comes with four PCIe, five peripheral, and ten SATA connectors. To help improve the airflow within the case, you can remove the unused cables from the power supply. Furthermore, an 80 PLUS Platinum efficiency ensures power savings with up to 92% efficiency at 50% operating load.

This power supply unit employs a hybrid silent fan control to balance between silence and cooling. In addition, it uses high-quality conductive polymer aluminum solid capacitors and 221°F (105°C) Japanese aluminum electrolytic capacitors, ensuring stable operation under extreme conditions and extended life.
  • 80 PLUS Platinum efficiency ensures power savings with greater than 92% efficiency at 50% operating load
  • DC connector panel with integrated voltage regulator module (VRM)
  • DC to DC converter design
  • Dual copper bars
  • Active power factor correction (99% PF typical)
  • Conductive polymer aluminum solid capacitors
  • Highly reliable 221°F (105°C) Japanese aluminum electrolytic capacitors
  • Gold-plated high current terminals
  • Ultra-tight voltage regulation
  • +12V output
  • Dual-sided PCB layout
  • Hybrid silent fan control
  • Ultra ventilation (Honeycomb structure)
  • Full modular cabling design
  • Multi-GPU technology support
  • All-in-One DC cabling design
  • Easy-swap connector
  • Universal AC input (Full range)
In the Box SeaSonic Electronics Snow Silent-750 Active PFC 750W Power Supply Unit
  • Limited 7-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the SeaSonic Electronics Snow Silent-750 Active PFC 750W Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    SeaSonic Electronics SNOW SILENT 750 Specs

    Total Connectors 1 x 20+4-Pin Motherboard
    1 x 4+4-Pin EPS
    1 x 8-Pin EPS
    4 x 6+2-Pin PCIe
    10 x 15-Pin SATA
    5 x 4-Pin Peripheral / Molex
    1 x 4-Pin Floppy
    ATX Connector Distance 24" / 610 mm
    EPS Connector Distances 25.6" / 650 mm
    Total Wattage 750 W
    Combined Power for +12 V 744 W
    Max Load for +12 V 62 A
    Combined Power for +3.3/+5 V 125 W
    Max Load for +3.3 V 25 A
    Max Load for +5 V 25 A
    Max Power for +5 Vsb 15 W
    Max Load for +5 Vsb 3 A
    Max Power for -12 V 6 W
    Max Load for -12 V 0.5 A
    AC Input Power 100 to 240 VAC, 50 / 60 Hz at 4.5 to 9.5 A
    Efficiency Rating 80 PLUS Platinum
    Compliance ATX 12 V, EPS 12 V
    Protection Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
    Certifications ENERGY STAR, ErP Lot 6, RoHS, WEEE, as per Manufacturer
    Dimensions 6.7 x 5.9 x 3.4" / 170.0 x 150.0 x 86.0 mm
    Package Weight 8.05 lb
    Box Dimensions (LxWxH) 13.9 x 8.0 x 5.3"
