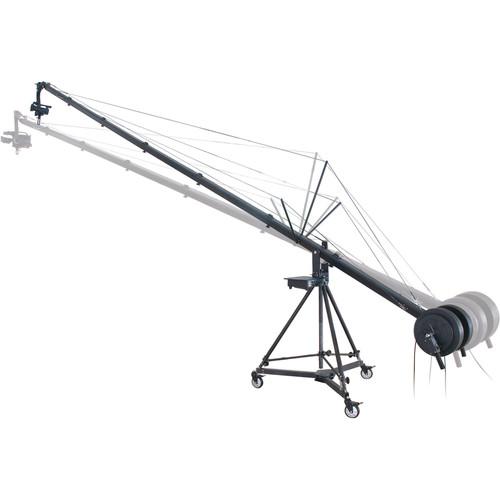

User Manual for Secced 6M Travelling Crane for DV Camcorders Click to enlarge the picture
Contents of the user manual for the Secced 6M Travelling Crane for DV
- Product category: Cranes & Jibs Secced
- Brand: Secced
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Secced Cranes & Jibs
|
User manual for the Secced 6M Travelling Crane for DV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Secced product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Secced user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Secced product will considerably shorten its lifespan!
|
Product description The Secced 6M Travelling Crane is a camera jib with 18’ total arm length and 15.4’ maximum lens height. It offers complete remote control of pan-tilt head and is designed for use with LANC-enabled Canon/Sony (H)DV camcorders and Panasonic DV and HD handheld camcorders. The jib's main components are the Jib arm, Pan-Tilt Remote Head, Controllers (control box and remote control bars for head and camera), Tripod, and Dolly. The complete Traveler jib set fits into two hard cases (one larger roller case and a smaller suitcase).The jib comes with a slip ring for remote head pan movement. The HD signal can pass through the slip ring, which means the remote head can output the HD signal. The remote head has max payload of 22 lb. You can control the pan and tilt movement of the remote head and also adjust the speed and damp of pan and tilt movement.The DV controller can control both Sony/Canon camcorders with LANC jack and Panasonic handheld-type (ProLine) DV and HD cameras with "REMOTE" labeled jack (HVX/HPX/HMC/DVX/DVC Series). For Sony and Canon DV/ HDV cameras, it offers functions such as of control zoom/focus, power on/off, Fader, back light on/off, and start/stop recording. For Panasonic DV/HD cameras, the controller offers functions such as control of zoom/focus/iris and start/stop recording (available functions may depend on the camcorders). The crane system features tilt and pan lock for safety and a V-mount interface for attaching a battery. UPC: 736902393550 In the Box Secced 6M Travelling Crane for DV Camcorders DV Camera Controller (Secced JIB6-DV Bar) Remote Head Controller (Secced JIB6 Head Bar) Remote Head Control Box 19.6' Main Cable (Secced JIB6-10) Pan/Tilt Motor (Secced JIB6-01) Bounding Strap (Secceed JIB6-20) Screws for Pan/Tilt Motor (Secced JIB6-21) AC/DC Cables Adapter Crane Arm with 100mm Bowl and Arm Extension (with Screws) Central Pivot Section Tripod and Dolly Turnbuckle Screw Connecting Ring Balance Steel Cable Tension Steel Cable Large Hard Case (Roller) Hard Case (Suitcase) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Secced 6M Travelling Crane for DV Camcorders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecced 3-065 Specs | Construction | Steel and aluminum | | Speed | Remote Head: 360 in 5 sec (maximum), 360 in 5 minutes (minimum) | | Payload Capacity | Remote Head: 22 lb (10 kg) | | Counterbalance System | Round weights | | Height Range | Crane
Tripod Height Range: 4.8 to 5.7' (1.47 to 1.75 m) | | Reach | Crane: 14.37' (4.38 m) | | Tilt Lock | Yes | | Tilt Drag | Yes | | Pan Lock | Yes | | Spring Loaded Counter Balance | One Setting | | Pan Range | Remote Head: Unlimited | | Tilt Range | Remote Head: 720°
Crane: -70/60° | | Tripod Attachment | Secced Crane specific | | Head Attachment | Not specified by the manufacturer | | Head Arm Leveling | Manual | | Leveling Indicators | None | | Fold Down | 55" (1397 mm) | | Height | Crane
Lens Height: 15.38' / 4.69 m (maximum), -8.8' / -2.69 m (minimum) | | Electrical | Power Input: 95 to 265 VAC or 12 to 17 VDC (Adapter)
Power Output: 13.5 VDC | | Dimensions | Crane
Total Length: 19.29' (5.88 m)
Flight Case 1: 4.36 x 1.31 x 1.31' (133 x 40 x 40 cm)
Flight Case 2: 1.9 x 1.47 x 0.72' (60 x 45 x 22 cm) | | Weight | Remote Head: 10.2 lb (4.6 kg)
Transportation (Excluding Counterweight): 187.4 lb (85 kg) |
