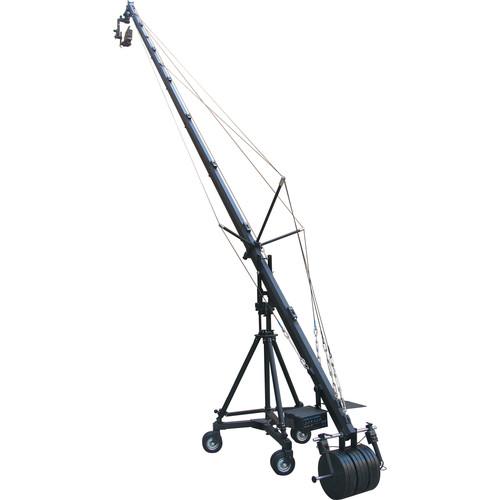

User Manual for Secced 9.6M Superman Crane Click to enlarge the picture
Contents of the user manual for the Secced 9.6M Superman Crane
- Product category: Cranes & Jibs Secced
- Brand: Secced
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Secced Cranes & Jibs
|
User manual for the Secced 9.6M Superman Crane contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Secced product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Secced user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Secced product will considerably shorten its lifespan!
|
Product description The Secced 9.6M Superman Crane is a camera jib with 26.5’ total arm length and 22.6’ maximum lens height. The jib comes with a slip ring for remote head pan movement and is designed for use with an ENG format camera with a Canon or Fuji lens.The remote head has a max payload of 44 lb. You can control the pan and tilt movements of the remote head and also adjust the speed and damp of pan and tilt movements. It can control either Canon or Fuji lenses and offers zoom/focus/iris control, and zoom-speed adjustments. It can also reverse the direction of zoom and focus.
The crane system features a tilt and pan lock for safety and comes with a heavy-duty tripod and dolly for stability. The crane also comes with a base and post. The crane system features a V-mount interface for attaching a battery. The crane system can be used for drama and movie production, concerts, reality shows etc. It either can be used in a big studio or for shooting outdoors such as OB of large shows or sport events. UPC: 736902394472 In the Box Secced 9.6M Superman Crane Lens Motor Canon Lens Gear Fujinon Lens Gear Lens Motor Frame Lens Control Cable Lens Conversion Cable Power Cable Video Cable Tube Joint Knob Pan/Tilt Motor Remote Head Bounding Strap Remote Head Mounting Screw 3/8" Screw 2 x 1/4" Screw Tilt Shaft Title Gear of Remote Head Main Cable Control Box 2 x Controller Dolly Wheel Clamp Control Box PP Lens Control PP Remote Head Control PP Dolly Wheel Balance Steel Cable Side Steel Cable Top Steel Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Secced 9.6M Superman Crane in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecced 3-068 Specs | Construction | Steel and aluminum | | Payload Capacity | 44 lb (20 kg) | | Counterbalance System | Round weights | | Column | Distance from Column to End: 4.9' (1.5 m) | | Reach | Arm: 26.5' (8.1 m) | | Tilt Lock | Yes | | Tilt Drag | Yes | | Pan Lock | Yes | | Spring Loaded Counter Balance | One Setting | | Tilt Range | 55/45° | | Tripod Attachment | Secced Crane specific | | Head Attachment | Not specified by the manufacturer | | Head Arm Leveling | Manual | | Leveling Indicators | None | | Height | Lens Height: 22.6' / 6.9 m (maximum), 17.7' / 5.4 m (minimum) | | Height | Column (with Tripod Dolly): 5.67' (1.73 m) | | Width | Dolly: 2.6' (0.82 m) | | Weight | Not specified by the manufacturer |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
