User Manual for Secced Cinekit 3 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head Click to enlarge the picture
Contents of the user manual for the Secced Cinekit 3 Kit with Two-Stage
- Product category: Tripod Systems Secced
- Brand: Secced
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Secced Tripod Systems
 |
User manual for the Secced Cinekit 3 Kit with Two-Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Secced product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Secced user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Secced product will considerably shorten its lifespan!
|

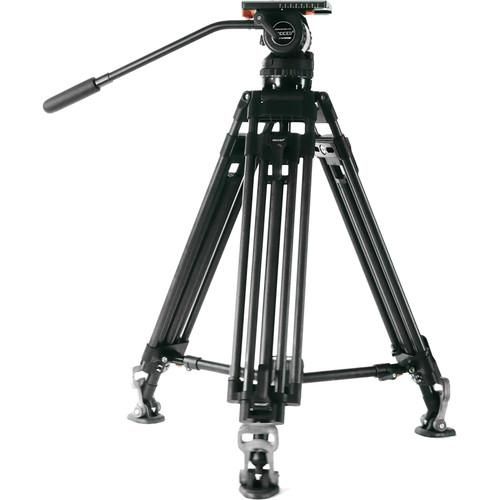

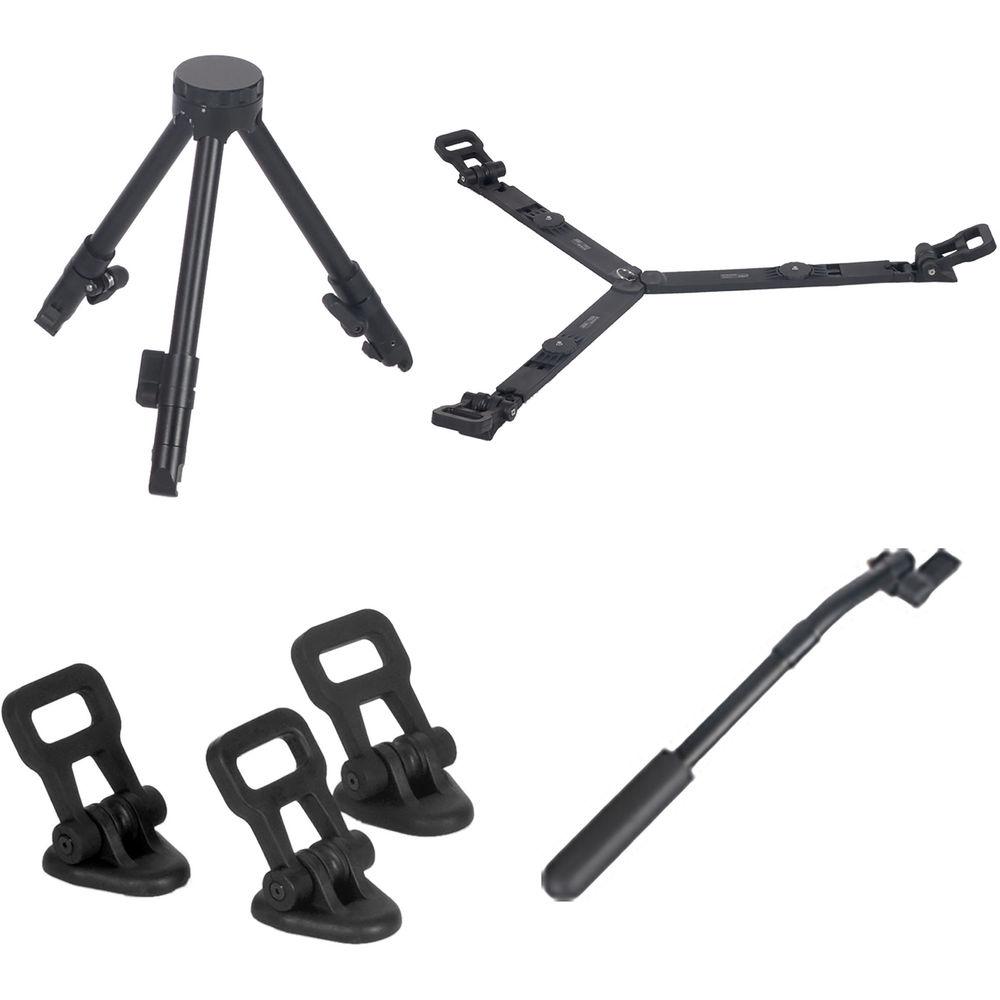

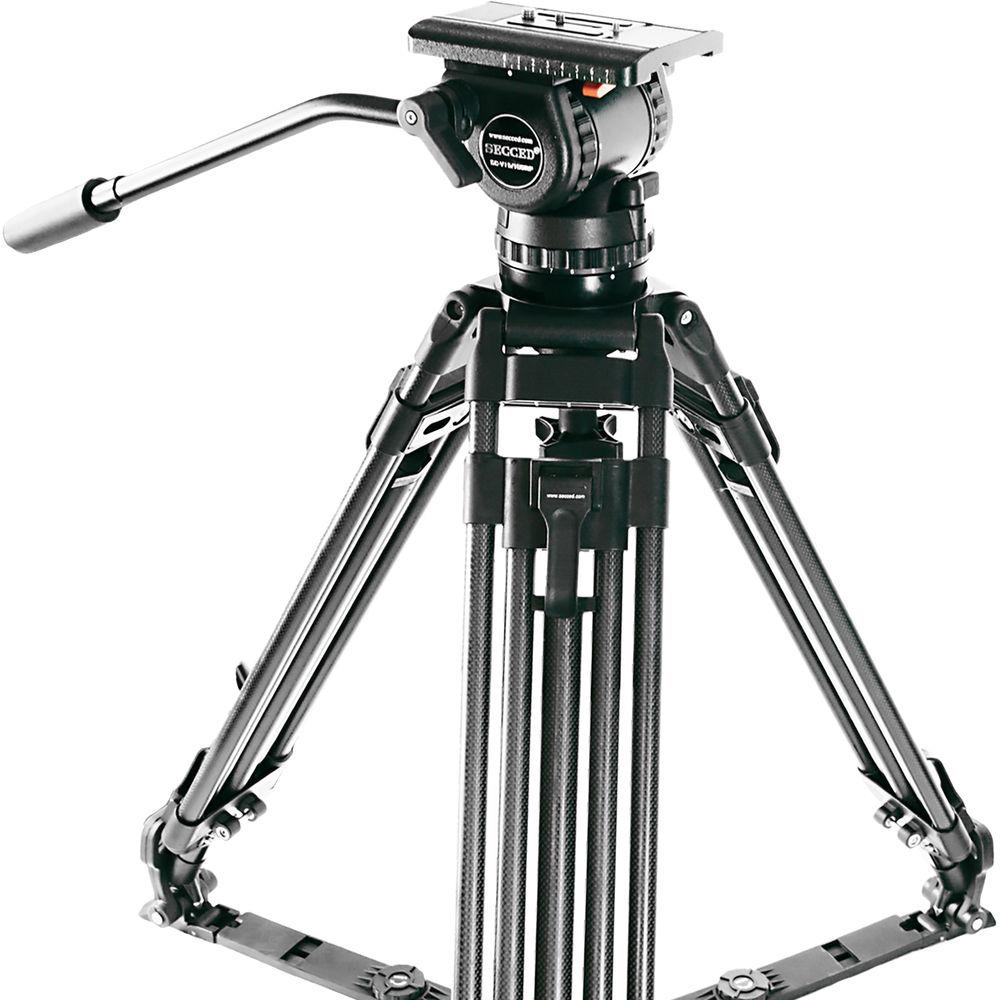

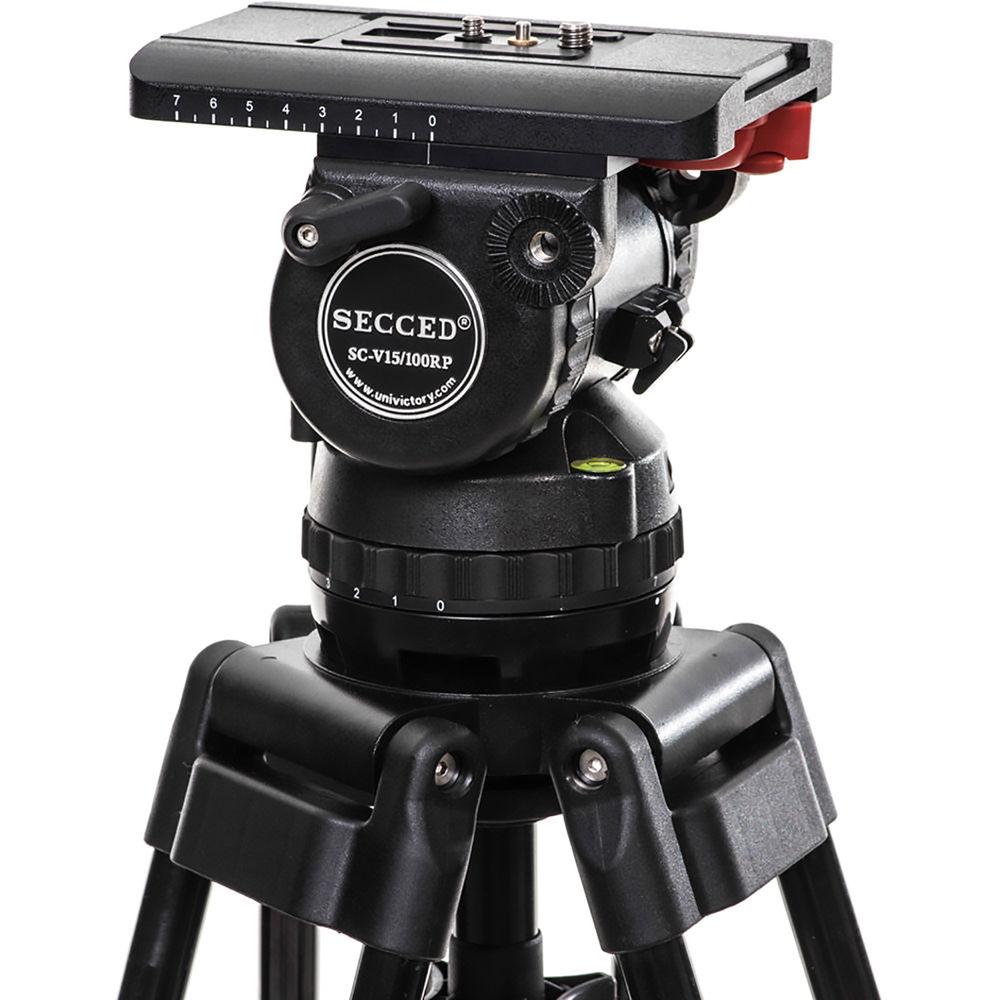

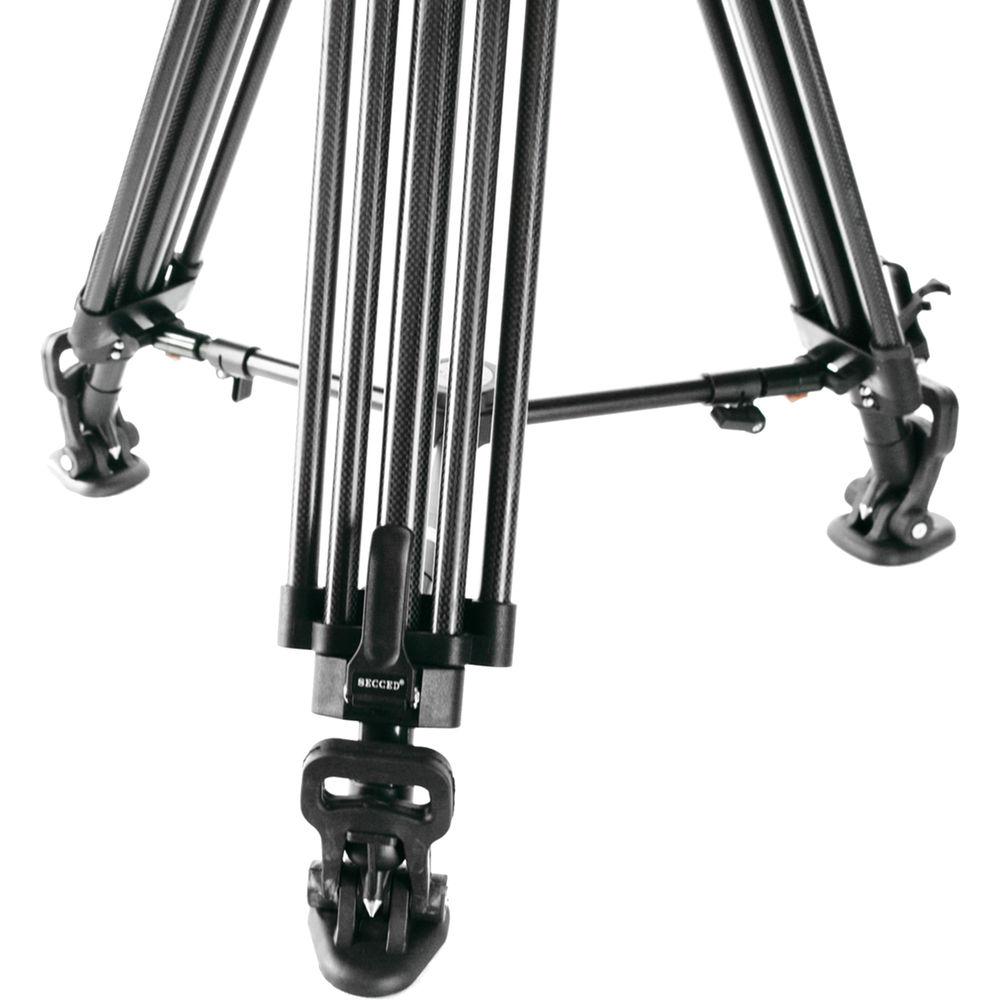

Product description The Secced Cinekit 3 Kit from Cinegears comprises of the SC-ENG/CF100D two-stage carbon fiber video tripod with ground and off-ground spreaders, a set of rubber feet, SC-V15/100RP fluid video head, and the SC-PB15 pan bar. This tripod system offers a maximum payload of up to 45.9 lb, with support for portable broadcast camcorders in ENG configuration. The video head mounts on the tripod via the 100mm integrated ball. The two-stage carbon fiber tripod comes with a traditional build (top and middle sections are twin-tubed), features a speed locking system that ensures quick setup, and comes equipped with a ground spreader and an off-ground spreader. The legs can be adjusted to provide a height ranging from 18.9 to 61.0" with the ground spreader, and 21.7 to 59.4" with the off-ground spreader. The lightweight tripod offers adequate torsion rigidity, which is essential for achieving smooth camera movements, and determines how resistant the tripod is to twisting mechanical influences during pan.The fluid head of the Cinekit 3 system features a balance adjustment lever designed to duplicate the available counterbalance steps. Its drag system provides a smooth operation with graded adjustment for fast change of tilt and pan drag. The head also features a quick release mechanism that ensures quick mounting or dismounting of the camera. It features a 100mm integrated ball, and all main parts are made from high-quality CNC machine, ensuring reliability and improving fluid head performance substantially. High-quality hard plastic is used in the manufacturing of all plastic parts of the head, enhancing rigidity under all types of production conditions. UPC: 736902393895 In the Box Secced Cinekit 3 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head SC-ENG/CF100D Two-Stage CF Tripod SC-V15/100RP Fluid Head SC-PB15 Pan Bar Ground Spreader Off-Ground Spreader 3 x Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Secced Cinekit 3 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecced 3-060 Specs | | | Payload | Maximum: 45.9 lb (20.8 kg) | | Adjustable Height Range | 29.5 to 67.7" (75 to 172 cm) | | Bowl Diameter | 100 mm | | Transport Length | 35.4" (90 cm) | | Weight | 19.8 lb (8.9 kg) | | | | Payload | Maximum 46 lb (20.9 kg) at 3" (75 mm) center of gravity
Maximum 37.9 lb (17.2 kg) at 4" (100 mm) center of gravity
Maximum 33.9 lb (15.4 kg) at 5" (125 mm) center of gravity
Maximum 30 lb (13.6 kg) at 6" (150 mm) center of gravity | | Counterbalance Steps | 0 to 15 | | Slide Range | 70 mm | | Pan & Tilt Drag | 0 to 7 | | Tilt Range | -75° / +90° | | Tripod Fitting | 100 mm | | Weight | 8.4 lb (3.8 kg) | | | | Payload | Maximum: 77.2 lb (35 kg) | | Bowl Diameter | 100 mm | | Extension | Double | | Material | Carbon fiber | | Transport Length | 29.5" (75 cm) | | Adjustable Height Range | With Ground Spreader: 18.9 to 61.0" (48 to 155 cm)
With Off-Ground Spreader: 21.7 to 59.4" (55 to 151 cm) | | Weight | With Ground Spreader: 11 lb (5 kg) | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 38.5 x 38.0 x 9.0" |
