User Manual for Secced Cinekit 4 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head Click to enlarge the picture
Contents of the user manual for the Secced Cinekit 4 Kit with Two-Stage
- Product category: Tripod Systems Secced
- Brand: Secced
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Secced Tripod Systems
 |
User manual for the Secced Cinekit 4 Kit with Two-Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Secced product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Secced user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Secced product will considerably shorten its lifespan!
|

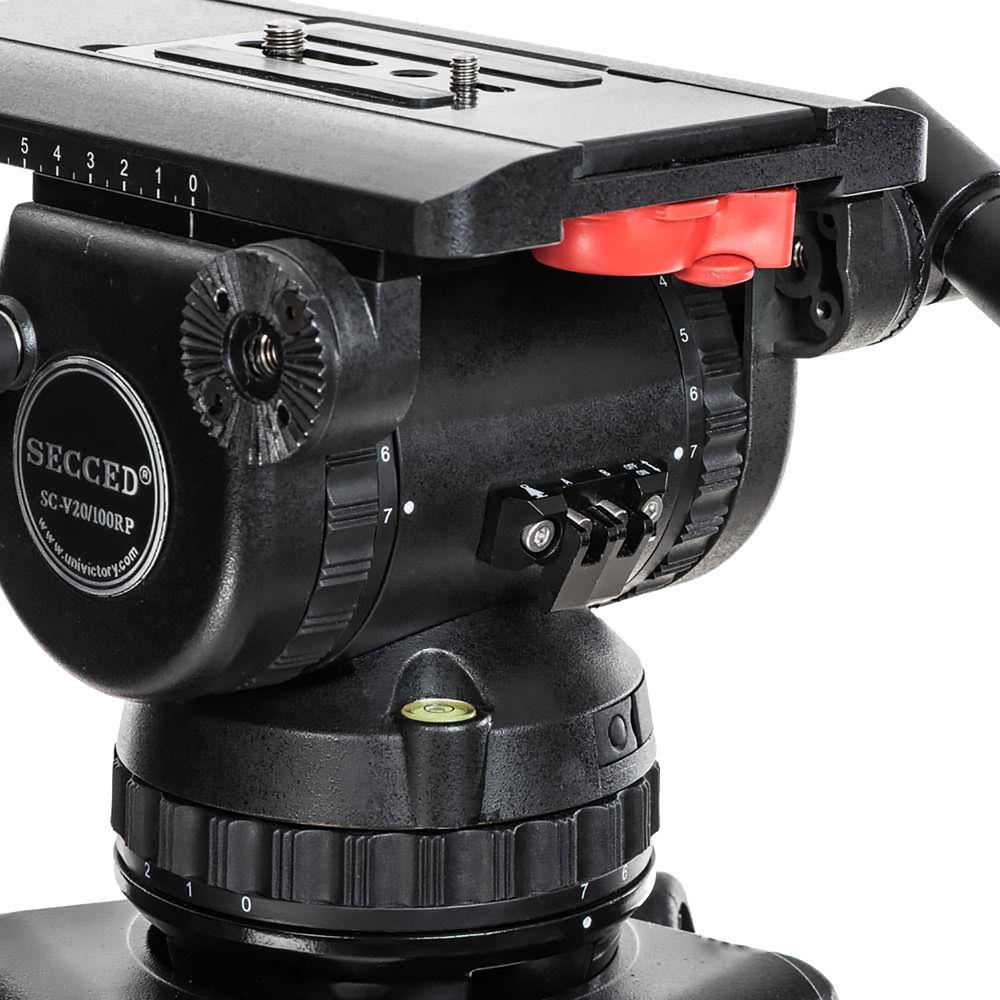

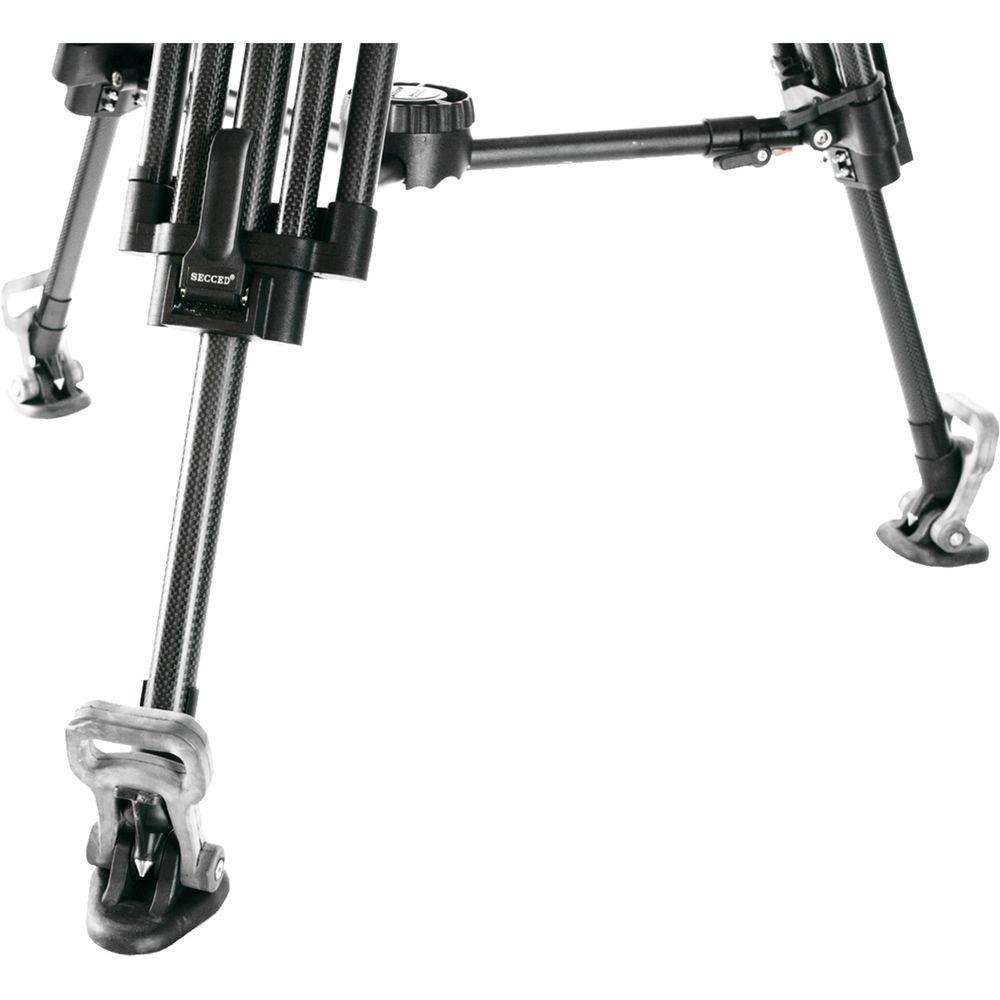

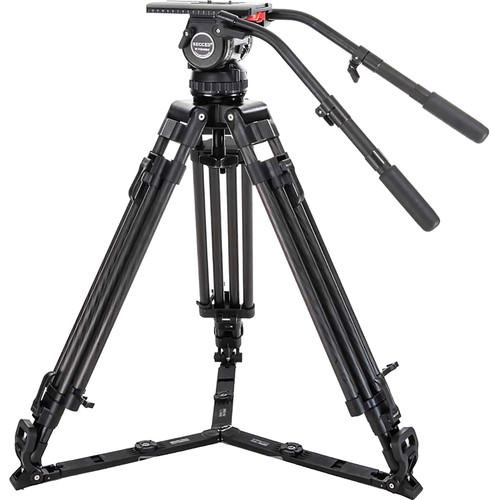

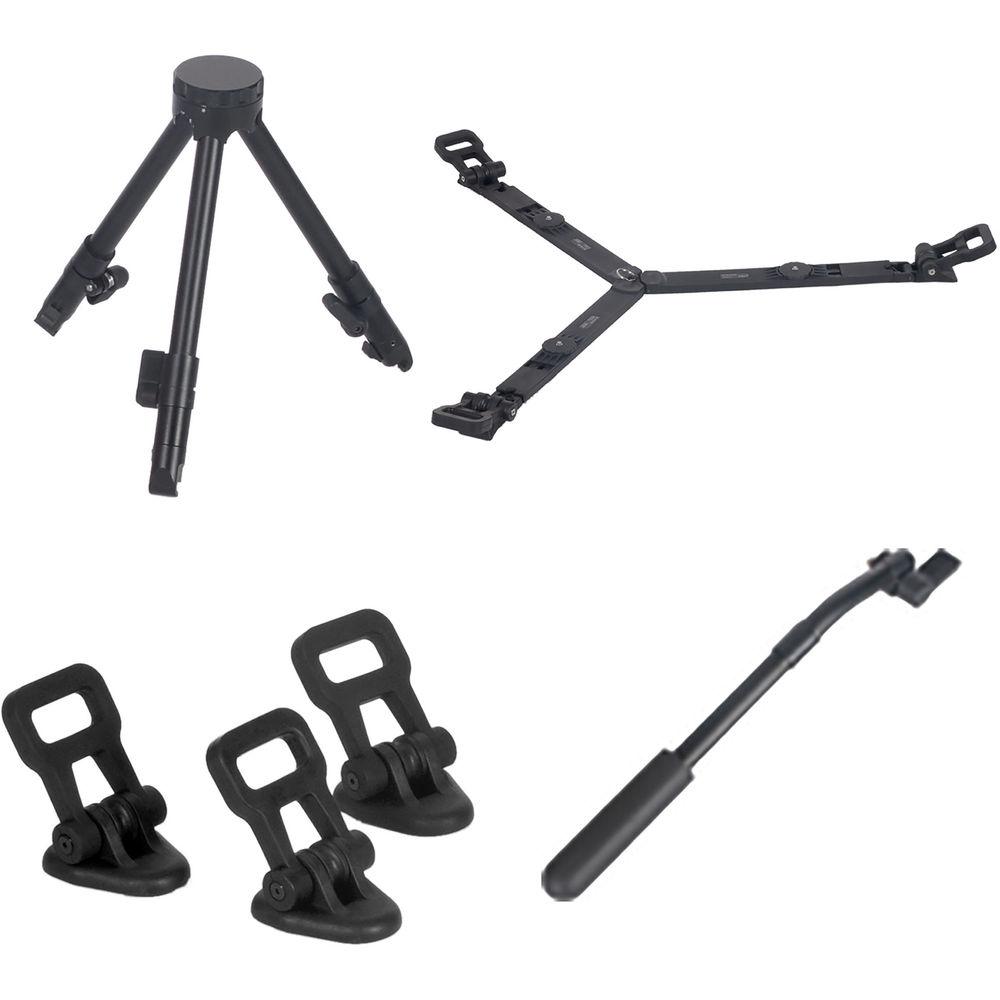

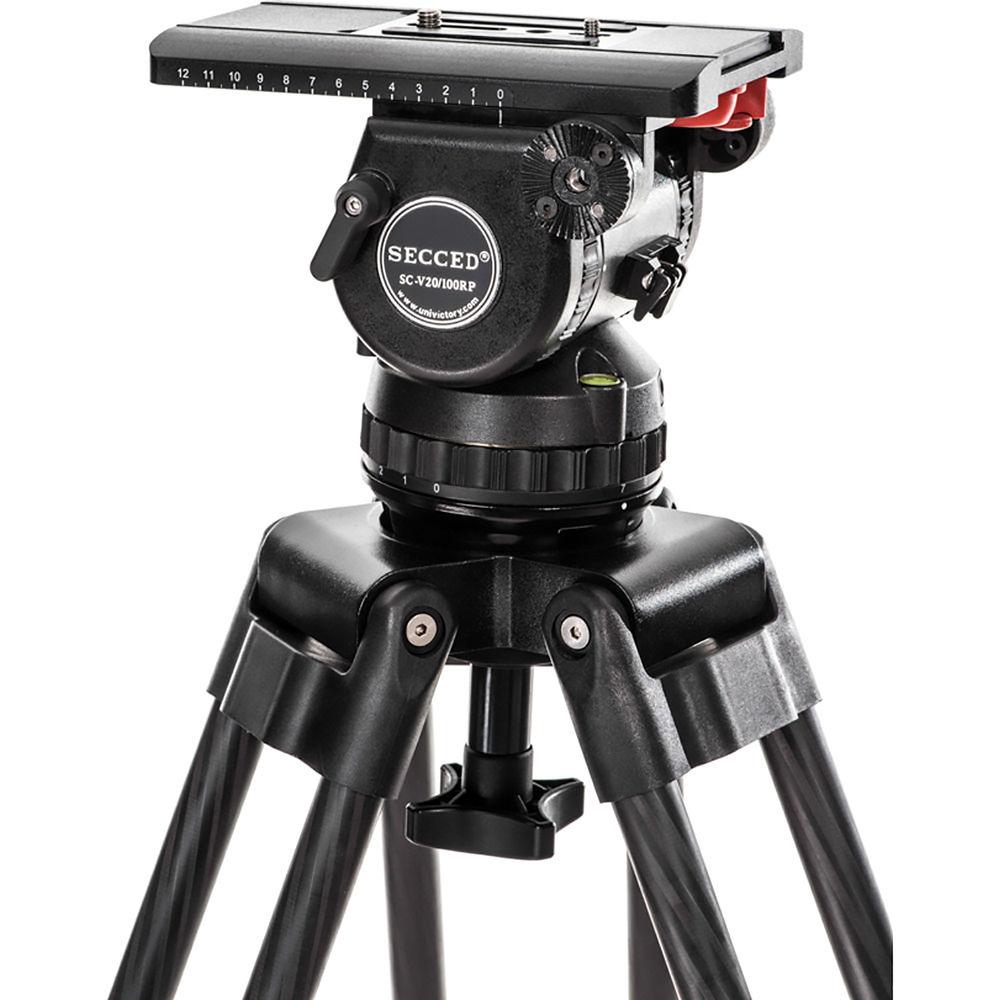

Product description The Secced Cinekit 4 Kit from Cinegears comprises the SC-EFP/CF100D two-stage carbon fiber video tripod with ground and off-ground spreaders, SC-V20/100RP fluid video head, and SC-PB20 pan bar. This video tripod system is suitable for professionals in EFP, field-based HD production environments, studio applications, or stereoscopic shooting with a light 3D rig. With a maximum payload of 70.5 lb at 3" COG, the Cinekit 4 system can be used with portable broadcast cameras, or camcorders configured with a compact studio lens or heavy teleprompter for studio application.The SC-V20/100RP fluid head uses a 100mm diameter integrated leveling ball to mount onto the heavy-duty, two-stage carbon fiber tripod. The tripod features a robust and sturdy structure with twin-tubed sections, and the legs can be adjusted to provide a height ranging from 22.4 to 63.4" with the ground spreader, and 23.2 to 61.8" with the off-ground spreader. It offers adequate torsion rigidity, which is essential for achieving smooth camera movement, and determines how resistant the video tripod is to twisting mechanical influences during pan.The SC-V20/100RP head's drag system provides smooth operation with a graded adjustment that ensures fast change of tilt and pan drag. It also features a quick release mechanism that ensures quick mounting or dismounting of the camera. A step-type counterbalance system helps the operator balance the camera in a minute without repeatedly changing to look for the right amount of counterbalance. This fluid head provides a steady, shake-free shot even when a long lens is used. And the friction-free damping system technology is resistant to extreme temperature conditions.All the main parts are made from high-quality CNC Machined precision, ensuring reliability and improving fluid head performance substantially. High-quality hard plastic is used in parts of the head, enhancing rigidity under all types of production conditions. UPC: 736902393901 In the Box Secced Cinekit 4 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head SC-EFP/CF100D Two-Stage CF Tripod SC-V20/100RP Fluid Head for EFP and Studio Cameras SC-PB20 Pan Bar Ground Spreader Off-Ground Spreader 3 x Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Secced Cinekit 4 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecced 3-061 Specs | | | Payload Capacity | Maximum: 70.5 lb (32 kg) | | Adjustable Height Range | 31.9 to 70.9" (81 to 180 cm) | | Bowl Diameter | 100 mm | | Transport Length | 38.2" (97 cm) | | Weight | 24.7 lb (11.2 kg) | | | | Payload Capacity | 70.5 lb (32 kg) at 3" (100 mm) center of gravity
61.5 lb (27.9 kg) at 4" (125 mm) center of gravity
54.7 lb (24.8 kg) at 5" (150 mm) center of gravity
48.9 lb (22.2 kg) at 6" (175 mm) center of gravity
44.5 lb (20.2 kg) at 6" (200 mm) center of gravity | | Counterbalance Steps | 0 to 23 | | Slide Range | 4.7" (120 mm) | | Pan & Tilt Drag | 0 to 7 | | Tilt Range | -75° / +90° | | Tripod Fitting | 100 mm | | Weight | 12.0 lb (5.5 kg) | | | | Payload | Maximum: 198.4 lb (90 kg) | | Bowl Diameter | 100 mm | | Extension | Double | | Material | Carbon fiber | | Transport Length | 30.7" (78 cm) | | Adjustable Height Range | With Ground Spreader: 22.4 to 63.4" (57 to 161 cm)
With Off-Ground Spreader: 23.2 to 61.8" (59 to 157 cm) | | Weight | With Ground Spreader: 10.8 lb (4.9 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
