User Manual for Secced Cinekit 5 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head Click to enlarge the picture
Contents of the user manual for the Secced Cinekit 5 Kit with Two-Stage
- Product category: Tripod Systems Secced
- Brand: Secced
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Secced Tripod Systems
 |
User manual for the Secced Cinekit 5 Kit with Two-Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Secced product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Secced user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Secced product will considerably shorten its lifespan!
|

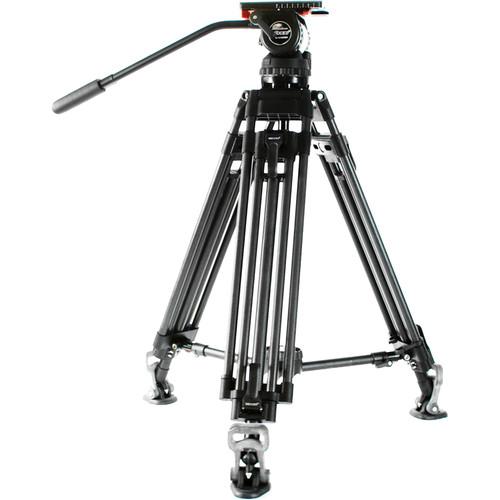

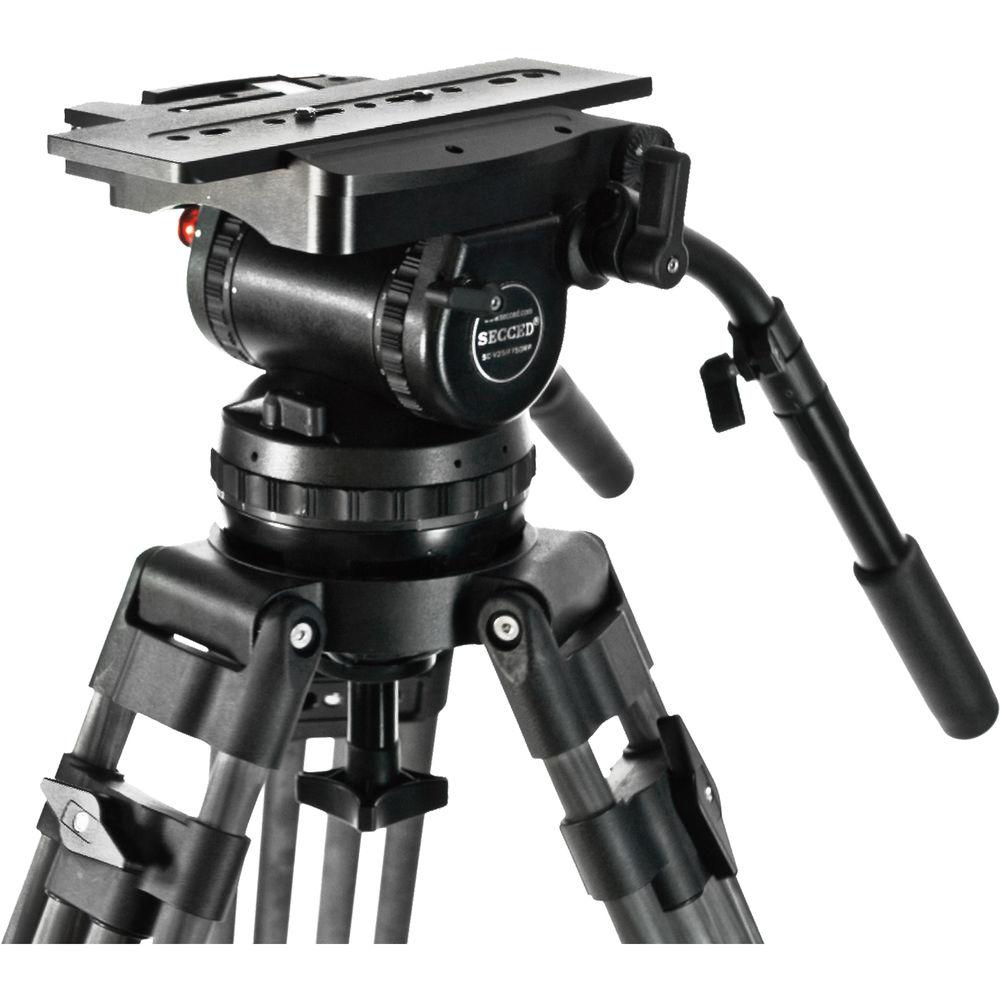

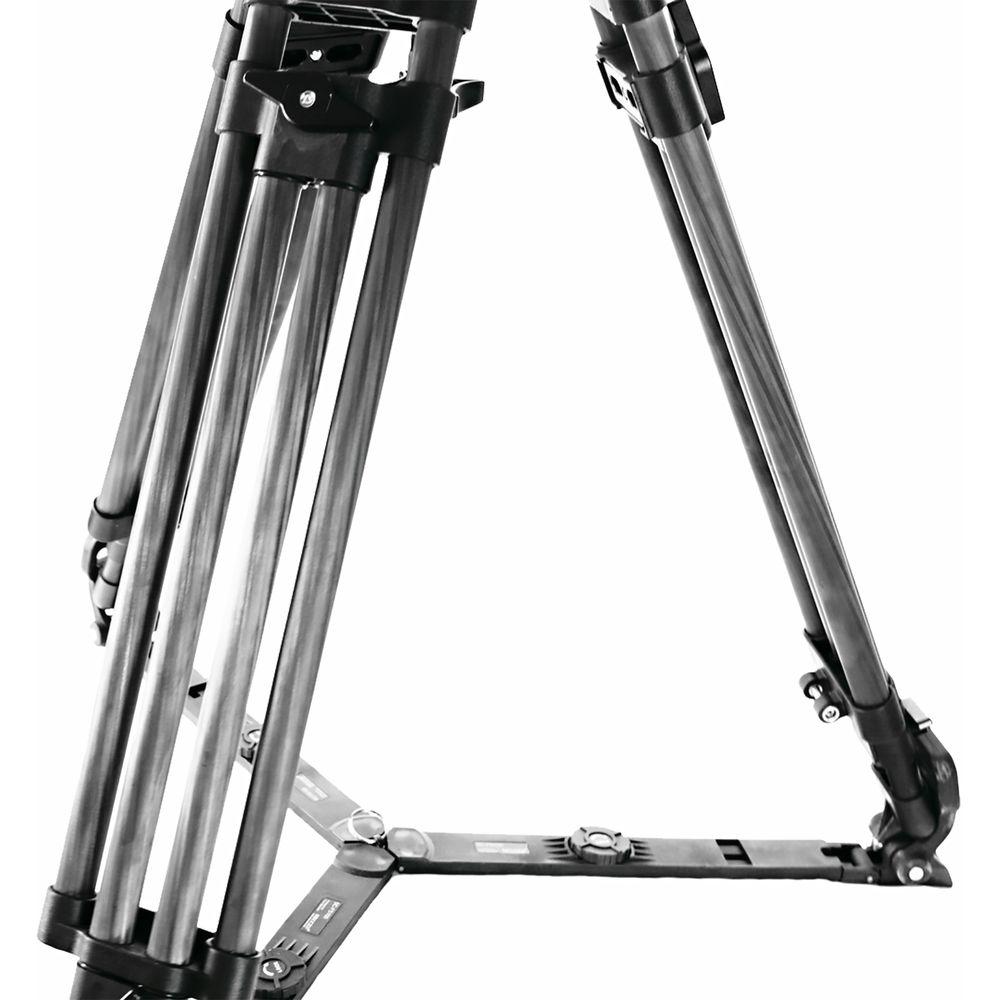

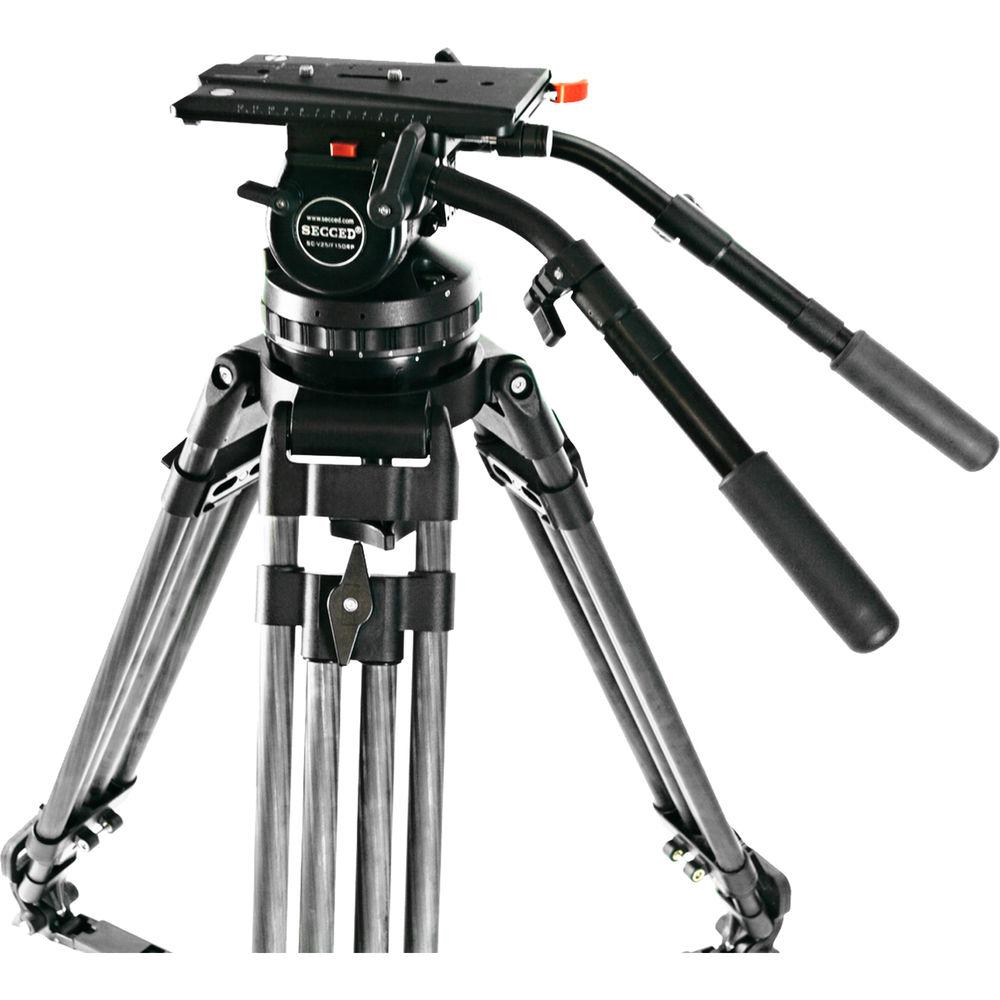

Product description The Secced Cinekit 5 Kit from Cinegears comprises of the SC-EFP/CF150D two-stage carbon fiber video tripod with ground and off-ground spreaders, SC-V25/150RP fluid video head, and SC-PB20 pan bar. This video tripod system is suitable for professionals in EFP, field-based HD production environments, stereoscopic shooting with a 3D rig, outside broadcast (OB), and for studio applications with teleprompter and/or studio lens configuration. The maximum payload of the Cinekit 5 system is 84.6 lb at a CoG height of 4.9". The two-stage carbon fiber tripod features a robust and sturdy structure with twin-tubed sections, and the legs can be adjusted to provide a height ranging from 23.2 to 63" (with ground spreader) and 24 to 62.6" (with off-ground spreader). The tripod offers adequate torsion rigidity, which is essential for achieving smooth camera movements and determines how resistant the video tripod is to twisting mechanical influences during pan.The SC-V25/150RP fluid head mounts on the tripod via a 150mm diameter integrated leveling ball. The head's eight-grade (0 to 7 steps) drag system ensures ultra-smooth and extremely slow moves, diagonal or along an arc, using both axes and precision motion tracking. It provides a steady, shake-free shot even when a long lens is applied. The friction-free technology of the damping system is resistant to extreme temperature conditions. The head features a balance adjustment lever device designed to duplicate the available counterbalance steps. Camera balance and attachment to the head is done via a side load system (quick release plate and balance plate) that ensures easy adjustment of the camera. The balance plate's sliding range is 4.7", and the leveling bubble is self-illuminated.All the main parts are made from high-quality CNC Machine, ensuring reliability and improving fluid head performance substantially. High-quality hard plastic is used in the manufacturing of all plastic parts of the head, enhancing rigidity under all types of production conditions. UPC: 731236163046 In the Box Secced Cinekit 5 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head SC-EFP/CF150D Two-Stage CF Tripod SC-V25/150RP Fluid Head for EFP, OB, and Studio Cameras SC-PB20 Pan Bar Ground Spreader Off-Ground Spreader 3 x Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Secced Cinekit 5 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecced 3-062 Specs | | | Payload | Maximum: 97 lb (44 kg) | | Adjustable Height Range | 31.5 to 70.9" (80 to 180 cm) | | Bowl Diameter | 150 mm | | Transport Length | 38.6" (98 cm) | | Weight | 28.7 lb (13 kg) | | | | Payload | Maximum 97 lb (44 kg) at 3" (100 mm) center of gravity
Maximum 84.7 lb (38.4 kg) at 4" (125 mm) center of gravity
Maximum 75.2 lb (34.1 kg) at 5" (150 mm) center of gravity
Maximum 67.7 lb (30.7 kg) at 6" (175 mm) center of gravity
Maximum 61.5 lb (27.9 kg) at 6" (200 mm) center of gravity | | Counterbalance Steps | 0 to 31 | | Slide Range | 120 mm | | Pan & Tilt Drag | 0 to 7 | | Tilt Range | -75° / +90° | | Tripod Fitting | 150 mm | | Weight | 8.4 lb (7.03 kg) | | | | Payload | Maximum: 209.4 lb (95 kg) | | Bowl Diameter | 150 mm | | Extension | Double | | Material | Carbon fiber | | Transport Length | 30.7" (78 cm) | | Adjustable Height Range | With Ground Spreader: 23.2 to 63" (59 to 160 cm)
With Off-Ground Spreader: 24 to 62.6" (61 to 159 cm) | | Weight | With Ground Spreader: 10.8 lb (5.5 kg) | | | | Package Weight | 47.0 lb | | Box Dimensions (LxWxH) | 45.8 x 12.1 x 12.1" |
