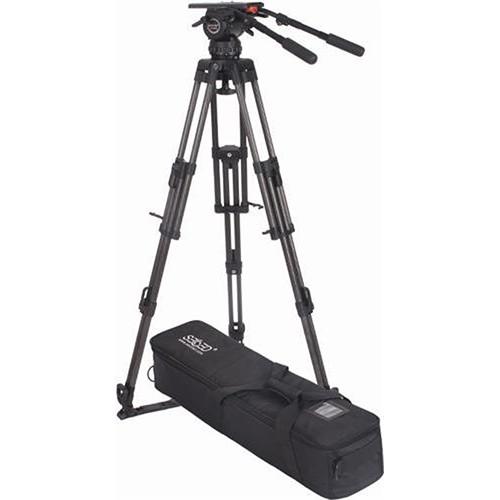

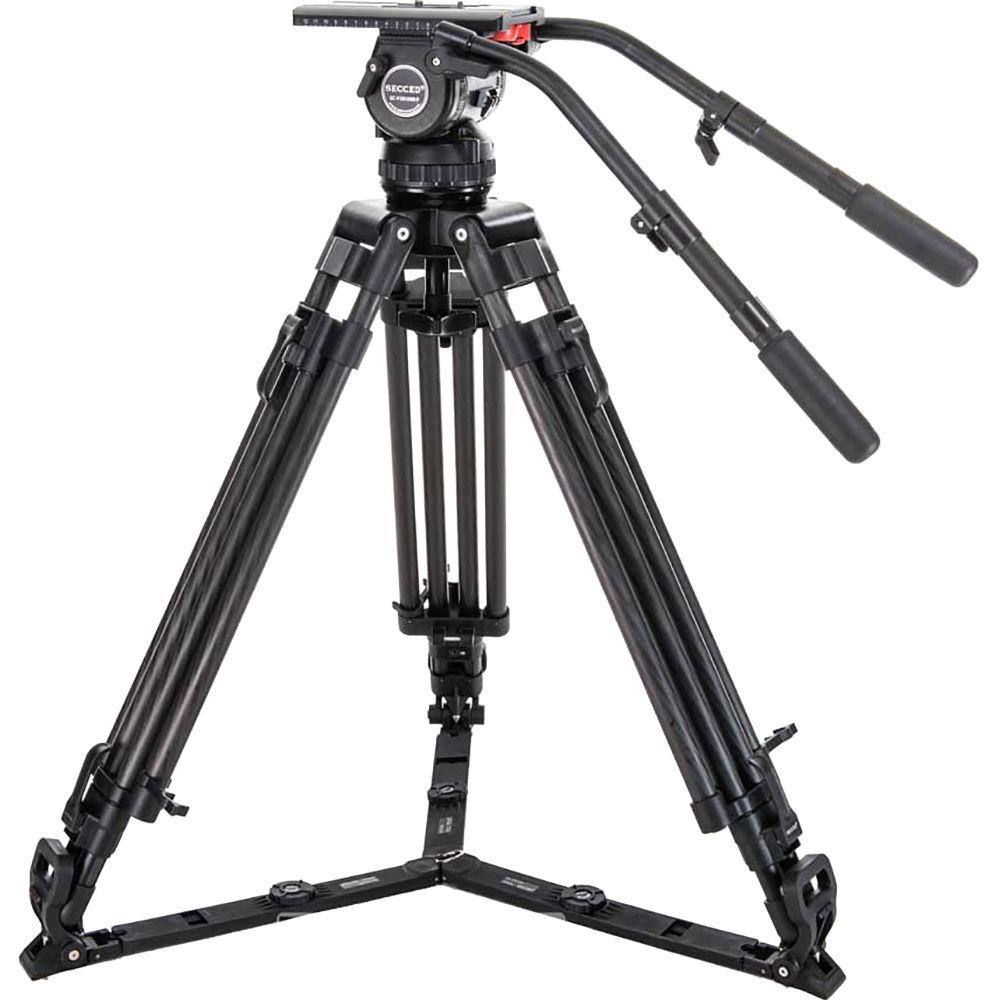

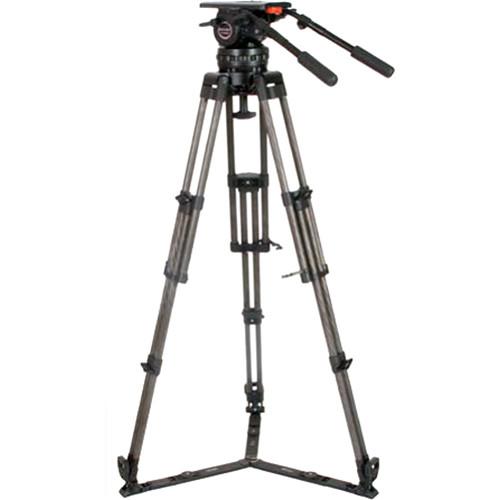

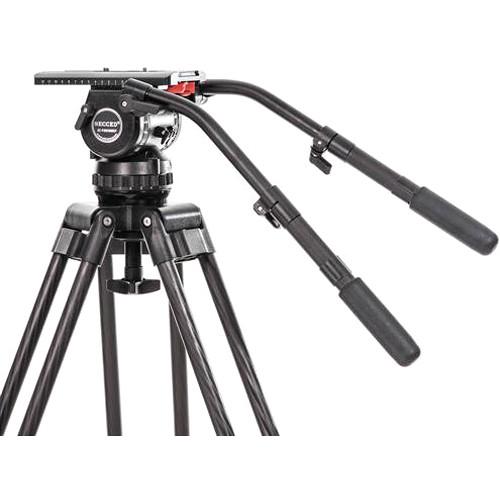

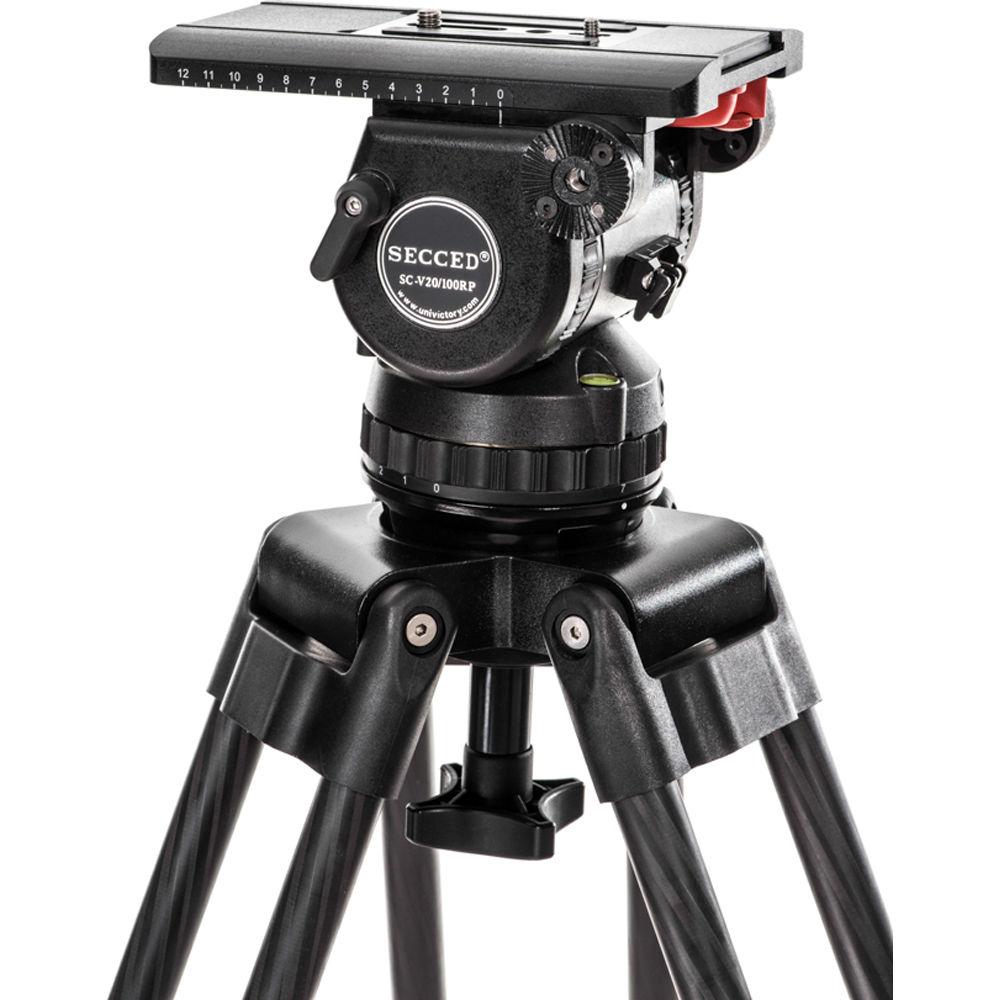

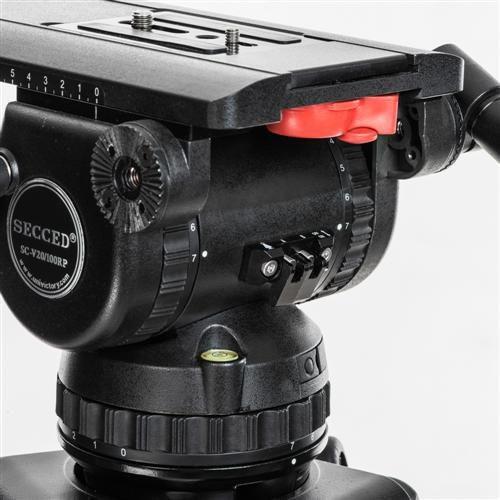

Product description The Secced Reach Plus 4 Kit from Cinegears comprises the SC-EFP/CF100D two-stage carbon fiber video tripod with ground spreader, SC-V20/100RP fluid video head, and SC-PB20 pan bar. This video tripod system is suitable for professionals in EFP, field-based HD production environments, studio applications, or stereoscopic shooting with a light 3D rig. With a maximum payload of 70.5 lb at 3" COG, the Reach Plus 4 system can be used with portable broadcast cameras, or camcorders configured with a compact studio lens or heavy teleprompter for studio application.The SC-V20/100RP fluid head uses a 100mm diameter integrated leveling ball to mount onto the heavy-duty, two-stage carbon fiber tripod. The tripod features a robust and sturdy structure with twin-tubed sections, and the legs can be adjusted to provide a height ranging from 22.4 to 63.4" with the ground spreader. It offers adequate torsion rigidity, which is essential for achieving smooth camera movement, and determines how resistant the video tripod is to twisting mechanical influences during pan.The SC-V20/100RP head's drag system provides smooth operation with a graded adjustment that ensures fast change of tilt and pan drag. It also features a quick release mechanism that ensures quick mounting or dismounting of the camera. A step-type counterbalance system helps the operator balance the camera in a minute without repeatedly changing to look for the right amount of counterbalance. This fluid head provides a steady, shake-free shot even when a long lens is used. And the friction-free damping system technology is resistant to extreme temperature conditions.All the main parts are made from high-quality CNC Machined precision, ensuring reliability and improving fluid head performance substantially. High-quality hard plastic is used in parts of the head, enhancing rigidity under all types of production conditions. UPC: 736902394007 In the Box Secced Reach Plus 4 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head SC-EFP/CF100D Two-Stage CF Tripod SC-V20/100RP Fluid Head for EFP and Studio Cameras rzuadcvauaaxxtudecywdcfrt SC-PB20 Pan Bar Ground Spreader Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Secced Reach Plus 4 Kit with Two-Stage Carbon Fiber Tripod & Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecced 3-030 Specs | | | Payload Capacity | Maximum: 70.5 lb (32 kg) | | Adjustable Height Range | 31.9 to 70.9" (81 to 180 cm) | | Bowl Diameter | 100 mm | | Transport Length | 38.2" (97 cm) | | Weight | 24.7 lb (11.2 kg) | | | | Payload Capacity | 70.5 lb (32 kg) at 3" (100 mm) center of gravity
61.5 lb (27.9 kg) at 4" (125 mm) center of gravity
54.7 lb (24.8 kg) at 5" (150 mm) center of gravity
48.9 lb (22.2 kg) at 6" (175 mm) center of gravity
44.5 lb (20.2 kg) at 6" (200 mm) center of gravity | | Counterbalance Steps | 0 to 23 | | Slide Range | 4.7" (120 mm) | | Pan & Tilt Drag | 0 to 7 | | Tilt Range | -75° / +90° | | Tripod Fitting | 100 mm | | Weight | 12.0 lb (5.5 kg) | | | | Payload | Maximum: 198.4 lb (90 kg) | | Bowl Diameter | 100 mm | | Extension | Double | | Material | Carbon fiber | | Transport Length | 30.7" (78 cm) | | Adjustable Height Range | With Ground Spreader: 22.4 to 63.4" (57 to 161 cm)
| | Weight | With Ground Spreader: 10.8 lb (4.9 kg) | | | | Package Weight | 37.5 lb | | Box Dimensions (LxWxH) | 46.0 x 12.0 x 12.0" |
