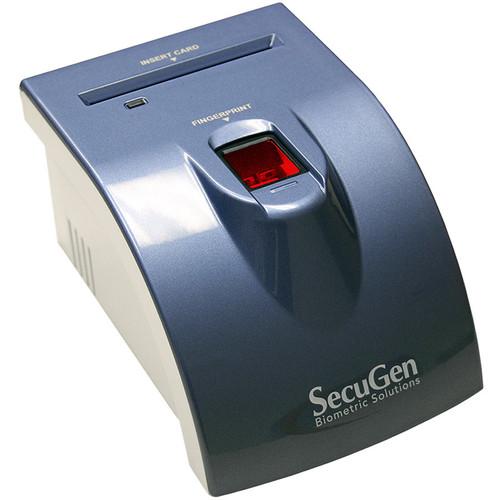

Product description The iD-USB SC Fingerprint Scanner & Card Reader from SecuGen Corporation is a PC/SC compliant optical fingerprint scanner and contact card reader. It combines a SecuGen SDU03P fingerprint sensor and HID OMNIKEY 3121 card reader to provide dual-layer security, authentication, and access control.
Auto-On technology allows for automatic finger detection. Smart Capture scanning technology is capable of capturing fingerprints from difficult fingers, such as those with dry, wet, or scarred skin. Additionally, the iD-USB SC works in challenging environments and conditions, such as direct sunlight.
This device does not require an additional power supply thanks to being USB-powered. It is scratch-, impact-, vibration-, and electrostatic-shock-resistant. - Suitable for time & attendance, logical & physical access control, or any application that requires multi-factor fingerprint and smart card authentication
- Automatic finger detection technology
- Maintenance-free optical fingerprint sensor
- Built-in PC/SC compliant smart card reader that is 100% compatible with HID OMNIKEY 3121
- 100% compatible with Hamster Plus fingerprint reader
- Integrated finger guide enables ready access by any finger in any orientation
- Sensor is resistant to scratches, impact, vibration, and electrostatic shock
- USB-powered, no additional power supply required
- Surface mountable with integrated screw mounts
In the Box SecuGen Corporation iD-USB SC Fingerprint Scanner and Card Reader Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SecuGen Corporation iD-USB SC Fingerprint Scanner and Card Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecuGen Corporation EA4-0515P Specs | | | Optical Sensor Type | SecuGen SDU03P | | Image Resolution | 500 dpi | | Size | Image: 260 x 300 pixels
Platen: 0.63 x 0.72" / 16.1 x 18.2 mm | | Effective Sensing Area | 0.5 x 0.6" / 13.2 x 15.2 mm | | Light Source | LED | | Lifetime | 60,000 hours typical LED lifespan | | Speed | Smart Capture Speed: 0.2 to 0.5 seconds | | Standards | Biometric Standards: INCITS 378, ISO/IEC 19794-2, 19794-4 | | Other Features | Auto-On, Smart Capture | | | | Type | HID OMNIKEY 3121 | | Standards | ISO 7816, EMV2 2000 Level 1 | | Card Size | ID-1, full size | | Clock Frequency | Up to 8 MHz | | Supported Card Types | 5, 3, 1.8 V, ISO 7816 Class A, AB, C | | Supported APIs | PC/SC driver (ready for 2.01), CT-API, Synchronous-API, OCF | | | | USB Interface | USB 1.1, 2.0 | | Supported Operating Systems | Windows 10, 8.1, 8, 7, Server 2012, 2008 R2
Android 3.1 and above
Linux | | Supply Voltage | 5 VDC via USB | | Current Consumption | 220 mA max | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Operating Humidity | 10 to 90%, RH | | Certifications | FCC, CE, KCC, RoHS | | Dimensions (W x L x H) | 3.5 x 5.5 x 2.6" / 88 x 140 x 67 mm |
