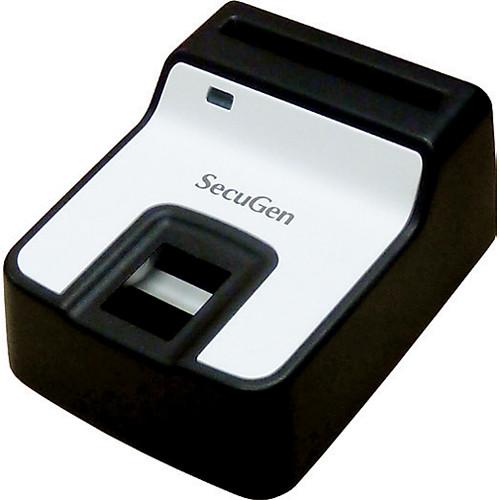

User Manual for SecuGen Corporation XU20SCA Hamster Pro Duo SC PIV Fingerprint Scanner and Card Reader Click to enlarge the picture
Contents of the user manual for the SecuGen Corporation XU20SCA Hamster Pro Duo
- Product category: Keypads & Readers SecuGen Corporation
- Brand: SecuGen Corporation
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SecuGen Corporation Keypads & Readers
|
User manual for the SecuGen Corporation XU20SCA Hamster Pro Duo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SecuGen Corporation product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SecuGen Corporation user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SecuGen Corporation product will considerably shorten its lifespan!
|
Product description The XU20SCA Hamster Pro Duo SC/PIV Fingerprint and Card Reader from SecuGen Corporation is an FIPS 201 (PIV) and FAP 20 Mobile ID compliant fingerprint scanner and card reader that connects to a PC or mobile device via USB. This scanner features the SecuGen U20 optical fingerprint sensor and is scratch-, impact-, vibration-, and electromagnetic shock-resistant. For added functionality, this fingerprint scanner also has a built-in contact card reader to provide a dual-layer of security and access control where needed.
Auto-On technology allows the sensor to check for the presence of a finger without having to launch specific software or terminals. The scanner will automatically sense and scan a finger once it's placed on the reader. Smart Capture technology helps capture fingerprints from difficult fingers by automatically adjusting the brightness of the sensor. With this technology, users with dry, wet, scarred, or aged skin can use the sensor. This scanner also works in varying lighting conditions, including direct sunlight.
When used with SecuGen software, this sensor provides fast and accurate verification, latent print image removal, encryption of fingerprint templates, Fingerprint Device Recognition, and Multi-Device Connection. - Mobile ID FAP 20 compliant
- Maintenance-free optical fingerprint sensor
- Sensor is resistant to scratches, impact, vibration, and electromagnetic shock
- Auto-On finger placement detection technology
- Smart Capture technology helps the sensor recognize difficult fingers
- Built-in contact card reader for added security
In the Box SecuGen Corporation XU20SCA Hamster Pro Duo SC/PIV Fingerprint Scanner and Card Reader Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SecuGen Corporation XU20SCA Hamster Pro Duo SC PIV Fingerprint Scanner and Card Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecuGen Corporation XU20SCA Specs | | | Optical Sensor Type | SecuGen U20 | | Image Resolution | 500 dpi | | Size | Image: 300 x 400 pixels
Platen: 0.72 x 0.9" (18.2 x 22.9 mm) | | Sensing Area | Effective: 0.6 x 0.8" (15.24 x 20.32 mm) | | Speed | Fingerprint Capture: 0.2 to 0.5 sec | | Standards | FIPS 201 (PIV-071006), INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, Mobile ID FAP 20, NIST SP 800-76 | | | | Type | ACR39U contact smart card reader | | Standards | ISO 7816 Parts 1-3, Class A, B, C (5, 3, 1.8 V) | | Protocols | T=0, T=1
Memory card support | | Interface Speed | 9.6 to 600 kbps | | Clock Frequency | 4.80 MHz | | Supported Card Types | 5, 3, and 1.8 V smart cards, ISO 7816 Class A, B and C | | Supported APIs | PC/SC, CT-API (through wrapper on top of PC/SC) | | Status Indicator | Green LED | | Durability Cycles | Card Insertion: 100,000 minimum | | Certification and Compliance | ISO 7816, EMV Level 1 (Contact), PC/SC, CCID, GSA FIPS 201 APL | | | | Interface | Hi-Speed USB 2.0 (fingerprint reader), USB 2.0 Full-Speed (card reader) | | Certifications | FCC, RoHS, FBI PIV, GSA FIPS 201 APL | | Supported Operating Systems | Windows 10, 8.1, 8, 7, Server 2012, 2008 R2
Android 3.1 and above
Linux | | Supply Voltage | 5 VDC | | Maximum Current | 250 mA | | Operating Temperature | 14 to 122°F (0 to 50°C) | | Operating Humidity | < 90% RH, non-condensing | | Dimensions | 3.15 x 3.9 x 1.8" (80 x 100 x 45.5 mm) | | Weight | 6.6 oz (186 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.4 x 4.4 x 2.3" |
