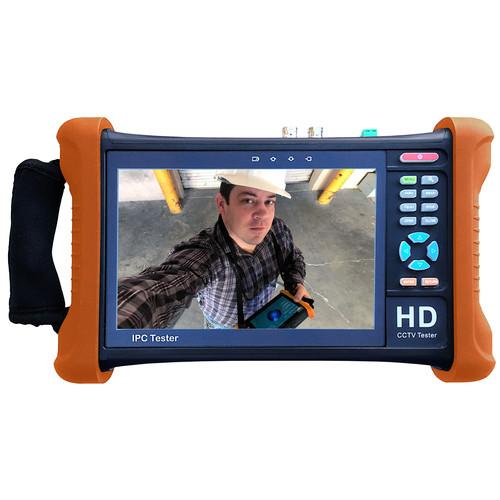

Product description The IP Buddy+ IP and Analog Surveillance Camera Test Monitor from SecurityTronix is a camera tester designed for the maintenance and installation of IP and analog cameras, as well as other security/surveillance equipment. This tester has a 7" retina touchscreen with a 1920 x 1200 resolution. Built-in Wi-Fi enables the device to receives images from wireless cameras, as well as ONVIF and customized IP cameras. Additionally, you'll be able to take snapshots and save the images as JPEG files. The rechargeable lithium-ion battery delivers up to 10 hours of battery life on a full charge. The tester is equipped with a 1080p HDMI input and output, a 10/100/1000M self-adaptive network port, and an integrated microSD slot that supports cards up to 32GB. An 8GB microSD card is included. - 7" retina touchscreen with 1920 x 1200 resolution
- Supports IP cameras up to 12MP
- Compatible with 4K, H.264, H.265, ONVIF, and ONVIF PTZ IP cameras from manufacturers such as ACTi, Dahua, Hikvision, Samsung, and Honeywell
- Supports over 30 protocols, including Pelco P, Pelco D, Samsung, Panasonic, and TeleEye
- PTZ data capture and address scanning
- Built-in Wi-Fi receives images from wireless cameras, as well as ONVIF and customized IP cameras
- 10/100/1000M self-adaptive Ethernet
- PoE power output supplies temporary power for PoE cameras
- Audio input and output test
- Simultaneous IP and analog camera testing
- Enhanced color bar generator that's eight-system switchable to transmit/receive eight-system colorful images
- Peak video signal level, sync signal level, color burst chroma level measurement: test video signal attenuation
- Cable tracing by sending an audio signal which enables the blue cable tracer tester to find the connected cable bundles
- Ping testing for connected IP cameras or other network equipment's Ethernet port is functioning properly, and to determine if the IP address is correct
- Displays video signal from analog input
- ONVIF IP camera video testing
- Checks connections of UTP cables and RJ45 cable TDR test
- Quick search for the connected IP camera or other network device's IP address
- Supports RS-232/RS-485 with 600-115,200 adjustable baud rate
- LED lamp for operating in low-light conditions
- Image zoom for detailed viewing
- USB power output to mobile phone

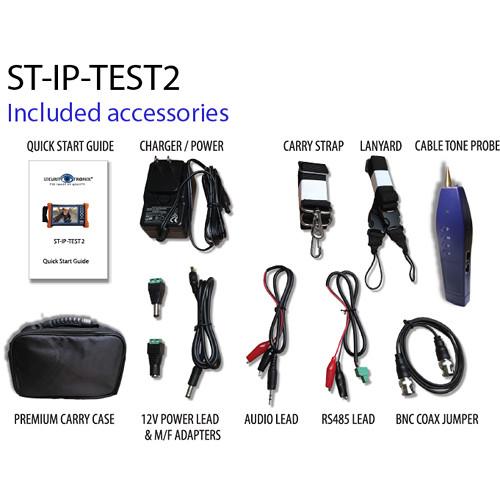

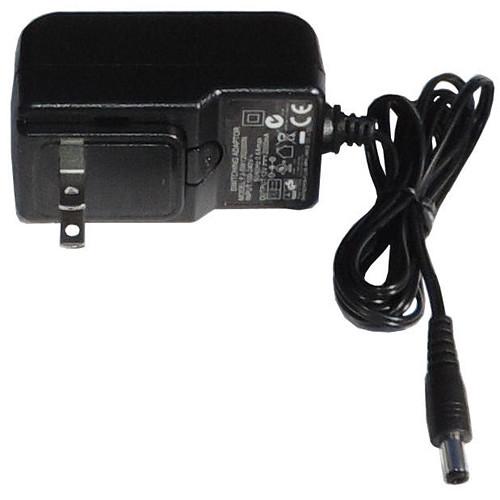

UPC: 810842023828 In the Box SecurityTronix IP Buddy+ IP and Analog Surveillance Camera Test Monitor Carrying Case with Carrying Strap Carrying Strap for Meter AC Charger Test Probe 8GB microSD Card 2 x Conductor to Female Power Adapters 2 x Conductor to Male Power Adapters Lithium-Ion Polymer Battery 3.5mm to Alligator Clip Cable 2 x Conductor Screw Terminal to Alligator Clip Cables BNC Male to BNC Male Jumper Cable DC to DC Jumper Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SecurityTronix IP Buddy IP and Analog Surveillance Camera Test Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSecurityTronix IP Buddy+ Specs | Signal System | NTSC/PAL, auto-selecting | | Display | 7" retina touchscreen, 1920 x 1200 resolution | | Rapid Video | Auto view video, create testing report | | Network Test | FTP server, static IP address, DHCP, simultaneously test different segments IP cameras, network bandwidth testing, IP discovery | | Camera Apps | Supports video management software to view IP camera images | | RTSP Video | Supports RTSP to view IP camera images | | LCD Adjustment | Adjustable brightness, contrast, LCD color | | HDMI I/O | 1 channel HDMI input, supports 1080p
1 channel HDMI output, supports 1080p | | Network Port | 10/100/1000M auto adjust, RJ45 | | Wi-Fi Connectivity | Built-in Wi-Fi with speeds of 150 Mb/s | | PoE Power Output | 24 W PoE power supply to IP camera | | Video I/O | 1 channel BNC input
1 channel BNC looped output | | Video Output Mode | 1.0 V p-p | | CVBS | Loop Test:
Send and receive color bar generator signals to check BNC cables | | Tracer | Cable Tracer App with Toner Wand:
Sends specific signal, easy to determine which cable is connected from messy cable bundles | | Video Level Meter | Peak level, sync level, burst level measurement | | Power Adapter | 5 VDC, 2 A input supply | | Power Output | 12 VDC, 2 A power output to camera | | Audio Input | 1 channel audio signal input to test pickup device, 1 channel audio signal output to headphone | | USB Output Power | USB 5 V, 2 A power output to mobile phone | | Communication | RS-485 | | Baud Rate | 150/300/600/1200/2400/4800/9600/19,200 b/s | | Power Saving | Features: Sleep Mode, Battery Level Indicator | | PTZ Protocols | Compatible with more than 30 protocols such as Pelco D/P, Samsung, Panasonic, TeleEye, etc. | | Other PTZ Functions | PTZ Data Capture:
Reads and displays commands sent from controllers
PTZ Address Scanning:

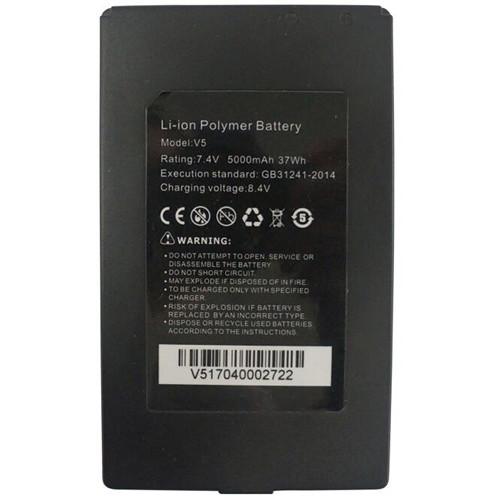

Scans for local PTZ address over data cables | | Battery Type | 1 rechargeable lithium-ion polymer battery | | Battery Charge Time | 6 hours | | Battery Life | Up to 10 hours with normal use | | Battery Power | 7.4 VDC, 5000 mAh | | Video Display | Displays video signal from analog input | | Video Signal | Color bar generator for monitor testing | | Cable Test | Checks connections of UTP cables, RJ45 cable TDR test | | Image Zoom | 4x zoom image display and video out | | Still Image Capture | Snapshot and saves image as JPEG file and screenshot | | Video Recording | Video recording and playback from the SD card | | Port Finder | Find connected PoE ports quickly | | IP Scan | Determine a connected IP camera or network device's IP address | | Link Monitor | Check to see if an IP address is in use | | Ping Testing | Network and IP camera ping testing | | PoE Tester | PoE voltage testing, PoE port flicker, PoE link monitoring | | LED | Night LED:
Built-in LED lamp | | Storage | Supports microSD cards up to 32 GB, 8 GB card included | | Tester Play | Screen Projection:
Tester, mobile phone and PC display at the same time (for Android mobile phones) | | Drop-Down Menu | User can select PoE power switch, IP setting, WLAN switch, and HDMI in functions in any interface | | Dimensions | 10.25 x 6.3 x 1.8" / 260 x 160 x 45 mm | | Weight | 2.21 lb / 1 kg | | | | Package Weight | 4.855 lb | | Box Dimensions (LxWxH) | 12.85 x 11.55 x 3.95" |
