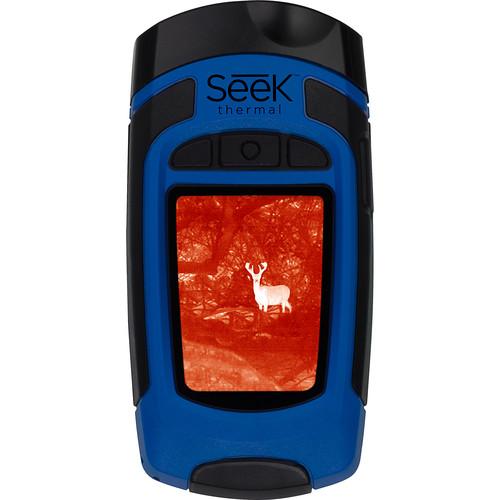

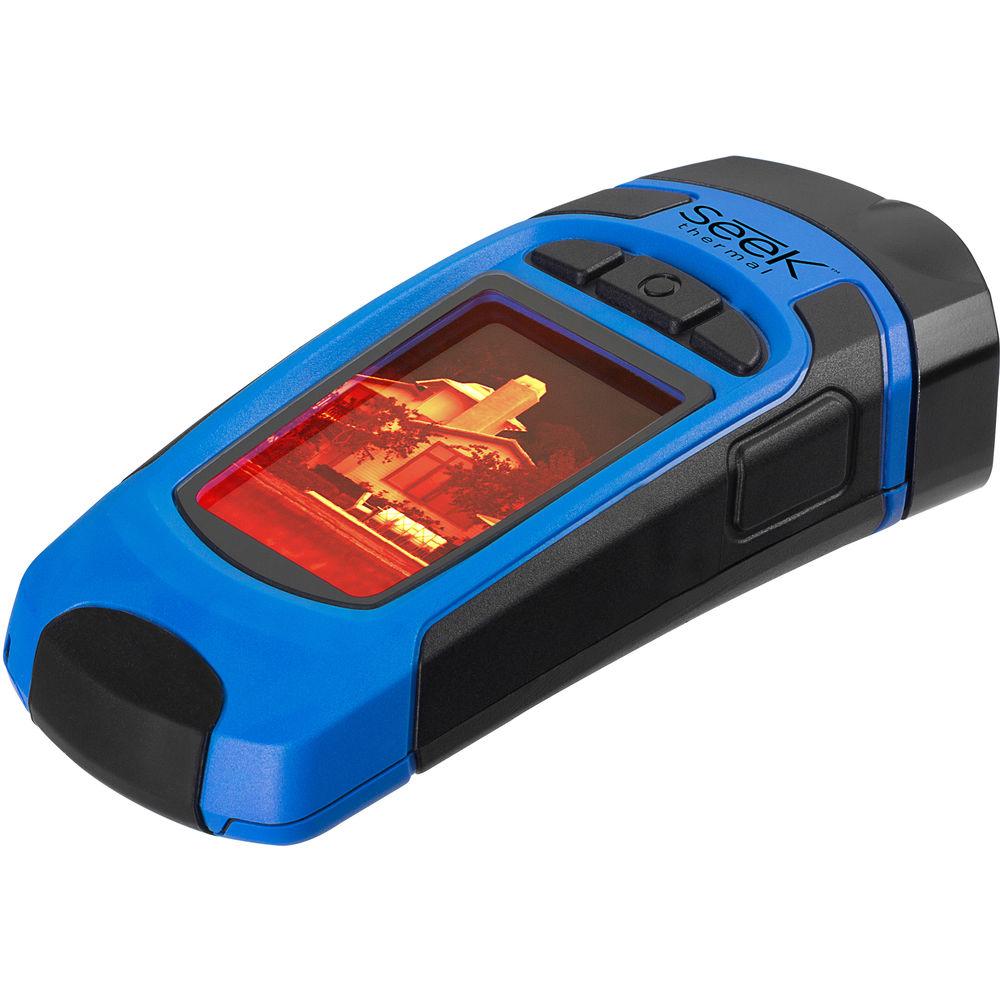

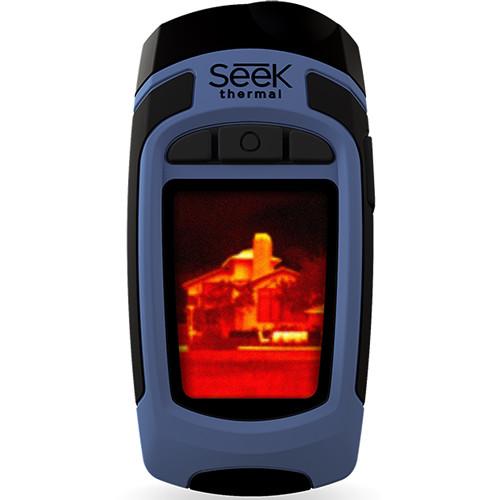

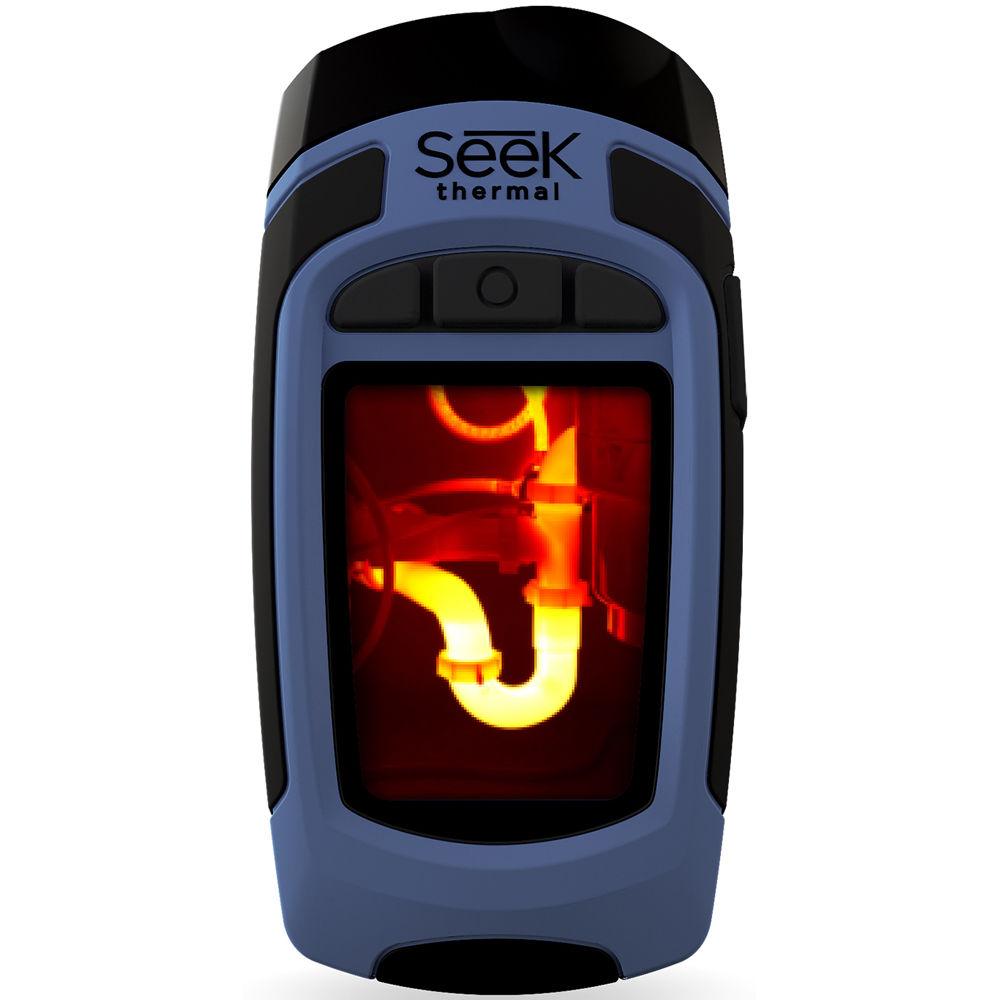

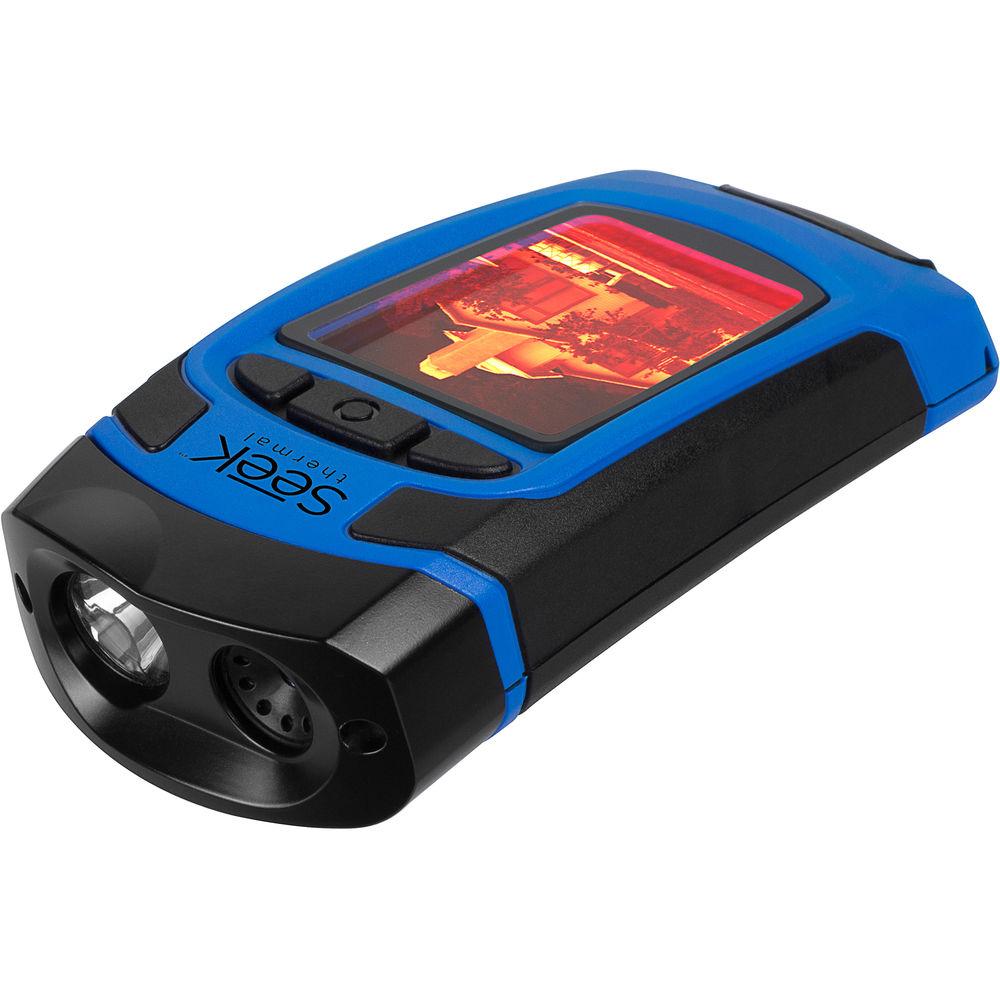

Seek Thermal Reveal Handheld Thermal Imager

Search your instruction manual in PDF to download

User Manual for Seek Thermal Reveal Handheld Thermal Imager

Click to enlarge the picture
Seek Thermal Reveal Handheld Thermal Imager Contents of the user manual for the Seek Thermal Reveal Handheld Thermal Imager
  • Product category: Thermal Imagers Seek Thermal
  • Brand: Seek Thermal
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Seek Thermal Thermal Imagers

Seek Thermal Reveal Handheld Thermal Imager Seek Thermal Reveal Handheld Thermal Imager Seek Thermal Reveal Handheld Thermal Imager Seek Thermal Reveal Handheld Thermal Imager Seek Thermal Reveal Handheld Thermal Imager Seek Thermal Reveal Handheld Thermal Imager Seek Thermal Reveal Handheld Thermal Imager Seek Thermal Reveal Handheld Thermal Imager Seek Thermal Reveal Handheld Thermal Imager
User manual for the Seek Thermal Reveal Handheld Thermal Imager contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Seek Thermal product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Seek Thermal user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Seek Thermal product will considerably shorten its lifespan!



Product description

Built for the realities of work and play, the Seek Reveal Handheld Thermal Imager combines a miniature thermal camera and a 300-lumen LED flashlight in one durable device. Its Vanadium Oxide uncooled microbolometer detects heat sources with temperatures from -40 to 626°F and allows you to detect and see thermal signatures of running engines, hot wires, overheating pipes, wildlife, or human trespassers. You will be able to observe them during the day and at night and through fog, smoke, dust, and foliage using the 2.4" color LCD display with a maximum refresh rate of 9 Hz and save images to the included microSD card. For enhancing your viewing experience, the device offers seven color palettes.

To help you be productive at your work and efficient while engaged in your leisure activities, the device features a fast 3-second start-up, simple 3-button control pad, and intuitive menu. To help you navigate and perform tasks in low-light conditions, the device also features a 300-lumen LED flashlight. The built-in microSD slot with a memory card can help you save your data and transfer them to your PC for further and documenting and analysis. The device also features an internal rechargeable lithium battery that provides 10 hours of uninterrupted performance and should last a full work day. With a lightweight, shock-resistant, water-resistant, and ergonomic polycarbonate body with non-slip rubber covering, this device will make a dependable companion in a wide variety of professional settings, outdoor activities, or make a handy addition to your tool crib. Also included are a USB charging cable, a wall charger, and a wrist lanyard.
    Sensor and Display
    • 206x156 VOx uncooled microbolometer
    • Detectable temperature range: -40° to 626°F
    • Spectral response: 7.5-14µm
    • Pixel pitch: 12µm
    • Color 2.4" LCD display
    • 240x320 pixels resolution
    • Refresh rate: 9 Hz maximum
    • 7 color palettes
      Lens System
      • Chalcogenide glass lens
      • 3.3mm aperture
      • f/1.2 F-number
      • 36° angle of view
        Use and Handling
        • Works during the day or at night
        • Built-in 300-lumen flashlight
        • 3-second start-up time
        • 3-button navigation menu pad
        • MicroSD memory slot for saving images
        • Internal rechargeable battery with 10 hours runtime
          Construction
          • Compact and ergonomic body design
          • Rubberized covering for a non-slip grip
          • Lightweight and durable polycarbonate housing
          • Water and shock-resistant
          • Weighs 6.25 oz
          UPC: 855753005242 In the Box Seek Thermal Reveal Handheld Thermal Imager (Blue, 9 Hz)
        • 512MB MicroSD Card
        • USB Cable
        • Wall Adapter
        • Wrist Lanyard
        • Limited 1-Year Warranty
        • Limited 2-Year Warranty with Registration
        Table of Contents




Upload User Manual

Have you got an user manual for the Seek Thermal Reveal Handheld Thermal Imager in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Seek Thermal RW-AAA Specs

Array Configuration 206x156 VOx microbolometer
Pixel Pitch 12 µm
Sensitivity Range Thermal sensitivity: -40° to 626°F (-40 to 330°C)
Spectral Response 7.5-14 µm
Refresh Rate <9 Hz
Lens System 3.3mm, f/1.2
Fixed focus
Chalcogenide lens glass
Minimum Focus Distance 6" (152 mm)
Angular Field of View 36°
Display 2.4" color LCD display
240x320 pixels resolution
Flashlight 300 lumens
Memory Storage microSD slot
Battery / Runtime 1 x 3.7 V internal rechargeable lithium battery / 10 h
Weatherproofing Water-resistant
Dimensions Device: 5.0 x 2.4 x 1.2" / 127.0 x 61.0 x 30.5 mm
Package: 6.25 x 3.75 x 3.25" / 158.8 x 95.3 v 82.6 mm
Weight Device: 6.25 oz / 177.2 g
Package: 18.5 oz / 524.5 g
Package Weight 1.06 lb
Box Dimensions (LxWxH) 6.55 x 3.8 x 3.4"
