User Manual for Sekonic C-700-U SpectroMaster Color Meter Click to enlarge the picture
Contents of the user manual for the Sekonic C-700-U SpectroMaster Color Meter
- Product category: Light Meters Sekonic
- Brand: Sekonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sekonic Light Meters
 |
User manual for the Sekonic C-700-U SpectroMaster Color Meter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sekonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sekonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sekonic product will considerably shorten its lifespan!
|

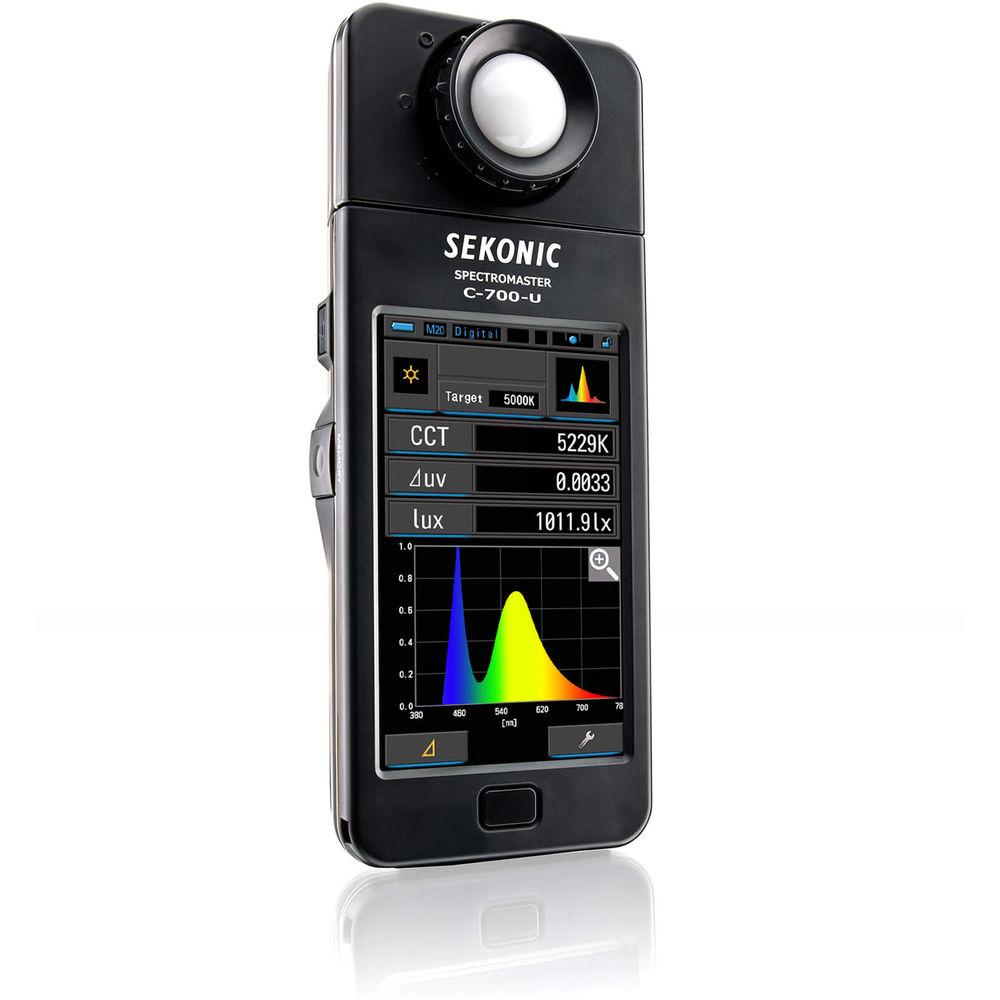

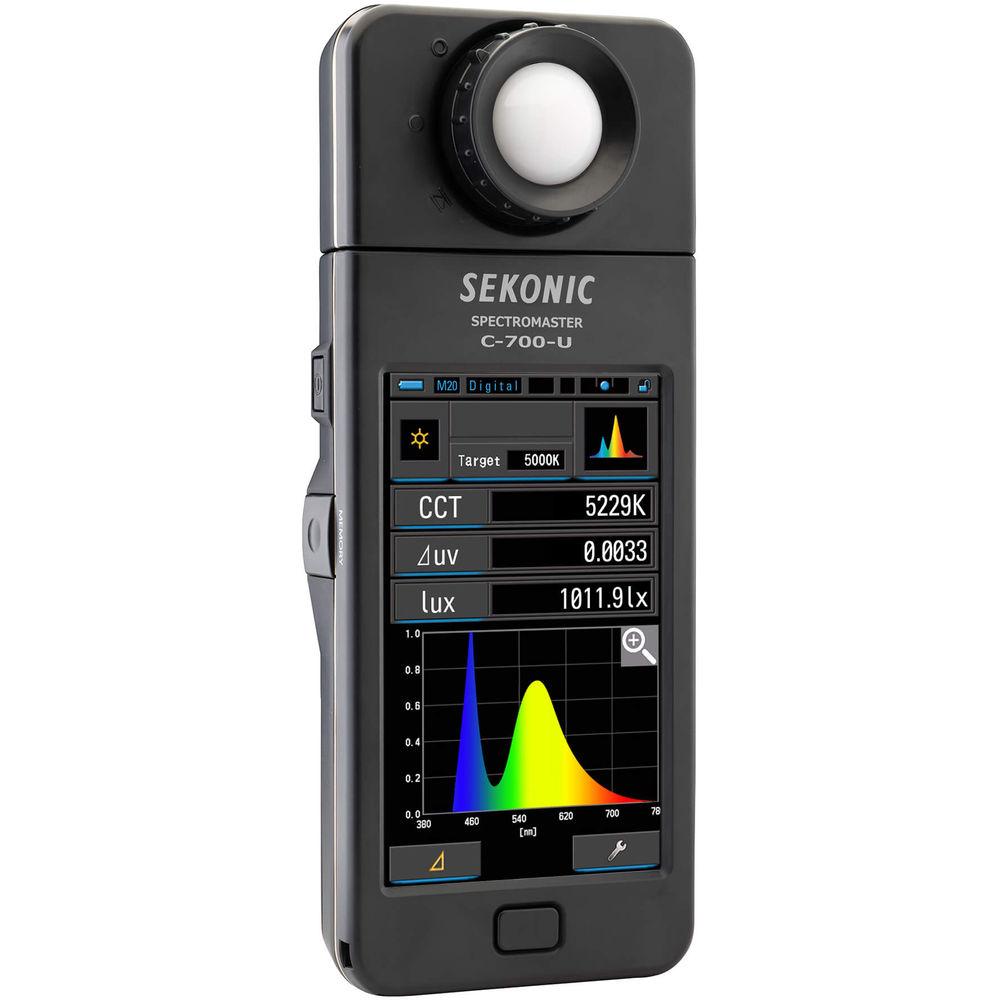

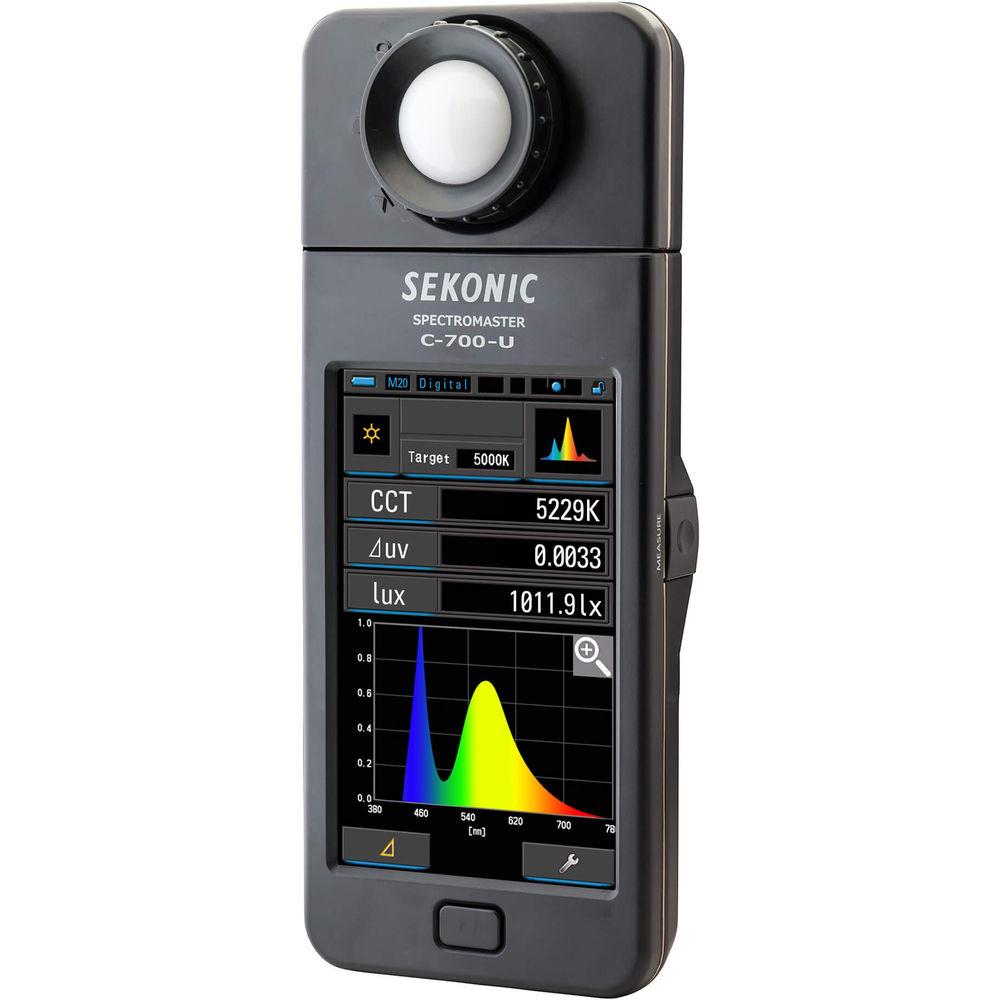

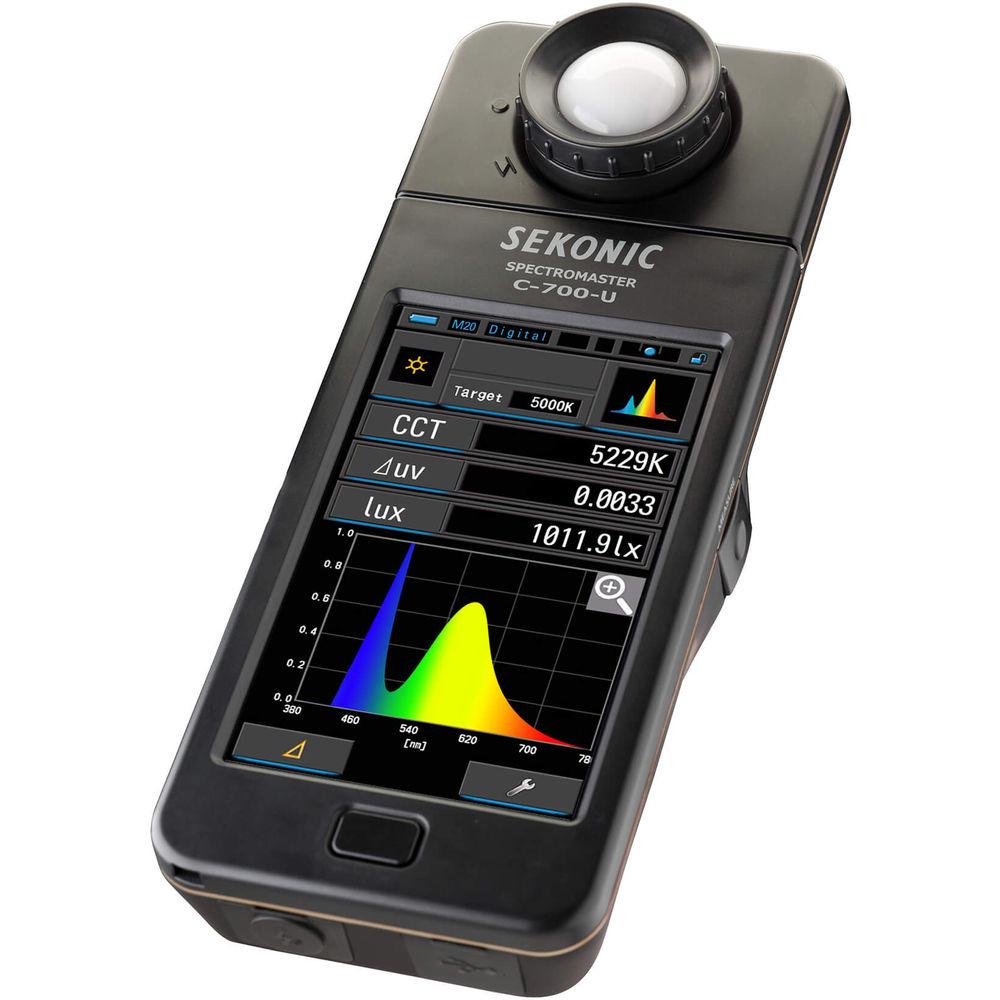

Product description Intended for photographers, videographers, cinematographers, and gaffers, the C-700-U SpectroMaster Spectrometer from Sekonic is an advanced field meter capable of reading all light sources whether they're LED, flash, incandescent, HMI, fluorescent, or in the natural light spectrum. Most importantly, it's a practical lighting tool that analyzes the light source using 9 different display modes on its 4.3" color touchscreen, indicating specifically what you need to do to achieve your desired effect. The meter's CMOS sensor enables measurement in increments as fine as 1nm and allows capture of color spikes in the light output—an especially valuable function when working with LED, HMI, fluorescent lighting and mixed sources. The SpectroMaster has very impressive accuracy, repeatability, and response specs and a wide range of values in all modes. Flash for example, can be color analyzed in cordless mode by triggering the flash manually or by hard wiring a cord to the meter's PC sync port. Shutter speeds from 1-1/500 sec are selectable. Since the SpectroMaster is strictly a color meter, f/stops and shutter speeds aren't displayed. Ambient light has a 1.0 to 200,000 lux range (0.09 to 18,600 fc). The intuitive color touchscreen offers access to the meter's many functions including a Spectrum graph, CRI, Camera Filter, Lighting Filter, White Balance Compensation, and comparison of multiple lights. The Text mode screen displays color temperature, lux or fc as well as color compensation and light balancing filters. After selecting your preferred color balance, the Camera Filter and Lighting Filter Screens will display the actual Rosco, Lee, Kodak Wratten, or Fuji filter designations necessary to achieve your targeted color temperature. CRI also has a dedicated screen that displays standard color reference values (including R1 thru 15) as a percentage of the light source's ability to reproduce a color accurately, as compared to the Ra standard temperature. The Multi Light Screen reads up to 4 light sources' color temperature as well as light balance and color compensation recommendations, memorizes them, and allows them to be compared. The SpectroMaster includes a CD with a user manual, as well as a Series C-700 utility that can be used to save data, display measurement values and graphs, and make settings when the meter is connected by USB to computers or tablets. With its plethora of light-analytic tools, ability to read and compare all types of light and real-world filter solutions, the SpectroMaster is destined to be a staple on set. Additionally, its' future-proof too—firmware updates can be downloaded and installed by the user. - Flash Measurement
- The C-700 series measures electronic flash and displays color data for accurate white balance, camera and light source filtration, and spectral color precision. Color temperature readings are displayed in Kelvin and illuminance readings in lux or lux sec
- Precise LED, HMI, Fluorescent, Tungsten, and Natural Light Measurement
- The C-700 series incorporates a CMOS linear sensor, that measures and evaluates the true color temperature of a light source from 380 to 780nm in 1nm output wavelength increments, capturing spikes in output of conventional light sources as well as fluorescent, HMI, and LED sources
- Wide Measuring Range of Color Temperature and Illuminance
- A wide correlated color temperature range (1,600 to 40,000K) and illuminance (1 to 200,000 lux) offers the flexibility and accuracy to measure any constant light source in any demanding studio or on-location production
- Various Displays
-
- The Text Screen displays user selected measurement values. Real time measurements appear and are updated after every reading, next to their light measurement values
- The Main Screen offers quick selection of many of the C-700 series' functions at a touch of a finger
- The CRI Screen displays the standard color reference values (including R1 thru 15) as a percentage of the light sources ability to reproduce a color accurately, as compared to the Ra standard
- The Spectrum Screen displays the spectral energy distribution of a source in real time. It can be displayed as a graph and data or full screen
- The Multi Light Screen reads up to 4 light sources' color temperature as well as light balance and color compensation recommendations can be memorizes them and allows them to be compared
In the Box Sekonic C-700-U SpectroMaster Color Meter CD-ROM with Operating Manual and C-700 Series Utility Soft Case Strap Limited 1-Year Warranty Limited 2-Year Warranty Extension after Online Registration Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Sekonic C-700-U SpectroMaster Color Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sekonic C-700-U SpectroMaster Color Meter can be downloaded in PDF format at the link stated below.
Technical parametersSekonic C-700-U Specs | Meter Type | Ambient
Flash
Spectrometer | | Flash Metering | Corded
Cordless | | | | Light Readings | CRI (Color Rendering Index) | | Measuring Range | Ambient: 1 to 200,000 lux / 0.1 to 18,600 fc
Flash: 20 to 20,500 lux / 1.86 to 1900 fc | | Illuminance Range | 1 to 200,000 lux / 0.1 to 140,000 fc | | Spectral Wavelength Range | 380 to 780 nm | | | | Receptor Element | CMOS | | Display | 4.3" / 11 cm Color Touchscreen LCD | | Interface | USB 2.0 Port | | Memory Card Slots | None | | Tripod Mounting Thread | None | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | | | Battery | 2 x AA | | Wireless Connectivity | None | | Dimensions | 2.87 x 7.2 x 1" / 73 x 183 x 27 mm (without Dome)
2.87 x 7.2 x 1.57" / 73 x 183 x 40 mm (with Dome) | | Weight | 8.1 oz / 230.0 g (without Batteries) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 10.2 x 6.6 x 4.0" |
