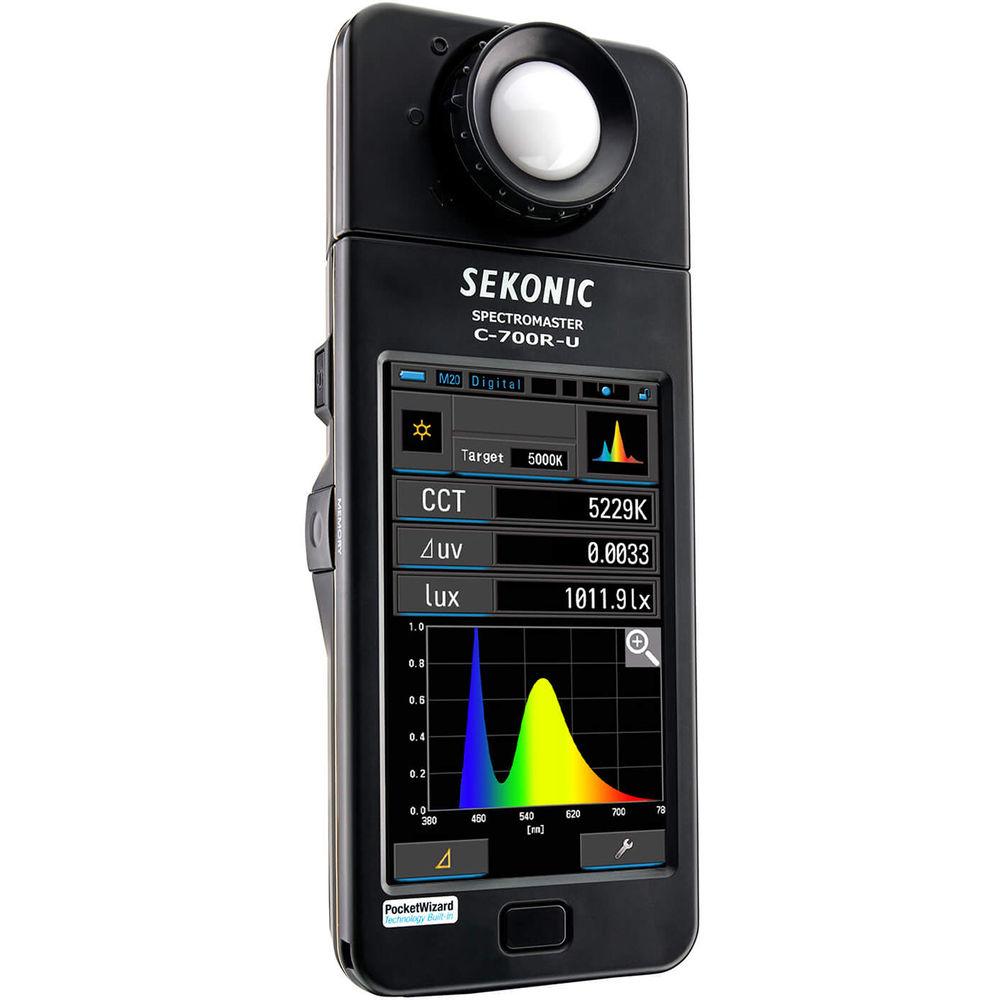

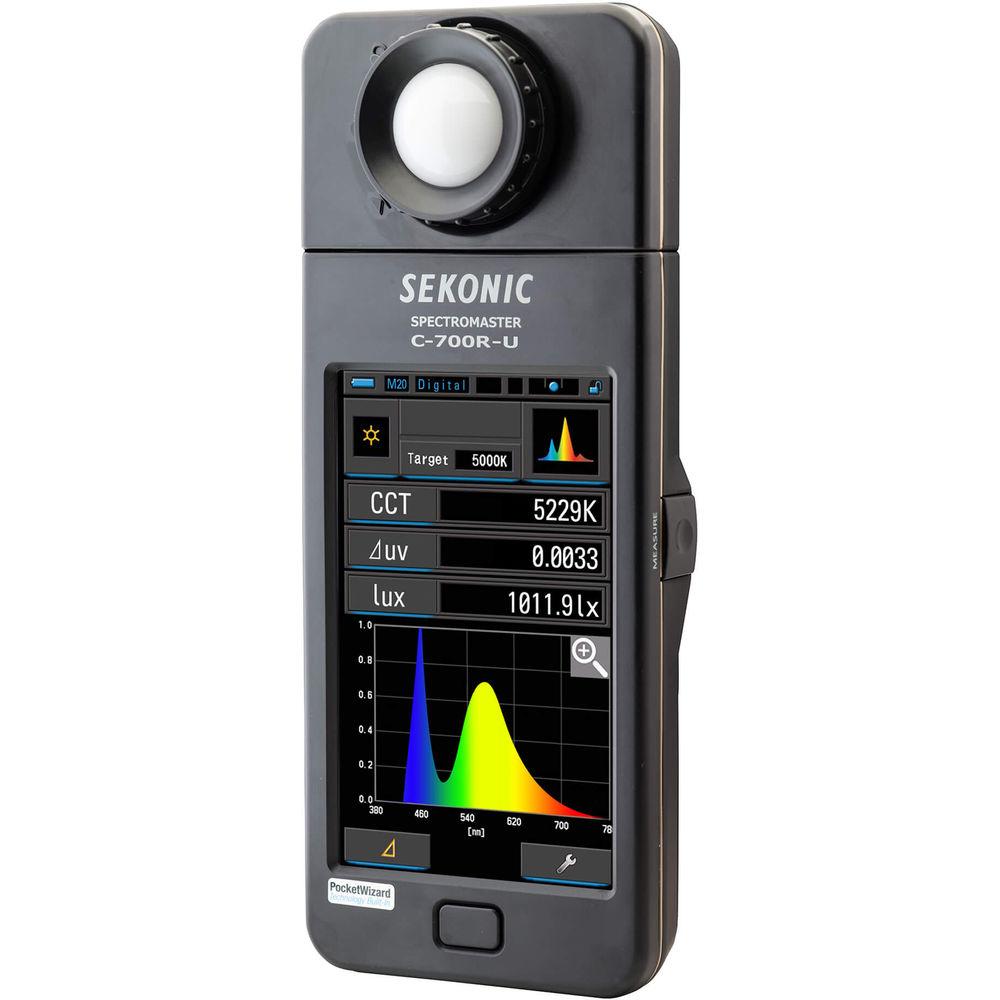

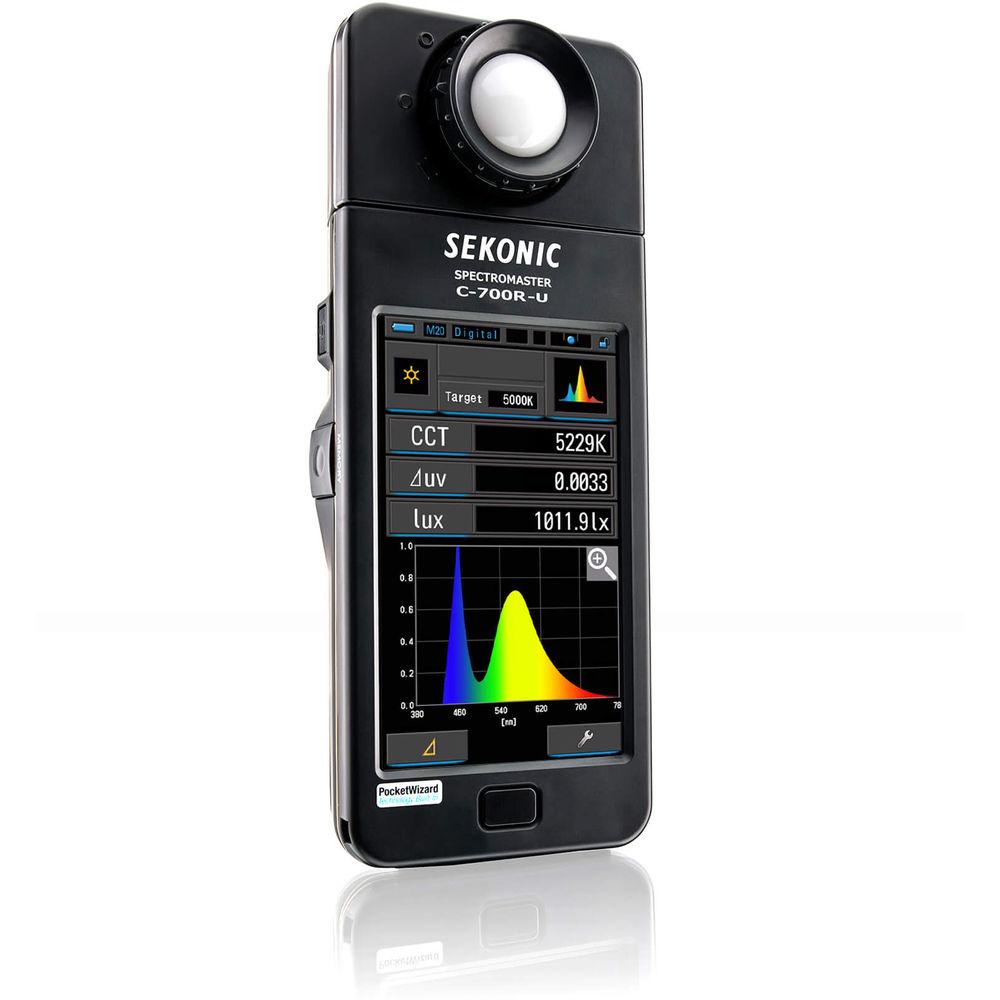

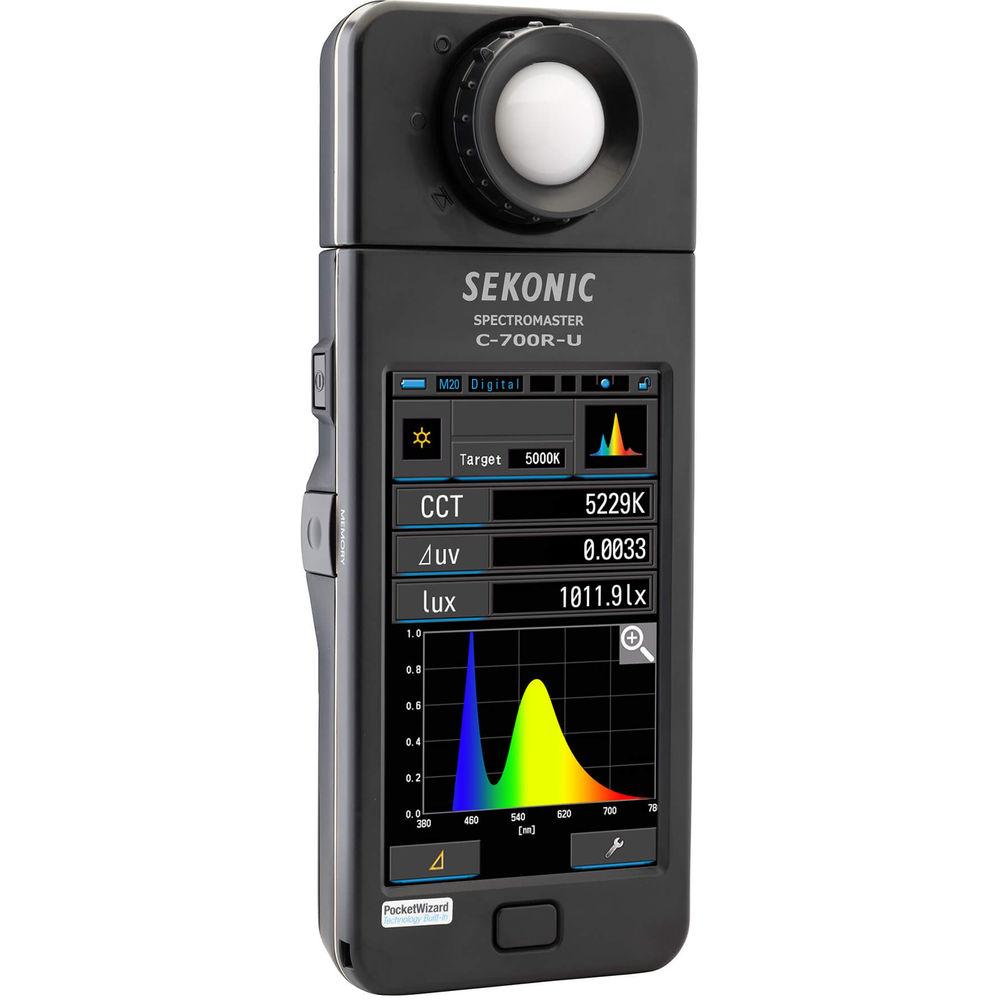

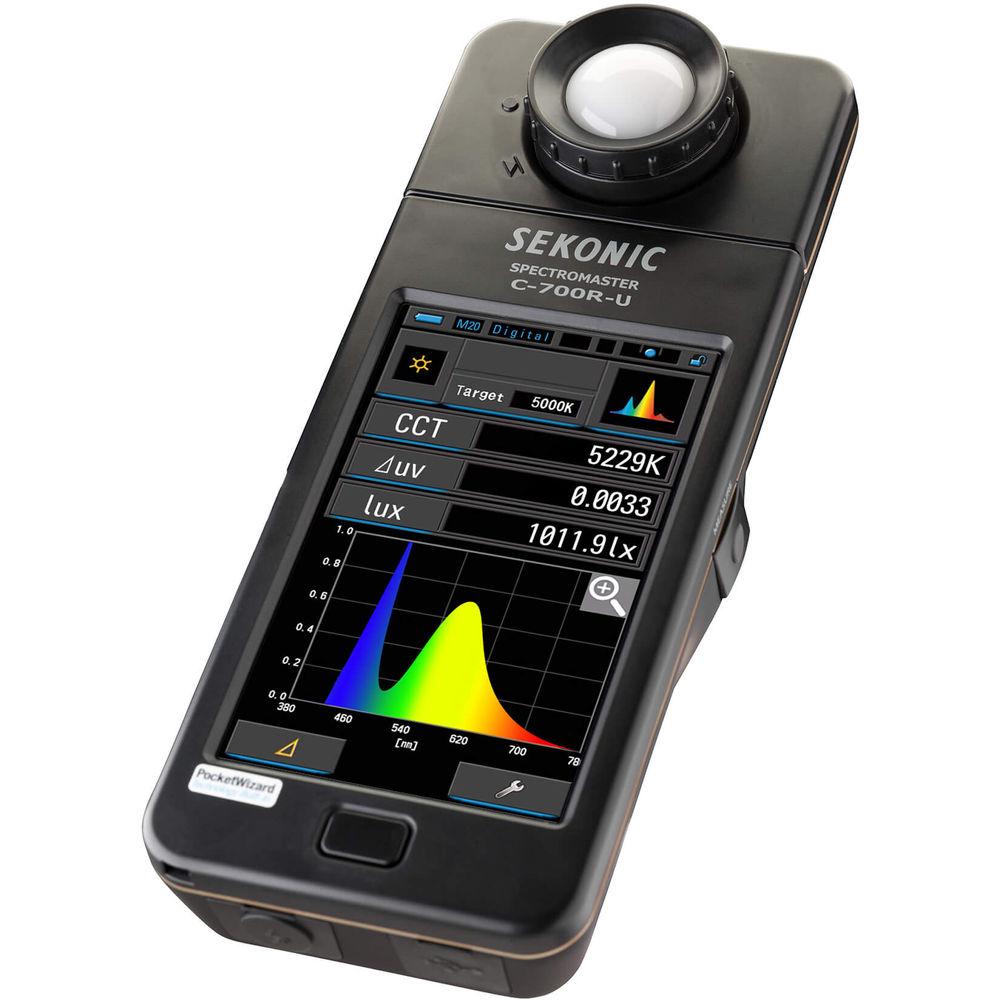

Sekonic C-700R-U SpectroMaster Color Meter

Search your instruction manual in PDF to download

User Manual for Sekonic C-700R-U SpectroMaster Color Meter

Click to enlarge the picture
Sekonic C-700R-U SpectroMaster Color Meter Contents of the user manual for the Sekonic C-700R-U SpectroMaster Color Meter
  • Product category: Light Meters Sekonic
  • Brand: Sekonic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sekonic Light Meters

Sekonic C-700R-U SpectroMaster Color Meter Sekonic C-700R-U SpectroMaster Color Meter Sekonic C-700R-U SpectroMaster Color Meter Sekonic C-700R-U SpectroMaster Color Meter Sekonic C-700R-U SpectroMaster Color Meter
User manual for the Sekonic C-700R-U SpectroMaster Color Meter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sekonic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sekonic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sekonic product will considerably shorten its lifespan!



Product description

Intended for photographers, videographers, cinematographers, and gaffers, the C-700R-U SpectroMaster Color Meter for Photo/Video/Cine from Sekonic is an advanced field meter capable of reading all light sources whether they're LED, flash, incandescent, HMI, fluorescent or in the natural light spectrum. Most importantly, it's a practical lighting tool that analyzes the light source using 9 different display modes on its 4.3" color touchscreen, indicating specifically what you need to do to achieve your desired effect. Additionally, the C-700R-U employs radio technology to wirelessly trigger a PocketWizard-connected flash at distances up to 100'. The meter's CMOS sensor enables measurement in increments as fine as 1nm and allows capture of color spikes in the light output—an especially valuable function when working with LED, HMI, fluorescent lighting and mixed sources.

The SpectroMaster has very impressive accuracy, repeatability, and response specs and a wide range of values in all modes. Flash units can be triggered at distances up to up 100' (30m) using the optional PocketWizard wireless triggering system. Any flash can be triggered and measured with a touch of the meter's measuring button. Selective zone control can even trigger individual flashes in a group or the entire group simultaneously. Ambient light has a wide 1.0 to 200,000 lux range (0.09 to 18,600 fc). The intuitive color touchscreen offers access to the meter's many functions including a Spectrum graph, CRI, Camera Filter, Lighting Filter, White Balance Compensation, and comparison of multiple lights.

Text mode offers screen display of color temperature, lux or fc, color compensation, and light balancing filters for your targeted color temperature. CRI also has a dedicated screen that displays standard color reference values (including R1 thru 15) as a percentage of the light source's ability to reproduce a color accurately, as compared to the Ra standard. The Camera Filter and Lighting Filter Screens display actual Rosco, Lee, Kodak Wratten, and Fuji filter designations.
    Flash Measurement with Wireless Triggering
  • The C-700R-U measures virtually all light sources including flash and better yet it can wirelessly trigger the flash at distances up to 100' using units with attached PocketWizard receivers or transceivers or built-in PocketWizard technology. The meter's selective zone control can even trigger and evaluate individual flashes in a group or the all of the units in the group simultaneously
    Selecting Radio Channels
  • ControlTL Channels: The C-700R-U is designed for use with the PocketWizard radio system. There are 20 channels for FCC & IC, and 3 for CE. You can set 3 zones (A, B and C) for each channel.
    Standard Channels: There are 32 PocketWizard meter channels. Channels 1–16 are single channels. Channels 17–32 can have 4 zones (A, B, C, D).
    Precise LED, HMI, Fluorescent, Tungsten, and Natural Light Measurement
  • The C-700 series incorporates a CMOS linear sensor, that measures and evaluates the true color temperature of a light source from 380 to 780nm in 1nm output wavelength increments, capturing spikes in output of conventional light sources as well as fluorescent, HMI, and LED sources
    Wide Measuring Range of Color Temperature and Illuminance
  • A wide correlated color temperature range (1,600 to 40,000K) and illuminance (1 to 200,000 lux) offers the flexibility and accuracy to measure any constant light source in any demanding studio or on-location production
    Various Displays
  • The Text Screen displays user selected measurement values. Real time measurements appear and are updated after every reading, next to their light measurement values
  • The Main Screen offers quick selection of many of the C-700 series' functions at a touch of a finger
  • The CRI Screen displays the standard color reference values (including R1 thru 15) as a percentage of the light sources ability to reproduce a color accurately, as compared to the Ra standard
  • The Spectrum Screen displays the spectral energy distribution of a source in real time. It can be displayed as a graph and data or full screen
  • The Multi Light Screen reads up to 4 light sources' color temperature as well as light balance and color compensation recommendations can be memorizes them and allows them to be compared
In the Box Sekonic C-700R-U SpectroMaster Color Meter
  • CD-ROM with Operating Manual and C-700 Series Utility
  • Soft Case
  • Strap
  • Camera Calibration Software
  • Limited 1-Year Warranty
  • Limited 2-Year Warranty Extension after Online Registration
  • Guides & Manuals eavywxwbezdfxubbxzzaweueetzywrrxsey Table of Contents




    Upload User Manual

    Have you got an user manual for the Sekonic C-700R-U SpectroMaster Color Meter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Sekonic C-700R-U SpectroMaster Color Meter can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Sekonic C-700R-U SpectroMaster Color Meter can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Sekonic C-700R-U SpectroMaster Color Meter can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Sekonic C-700R-U SpectroMaster Color MeterDownload PDF User Manual - Sekonic C-700R-U SpectroMaster Color Meter
    (PDF file, 0 MB)


    Technical parameters

    Sekonic C-700R-U Specs

    Meter Type Ambient
    Flash
    Spectrometer
    Flash Metering Radio
    Light Readings CRI (Color Rendering Index)
    Measuring Range Ambient: 1 to 200,000 lux / 0.1 to 18,600 fc
    Flash: 20 to 20,500 lux / 1.86 to 1900 fc
    Illuminance Range 1 to 200,000 lux / 0.1 to 140,000 fc
    Spectral Wavelength Range 380 to 780 nm
    Receptor Element CMOS
    Display 4.3" / 11 cm Color Touchscreen LCD
    Interface USB 2.0 Port
    Memory Card Slots None
    Tripod Mounting Thread None
    Operating Temperature 14 to 104°F / -10 to 40°C
    Storage Temperature 14 to 140°F / -10 to 60°C
    Battery 2 x AA
    Wireless Connectivity None
    Radio System PocketWizard
    Dimensions 2.87 x 7.2 x 1" / 73 x 183 x 27 mm (without Dome)
    2.87 x 7.2 x 1.57" / 73 x 183 x 40 mm (with Dome)
    Weight 8.4 oz / 238.0 g (without Batteries)
    Package Weight 1.3 lb
    Box Dimensions (LxWxH) 10.1 x 6.5 x 3.9"
