User Manual for Sekonic LiteMaster Pro L-478DR-U-EL Series Light Meter for Elinchrom EL Skyport System Click to enlarge the picture
Contents of the user manual for the Sekonic LiteMaster Pro L-478DR-U-EL Series Light
- Product category: Light Meters Sekonic
- Brand: Sekonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sekonic Light Meters
 |
User manual for the Sekonic LiteMaster Pro L-478DR-U-EL Series Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sekonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sekonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sekonic product will considerably shorten its lifespan!
|

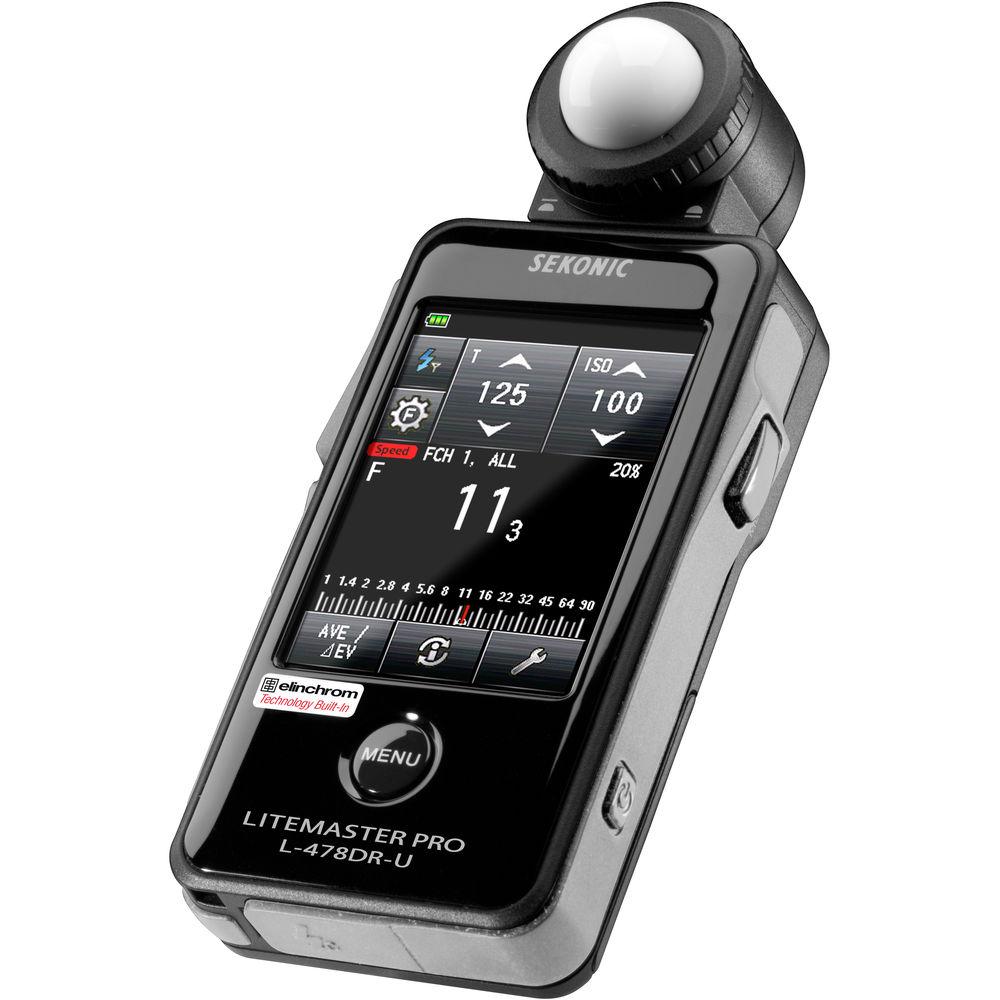

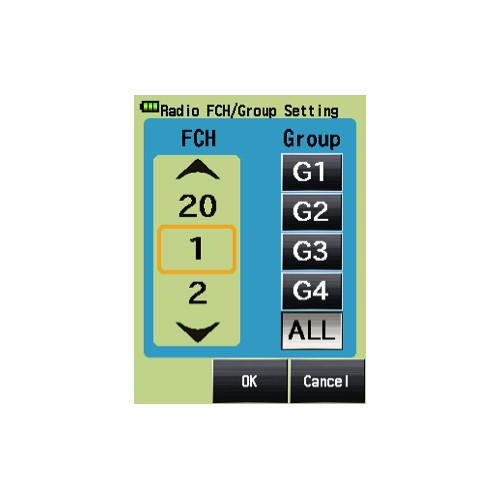

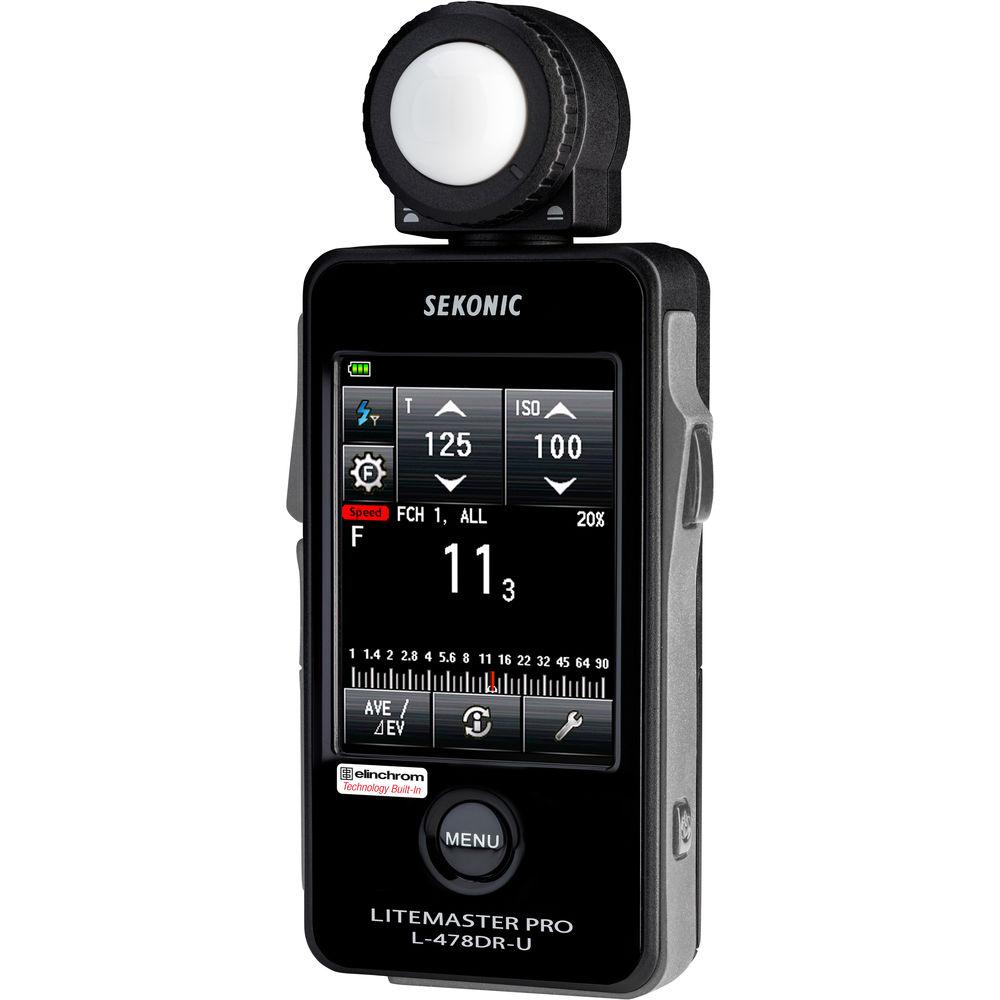

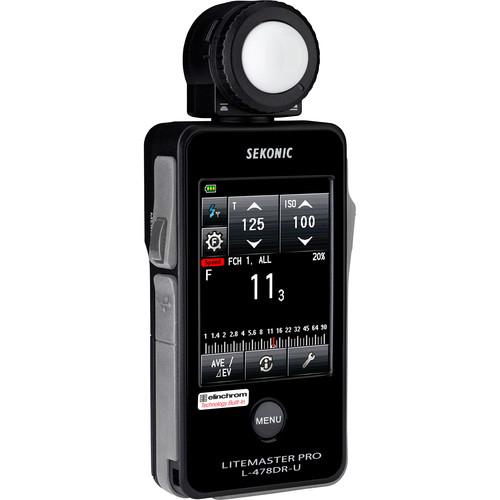

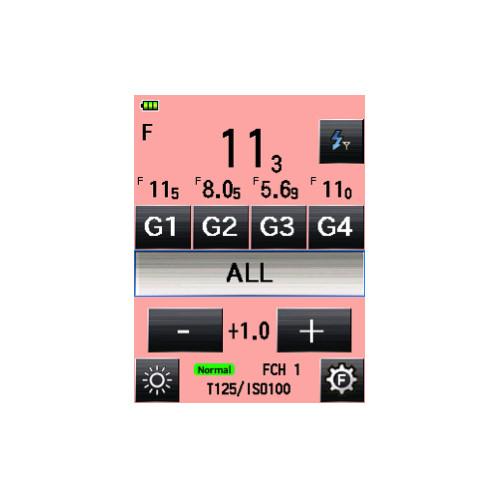

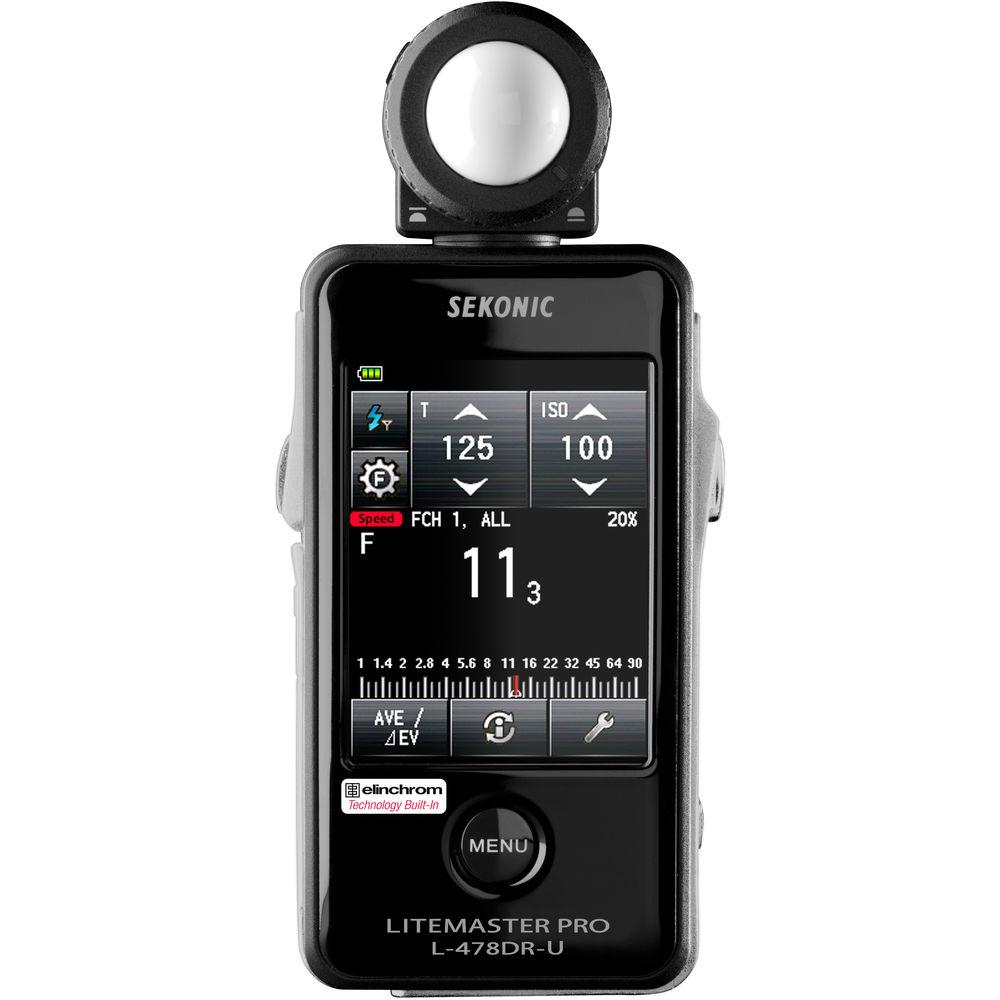

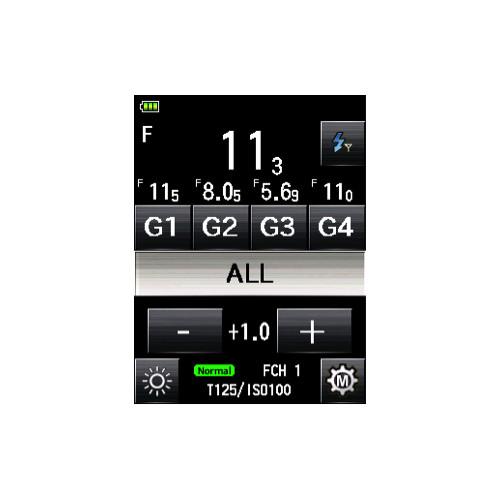

Product description Unveiled: Sekonic LiteMaster Pro L-478DR-U Series Light Meters for Phottix and Elinchrom Read More Equipped with a large and intuitive 2.7" color touchscreen LCD and now featuring built-in radio flash power control and triggering for the 2.4 GHz Elinchrom EL Skyport wireless system, the LiteMaster Pro L-478DR-U-EL Series Light Meter from Sekonic will make incident metering for ambient and flash light super simple. The major ability of this system enables complete control of the flash's power in 0.1-step increments. Along with this, the 20-channel system has separate selection between 4 groups with measured values maintained for ratio determination. Users will also be able to control modeling lamp power as well as set ALL groups at once.

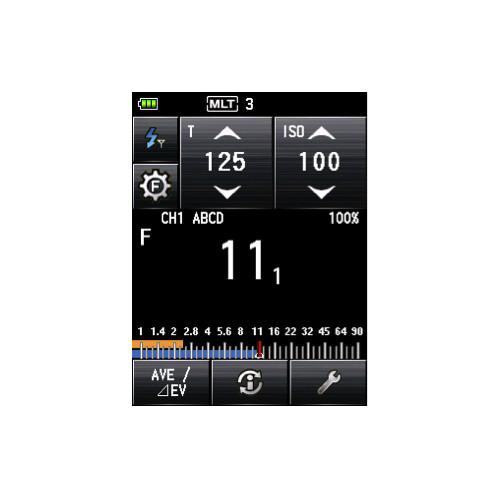

Notable for the L-478 light meter series is the large color touchscreen, which allows for fast control over settings for both ambient and flash metering. The meter is quite capable as well, able to function within a range of -2 to 22.9 EV at ISO 100. And, for the current crop of hybrid shooters this model expands on its standard stills functions with two distinct video modes: Cine and HD Cine. These settings give access to frame rate selection from 1-1,000 fps as well as shutter angle settings from 1-358° as well as ISO 850 for Canon cinema cameras.
Guaranteeing the best possible performance is a suite of functions and features that will ensure users have the best tools available to them. Among these is a flash analyzing function that uses ambient and flash simultaneously to allow for shooters to dial in their preferred mix. Also, using the included Data Transfer Software users will be able to do Exposure Profiling for their camera by using the optional 5° viewfinder, showing dynamic range limits and knowing that you will have an accurate exposure. Alongside this is a Filtration Compensation Mode that allows for the meter to account for filter factor, which can now be done at up to 12 EV for landscape shooters using high-density ND filters. Other features include a contrast function for comparing brightness, a memory mode for 8 readings, and illuminance or luminance measurement. - Lumisphere receptor head rotates 90° right and 180° left and retracts for conversion to a flat diffuser
- Optional 5° viewfinder for spot metering
- Ambient light measuring modes include aperture priority, shutter speed priority, TF priority, CINE, HD Cine, illuminance, and luminance
- Flash can be measured with PC sync terminal connection, cordless, or radio triggering
- Measuring range at ISO 100 of -2 to 22.9 EV with incident light or 3 to 22.9 EV with reflected light
- ISO range of 3 to 409,600 in 1/3 steps, including 850 for Canon cinema cameras
- Other functions: exposure profile, mid tone function, exposure compensation, filter compensation, multiple cumulative function, memory/clear/recall function, average function, contrast function, auto power off, touch panel lock
- Firmware upgradeable via mini-USB port

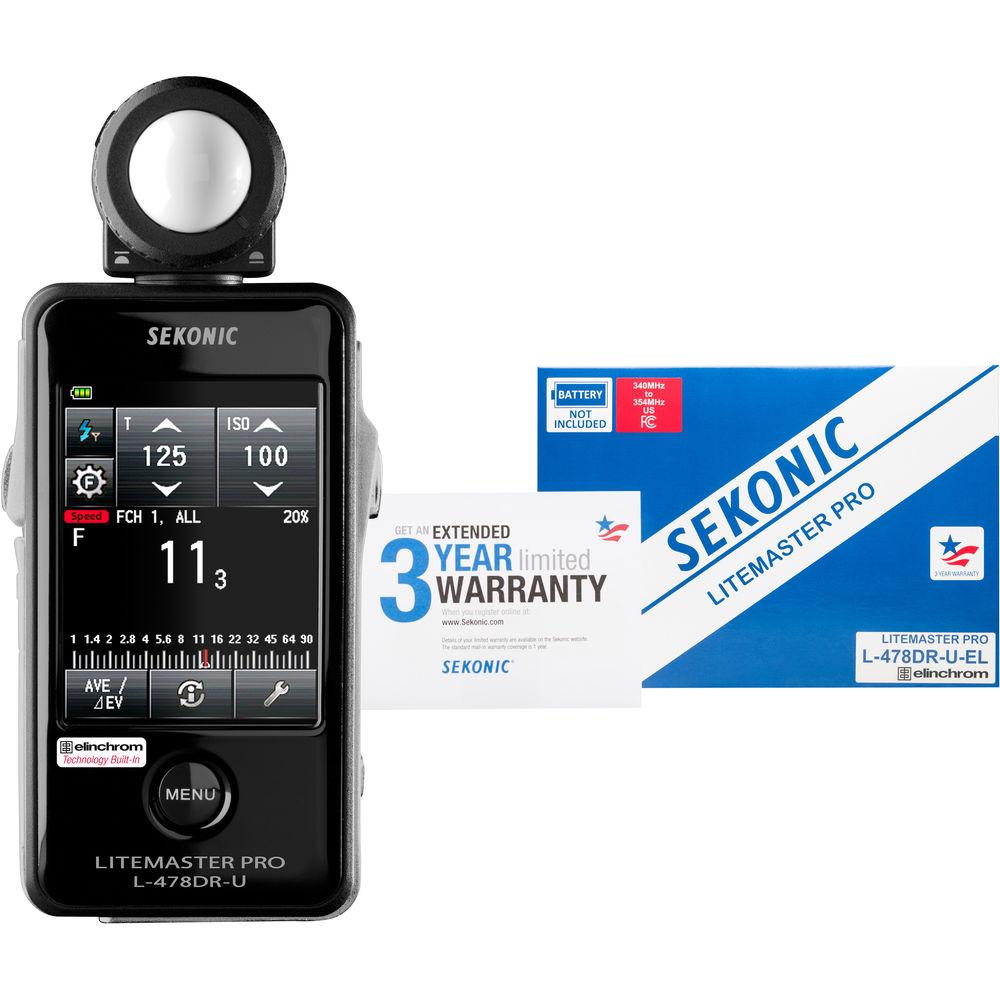

In the Box Sekonic LiteMaster Pro L-478DR-U-EL Series Light Meter for Elinchrom EL Skyport System Anti-Glare Film Hand Strap Soft Case Operating Manual & Data Transfer Software CD-ROM Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sekonic LiteMaster Pro L-478DR-U-EL Series Light Meter for Elinchrom EL Skyport System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSekonic L-478DR-EL Specs | Meter Type | Ambient
Cine
Flash | | Spot Metering | 5
