User Manual for Sekonic Speedmaster L-858D-U Light Meter Click to enlarge the picture
Contents of the user manual for the Sekonic Speedmaster L-858D-U Light Meter
- Product category: Light Meters Sekonic
- Brand: Sekonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sekonic Light Meters
 |
User manual for the Sekonic Speedmaster L-858D-U Light Meter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sekonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sekonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sekonic product will considerably shorten its lifespan!
|
Product description In the Field with the Sekonic Speedmaster L-858D-U Light Meter Read More - Sekonic L858D CINE YT
- Sekonic L858D PHOTO YT

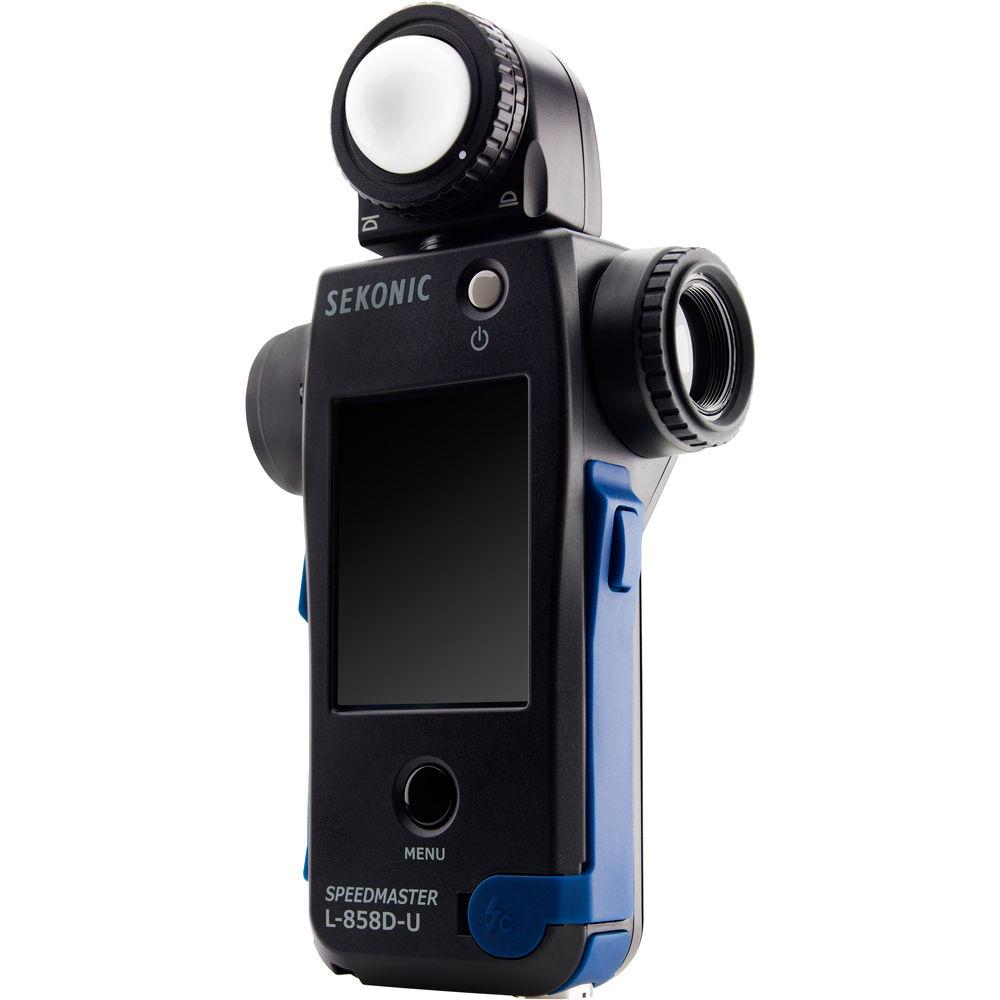

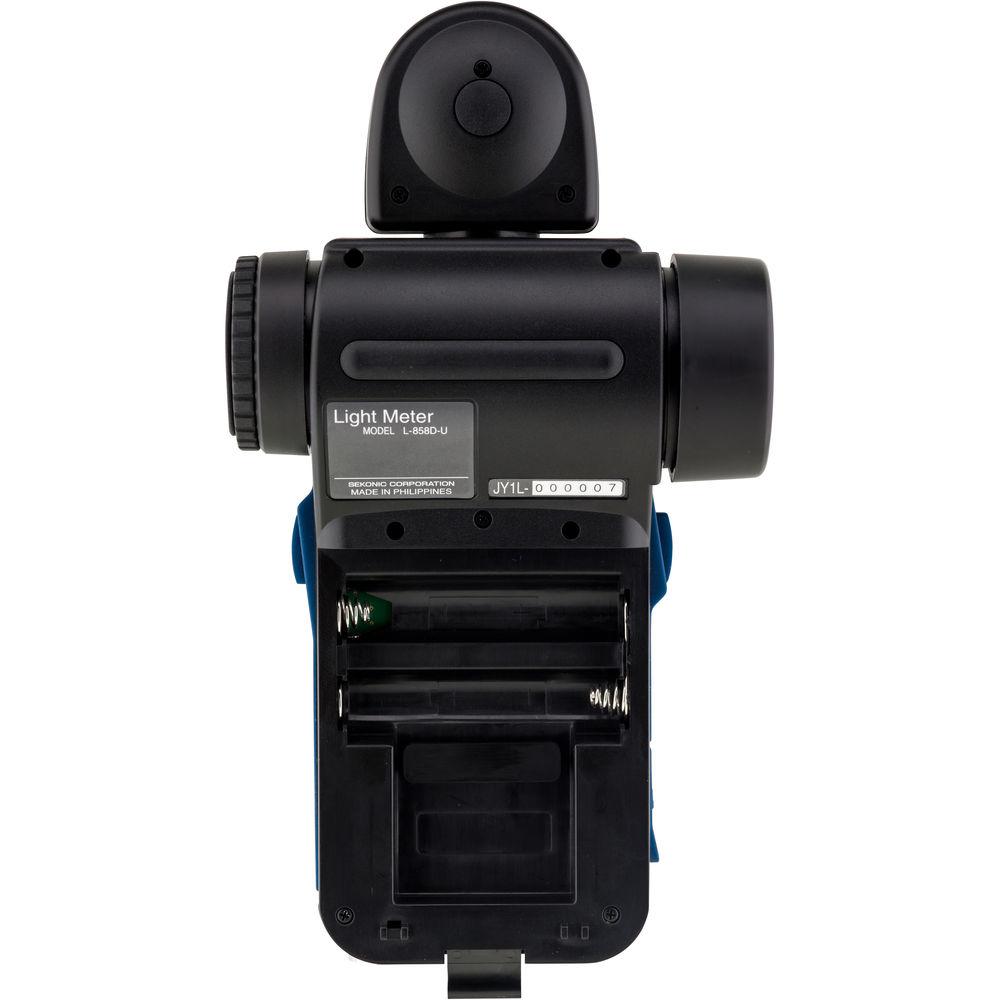

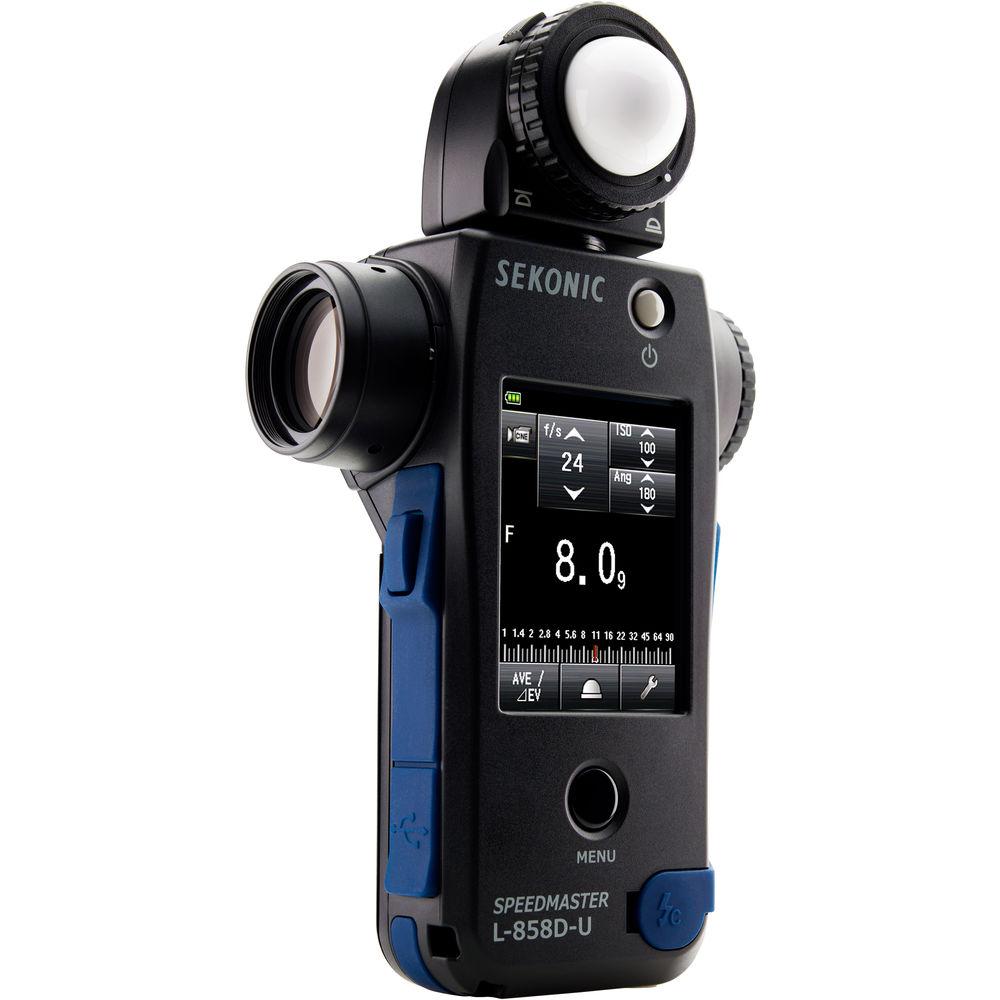

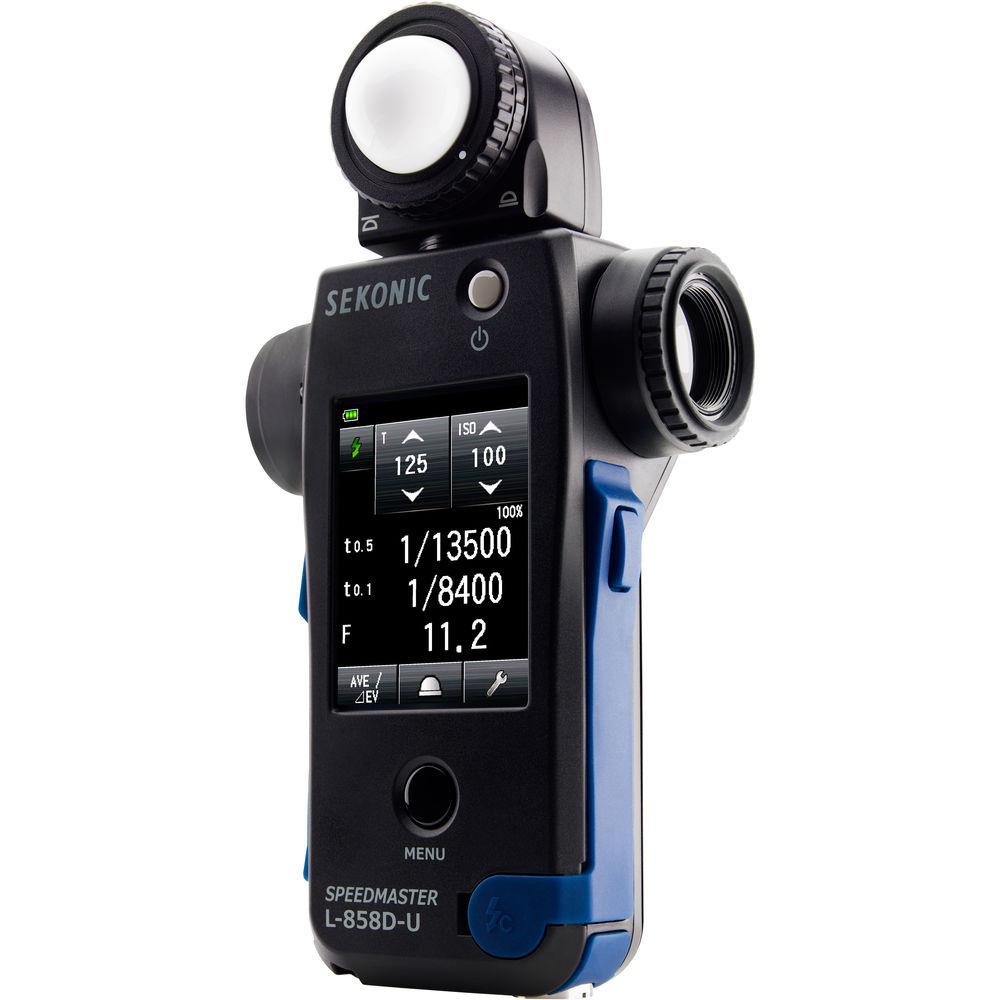

Aiming to provide for the needs of both photographers and filmmakers, the Speedmaster L-858D-U Light Meter from Sekonic comes packed with a variety of upgraded features and capabilities that make it an almost essential tool for a working professional. It is able to take incident and reflected light readings of both flash and ambient light with an expanded measuring range of -5 to 22.9 EV at ISO 100, or within an illuminance range of 0.1 to 2,000,000 lux. Users will also find it intuitive and easy-to-use thanks to the use of a 2.7" color touchscreen LCD and an all-weather design.
The meter can use either a 270° rotating and collapsible lumisphere or an integrated 1° spot viewfinder to account for varying needs of the user. Also, it offers an extensive range of cinema and video settings as well as the unique ability to measure flash duration and to take readings when using high-speed sync flash. The L-858D-U is equipped with a variety of other functions as well, including memory recall, a Flash Analyzing Function, and extended ranges on nearly every setting. Additionally, through the use of optional modules, users can add radio triggering support for PocketWizard and Elinchrom/Phottix systems. - Lumisphere receptor head rotates 90° right and 180° left and retracts for conversion to a flat diffuser.
- Integrated 1° spot viewfinder with full information display provides a precise method of measuring specific parts of a scene.
- Ability to measure flash duration within a range of 1/40 to 1/55,500 second using t0.1 to t0.9 settings.
- Improved sensitivity of the L-858D-U allows it to record a reading at just 0.1 lux illuminance as well as use expanded range of -5 to 22.9 EV for incident readings and -1 to 22.4 EV for reflected light. Also, it features an extended ISO range of ISO 3 to ISO 13,107,200 with an option available for ISO 850.
- Optional radio modules are available for PocketWizard and Elinchrom/Phottix systems for advanced wireless triggering and remote flash control.
- High-Speed Sync support allows photographers to accurately take readings while using HSS with their flashes and cameras.
- Flash Analyzing Function measure ambient and flash simultaneously to provide a percentage of flash in the final exposure. Users can then adjust the mix as the display shows camera settings and the relationship between the flash and ambient light in your exposure.
- Users can determine the dynamic range of their camera using optional targets by taking bracketed shots with their measurement data and they using the Sekonic Data Transfer Software to graph and then save the information to the meter.
- Expanded shutter speed ranges now allow for readings between 1/64,000 second to 30 minutes with ambient light and 1/16,000 second to 30 minutes for flash.
- A comprehensive set of cinema modes allows for settings of 1-1000 fps as well as shutter angles of 1-358°. Twenty user determined settings are also available that provide more precise options of 0.001-360° shutter angles and 0.001-99,999.999 fps.
- 2.7" color touchscreen LCD provides a fast and intuitive method for viewing and changing settings.
- Micro-USB port can be used for firmware updates, applying custom settings, and to use exposure profiling.
- The L-858D-U features an all-weather construction that is dust and splash proof (JIS Class 4).
In the Box Sekonic Speedmaster L-858D-U Light Meter Anti-Glare Sheet for LCD Screen Lens Cap Strap Soft Case Limited 1-Year Warranty with 2-Year Extension upon Online Registration User Manual PDF 12.3mbwwwqxdfquvwzxbuuarwbvrswerv Table of Contents
|
Upload User Manual
Have you got an user manual for the Sekonic Speedmaster L-858D-U Light Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSekonic L-858D Specs | Meter Type | Ambient
Cine
Flash
Spot | | Spot Metering | 1
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Sekonic Speedmaster L-858D-U Light Meter
| Subject: Sekonic 858 light meter compatibility issue | | Date: 16.02.2021 12:08:09 | Name: Keith Harrold | I have a sekonic 858 light meter and it seems the pocket wizard plus 3 meter is not compatible? Do you have any ideas why this would be? I would greatly appreciate any advice or suggestions.
Kindest Regards
Keith | | Post reply |
