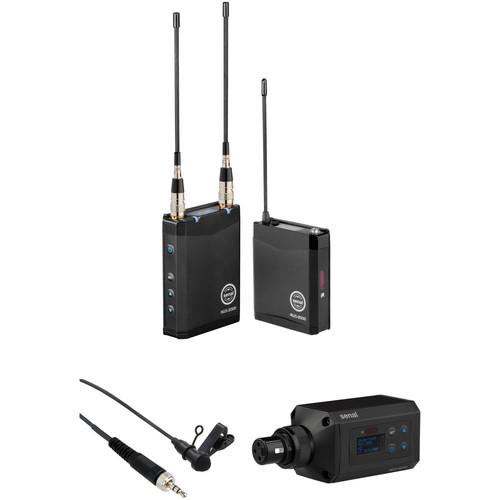

User Manual for Senal AWS-2000 Camera-Mount Wireless Combo Microphone System Kit

• Product category: Wireless Systems Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Wireless Systems

Product description

• Senal AWS-2000-B Advanced Wireless Microphone System (B: 554 to 586 MHz, No Mic Included)
  • Mission: Possible - You Only Sync Once - AWS-2000 Wireless Lav Mic | Senal
  The Senal AWS-2000-B is a wireless system designed to provide a durable, reliable, and lightweight solution for high-quality wireless audio transmission for ENG, interviews, film production, conferences, theater, and more. Setup of the dual-antenna, camera-mountable, true diversity receiver and beltpack transmitter is effortless due to the one-touch scan and sync feature. Time won’t be wasted trying to find out how to configure the system; its menus are user-friendly, easy to navigate, and easy to read via the top-mounted, high-contrast OLED displays.With 1280 tunable frequencies across 32 MHz, the AWS-2000-B is able to quickly lock onto a solid channel with automatic scan and sync via a simple press of a button. By incorporating a true diversity design with two independent receiver circuits, the system effectively eliminates dropouts and interference. For additional protection against RF interference, utilize the integrated pilot tone and three-level squelch. The selectable mic/line input, variable RF power output, and flexible volume controls enable further optimization of the signal. The 3.5mm headphone jack allows you to easily monitor your signal.The rugged, metal-bodied components can be powered by AA batteries or USB connection. The system ships with batteries, antennas, mounting options, cables, and a carrying case.
  One-Touch Scan and Sync
  • Simply press the receiver's AFS button to automatically and quickly scan the frequency spectrum and sync to the transmitter via IR connection
  True Diversity Receiver
  • Two independent receiver circuits utilize their own antennas to deliver consistently strong signal void of RF interference, while a comparison circuit reduces dropouts through continuous receiver monitoring and signal selection
  Top-Mounted OLED Displays
  • High-contrast OLED displays offer a wider viewing angle than LCDs, are easy to see, and are top-mounted on the receiver and transmitter for obstruction-free visibility even when configured in bags or when piggy backed using the included dual mounting bracket
  Comprehensive Display
  • The OLED displays always show vital information including channel/frequency, name, levels, and battery life
  System Battery Life Indication
  • The receiver displays battery life for both the receiver and the transmitter
  LED Indicators
  • Easy-to-see LEDs indicate RF signal and peak status
  User-Friendly Menu System
  • The menu system was designed for minimal navigation and maximum efficiency, allowing fast access to essential functions
  Efficient Feature Accessibility
  • Quickly access many of the system's functions via the buttons without having to dig deep into menus
  Selectable Mic/Line Input
  • Choose line-level signal for compatibility with an external mixer or playback source or select mic-level signal when using a mic such as a lavalier or headset
  Variable RF Power Output
  • Two power output levels — low for battery-saving, close-range operation, and high for wide-area, far-range operation — enable optimization for your situation
  Balanced Output
  • By incorporating a balanced output, the system is able to take advantage of common mode rejection to achieve a stronger signal level with less noise
  Headphone Output
  • Quickly check for signal presence and quality by connecting headphones directly to the receiver's 3.5mm headphone jack
  Versatile Volume Control
  • Use the volume control to adjust the output level or the headphone volume via a simple built-in toggle function
  Pilot Tone and Squelch
  • The pilot tone control and three-level squelch enable you to maintain the integrity of your audio and avoid bothersome interference
  Device Names
  • Name each component for easy identification; the name will sync between the receiver and transmitter
  Convenient Power Options
  • Power the transmitter and receiver via included AA batteries, rechargeable NiMH batteries (available separately), or USB connection, and conveniently recharge batteries via USB
  UPC: 847628584952
• Senal OLM-2 Lavalier Microphone with 3.5mm Connector for Sennheiser ew & Senal AWS-2000 Series
  • Mission: Possible - You Only Sync Once - AWS-2000 Wireless Lav Mic | Senal
  This Senal OLM-2 Lavalier Microphone is a high-performance professional lavalier microphone with a locking 1/8" connector for Sennheiser ew and Senal AWS-2000 wireless transmitters. Its miniature, lightweight design allows for discrete placement without compromising sound quality. This versatile workhorse microphone is ideal for broadcast, video, and stage applications.

  Utilizing a broadcast-quality electret condenser element, it features a smooth frequency response and a wide dynamic range. Its omnidirectional polar pattern enables 360° sound pickup, capturing a natural blend of voice and ambiance with low sensitivity to wind and handling noise, as well as to vocal plosives. In addition to being designed to connect to a Sennheiser or Senal bodypack transmitter, the OLM-2 can be combined with the Senal PS-48B Power Supply (sold separately) to operate on phantom or battery power, enabling it to plug into any XLR microphone input.
  • Gold-plated locking 1/8" connector for Sennheiser ew and Senal AWS-2000 wireless transmitters
  • Metal windscreen reduces wind noise and vocal plosives
  • Tie clip for securing mic to clothing
  • 16.3 x 6.5mm (length x diameter) head size
  UPC: 847628562639
• Senal AWS-2000P-B Plug-On Transmitter for AWS-2000 Wireless System (B: 554 to 586 MHz, No Microphone Included)
  • Mission: Possible - You Only Sync Once - AWS-2000 Wireless Lav Mic | Senal
  The Senal AWS-2000P-B is a plug-on transmitter designed to provide reliable and versatile wireless transmission of any XLR microphone to Senal’s AWS-2000-B advanced wireless microphone system in concerts, theater production, houses of worship, ENG, conferences, interviews, and more. The rugged, metal-bodied transmitter supplies 48V phantom power over its XLR 3-pin connector and offers a range of up to 500’ via its variable RF power output.Power the AWS-2000P-B via AA batteries, rechargeable NiMH batteries, or USB connection (all available separately), and conveniently recharge batteries via USB without having to remove them. A pilot tone allows minimization of undesired RF interference and the adjustable input level makes proper gain-staging simple. Activate the 100 Hz low-cut filter to reduce stage rumble or low-frequency buildup from ventilation systems. Battery status indication is provided on the high-contrast OLED display, which is clearly visible even in low-lighting environments.
  OLED Display
  • A high-contrast OLED display offers a wider viewing angle than an LCD and is easy to see in low-light environments
  Phantom Power
  • Power a condenser microphone with full 48V phantom power supplied from the plug-on transmitter
  Convenient Power Options
  • Power the transmitter via AA batteries, rechargeable NiMH batteries, or USB connection (all available separately), and conveniently recharge batteries via USB
  Pilot Tone
  • The pilot tone control enables you to maintain the integrity of your audio and avoid bothersome interference
  Adjustable Input Level
  • The transmitter's adjustable input level (-30 to 0 dB) allows you to optimize your gain based upon your microphone's output strength
  Variable RF Power Output
  • Two power output levels - low for battery-saving, close-range operation, and high for wide-area, far-range operation - enable optimization for your situation
  Low-Cut Control
  • Use the selectable 100 Hz low-cut filter to reduce unwanted low-frequency buildup from rumble, room noise, and ventilation systems
  Battery Type Selection
  • Select the type of battery being used to optimize the accuracy of the battery status indication
  UPC: 847628599895

• AWS-2000-B Advanced Wireless Microphone System (B: 554 to 586 MHz, No Mic Included) ydebtqauvutfrbadsecyauztaadeyttdwt
• Balanced Locking 3.5mm to XLR Cable
• Locking 3.5mm Cable
• Camera Mount for AWS-2000R
• Dual Mounting Bracket
• 2 x Antennas
• 4 x AA Batteries
• Carry Case
• Limited 1-Year Warranty

• OLM-2 Lavalier Microphone with 3.5mm Connector for Sennheiser ew & Senal AWS-2000 Series

• AWS-2000P-B Plug-On Transmitter for AWS-2000 Wireless System (B: 554 to 586 MHz, No Microphone Included) ydebtqauvutfrbadsecyauztaadeyttdwt

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal AWS-2000-B Advanced Wireless Microphone System (B: 554 to 586 MHz, No Mic Included)

  Wireless Frequency Range	B: 554 to 586 MHz
  Operating Range	Up to 500' / 152.4 m
  Connectors	1 x 1/8" (3.5 mm) 1 x micro-USB (charging port)
  RF Power Output	30 mW / 5 mW (selectable)
  Reference Input Level	-26 dBV
  Frequency Response	80 Hz to 15 kHz
  Signal to Noise Ratio	<100 dB
  Pilot Tone	32.768 kHz
  Power Requirement	2 to 3.6 V
  Operating Temperature	32 to 131°F / 0 to 55°C
  Dimensions (H x W x D)	2.8 x 2.4 x 0.8" / 71.1 x 61.0 x 20.3 mm (without antenna)
  Weight	3 oz / 84 g

  Wireless Frequency Range	B: 554 to 586 MHz
  Operating Range	Up to 500' / 152.4 m
  Connectors	1 x 1/8" (3.5 mm) 1 x micro-USB (charging port)
  Frequency Response	80 Hz to 15 kHz
  Total Harmonic Distortion	<0.9%
  Pilot Tone	32.768 kHz
  Power Requirement	2 to 3.6 V
  Operating Temperature	32 to 131°F / 0 to 55°C
  Dimensions (H x W x D)	3.1 x 2.3 x 0.8" / 78.7 x 58.4 x 20.3 mm (without antennas)
  Weight	4.1 oz / 116 g

  Box Dimensions (LxWxH)	13.9 x 9.3 x 3.0"

• Senal OLM-2 Lavalier Microphone with 3.5mm Connector for Sennheiser ew & Senal AWS-2000 Series

  Transducer	Electret condenser
  Polar Pattern	Omnidirectional
  Frequency Response	50 Hz to 20 kHz
  Sensitivity	-63 dB ±3 dB (0 dB = 1 v/microbar @ 1 kHz)
  Impedance	15,000 Ω ±30% @ 1 kHz
  Operating Voltage	1 - 10 VDC
  Connector	Gold-plated 1/8" (3.5 mm) locking connector jack
  Cable Length	5.3' (1.6 m)
  Head Diameter	0.3" (6.5 mm)
  Head Length	0.6" (16.3 mm)
  Total Weight	1 oz (28.3 g)

  Box Dimensions (LxWxH)	3.4 x 3.3 x 1.6"

• Senal AWS-2000P-B Plug-On Transmitter for AWS-2000 Wireless System (B: 554 to 586 MHz, No Microphone Included)

  Wireless Frequency Range	B: 554 to 586 MHz
  Operating Range	Up to 500' / 152.4 m
  Connectors	1 x XLR 3-pin 1 x Micro-USB (charging port)
  RF Power Output	30 mW / 5 mW (selectable)
  Reference Input Level	-20 dBV
  Frequency Response	80 Hz to 15 kHz
  Low-Cut Filter	100 Hz
  Phantom Power	48 V
  Signal to Noise Ratio	<100 dB
  Pilot Tone	32.768 kHz
  Power Requirement	2 to 3.6 V
  Operating Temperature	32 to 131°F / 0 to 55°C
  Dimensions (H x W x D)	4.1 x 1.7 x 1.7" / 104.1 x 43.2 x 43.2 mm
  Weight	4.7 oz / 133 g

  Box Dimensions (LxWxH)	7.2 x 4.2 x 3.2"
