User Manual for Senal AWS-2000P-A Plug-On Transmitter for AWS-2000 Wireless System Click to enlarge the picture
Contents of the user manual for the Senal AWS-2000P-A Plug-On Transmitter for AWS-2000
- Product category: Wireless Transmitters Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Wireless Transmitters
 |
User manual for the Senal AWS-2000P-A Plug-On Transmitter for AWS-2000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|
Product description - Mission: Possible - You Only Sync Once - AWS-2000 Wireless Lav Mic | Senal
- Mission: Possible - For Your Ears Only - AWS-2000 Wireless Lav Mic In-Use | Senal
- Mission: Debrief - The Picture Is Not Enough (Making of 'Mission: Possible) - AWS-2000
- How to Set Up Your New AWS-2000 Wireless System

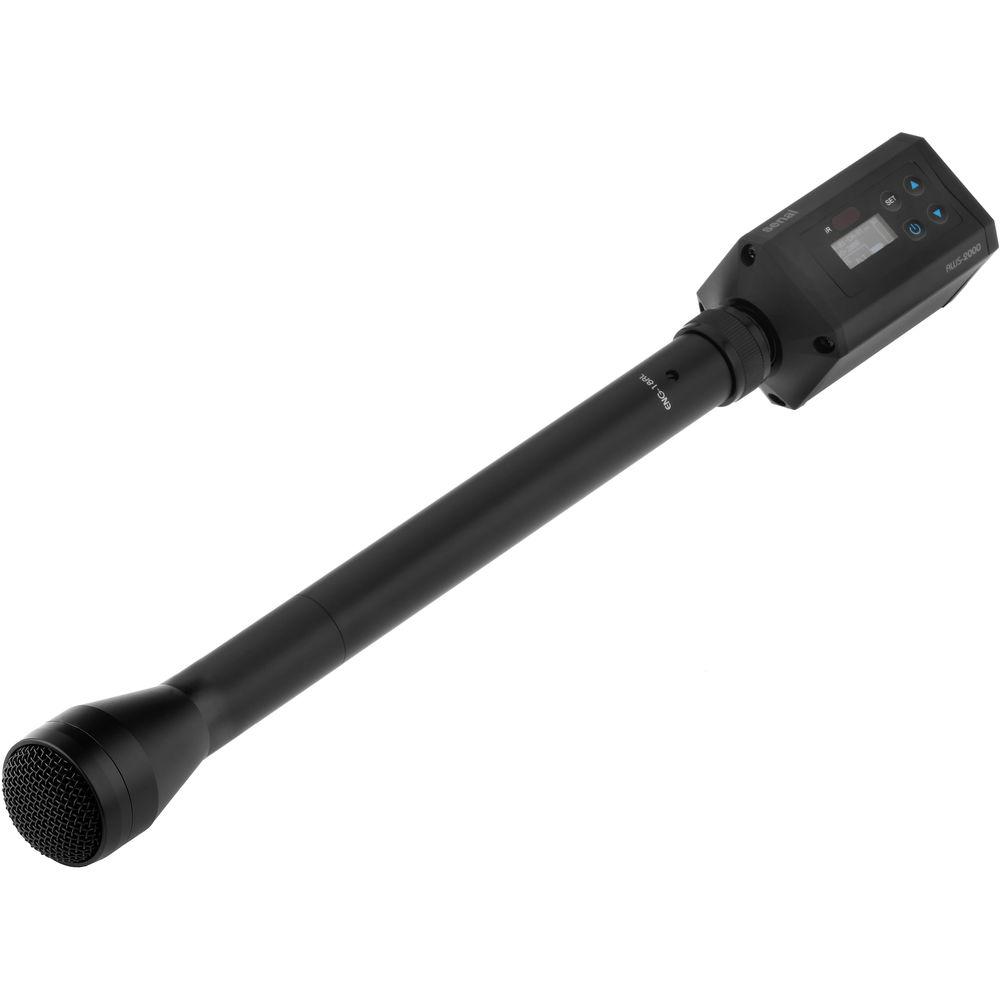

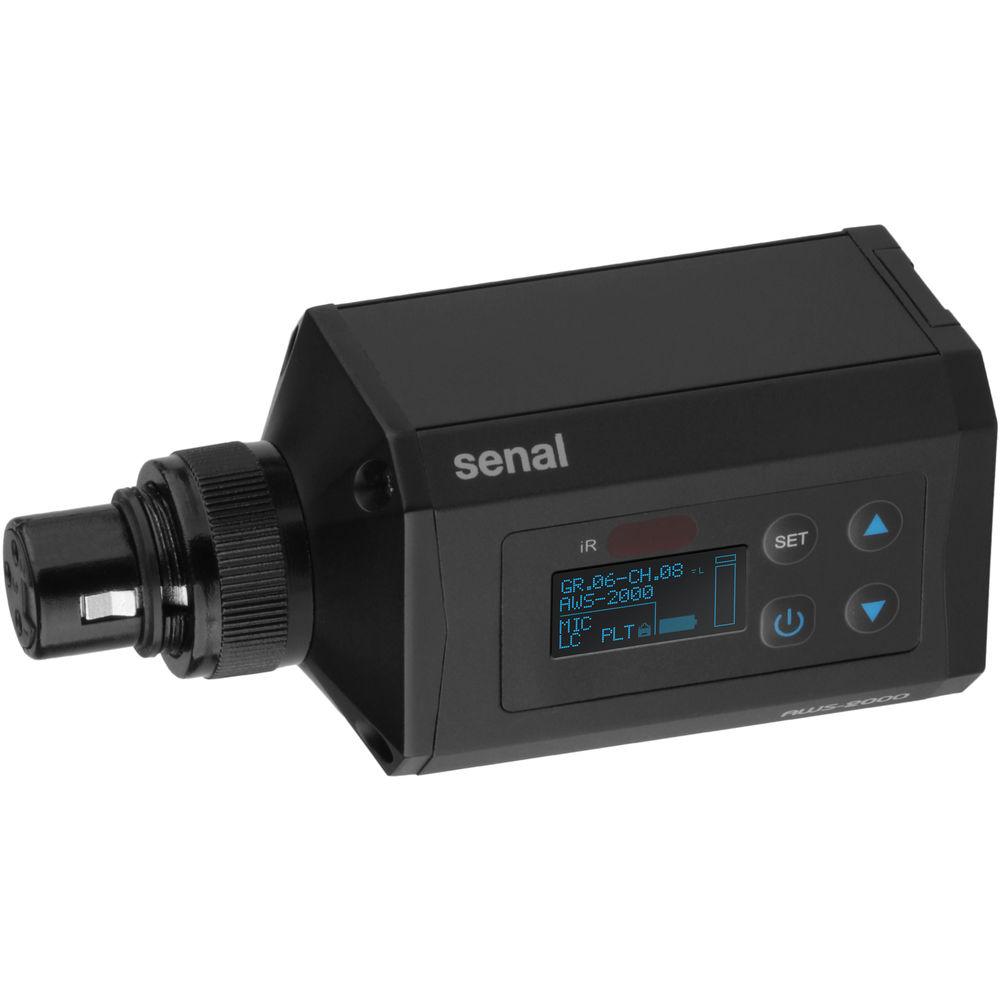

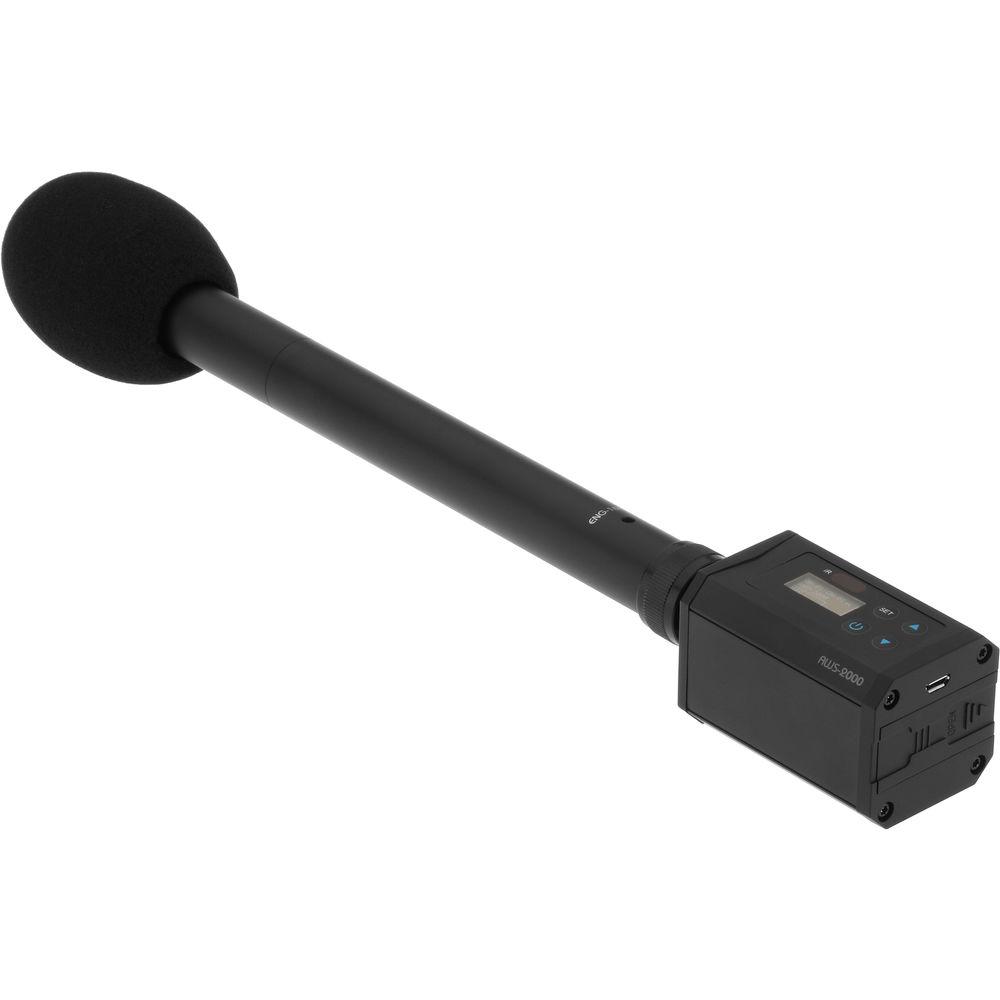

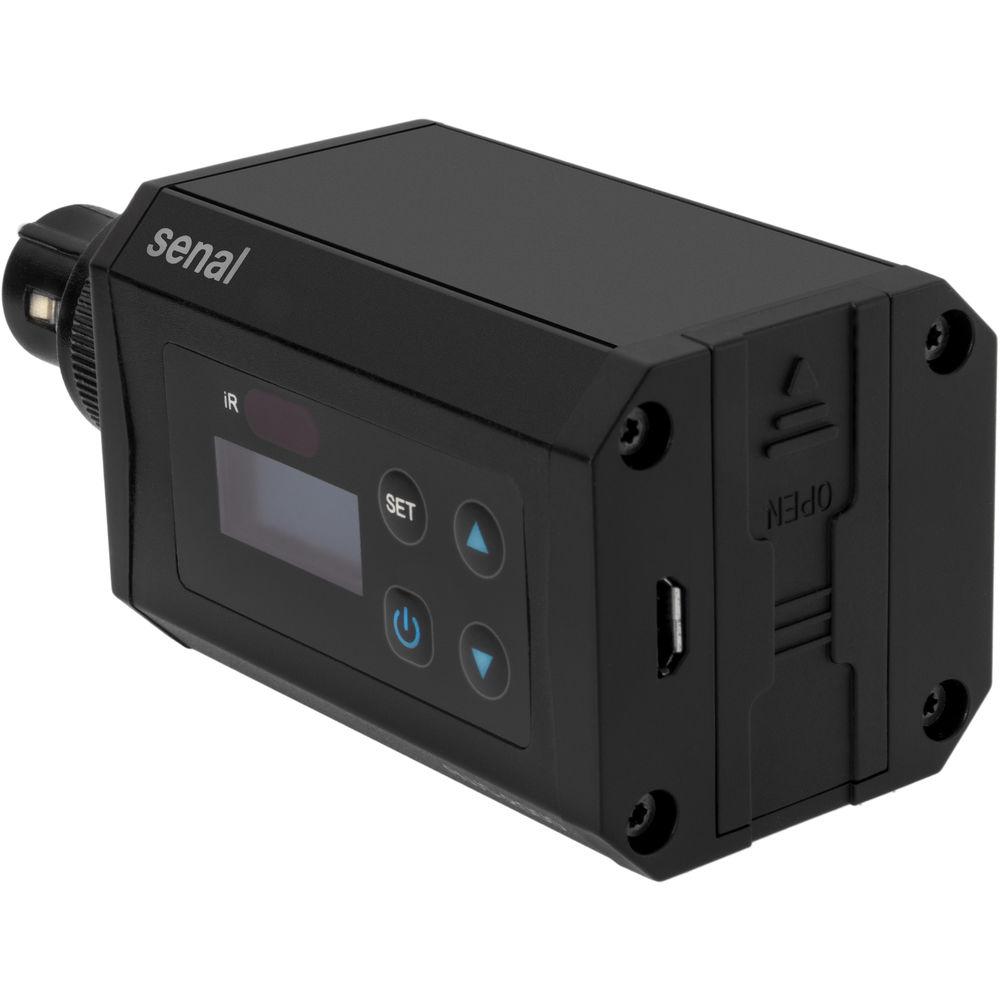

The Senal AWS-2000P-A is a plug-on transmitter designed to provide reliable and versatile wireless transmission of any XLR microphone to Senal’s AWS-2000-A advanced wireless microphone system in concerts, theater production, houses of worship, ENG, conferences, interviews, and more. The rugged, metal-bodied transmitter supplies 48V phantom power over its XLR 3-pin connector and offers a range of up to 500’ via its variable RF power output.Power the AWS-2000P-A via AA batteries, rechargeable NiMH batteries, or USB connection (all available separately), and conveniently recharge batteries via USB without having to remove them. A pilot tone allows minimization of undesired RF interference and the adjustable input level makes proper gain-staging simple. Activate the 100 Hz low-cut filter to reduce stage rumble or low-frequency buildup from ventilation systems. Battery status indication is provided on the high-contrast OLED display, which is clearly visible even in low-lighting environments. - OLED Display
- A high-contrast OLED display offers a wider viewing angle than an LCD and is easy to see in low-light environments
- Phantom Power
- Power a condenser microphone with full 48V phantom power supplied from the plug-on transmitter

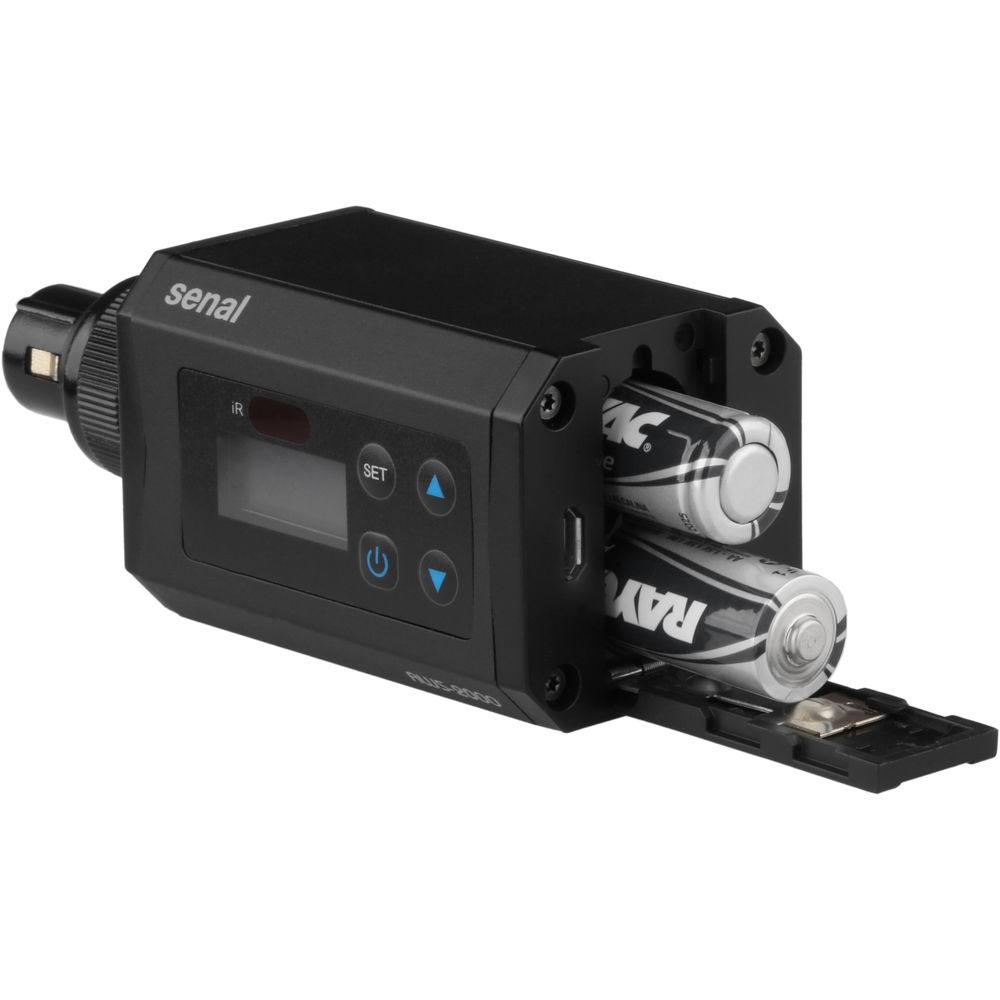

- Convenient Power Options
- Power the transmitter via AA batteries, rechargeable NiMH batteries, or USB connection (all available separately), and conveniently recharge batteries via USB
- Pilot Tone
- The pilot tone control enables you to maintain the integrity of your audio and avoid bothersome interference
- Adjustable Input Level
- The transmitter's adjustable input level (-30 to 0 dB) allows you to optimize your gain based upon your microphone's output strength
- Variable RF Power Output
- Two power output levels - low for battery-saving, close-range operation, and high for wide-area, far-range operation - enable optimization for your situation
- Low-Cut Control
- Use the selectable 100 Hz low-cut filter to reduce unwanted low-frequency buildup from rumble, room noise, and ventilation systems
- Battery Type Selection
- Select the type of battery being used to optimize the accuracy of the battery status indication
UPC: 847628599888 In the Box Senal AWS-2000P-A Plug-On Transmitter for AWS-2000 Wireless System (A: 522 to 554 MHz, No Microphone Included) Limited 1-Year Warranty User Manual PDF 2.1mbztastxcqwdasxtxbrcdvcvufvyxwdu Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal AWS-2000P-A Plug-On Transmitter for AWS-2000 Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

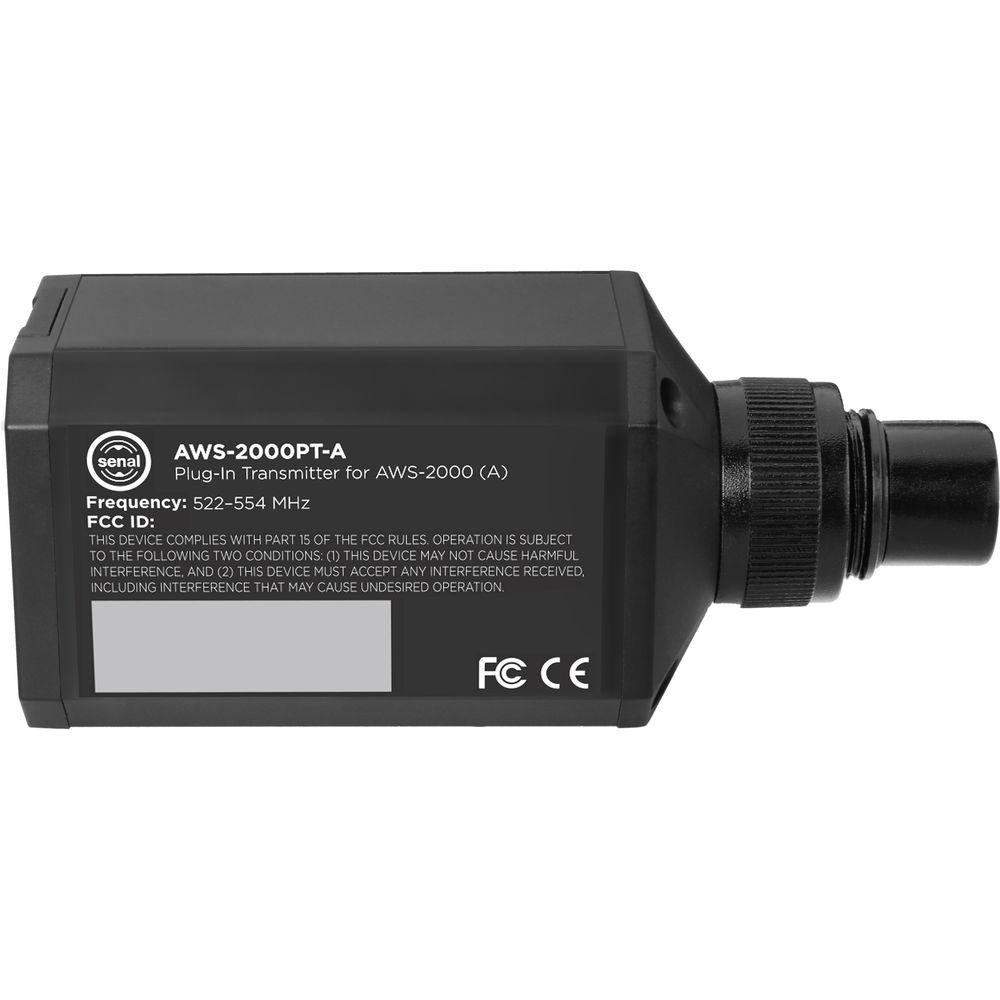

Technical parametersSenal AWS-2000P-A Specs | Wireless Frequency Range | A: 522 to 554 MHz | | Operating Range | Up to 500' / 152.4 m | | Connectors | 1 x XLR 3-pin
1 x Micro-USB (charging port) | | RF Power Output | 30 mW / 5 mW (selectable) | | Reference Input Level | -20 dBV | | Frequency Response | 80 Hz to 15 kHz | | Low-Cut Filter | 100 Hz | | Phantom Power | 48 V | | Signal to Noise Ratio | <100 dB | | Pilot Tone | 32.768 kHz | | Power Requirement | 2 to 3.6 V | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Dimensions (H x W x D) | 4.1 x 1.7 x 1.7" / 104.1 x 43.2 x 43.2 mm | | Weight | 4.7 oz / 133 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.3 x 4.1 x 3.1" |
