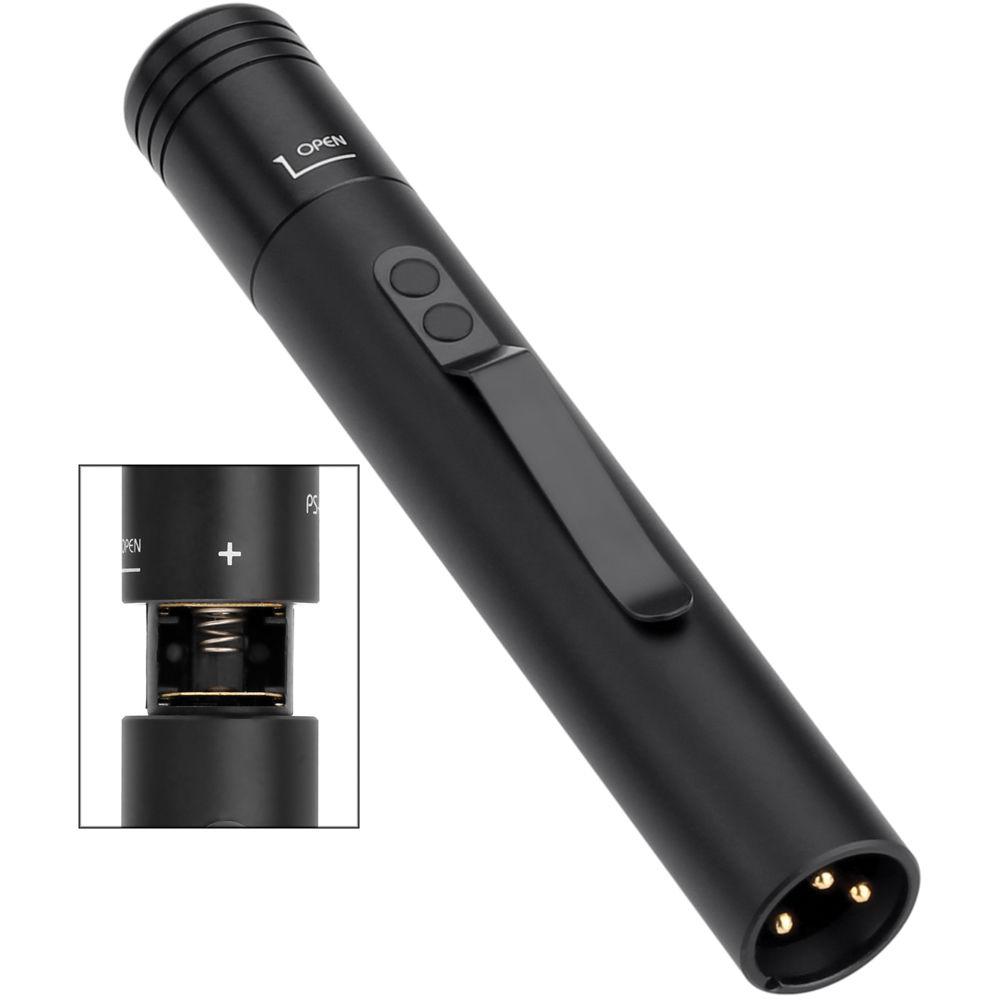

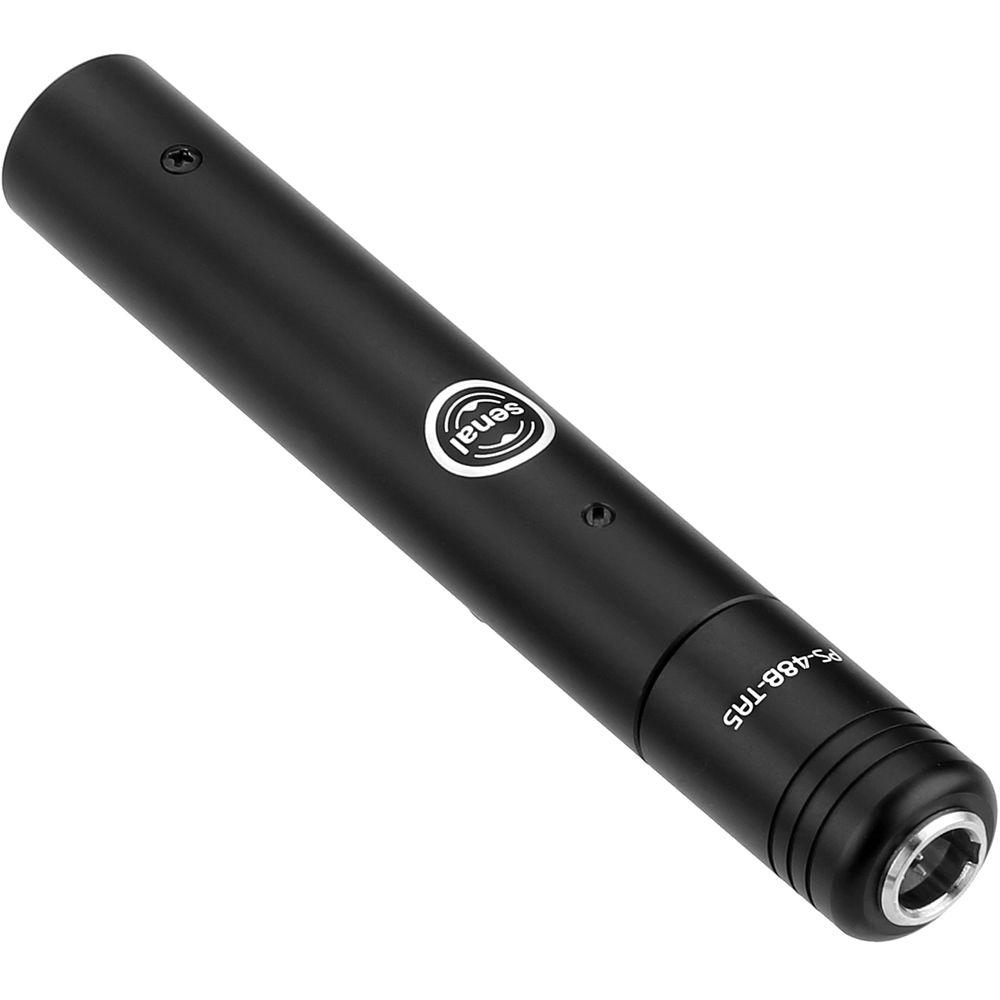

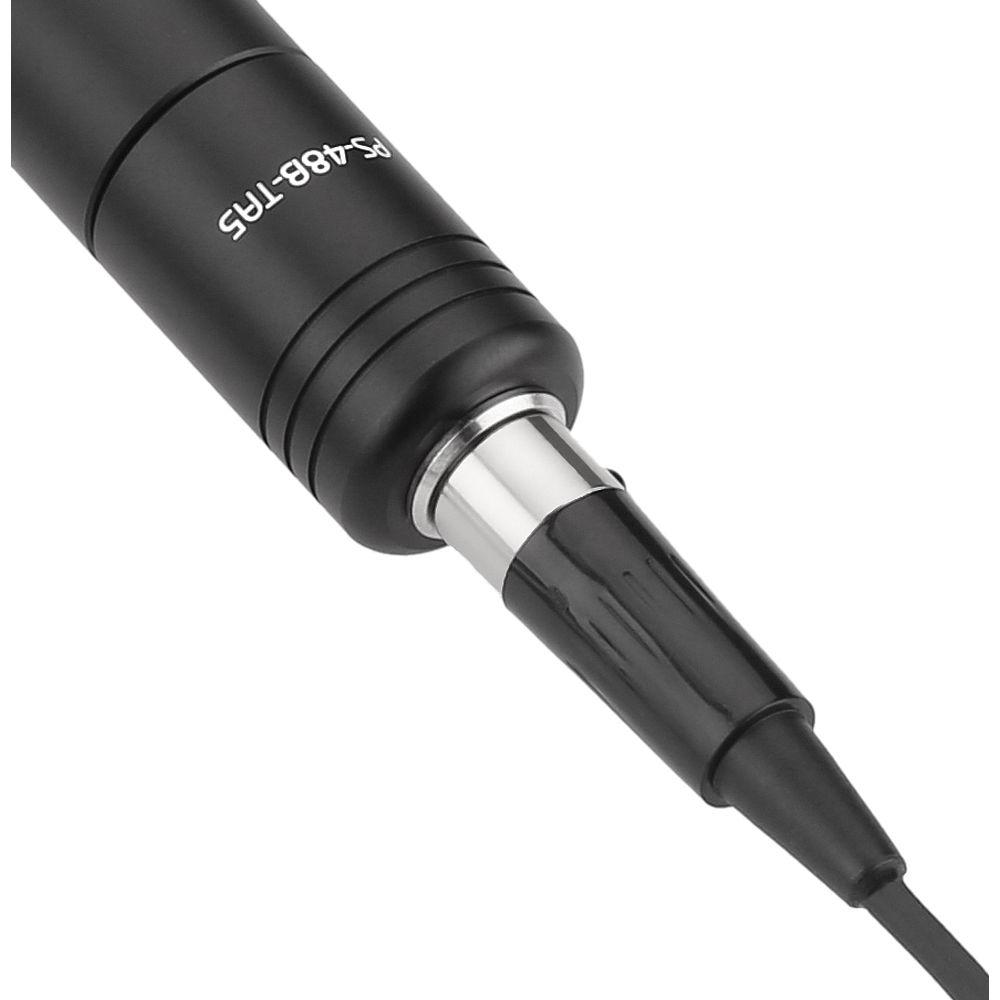

Product description The CL6 Miniature 4mm Omni Lavalier Mic with TA5 Connector for Lectrosonics Transmitters & 48V Power Supply from Senal is a microphone designed to deliver broadcast-quality sound in applications for TV, film, stage, and more. First and foremost, the miniature 0.16" diameter mic head allows the CL6 to be concealed in wardrobe or props. The omnidirectional polar pattern provides a minimal sensitivity to head turns, which makes for flexible placement during recordings, broadcasts, and presentations. The CL6 is built with a shielded twisted-pair cable that is packed with nylon yarn and protected with high-density spiral shielding, which provides protection against EMI and RFI interference. This design and compact capsule housing help to deliver low handling noise. Meanwhile, the lightweight 45" cable is extremely flexible and will not pull or weigh down the microphone when in use. In addition, the versatile CL6 is designed to connect to Lectrosonics wireless bodypack transmitters. It can also be connected to Senal's PS-48B power supply, which allows you to operate on phantom power or battery, and plug into any XLR microphone input The microphone comes with two foam windscreens and a variety of clips to provide you with a host of options for placement, and a padded leatherette carry case is also included to shield the microphone and accessories from impact during transport. Note: Due to inconsistent voltage requirements for lavalier microphones, the PS-48B Power Supply included in this package is only recommended for use with the included CL6 microphone. - Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides a natural sound and is minimally sensitive to head movement, wind noise, and vocal plosives. Even if the subject turns his or her head while speaking, the CL6 will pick up the voice without any fluctuations in volume
- Low Noise
- A densely shielded, twisted-pair cable provides added capsule protection and delivers low handling noise as well as reliable protection against EMI and RFI
- Compatibility
- Terminates in a TA5F for Lectrosonics transmitters
- Miniature Size

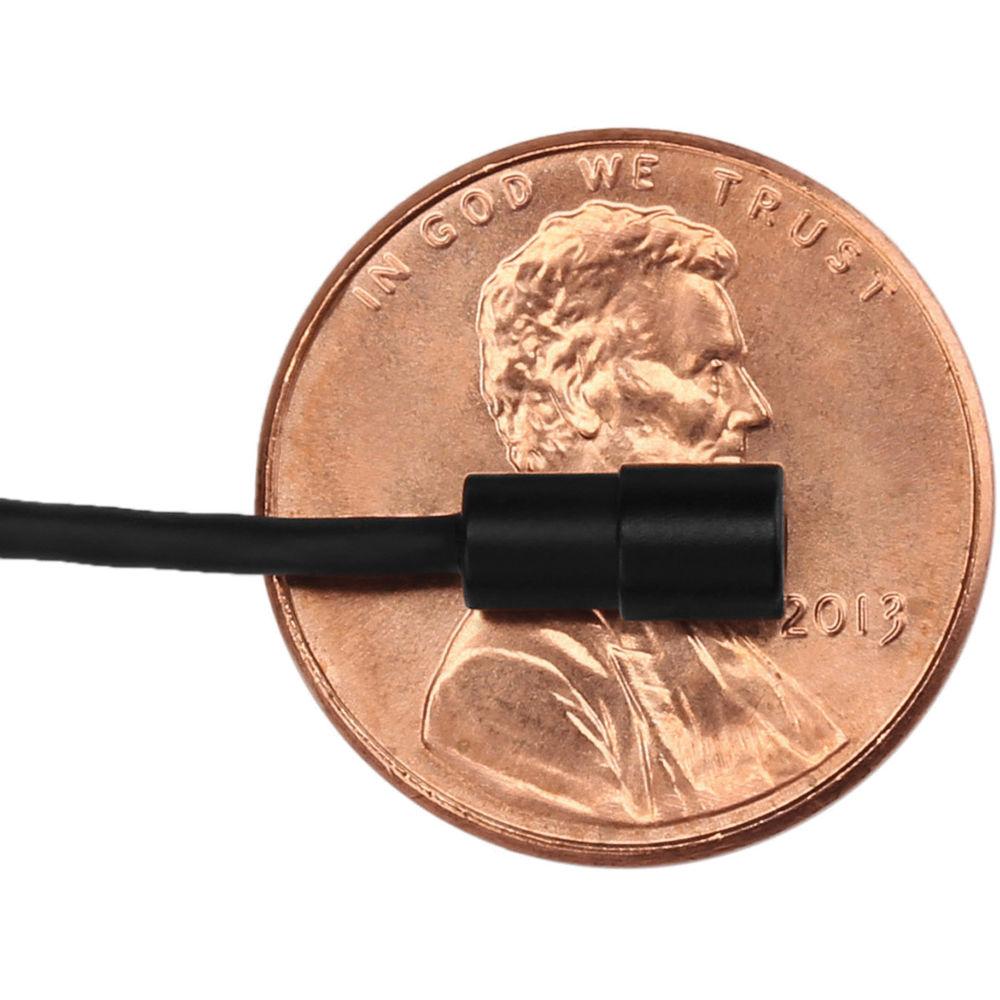

- The small and unobtrusive capsule with a head diameter of only 0.16" makes the CL6 easy to conceal in wardrobe and props for onscreen and onstage use. The microphone will be inconspicuous but will still capture detailed sound
- Various Mounting Accessories are Included

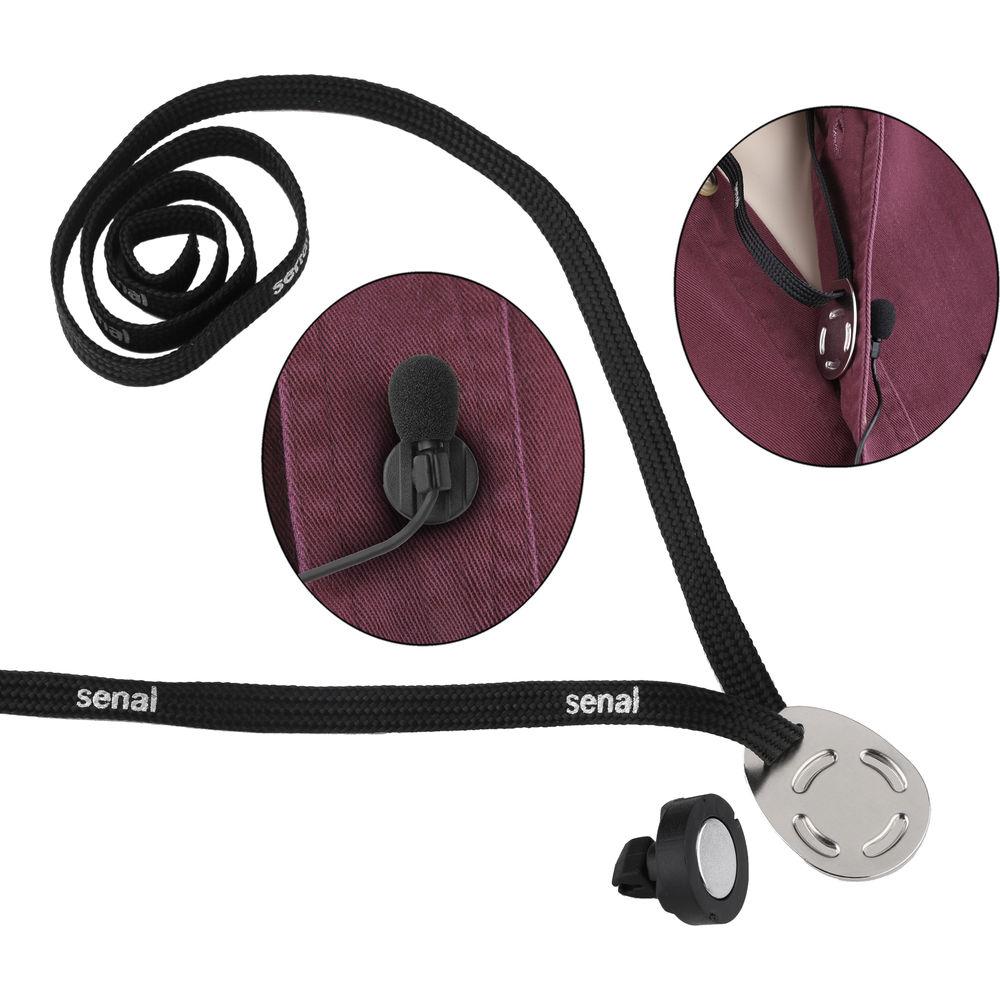

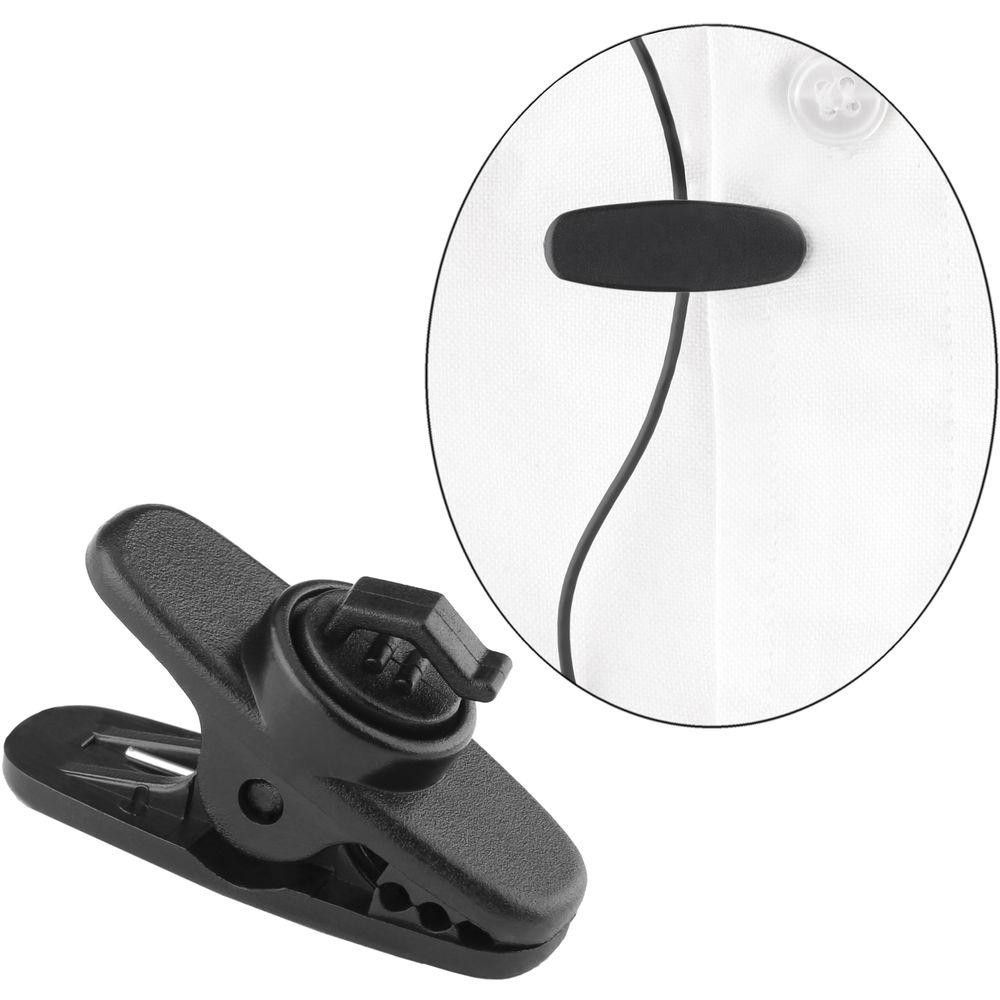

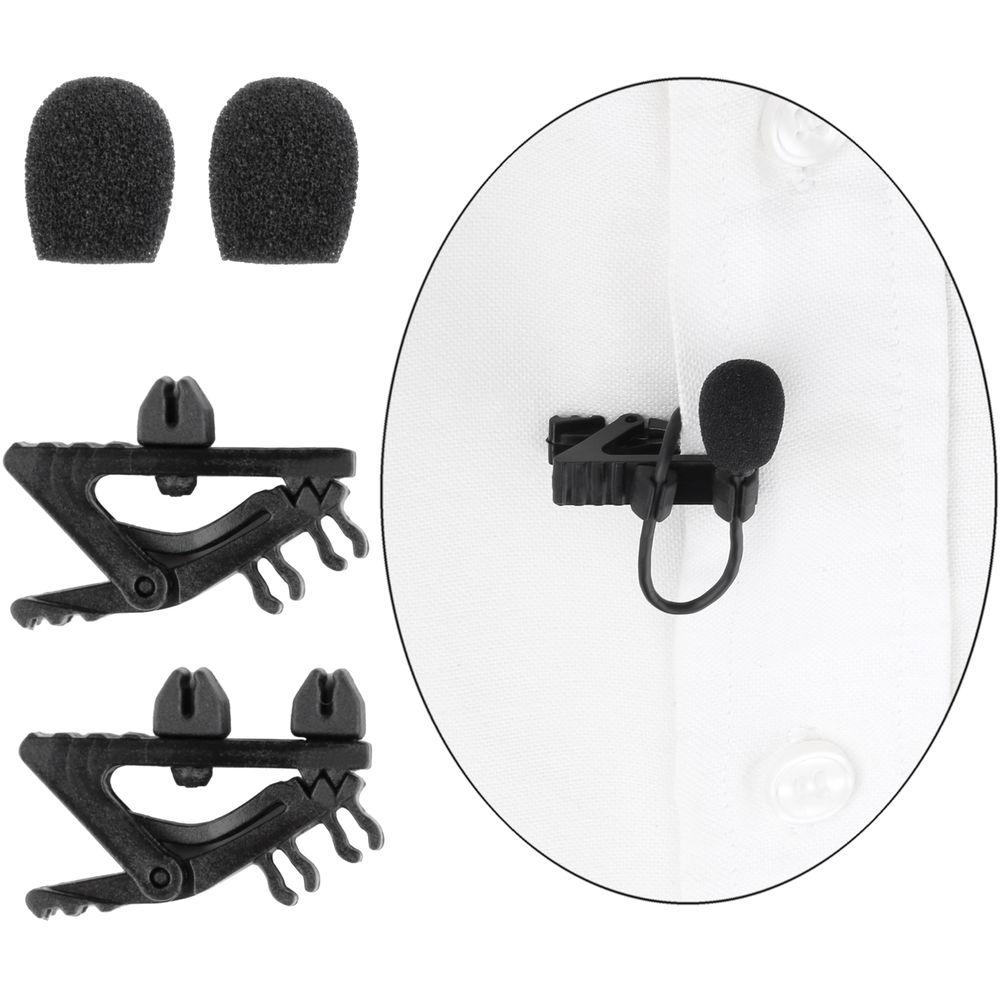

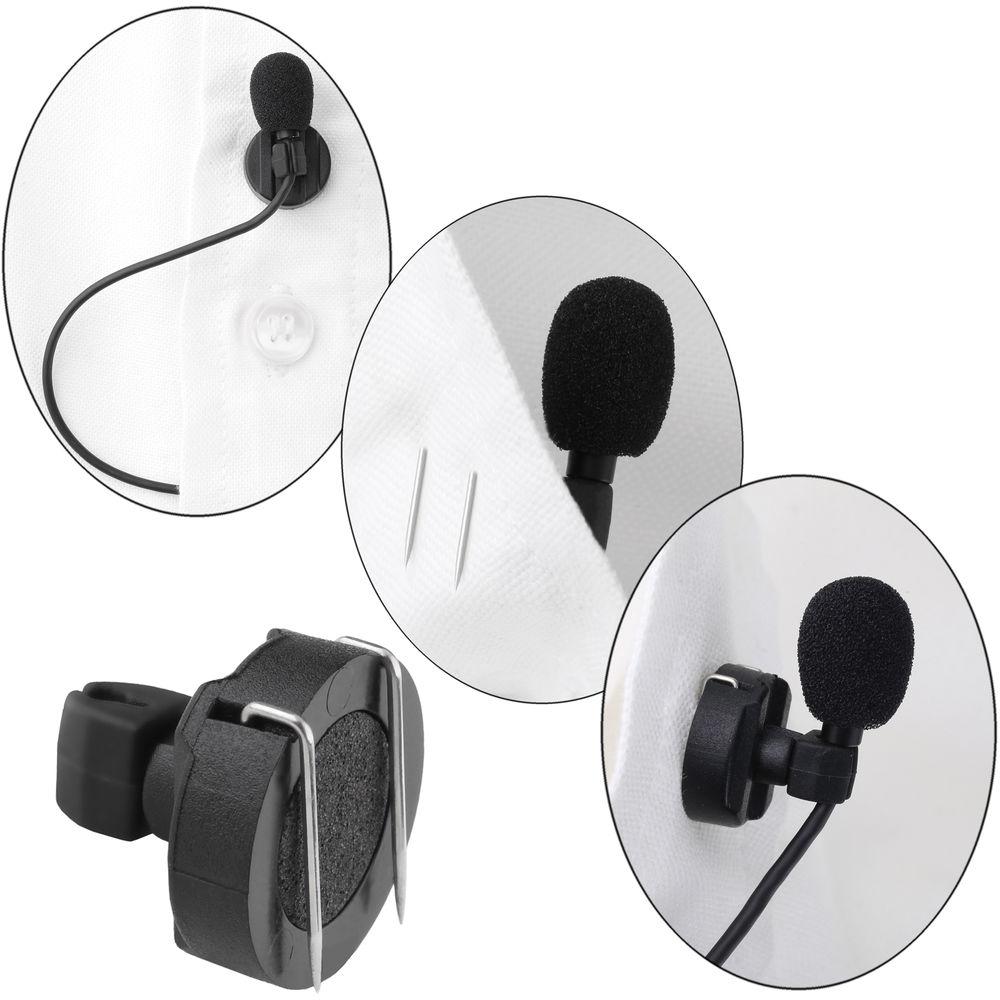

- Various mounting accessories include a single tie clip, double tie clip, cable clip, magnetic clip with lanyard, and viper clip. Two foam windscreens provide extra protection against wind noise and vocal plosives
- Carry Case

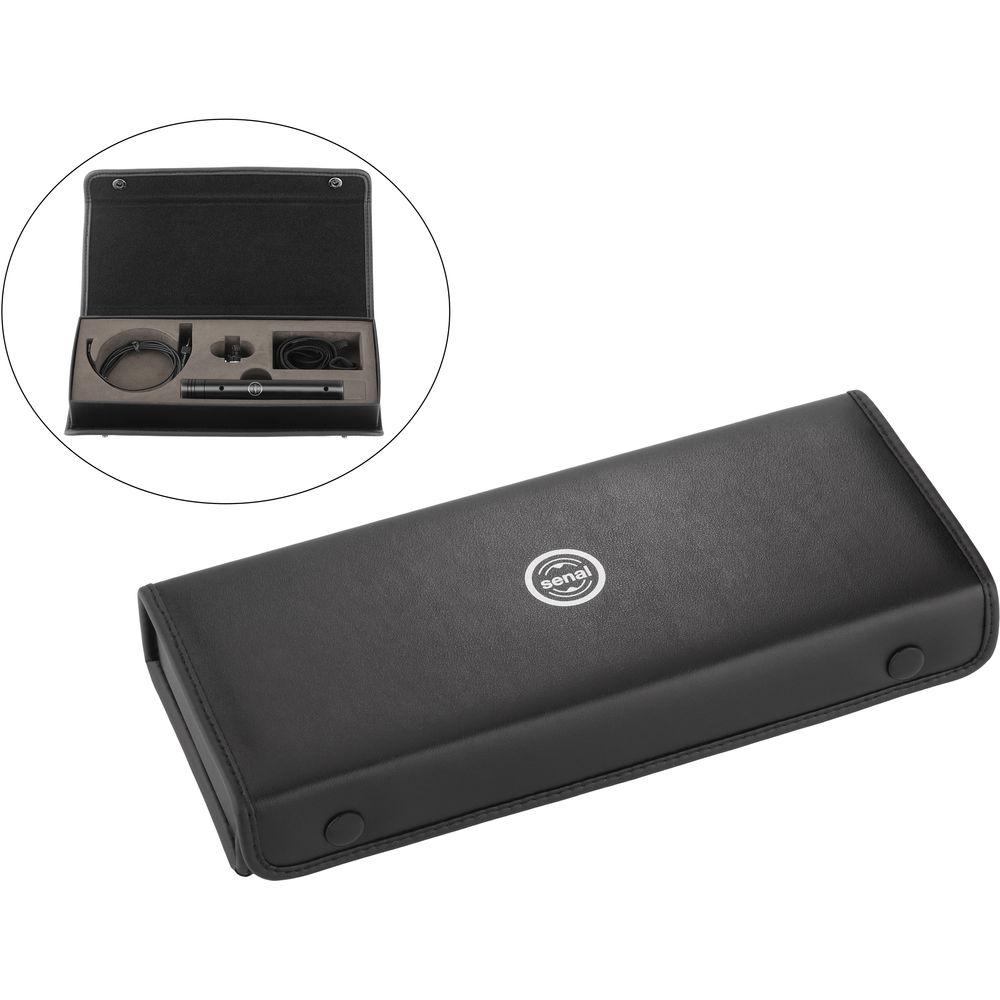

- A padded leatherette carry case holds the microphone and accessories securely in place as well as protects from impacts during transport
In the Box Senal CL6 Miniature 4mm Omni Lavalier Mic with TA5 Connector for Lectrosonics Transmitters & 48V Power Supply Senal PS-48B Phantom Power Supply Single Tie Clip Double Tie Clip Cable Clip Magnetic Clip with Lanyard Viper Clip 2 x Windscreens Carrying Case Limited 1-Year Warranty User Manual PDF 663.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal CL6 Miniature 4mm Omni Lavalier Mic with TA5 Connector for Lectrosonics Transmitters & 48V Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal CL6 Specs | Transducer | Back Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -53 dB ±3 dB (0 dB=1 V/µ bar @ 1 kHz | | Impedance | 2,000 ohms ±30% @ 1 kHz | | Signal to Noise Ratio | 24 dB (A) | | Maximum Input Sound Level | 120 dB | | Operating Voltage | 1 to 10 VDC | | Connector | TA5F for Lectrosonics transmitters | | Housing Material | Brass | | Head Dimensions | 0.33 x 0.16" (8.37 x 4.00 mm) | | Cable Diameter | 0.05" (1.27 mm) | | Weight | 0.4 oz (11.3 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 10.4 x 4.4 x 1.7" |
