User Manual for Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone
- Product category: Handheld Interview Microphones Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Handheld Interview Microphones
 |
User manual for the Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|
Product description - Choosing the Right Mic for "On-The-Street" Interviews
The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.
At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.
The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.
The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.
The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag. - Ideal Choice for Critical Field Applications
- The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
- Isolated Inner Shell
- The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
- Diffuses Excess Sound Pressure From Wind and Vocal Plosives
- Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
- Broadcast Live Without EQ Adjustment
- The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
- Can Accommodate Mic Flag
- The ENG-18RL is long enough to fit a mic flag for show or station identification

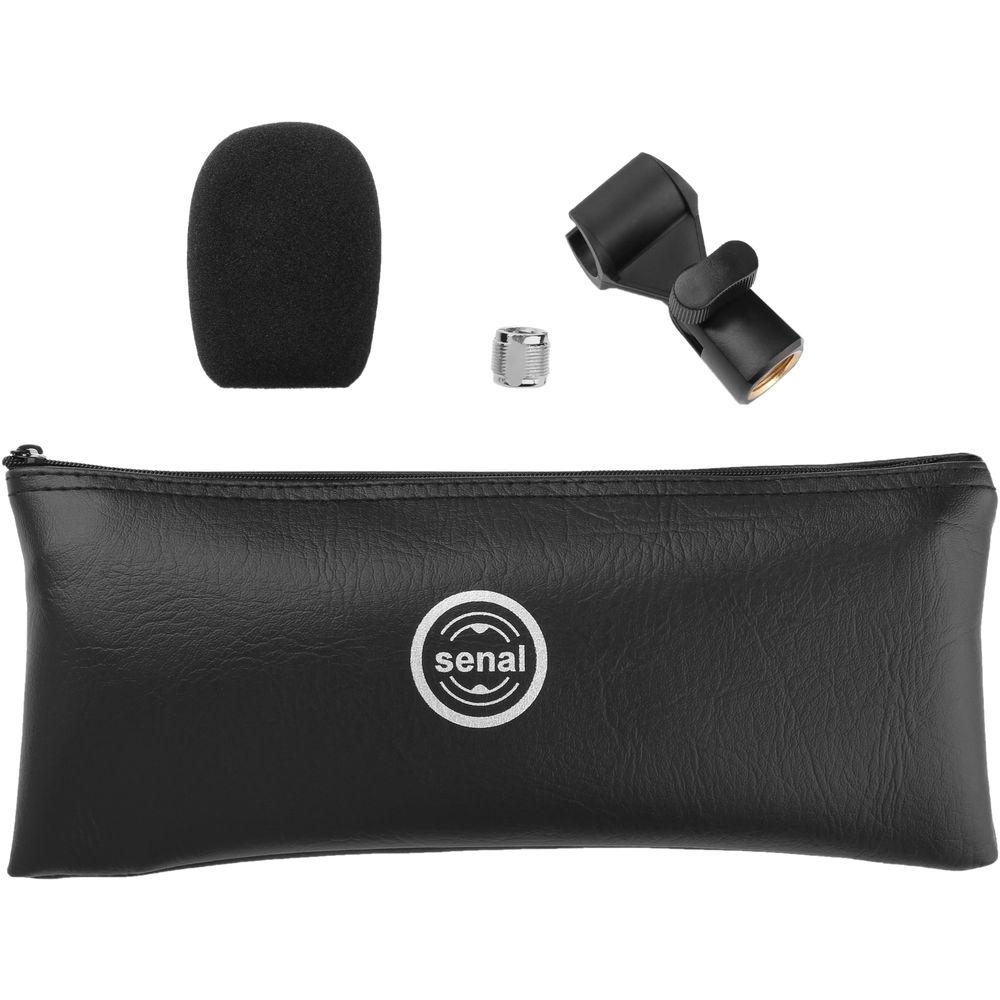

UPC: 847628572461 In the Box Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long) Foam Windscreen Microphone Clip Zippered Carrying Pouch Limited 10-Year Warranty User Manual PDF 378.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal ENG-18RL Specs | Polar Pattern | Omnidirectional | | Element Type | Dynamic | | Output Connector | 3-Pin XLR Male | | Frequency Response | 50 Hz - 18 kHz | | Output Impedance | 500 Ohms | | Sensitivity | 2.2 mV/Pa | | Case Material | Aluminum | | Dimensions (L x D) | 1.3 x 9.1" / 33.0 x 231.0 mm | | Weight | 4.8 oz / 136 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 11.1 x 5.1 x 2.6" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
