User Manual for Senal MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Senal MC24-EL Battery or Phantom Powered
- Product category: Shotgun Microphones Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Shotgun Microphones
 |
User manual for the Senal MC24-EL Battery or Phantom Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|
Product description - Senal MC-24-EL Product Demo
- MC24-EL Professional Shotgun Microphone
- Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones

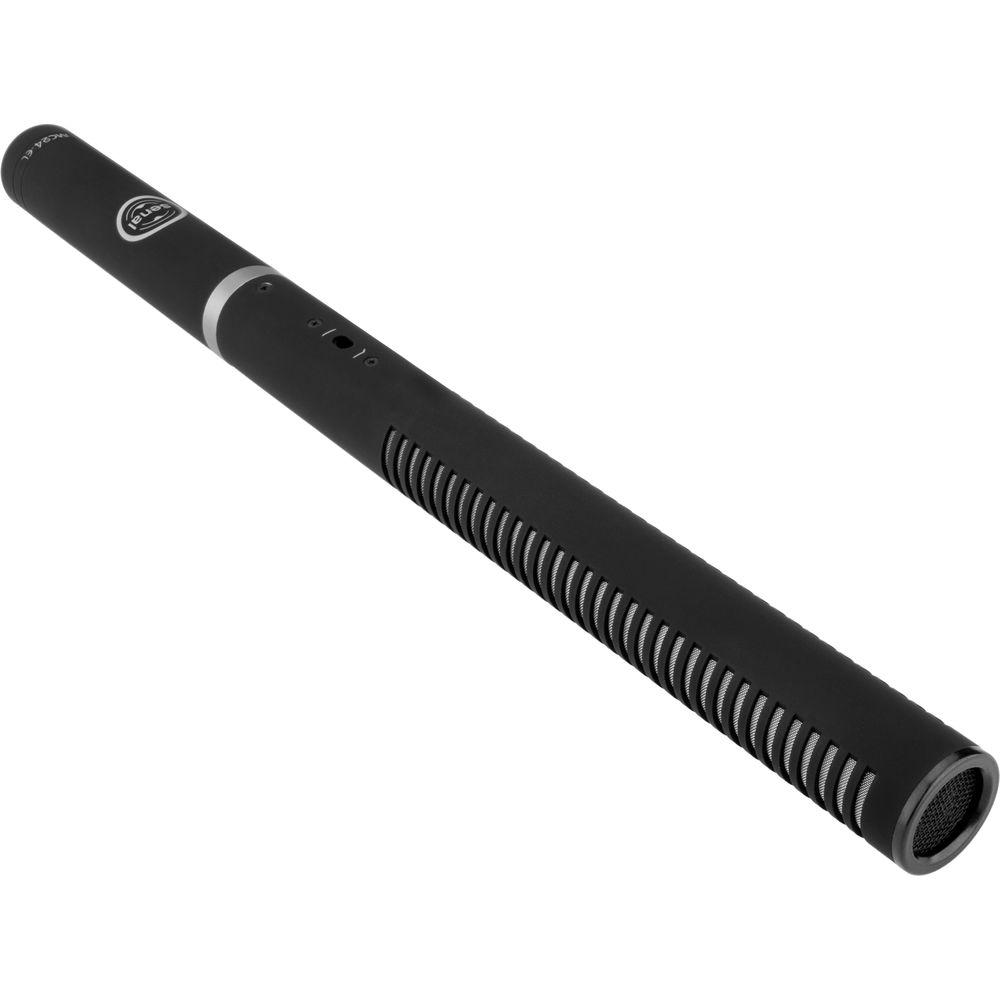

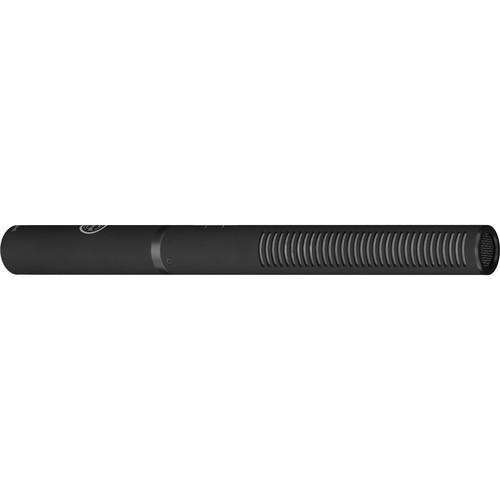

The Senal MC24-EL is a hypercardioid, professional shotgun microphone that delivers broadcast-quality sound in the studio or on location. It maximizes the rejection of sound coming from the sides and rear of the mic and can be used as a directional microphone to capture full, rich, natural-sounding audio for speech and dialog. Thoughtfully designed and engineered for demanding video productions, ENG, and broadcast applications, the MC24-EL delivers high quality sound, and its rugged all brass frame ensures it is capable of withstanding the rigors of recording in the field or on the go. The microphone features a high-grade condenser transducer that captures detailed and accurate sound. It has a broad frequency response of 40 Hz to 20 kHz and delivers exceptional sound reproduction with full lows, clear and precise mids, and crisp highs. There is a selectable high-pass filter at 180 Hz that minimizes unwanted noise and rumble. Furthermore, the microphone runs on 48V phantom power which is available from most professional video cameras, mixing boards, or recording devices, and runs on a single AA battery (over 400 hours) for those DSLRs, computers, and other devices where phantom power is not available. The mic is suitable for mounting on a boom pole, a mic stand or a camera, and includes a foam windscreen, a mic clip, and a 5/8 to 3/8" adapter. The microphone is covered with a matte-black rubberized coating that reduces handling noise and ensures trouble-free recordings when being operated. The finish also rejects unwanted light reflections. It is built with a gold-plated XLR connector and comes in a leatherette pouch. - Broadcast Sound Quality

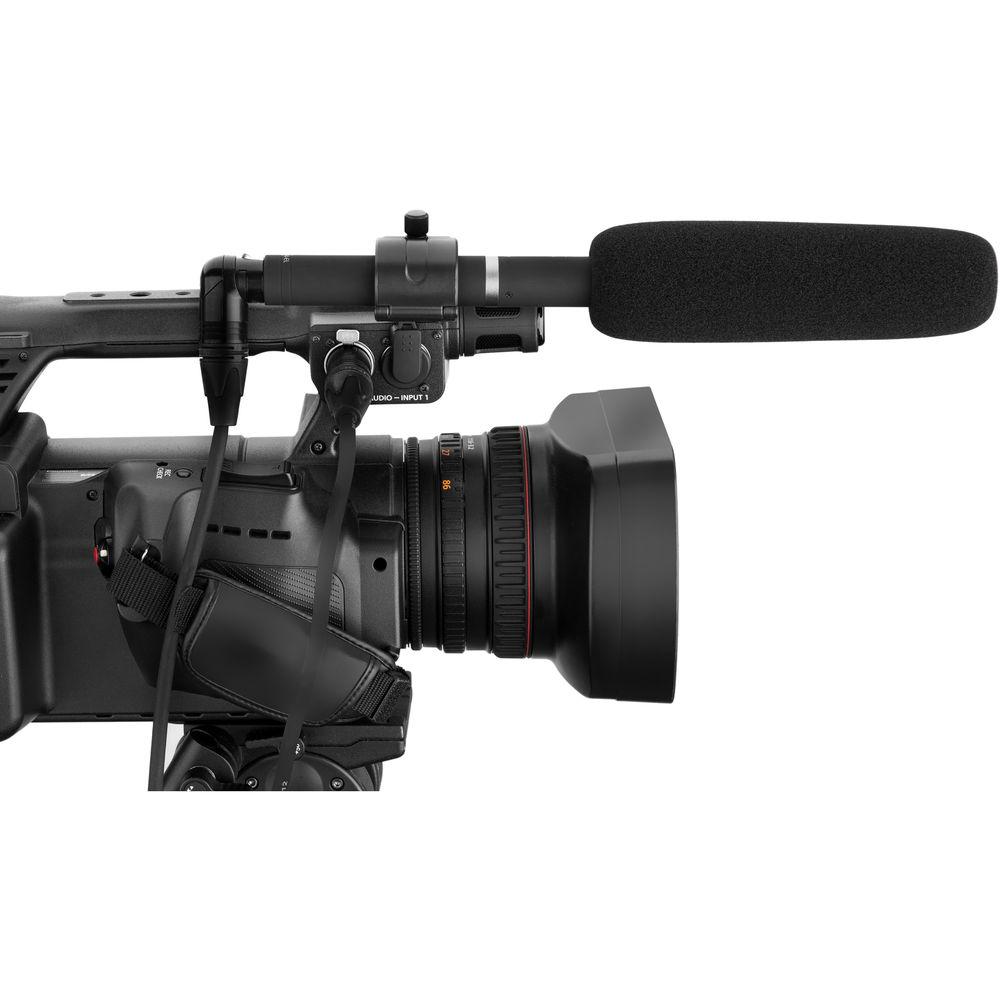

- Senal's MC24-EL professional shotgun microphone is designed for video production and broadcast applications. Its length is well suited for ENG, outdoor recording, and camera mounting
- Hypercardioid Polar Pattern
- A hypercardioid polar pattern provides directivity and off-axis sound rejection. It is suitable when recording speech or dialog in noisy environments such as a convention floor or sporting event
- Battery or Phantom Power
- The MC24-EL runs on 48V phantom power supplied by most professional video cameras, mixing boards, or recording devices. It can also be powered by one AA battery over 400 hours, which is ideal for recording to DSLR cameras, computers, and other devices that don't offer phantom power
- Brass Construction
- The durable and solid construction ensures the microphone is capable of withstanding the rigors of recording in the field or on the go
- Rubberized Coating
- The rubberized coating minimizes handling noise
- Matte Finish
- The matte finish doesn't reflect light when shooting in the studio
- High-Pass Filter
- The selectable high-pass filter rolls off unwanted low-frequency noise and rumble at 180 Hz and minimizes room noise when recording in environments with fans, air conditioners, blowers, or overhead lights
- Gold-Plated XLR Connector
- The gold-plated XLR connector resists corrosion and ensures excellent signal transfer
- Foam Windshield, Mic Clip

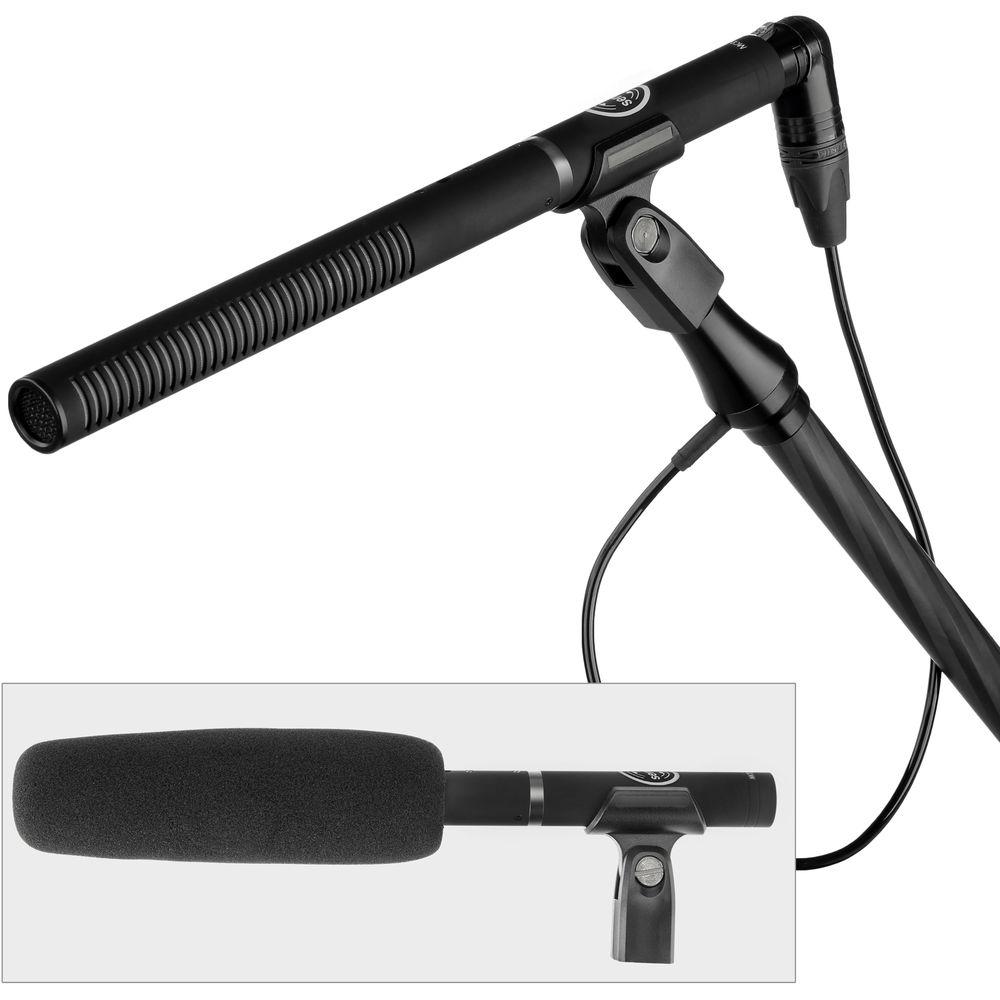

- A foam windshield is included to minimize wind noise and to protect the microphone from dust and debris. A mic clip is included for boom pole or mic stand mounting

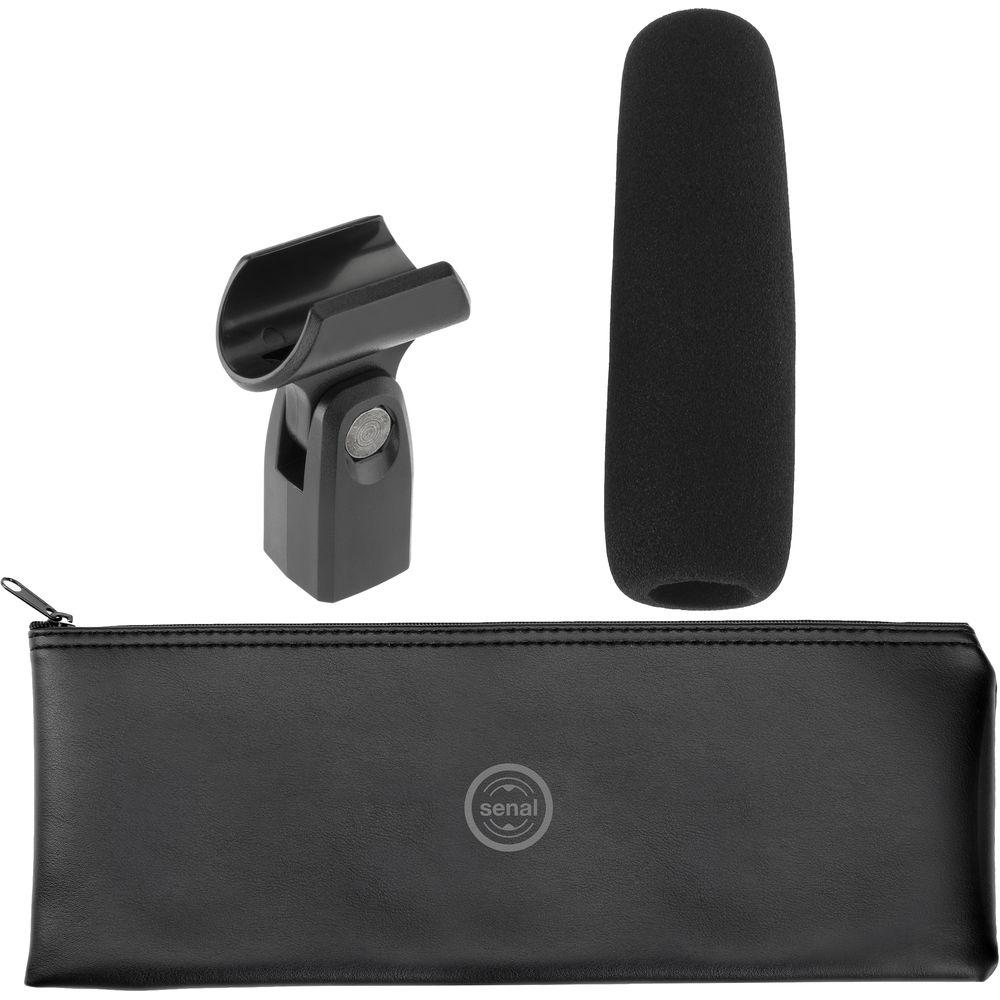

UPC: 847628591721 In the Box Senal MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone Foam Windscreen Mic Clip 5/8 to 3/8" Adapter Leatherette Pouch Limited 2-Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal MC24-EL Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 74 dB A-Weighted | | Maximum SPL | 130 dB SPL RMS
115 dB SPL RMS | | THD | < 1% | | Impedance | 500 Ohms ± 20% @ 1 kHz
600 Ohms ± 20% @ 1 kHz | | Sensitivity | -32 dB at 1 kHz
-36 dB at 1 kHz | | Low-Cut Filter | @ 180 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Battery Type | 1 x AA | | Operating Voltage | 48 V | | Length | 11.2" / 284.48 mm | | Diameter | 0.8" / 20.32 mm | | Weight | 5.3 oz / 150 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 15.276 x 4.803 x 2.441" |
