Senal MC24-EL Complete Shotgun Microphone &

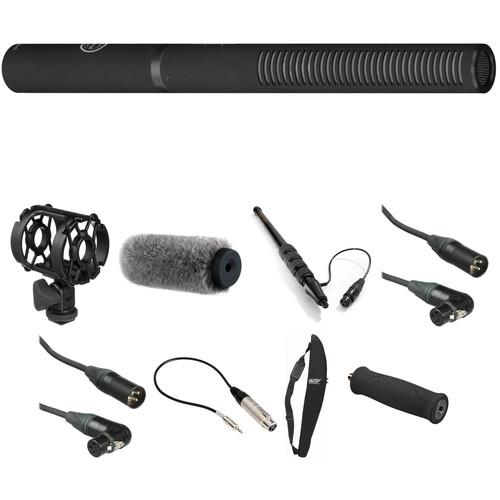

User Manual for Senal MC24-EL Complete Shotgun Microphone & HDSLR Kit

• Product category: Shotgun Microphones Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Shotgun Microphones

Product description

• Senal MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The Senal MC24-EL is a hypercardioid, professional shotgun microphone that delivers broadcast-quality sound in the studio or on location. It maximizes the rejection of sound coming from the sides and rear of the mic and can be used as a directional microphone to capture full, rich, natural-sounding audio for speech and dialog. Thoughtfully designed and engineered for demanding video productions, ENG, and broadcast applications, the MC24-EL delivers high quality sound, and its rugged all brass frame ensures it is capable of withstanding the rigors of recording in the field or on the go. The microphone features a high-grade condenser transducer that captures detailed and accurate sound. It has a broad frequency response of 40 Hz to 20 kHz and delivers exceptional sound reproduction with full lows, clear and precise mids, and crisp highs. There is a selectable high-pass filter at 180 Hz that minimizes unwanted noise and rumble. Furthermore, the microphone runs on 48V phantom power which is available from most professional video cameras, mixing boards, or recording devices, and runs on a single AA battery (over 400 hours) for those DSLRs, computers, and other devices where phantom power is not available. The mic is suitable for mounting on a boom pole, a mic stand or a camera, and includes a foam windscreen, a mic clip, and a 5/8 to 3/8" adapter. The microphone is covered with a matte-black rubberized coating that reduces handling noise and ensures trouble-free recordings when being operated. The finish also rejects unwanted light reflections. It is built with a gold-plated XLR connector and comes in a leatherette pouch.
  Broadcast Sound Quality
  • Senal's MC24-EL professional shotgun microphone is designed for video production and broadcast applications. Its length is well suited for ENG, outdoor recording, and camera mounting
  Hypercardioid Polar Pattern
  • A hypercardioid polar pattern provides directivity and off-axis sound rejection. It is suitable when recording speech or dialog in noisy environments such as a convention floor or sporting event
  Battery or Phantom Power
  • The MC24-EL runs on 48V phantom power supplied by most professional video cameras, mixing boards, or recording devices. It can also be powered by one AA battery over 400 hours, which is ideal for recording to DSLR cameras, computers, and other devices that don't offer phantom power
  Brass Construction
  • The durable and solid construction ensures the microphone is capable of withstanding the rigors of recording in the field or on the go
  Rubberized Coating
  • The rubberized coating minimizes handling noise
  Matte Finish
  • The matte finish doesn't reflect light when shooting in the studio
  High-Pass Filter
  • The selectable high-pass filter rolls off unwanted low-frequency noise and rumble at 180 Hz and minimizes room noise when recording in environments with fans, air conditioners, blowers, or overhead lights
  Gold-Plated XLR Connector
  • The gold-plated XLR connector resists corrosion and ensures excellent signal transfer
  Foam Windshield, Mic Clip
  • A foam windshield is included to minimize wind noise and to protect the microphone from dust and debris. A mic clip is included for boom pole or mic stand mounting
  UPC: 847628591721
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Auray WSS-2018 Professional Windshield for Shotgun Microphones - (18cm)
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2018 Professional Windshield has an inside depth of 18cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2018 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Rode, Sennheiser, Sanken, Sony and others.

  The WSS-2018 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • AKG C 568 EB, CK 68 ULS C460B Red
  • Azden SG(M)-1X
  • BeyerDynamic MC 716, 726, 736, 836, MCE 86 II, 87vs
  • ClockAudio C850E
  • DPA 4017
  • JVC DY-70U
  • Røde NTG-3
  • Sanken CS 3
  • Sennheiser ME 66 K6, ME 80 K3U, MKH 416, 418
  • Sony ECM 670, 678, 680S
  UPC: 847628552685
• Auray ABP-59B Aluminum Telescoping Boom Pole with Integrated XLR Cable (9')
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The ABP-59B Aluminum Telescoping Boom Pole with Integrated XLR Cable from Auray is designed to accommodate Electronic News Gathering (ENG), Electronic Field Production (EFP), documentary, and other field recording applications. Adjustable from about 2 to 9', it allows you to place a microphone in close proximity to the subject, while remaining at a distance and out of the frame.

  Auray ABP poles are manufactured with sturdy lightweight aluminum ensuring portability and reliability. Ergonomic twist locks along with anti-twist alignment make length adjustment effortless, and smooth telescoping is assured even in the most challenging conditions in the field.

  The high-quality coiled cable features an XLR connector and an XLR insert connector that provide secure connections and excellent signal transfer. This cable also features a unique strain relief system that absorbs tension, secures the cable, and protects the cable from damage at the edge of the tip exit. To see a complete list of Auray's selection of boom poles, please click heredsxqtbbbaqsqbfbfcy.
  Coiled XLR Cable
  • The integrated coiled XLR cable smoothly extends and retracts with the telescoping tubes
  Rean XLR Connector
  • Rean XLR connector manufactured by Rean, a trademark of Neutrik
  Versatile
  • The ABP boom poles are Ideal for distance microphone placement during ENG and EFP recording projects
  Sturdy and Lightweight
  • Each boom pole is manufactured with sturdy lightweight aluminum for portability and reliability
  Smooth Telescoping
  • The ABP boom pole allows for smooth telescoping for easy expansion and length adjustment even in extreme conditions during road use
  Twist Locks
  • The ergonomic twist locks are comfortable to grip and facilitate fast and effortless length adjustment
  Removable Tip
  • Custom removable tip and drop-through design for replacing the coiled XLR cable fast and easy, without the need of any special tools
  UPC: 847628571174
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229
• Kopul LMT100 - Low to High Impedance Matching Transformer (1.5')
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The Kopul LMT100 cable simply enables a microphone or mic-level device to be input into a high-impedance 3.5mm mini input found on DSLRs, camcorders, and other devices. It is 1.5' long and has a 3-pin XLR female connector on one end and a standard 3.5mm mini plug on the other. It is designed for use with mono microphones.
  • Matches low-impedance XLR output to high-impedance 1/8" (3.5mm) audio input
  • Ideal for plugging professional XLR microphones into DSLRs, camcorders, and other devices with a 1/8˝ microphone input
  • For use with battery-powered and dynamic microphones
  • Designed for a mono source, but will split the signal to both channels of a stereo device
  UPC: 847628562615
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• Auray Universal Microphone Pistol Grip
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738

• MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone dsxqtbbbaqsqbfbfcy
• Foam Windscreen
• Mic Clip
• 5/8 to 3/8" Adapter
• Leatherette Pouch
• Limited 2-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Auray - WSS-2018 Professional Windshield for Shotgun Microphones - (18cm)

• Auray - ABP-59B Aluminum Telescoping Boom Pole with Integrated XLR Cable (9')

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

• Kopul - LMT100 - Low to High Impedance Matching Transformer (1.5')

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

• Auray - Universal Microphone Pistol Grip

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone

  Sound Field	Mono
  Transducer	Condenser
  Polar Pattern	Hypercardioid
  Frequency Range	40 Hz to 20 kHz
  Signal to Noise Ratio	74 dB A-Weighted
  Maximum SPL	130 dB SPL RMS 115 dB SPL RMS
  THD	< 1%
  Impedance	500 Ohms ± 20% @ 1 kHz 600 Ohms ± 20% @ 1 kHz
  Sensitivity	-32 dB at 1 kHz -36 dB at 1 kHz
  Low-Cut Filter	@ 180 Hz

  Output Connectors	1 x 3-Pin XLR
  Battery Type	1 x AA
  Operating Voltage	48 V
  Length	11.2" / 284.48 mm
  Diameter	0.8" / 20.32 mm
  Weight	5.3 oz / 150 g

  Box Dimensions (LxWxH)	15.276 x 4.803 x 2.441"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Auray WSS-2018 Professional Windshield for Shotgun Microphones - (18cm)

  Compatible Mic Diameter	0.75 to 0.9" / 19 to 23 mm
  Inner Depth	7.1" / 18 cm
  Maximum Noise Attenuation	40 dB in 25 mph / 40 km/h Wind

  Box Dimensions (LxWxH)	11.6 x 4.2 x 3.3"

• Auray ABP-59B Aluminum Telescoping Boom Pole with Integrated XLR Cable (9')

  Sections	5
  Minimum Length	2.4' (0.73 m)
  Maximum Length	9.3' (2.8 m)
  Weight	1.9 lb (0.86 kg)

  Box Dimensions (LxWxH)	33.0 x 3.0 x 1.0"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"

• Kopul LMT100 - Low to High Impedance Matching Transformer (1.5')

  Connectors

  XLR to 1/8" (3.5 mm)

  Box Dimensions (LxWxH)	4.1 x 0.6 x 0.1"

• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

  Material	Neoprene
  Type of Closure	Zipper with protective lining
  Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
  Weight	15 oz (454 g)

  Box Dimensions (LxWxH)	39.0 x 7.8 x 1.0"

• Auray Universal Microphone Pistol Grip

  Box Dimensions (LxWxH)	6.1 x 2.8 x 1.7"
