Senal MC24-EL Long Condenser Shotgun Microphone

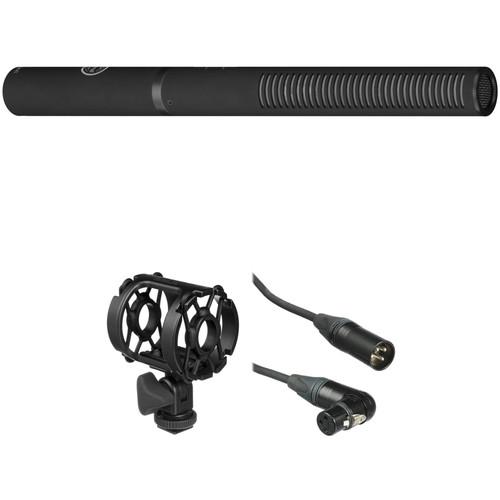

User Manual for Senal MC24-EL Long Condenser Shotgun Microphone Kit

• Product category: Shotgun Microphones Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Shotgun Microphones

Product description

• Senal MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The Senal MC24-EL is a hypercardioid, professional shotgun microphone that delivers broadcast-quality sound in the studio or on location. It maximizes the rejection of sound coming from the sides and rear of the mic and can be used as a directional microphone to capture full, rich, natural-sounding audio for speech and dialog. Thoughtfully designed and engineered for demanding video productions, ENG, and broadcast applications, the MC24-EL delivers high quality sound, and its rugged all brass frame ensures it is capable of withstanding the rigors of recording in the field or on the go. The microphone features a high-grade condenser transducer that captures detailed and accurate sound. It has a broad frequency response of 40 Hz to 20 kHz and delivers exceptional sound reproduction with full lows, clear and precise mids, and crisp highs. There is a selectable high-pass filter at 180 Hz that minimizes unwanted noise and rumble. Furthermore, the microphone runs on 48V phantom power which is available from most professional video cameras, mixing boards, or recording devices, and runs on a single AA battery (over 400 hours) for those DSLRs, computers, and other devices where phantom power is not available. The mic is suitable for mounting on a boom pole, a mic stand or a camera, and includes a foam windscreen, a mic clip, and a 5/8 to 3/8" adapter. The microphone is covered with a matte-black rubberized coating that reduces handling noise and ensures trouble-free recordings when being operated. The finish also rejects unwanted light reflections. It is built with a gold-plated XLR connector and comes in a leatherette pouch.
  Broadcast Sound Quality
  • Senal's MC24-EL professional shotgun microphone is designed for video production and broadcast applications. Its length is well suited for ENG, outdoor recording, and camera mounting
  Hypercardioid Polar Pattern
  • A hypercardioid polar pattern provides directivity and off-axis sound rejection. It is suitable when recording speech or dialog in noisy environments such as a convention floor or sporting event
  Battery or Phantom Power
  • The MC24-EL runs on 48V phantom power supplied by most professional video cameras, mixing boards, or recording devices. It can also be powered by one AA battery over 400 hours, which is ideal for recording to DSLR cameras, computers, and other devices that don't offer phantom power
  Brass Construction
  • The durable and solid construction ensures the microphone is capable of withstanding the rigors of recording in the field or on the go
  Rubberized Coating
  • The rubberized coating minimizes handling noise
  Matte Finish
  • The matte finish doesn't reflect light when shooting in the studio
  High-Pass Filter
  • The selectable high-pass filter rolls off unwanted low-frequency noise and rumble at 180 Hz and minimizes room noise when recording in environments with fans, air conditioners, blowers, or overhead lights
  Gold-Plated XLR Connector
  • The gold-plated XLR connector resists corrosion and ensures excellent signal transfer
  Foam Windshield, Mic Clip
  • A foam windshield is included to minimize wind noise and to protect the microphone from dust and debris. A mic clip is included for boom pole or mic stand mounting
  UPC: 847628591721
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
  • Mics in the Fast Lane: Senal MC24-EL & ES Shotgun Microphones
  The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229

• MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone raqteesycfvc
• Foam Windscreen
• Mic Clip
• 5/8 to 3/8" Adapter
• Leatherette Pouch
• Limited 2-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal MC24-EL Battery or Phantom Powered Professional Condenser Shotgun Microphone

  Sound Field	Mono
  Transducer	Condenser
  Polar Pattern	Hypercardioid
  Frequency Range	40 Hz to 20 kHz
  Signal to Noise Ratio	74 dB A-Weighted
  Maximum SPL	130 dB SPL RMS 115 dB SPL RMS
  THD	< 1%
  Impedance	500 Ohms ± 20% @ 1 kHz 600 Ohms ± 20% @ 1 kHz
  Sensitivity	-32 dB at 1 kHz -36 dB at 1 kHz
  Low-Cut Filter	@ 180 Hz

  Output Connectors	1 x 3-Pin XLR
  Battery Type	1 x AA
  Operating Voltage	48 V
  Length	11.2" / 284.48 mm
  Diameter	0.8" / 20.32 mm
  Weight	5.3 oz / 150 g

  Box Dimensions (LxWxH)	15.276 x 4.803 x 2.441"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"
