User Manual for Senal MC5-MS Dual-Channel Stereo Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Senal MC5-MS Dual-Channel Stereo Condenser Microphone
- Product category: Stereo & Specialty Microphones Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Stereo & Specialty Microphones
 |
User manual for the Senal MC5-MS Dual-Channel Stereo Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|

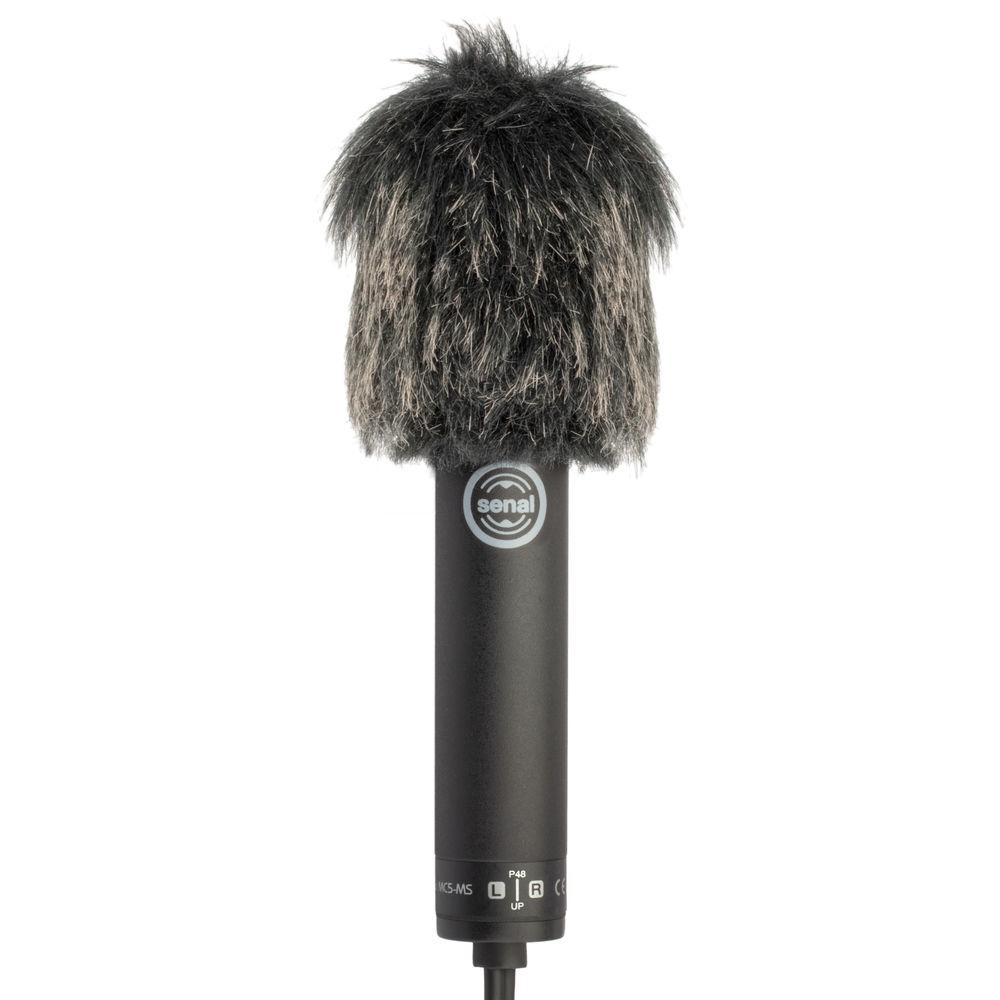

Product description The Senal MC5-MS is a dual-channel stereo condenser microphone offering a realistic, phase-accurate stereo image for accurate capture of dialog and environment sounds in ENG, interviews, documentaries, and various video production scenarios. Featuring two highly sensitive electret condenser elements arranged in an X/Y configuration, the MC5-MS is well suited for stereo and mono recording, and boasts a frequency response of 80 Hz to 20 kHz when used in stereo (or 70 Hz to 20 kHz in mono). Each microphone element outputs to a Neutrik 3-pin XLR connector, making it an ideal mate for XLR-equipped camcorders capable of providing 40 to 52 VDC phantom power.The compact, shotgun-style body is designed to stay out of frame, even when mounted to a camera. Its rugged metal construction ensures durability while inhibiting RF interference, noise from vibrations, and problematic resonance. A fur windscreen is included for enhanced reduction of noise from wind and HVAC systems. At just 5.6 ounces, the MC5-MS serves as a significant upgrade from the microphones built into camcorders and cameras while adding minimal weight to your setup. - Accurate Stereo Audio Capture
- The MC5-MS integrates dual unidirectional condenser elements arranged in an X/Y configuration for broad stereo imaging without phase discrepancies. Thanks to high sensitivity and wide frequency-response capabilities, the MC5-MS is optimal for recording dialog, sound effects, and ambient sounds.
- Simple Mono Operation
- When the MC5-MS is intended to supplement a primary microphone (e.g. a lavalier microphone is being routed to one of your camera's audio channels), unplug the right output of the MC5-MS to operate it in mono.

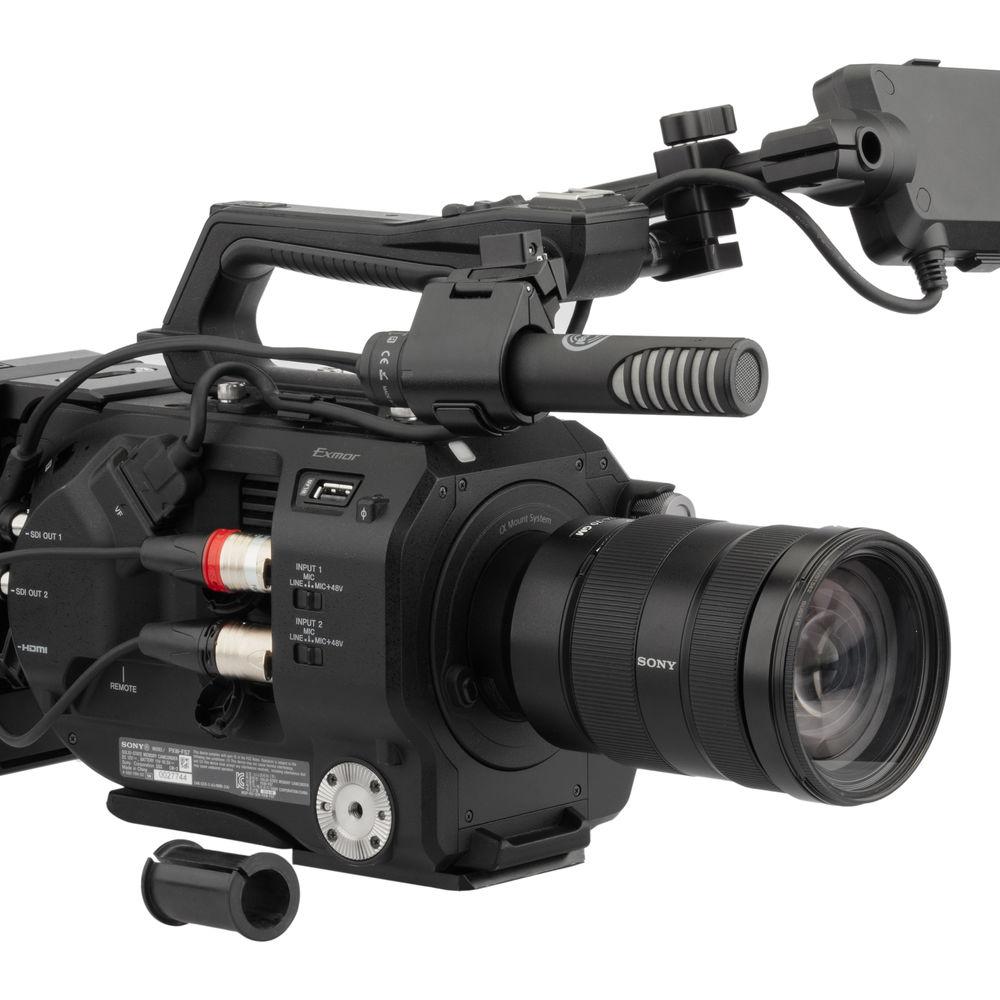

- Compact and Camera-Friendly
- Measuring just 5.4" long, the MC5-MS can sit atop a camera (mounts available separately) while remaining out of the shot. Since it weighs just 5.6 ounces, its presence is barely noticeable.
- Ideal for Professional Camcorders
- Any camcorder outfitted with dual XLR inputs and 40 to 52 VDC phantom power will provide proper hookup and power for the MC5-MS. Used in place of your camcorder's built-in microphone, the MC5-MS offers a notable improvement in sound quality.

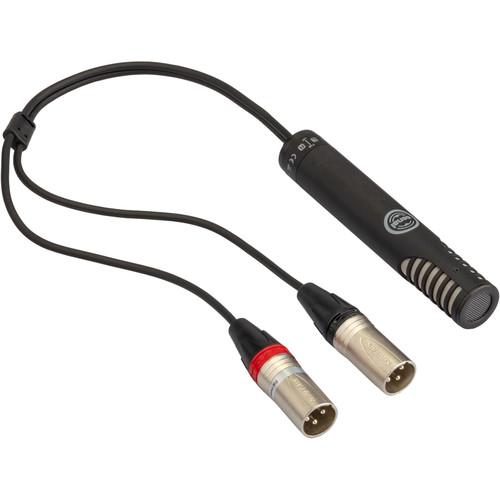

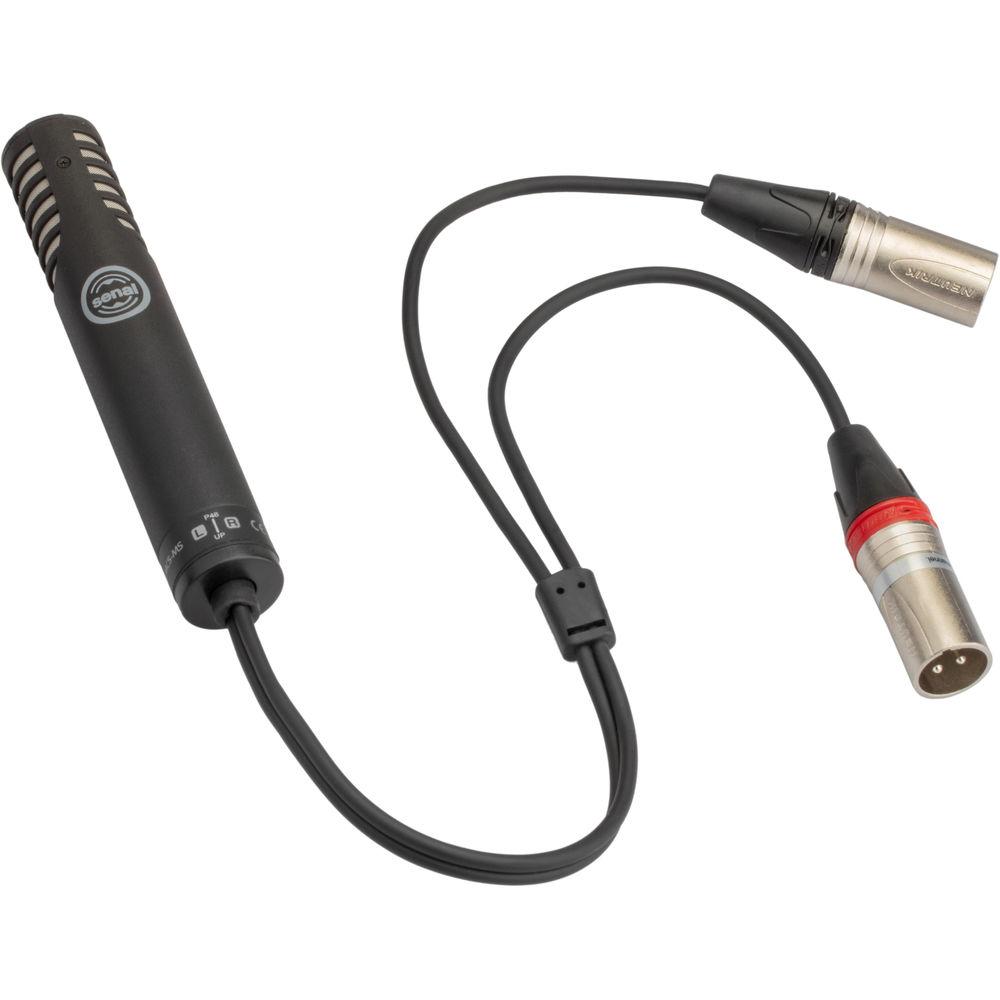

- XLR Connectivity and Phantom Powering
- Thanks to its Neutrik XLR connectors, the MC5-MS delivers clean, reliable audio across balanced signal lines. Compatibility with 48V phantom power eliminates the need for batteries or external power supplies.

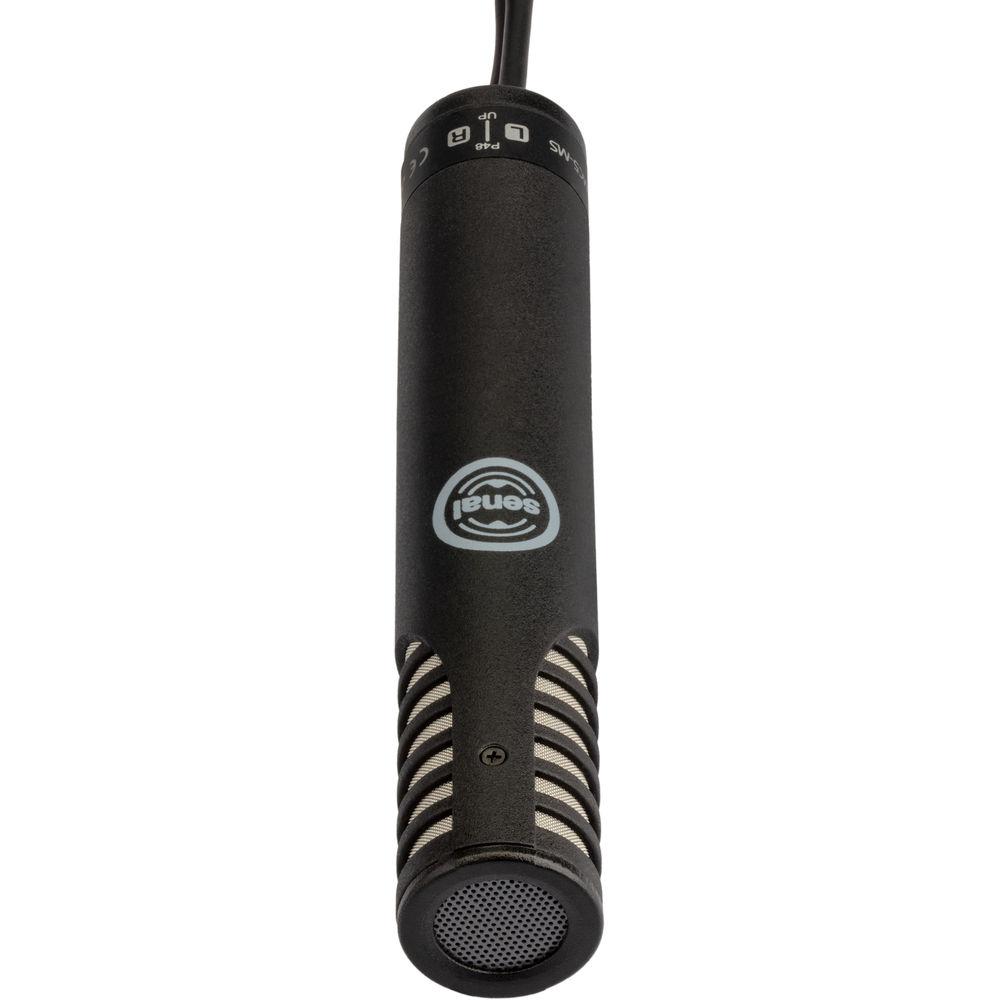

- Rugged Metal Construction
- Utilizing a metal body for reduction of RF interference, vibrations, and resonance, the MC5-MS provides improved audio quality while withstanding the rigors of location shooting.
UPC: 847628015166 In the Box Senal MC5-MS Dual-Channel Stereo Condenser Microphone Fur Windscreen Limited 1-Year Warranty User Manual PDF 1.2mbextarzzftutrudtybwsxcdwbutvwsfeu Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal MC5-MS Dual-Channel Stereo Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal MC5-MS Specs | | | Sound Field | Mono, Stereo | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Tube | No | | Polar Pattern | XY, Unidirectional | | Frequency Range | 70 Hz to 20 kHz | | Signal to Noise Ratio | 69 dB A-Weighted | | Equivalent Noise Level | 25 dB | | Maximum SPL | 125 dB SPL | | Pad | None | | Impedance | 30 Ohms ± 20% | | Sensitivity | XY: -30 dB at 1 kHz
Unidirectional: -35 dB | | Dynamic Range | 106 dB | | | | Output Connectors | 2 x 3-Pin XLR | | Operating Current Consumption | 3 mA | | Operating Voltage | 40 to 52 V | | Operating Temperature | 32 to 122°F / .00 to 50.00°C | | Storage Temperature | -4 to 140°F / -20 to 60.00°C | | Length | 5.4" / 13.72 cm | | Diameter | 0.94" / 24 mm | | Weight | 5.6 oz / 159 g | | | | Package Weight | 0.875 lb | | Box Dimensions (LxWxH) | 11.4 x 5.85 x 2.9" |
