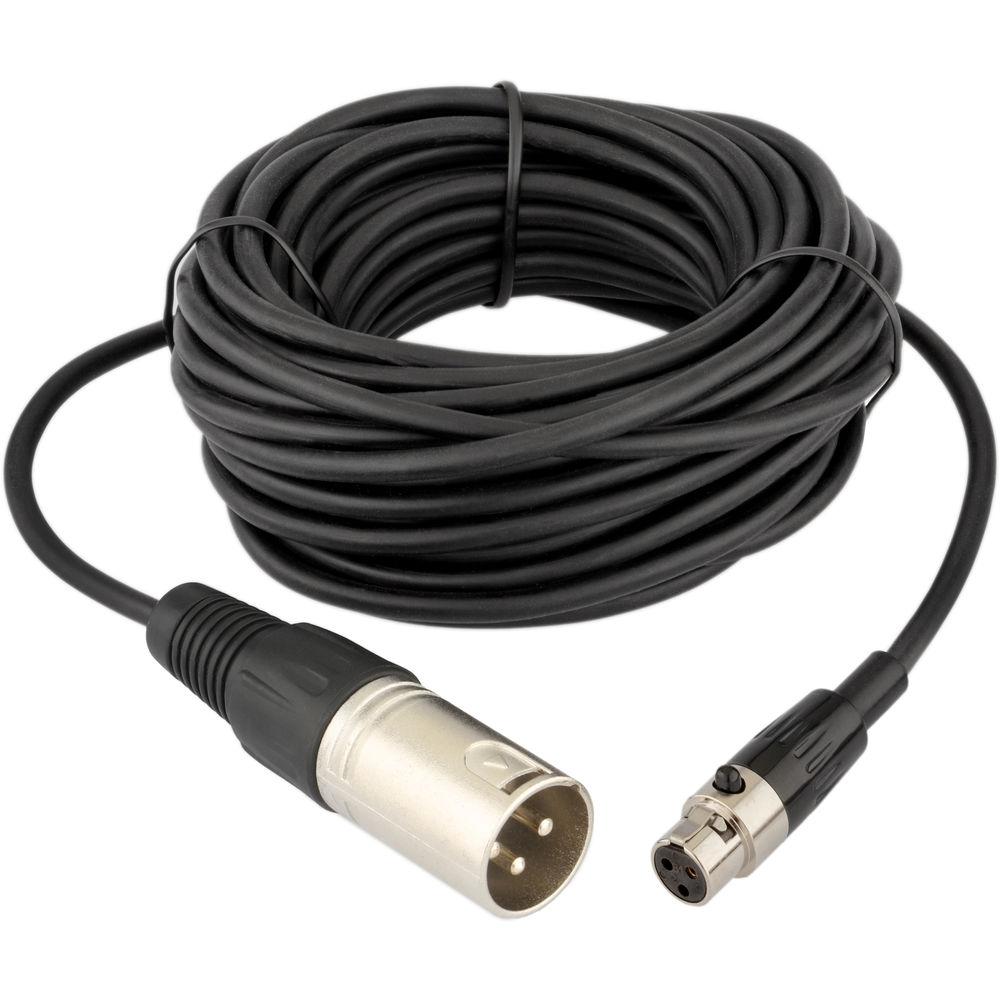

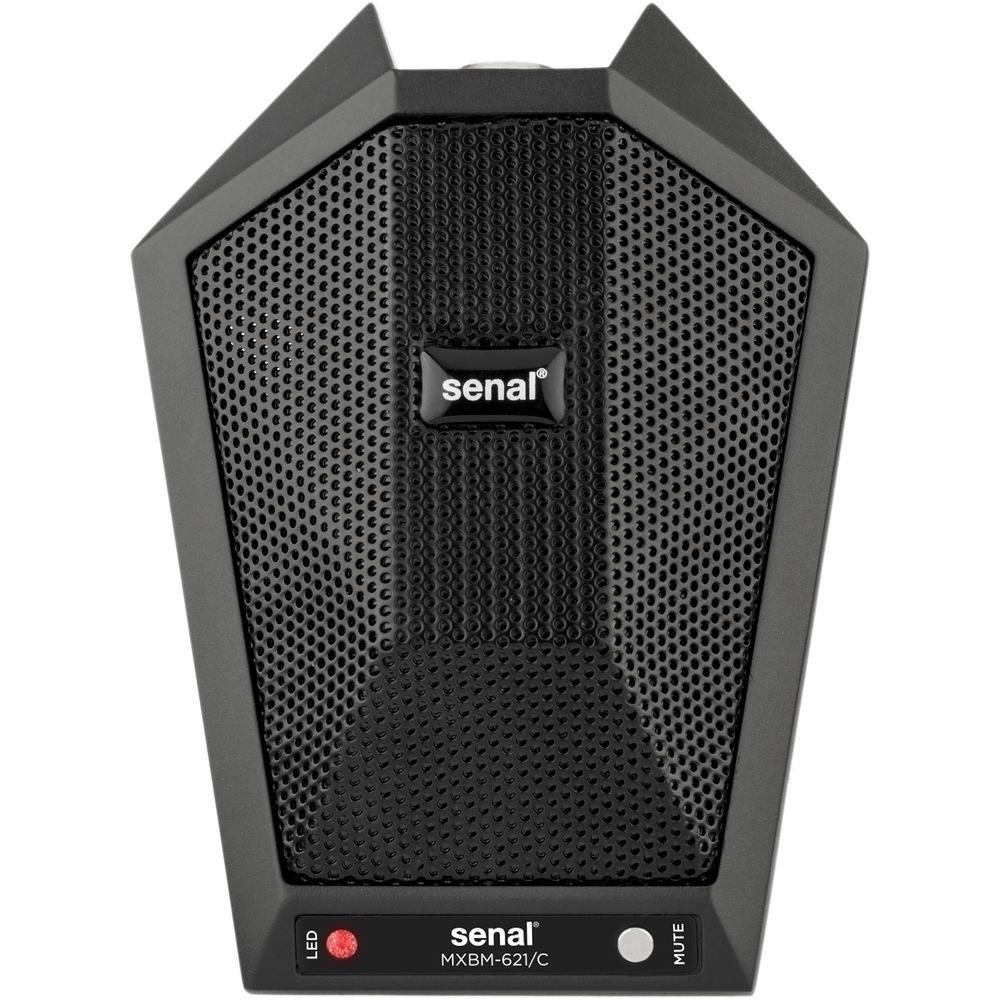

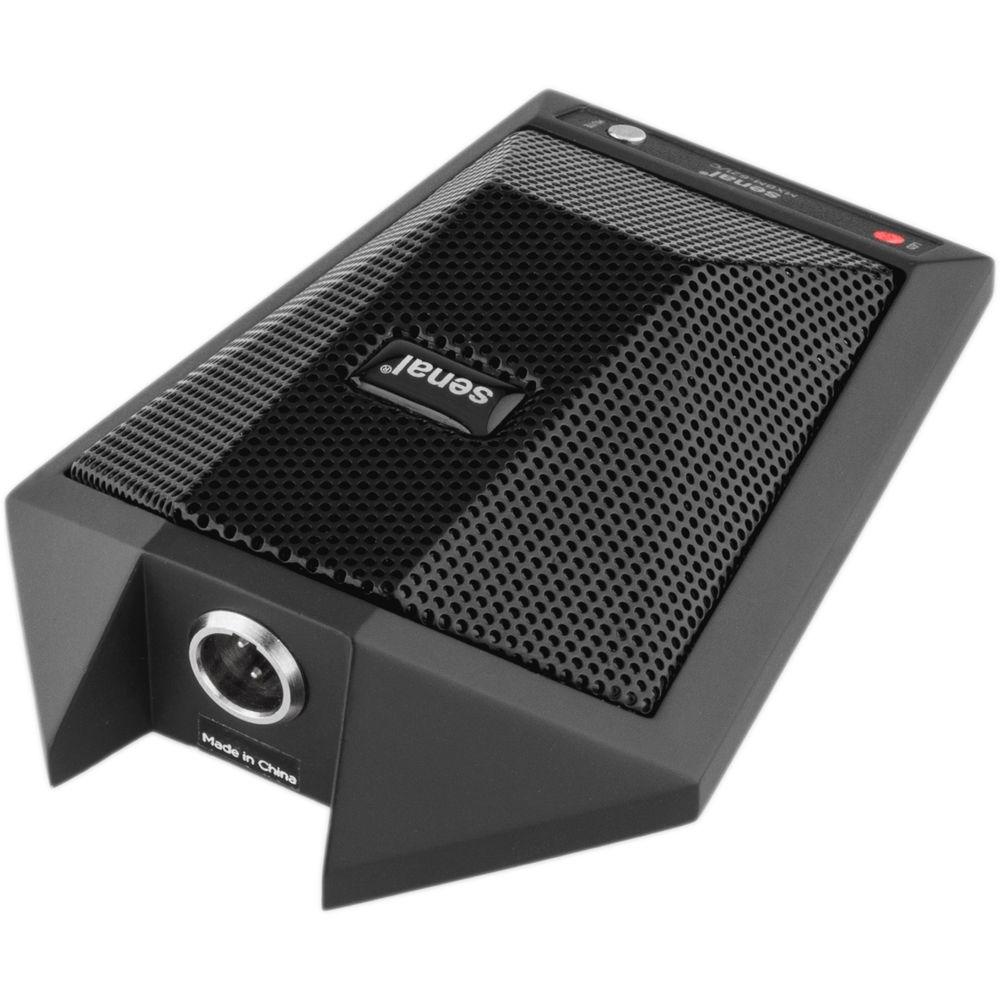

Product description Presented in a sturdy low-profile metal housing, the Senal MXBM-621/C is a MX Series condenser boundary microphone offering enhanced speech intelligibility with low noise for conferences, meetings, training sessions, and more. Its cardioid polar pattern reduces pickup of off-axis ambient noise and reverb to deliver a more focused, direct sound ideal for untreated rooms. The 30 Hz to 20 kHz frequency response yields reliable clarity, and can be tailored to attenuate additional low frequencies via the selectable high-pass filter. Non-skid rubber padding on the bottom of the MXBM-621/C decouples it from surface-born vibrations, and keeps it in position even on slick tabletops.A silent CapSense touch-to-mute switch allows convenient manual control of signal activity, while mute on/off status is indicated by a dedicated LED. Connect the balanced low-impedance TA3M output to your mixer with the supplied 25' TA3F to XLR 3-pin cable. Both the cable and microphone are shielded to negate noise from RF and EM interference. The MXBM-621/C is operated via 9 to 52 VDC phantom power, no need to replace or recharge batteries. - Condenser Capsule
- Powered via 9 to 52 VDC phantom power from a mixer or microphone preamplifier, the MXBM-621/C's condenser capsule delivers full-range frequency reproduction with high sensitivity, making it compliant with a variety of mic preamps.
- Cardioid Polar Pattern
- The cardioid polar pattern of the MXBM-621/C rejects off-axis sound from the rear of the mic while providing directional pickup from the front, allowing it to capture the intended source with attenuated room ambience. The cardioid polar pattern is well suited for use in rooms without acoustic treatment.
- Intelligibility Optimized for Voice
- The MXBM-621/C's 30 Hz to 20 kHz frequency response enhances speech intelligibility without sacrificing low or high end.
- Selectable High-Pass Filter
- A selectable high-pass filter applies 10 dB (
|
Upload User Manual
Have you got an user manual for the Senal MXBM-621 C MX Series Condenser Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal MXBM-621/C Specs | | | Sound Field | Mono | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Maximum SPL | 120 dB SPL THD ≤ 1.5% at 1 kHz | | Pad | None | | Impedance | 330 Ohms ± 30% @ 1 kHz | | Sensitivity | -32 dB
