User Manual for Senal MXBM-621 O MX Series Condenser Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Senal MXBM-621 O MX Series Condenser
- Product category: Boundary Microphones Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Boundary Microphones
 |
User manual for the Senal MXBM-621 O MX Series Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|

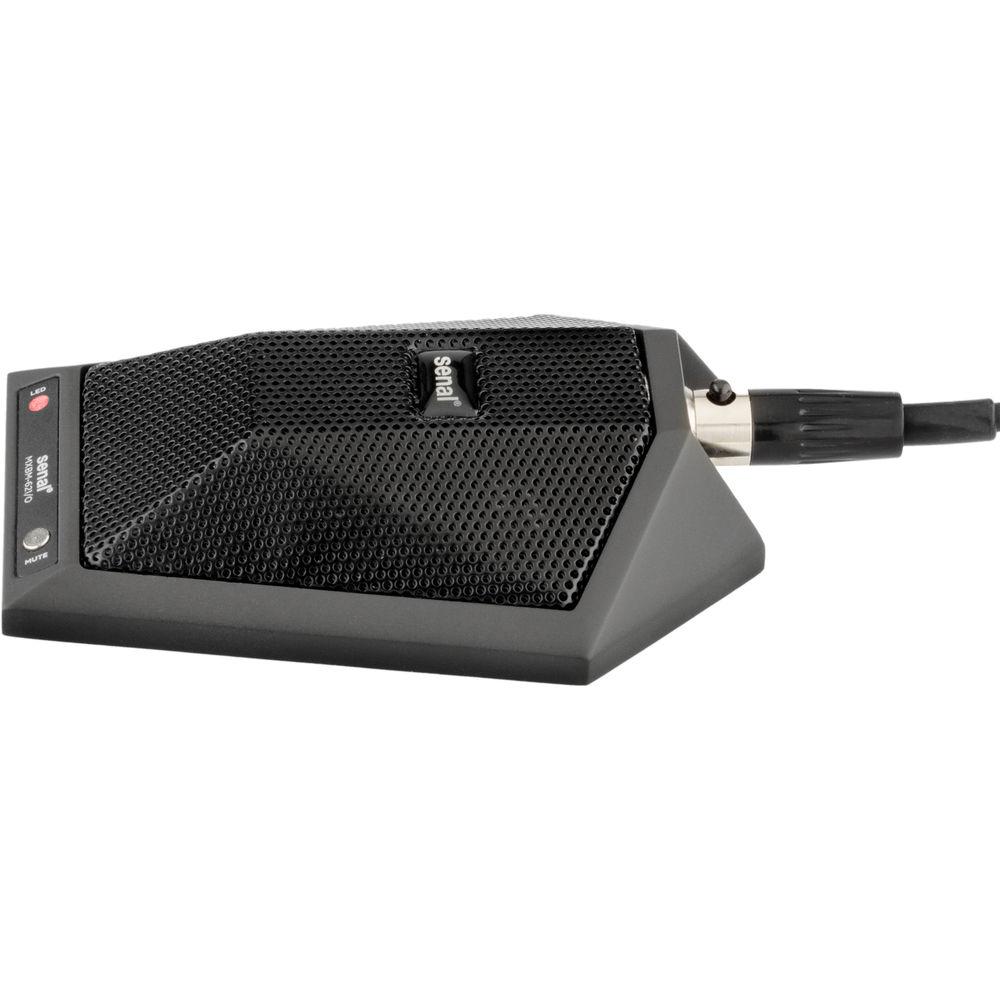

Product description Presented in a sturdy low-profile metal housing, the Senal MXBM-621/O is a MX Series condenser boundary microphone offering enhanced speech intelligibility with low noise for conferences, meetings, training sessions, and more. Its omnidirectional polar pattern delivers consistent pickup from all directions, making it ideal as a single mic for multiple subjects in an acoustically treated room. The 60 Hz to 16 kHz frequency response yields reliable clarity, and can be tailored to attenuate additional low frequencies via the selectable high-pass filter. Non-skid rubber padding on the bottom of the MXBM-621/O decouples it from surface-born vibrations, and keeps it in position even on slick tabletops.A silent CapSense touch-to-mute switch allows convenient manual control of signal activity, while mute on/off status is indicated by a dedicated LED. Connect the balanced low-impedance TA3M output to your mixer with the supplied 25' TA3F to XLR 3-pin cable. Both the cable and microphone are shielded to negate noise from RF and EM interference. The MXBM-621/O is operated via 9 to 52 VDC phantom power, no need to replace or recharge batteries. - Condenser Capsule
- Powered via 9 to 52 VDC phantom power from a mixer or microphone preamplifier, the MXBM-621/O's condenser capsule delivers full-range frequency reproduction with high sensitivity, making it compliant with a variety of mic preamps.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern of the MXBM-621/O provides reliable pickup regardless of the source's direction. With a 360° response area, the MXBM-621/O can capture voices from all sides, making it well suited as a single microphone for multiple people in an acoustically treated space.
- Intelligibility Optimized for Voice
- The MXBM-621/O's 60 Hz to 16 kHz frequency response enhances speech intelligibility without sacrificing low or high end.
- Selectable High-Pass Filter

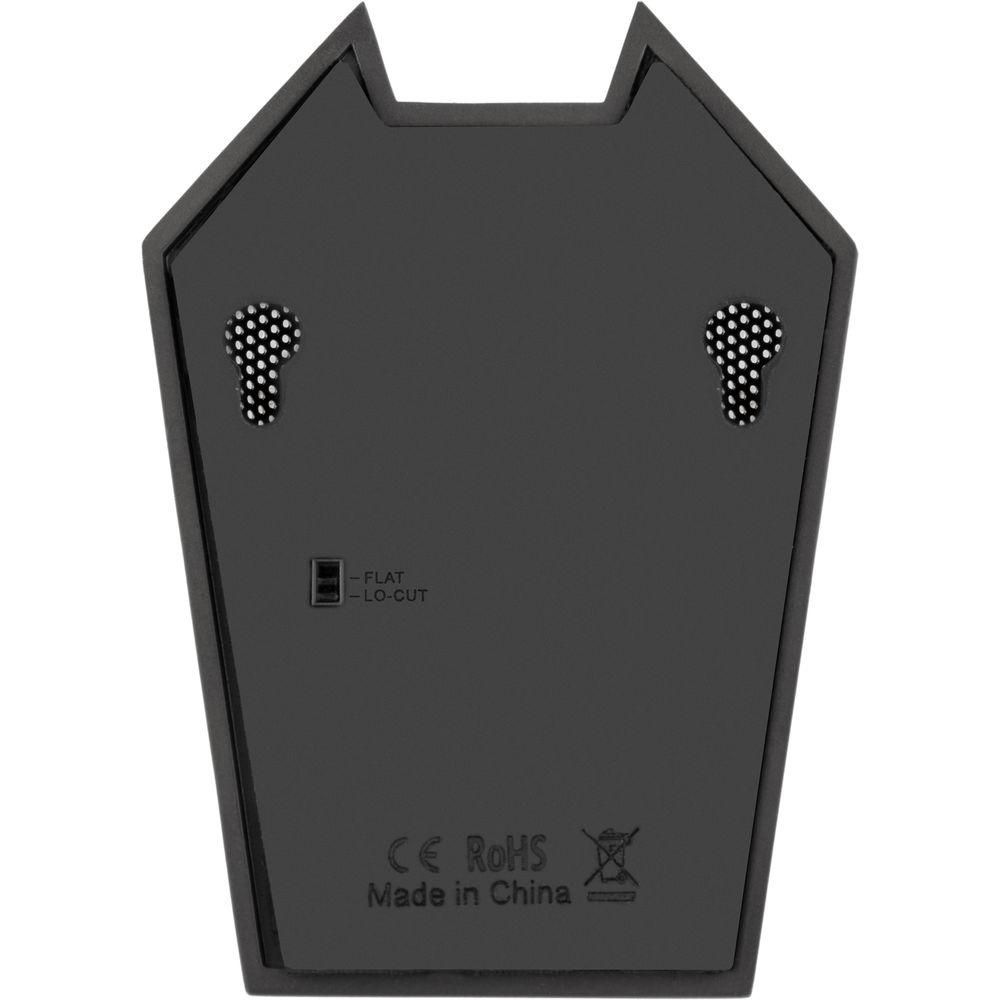

- A selectable high-pass filter applies 6 dB/octave of attenuation at 80 Hz, effectively minimizing problematic low-frequency content from errant vibrations and rumble from HVAC systems.
- Balanced Low-Impedance Output

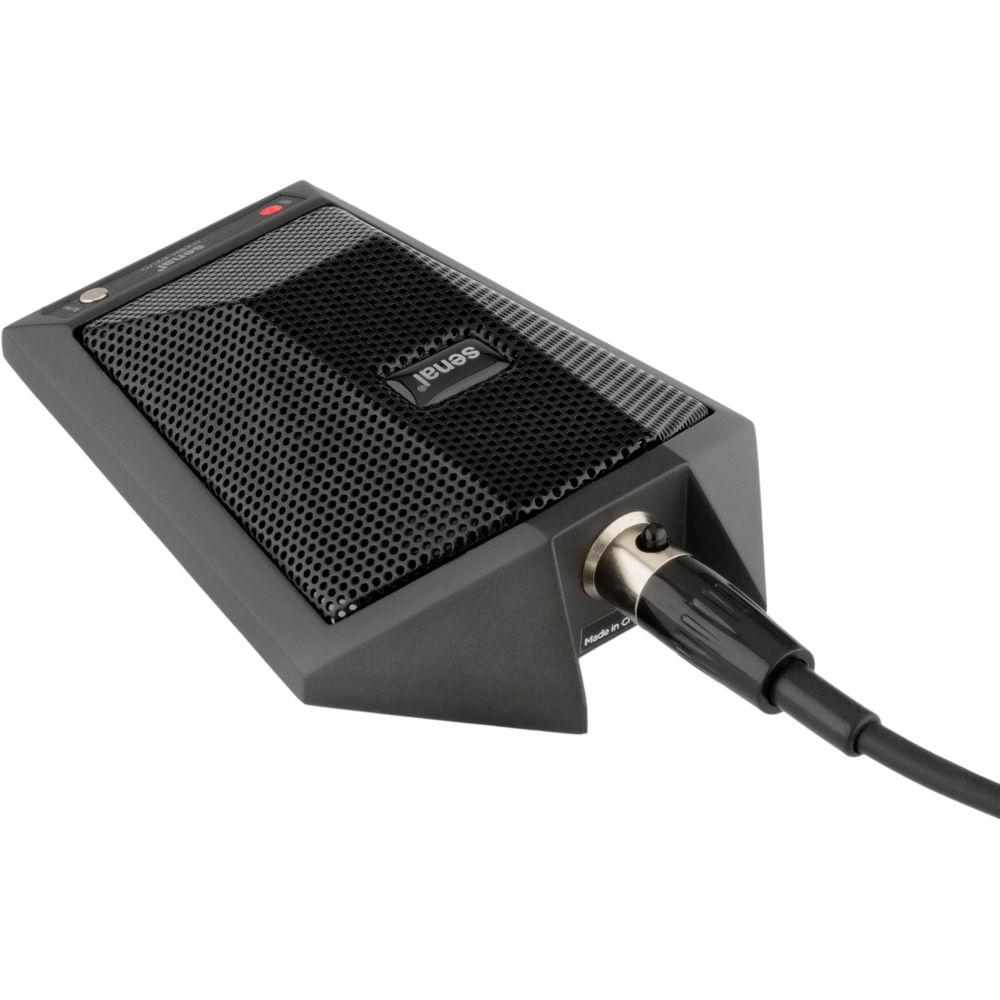

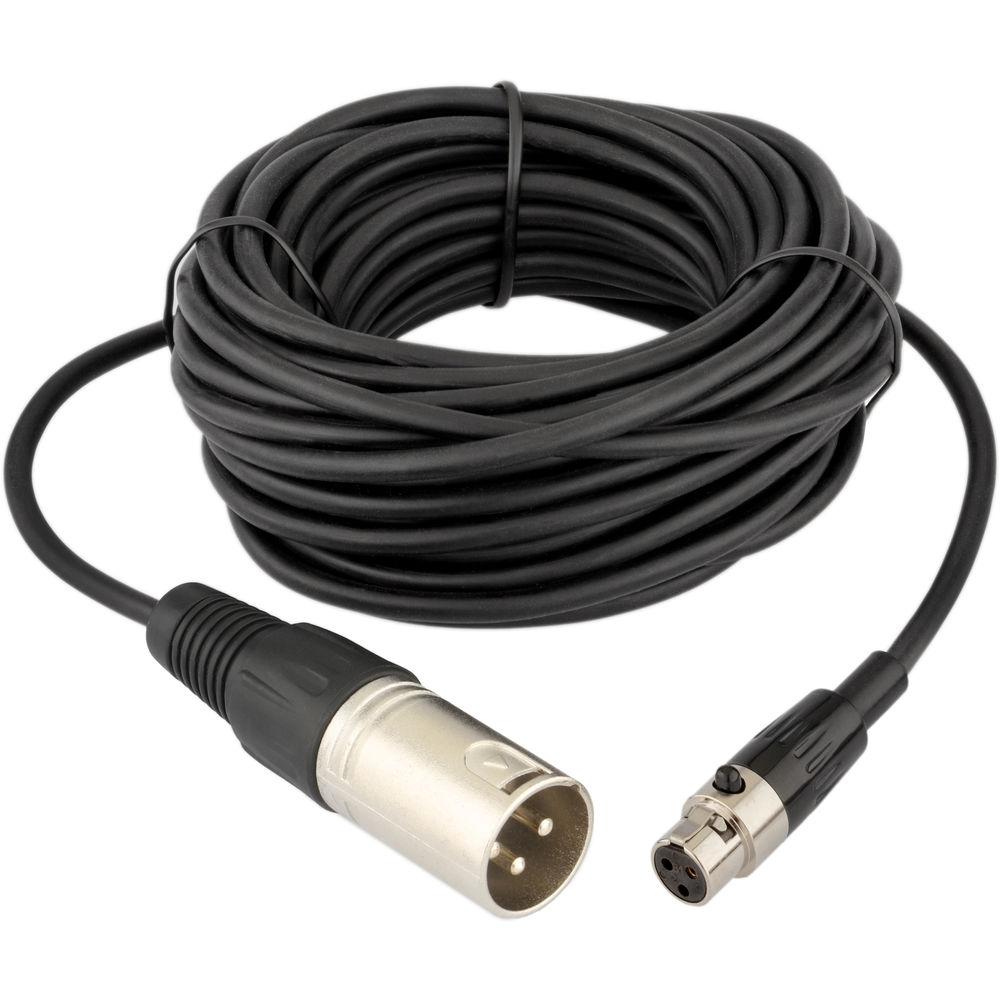

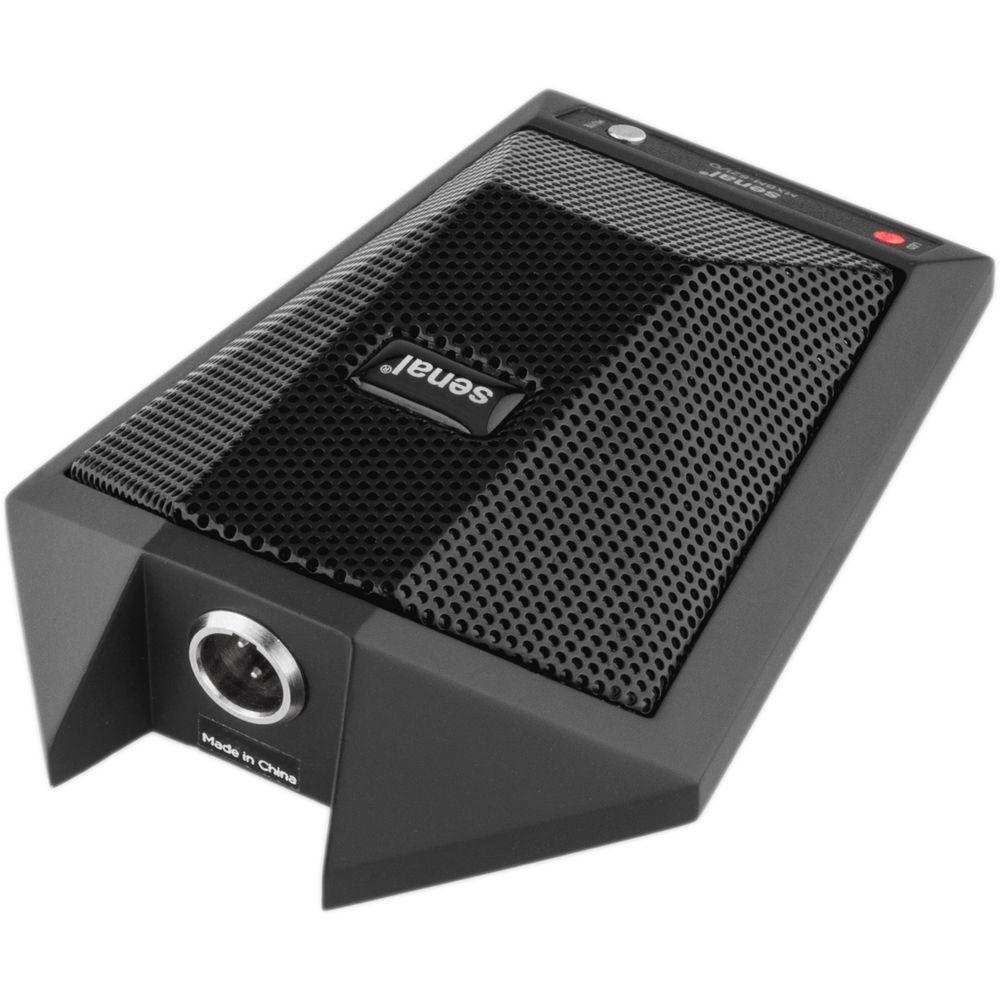

- The TA3 output connector contributes to the microphone's low profile, and allows quick hookup of the supplied 25' TA3F to XLR 3-pin cable for proper interfacing with most mixing consoles, PA systems, and mic preamps. The MXBM-621/O's balanced low-impedance output inhibits common sources of interference such as RF and EM while being compliant with extended cable runs.
- Protective Shielding
- Both the microphone and included cable are shielded to impede noise caused by electrical interference from mobile devices and light sources.
- Convenient Touch-to-Mute Switch

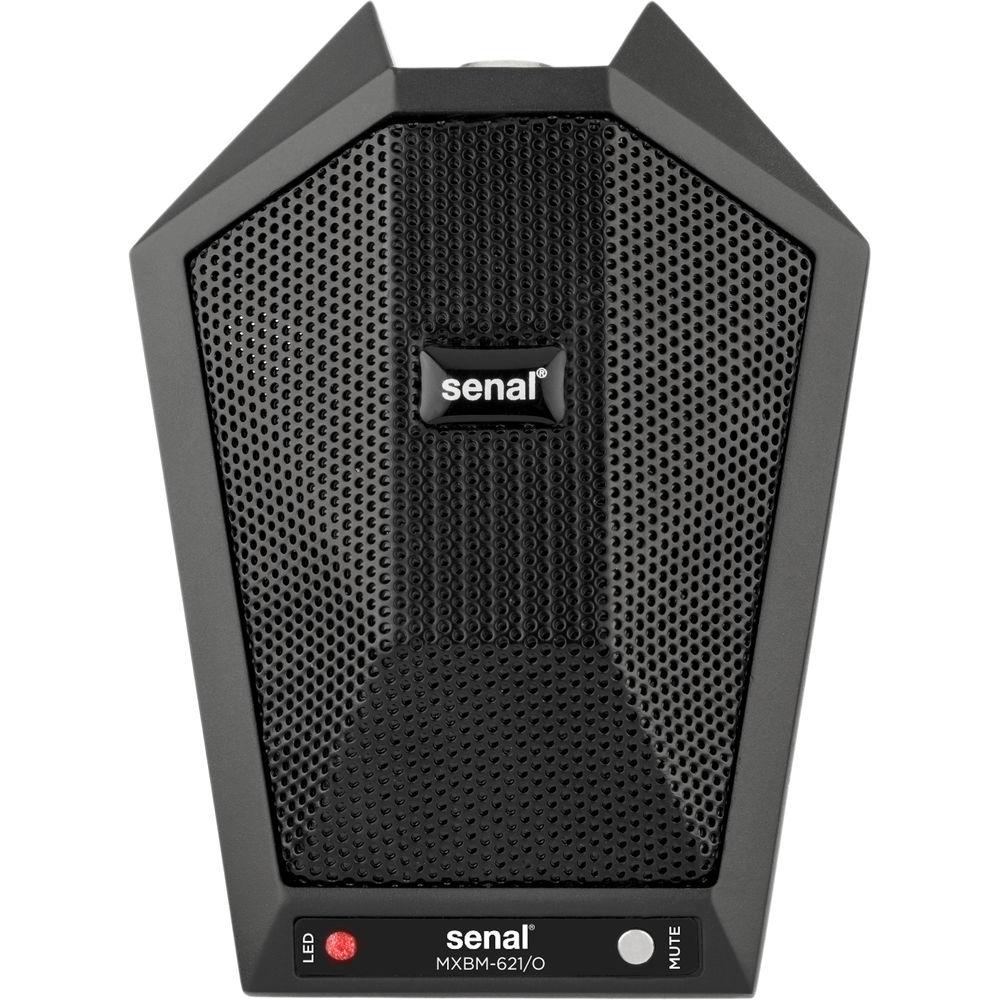

- Silent and convenient, the CapSense switch grants simple touch-to-mute functionality to avoid unnecessarily passing signal. A dedicated LED clearly indicates the MXBM-621/O's mute status.
- Non-Skid Rubber Padding
- To prevent the transfer of floor- or table-born vibrations to the microphone, the MXBM-621/O features non-skid rubber pads on its bottom surface. In addition to decoupling the microphone from your desk or tabletop, they keep it firmly stationed devoid of accidental slippage.
UPC: 847628003293 In the Box Senal MXBM-621/O MX Series Condenser Boundary Microphone (Omnidirectional) 25' TA3F to XLR 3-Pin Male Cable Limited 2-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal MXBM-621 O MX Series Condenser Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal MXBM-621/O Specs | | | Sound Field | Mono | | Transducer | Condenser | | Tube | No | | Polar Pattern | Omnidirectional | | Frequency Range | 60 Hz to 16 kHz | | Maximum SPL | 120 dB SPL THD ≤ 1.5% at 1 kHz | | Pad | None | | Impedance | 440 Ohms ± 30% @ 1 kHz | | Sensitivity | -33 dB
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
