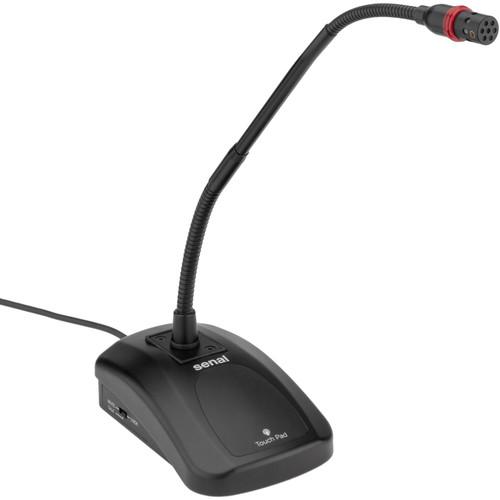

User Manual for Senal MXGN-12C 12" Gooseneck Condenser Microphone with Integrated Base & Silent Touch Pad Click to enlarge the picture
Contents of the user manual for the Senal MXGN-12C 12" Gooseneck Condenser Microphone
- Product category: Gooseneck Microphones Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Gooseneck Microphones
 |
User manual for the Senal MXGN-12C 12" Gooseneck Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|
Product description With a slim, unobtrusive profile, the Senal MXGN-12C is a 12" gooseneck condenser microphone with an integrated base designed to provide clear and intelligible speech reproduction for lectures, video conferences, meetings, and more, without obscuring or visually distracting from the speaker. The back-electret condenser capsule features a cardioid polar pattern that clearly captures the voice in front of the mic, while reducing unwanted off-axis ambient sound often present in noisy and acoustically untreated rooms. It supports interchangeable omnidirectional and supercardioid capsules (available separately), which install and remove without tools in seconds.The MXGN-12C's shaft features upper and lower gooseneck sections that enable you to precisely position the capsule in front of the speaker for optimal sound. A low-cut filter attenuates rumble by 20 dB at 100 Hz, allowing crisp voice quality devoid of problematic bass tones. Effortlessly activate or mute the mic signal via the programmable silent touch pad on the integrated base. Talk/mute status is clearly indicated by the LED ring below the mic capsule.The MXGN-12C is operated via 12 to 48 VDC phantom power, and utilizes a balanced XLR output to ensure noise-free signal transmission over long cable runs. The microphone's rugged metal construction ensures long-lasting performance and dependability, even under demanding conditions. A slip-on foam windscreen is included to minimize pops, plosives, and breath noise. - Cardioid Mic Capsule
- The back-electret condenser capsule offers high sensitivity compared to traditional dynamic designs, and requires less gain for a strong output level. Its cardioid polar pattern clearly captures the voice in front of the mic, while reducing unwanted off-axis sound and noise. Operated via 12 to 48 VDC phantom power, the MXGN-12C is compatible with a variety of mixers, mic preamps, PA systems, and audio interfaces.

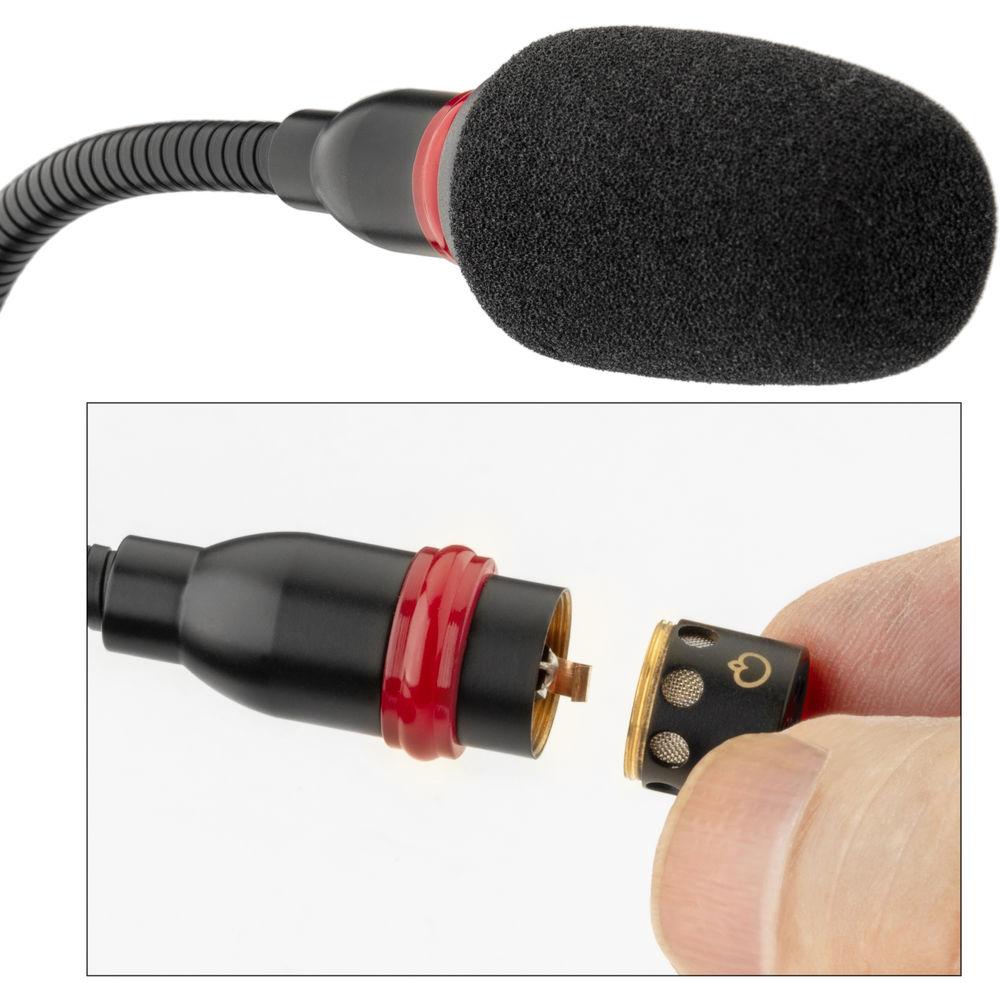

- Interchangeable Mic Capsules
- Once positioned, leave the MXGN-12C in place and easily swap its cardioid capsule for the separately available omnidirectional or supercardioid capsules. No tools are necessary; they screw off/on in a matter of seconds.
- Accurate Sound Reproduction

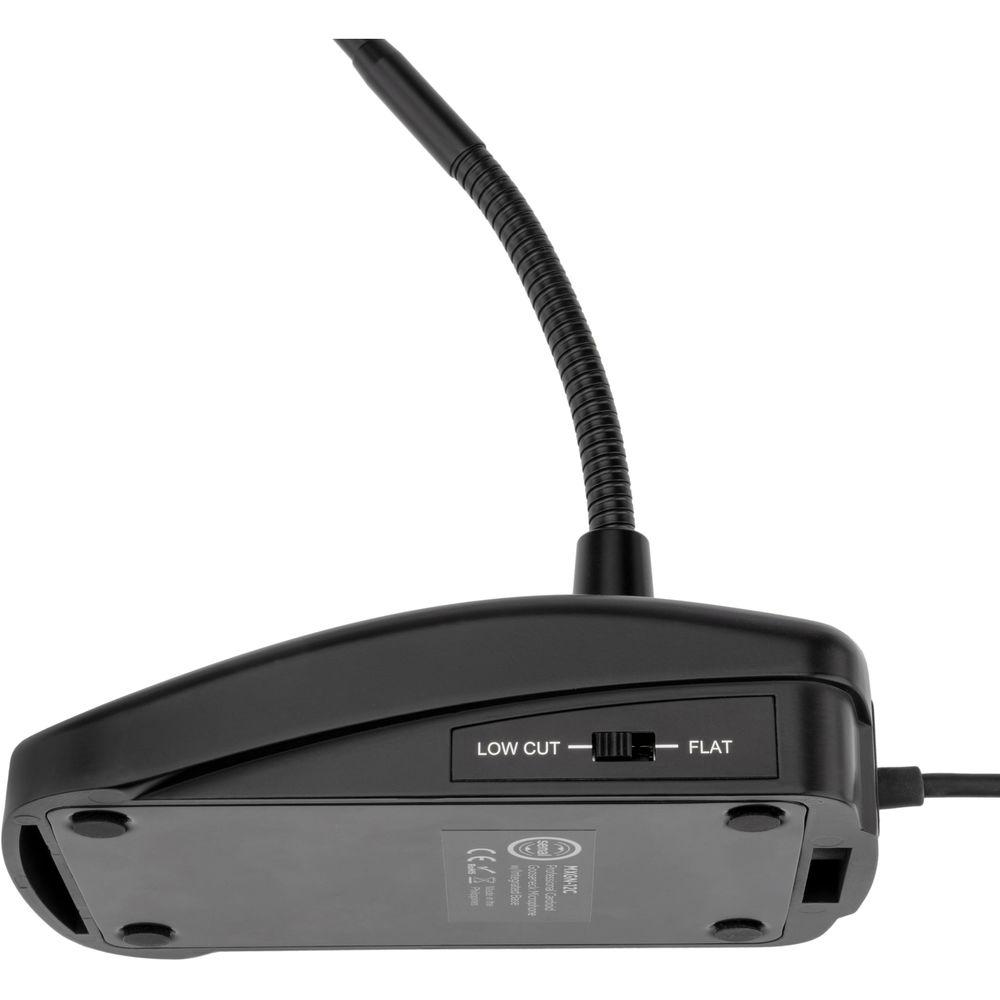

- Tailored for accurate and intelligible voice reproduction, the MXGN-12C features a frequency response of 50 Hz to 18 kHz. A selectable low-cut filter attenuates 20 dB at 100 Hz to impede bass build-up and low-frequency rumble from HVAC systems.
- Silent Touch Pad

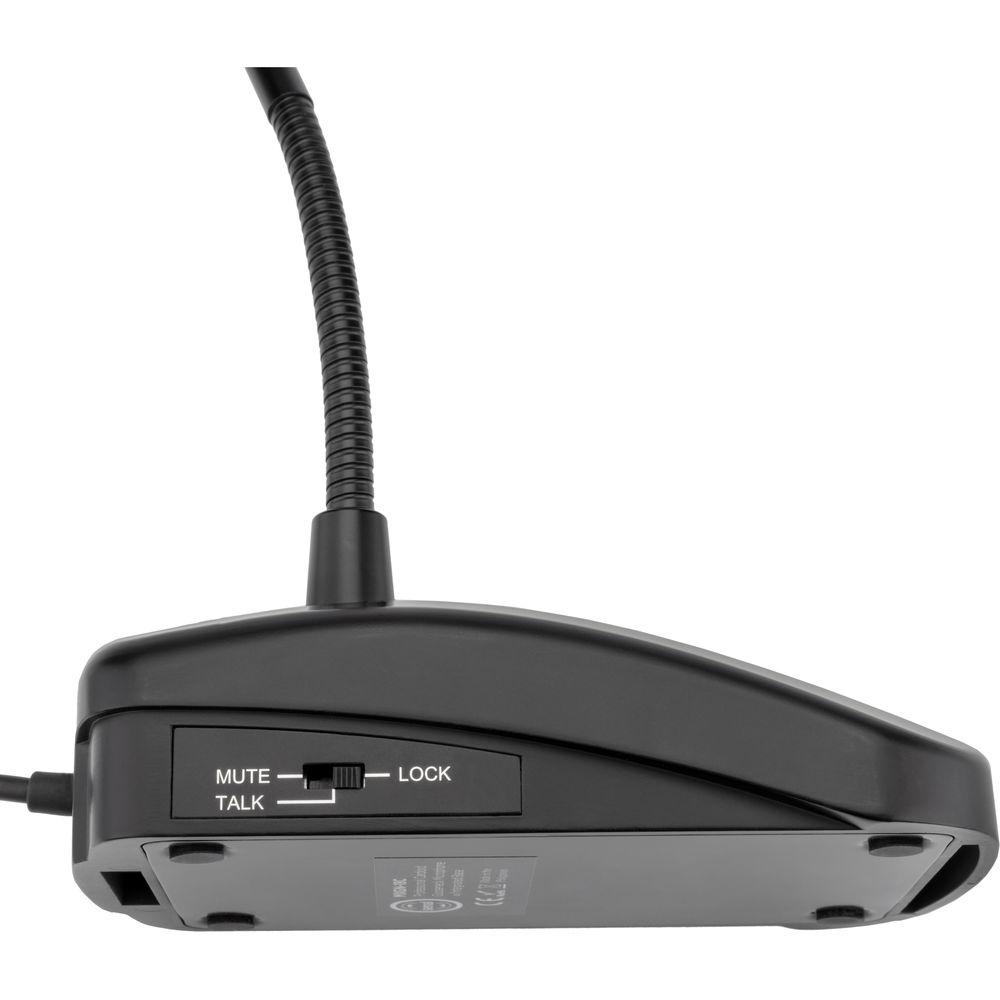

- Quickly and silently mute/open the mic signal by gently tapping the touch pad. Being programmable, it can operate in one of three modes to accommodate different preferences such as tap-to-talk, tap-to-mute, and more.
- LED Ring Indicator
- Just below the mic capsule, an LED ring indicator displays the talk/mute status of the MXGN-12C. Get a clear assessment of whether microphones are active or muted at a glance.
- RF/EM Interference Rejection
- Conference spaces and meeting rooms are common sources of Wi-Fi and cellular activity, noise from lights, and unintended radio-frequency paths. The MXGN-12C utilizes a balanced XLR output to inhibit such RF and EM interference over short and long cable runs.
- Slip-On Windscreen

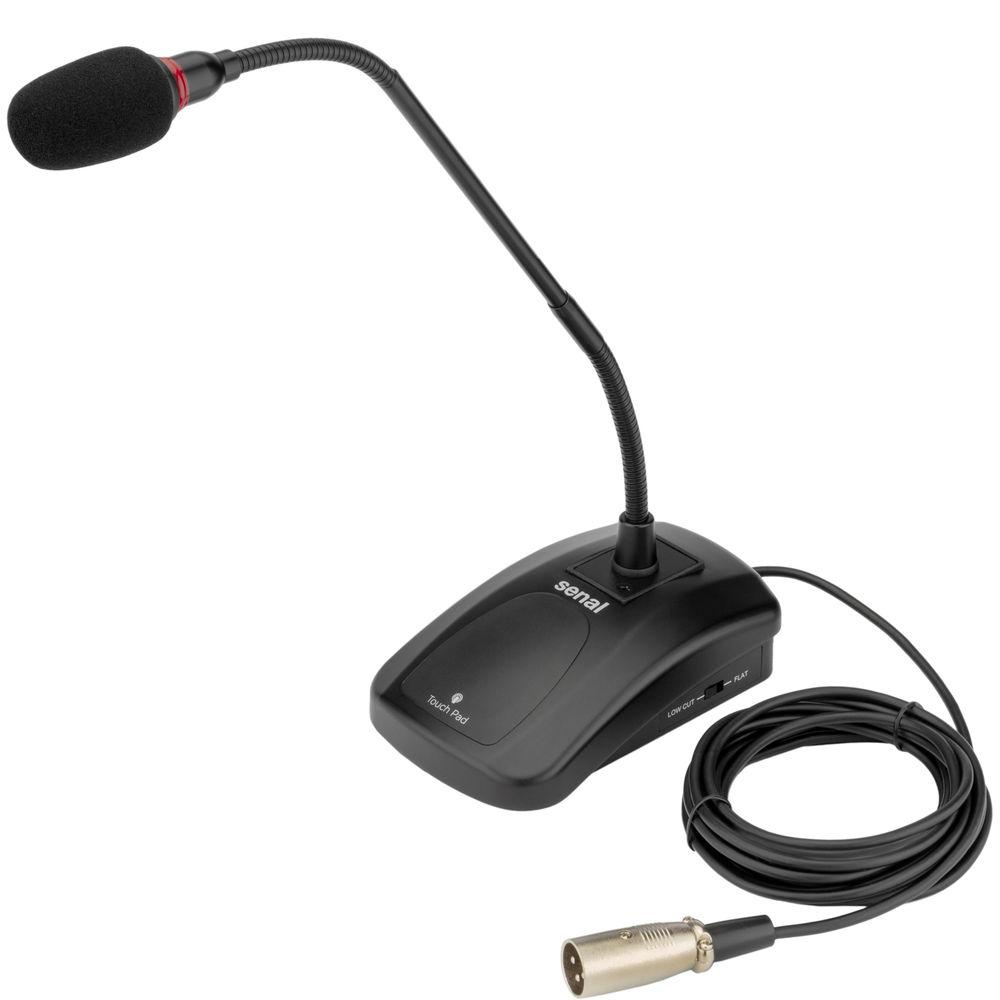

- Slip on the supplied foam windscreen to reduce the inevitable vocal plosives from "P" and "B" sounds. Additionally, the windscreen guards the mic capsule against mouth-born moisture, which can corrode microphone components and degrade signal quality over time.
- Dual Gooseneck Sections

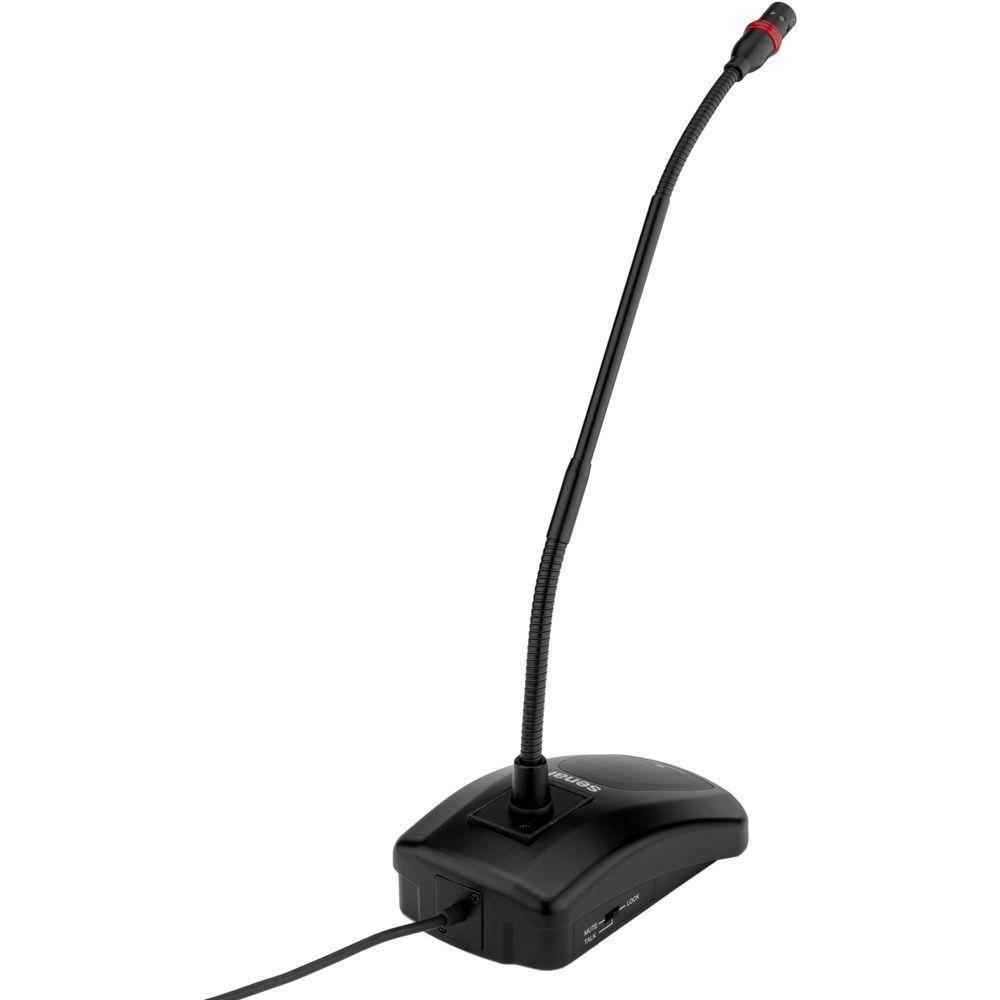

- Upper and lower gooseneck sections on the microphone shaft enable you to position the mic precisely in front of the subject.
- Sturdy Construction
- All-metal construction enables long-lasting performance and dependability; it won't warp or crack under pressure or temperature-related stress.
- Integrated Nonslip Padding
- Thanks to the MXGN-12C's nonslip padding, the microphone can remain stationary and stable on a table or podium.
- Unobtrusive Appearance
- The slim profile of the MXGN-12C doesn't obscure or distract from the speaker, and its matte black finish won't cause distracting reflections or glare.
UPC: 847628005358 In the Box Senal MXGN-12C 12" Gooseneck Condenser Microphone with Integrated Base & Silent Touch Pad Windscreen Limited 2-Year Warranty User Manual PDF 907.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal MXGN-12C 12" Gooseneck Condenser Microphone with Integrated Base & Silent Touch Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal MXGN-12C Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 120 dB SPL (at 1 kHz, THD < 1%) | | Pad | None | | Impedance | 100 Ohms | | Sensitivity | -38 dB
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
