User manual
Senal MXGN-18C 18" Gooseneck Condenser Microphone

User Manual for Senal MXGN-18C 18" Gooseneck Condenser Microphone with Integrated Base & Silent Touch Pad

• Product category: Gooseneck Microphones Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Gooseneck Microphones

Product description

Cardioid Mic Capsule
• The back-electret condenser capsule offers high sensitivity compared to traditional dynamic designs, and requires less gain for a strong output level. Its cardioid polar pattern clearly captures the voice in front of the mic, while reducing unwanted off-axis sound and noise. Operated via 12 to 48 VDC phantom power, the MXGN-18C is compatible with a variety of mixers, mic preamps, PA systems, and audio interfaces.

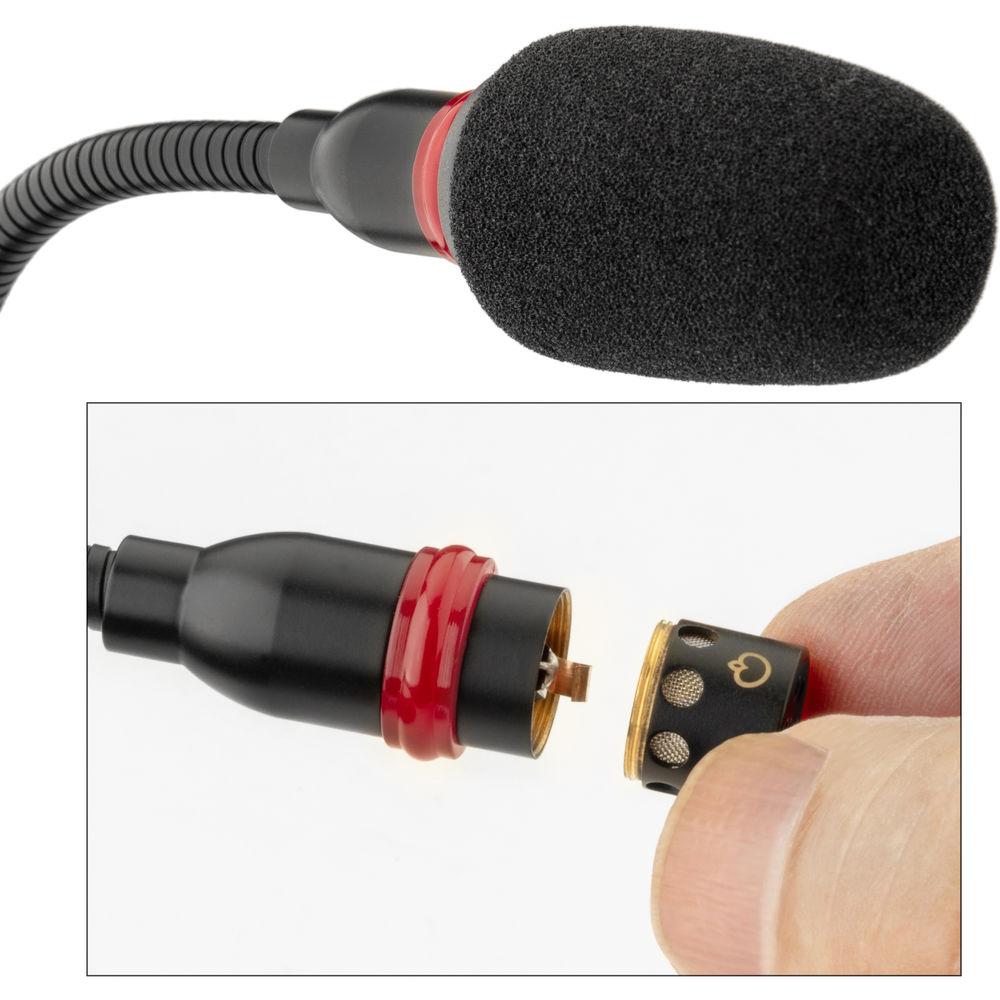

Interchangeable Mic Capsules
• Once positioned, leave the MXGN-18C in place and easily swap its cardioid capsule for the separately available omnidirectional or supercardioid capsules. No tools are necessary; they screw off/on in a matter of seconds.

Accurate Sound Reproduction
• Tailored for accurate and intelligible voice reproduction, the MXGN-18C features a frequency response of 50 Hz to 18 kHz. A selectable low-cut filter attenuates 20 dB at 100 Hz to impede bass build-up and low-frequency rumble from HVAC systems.

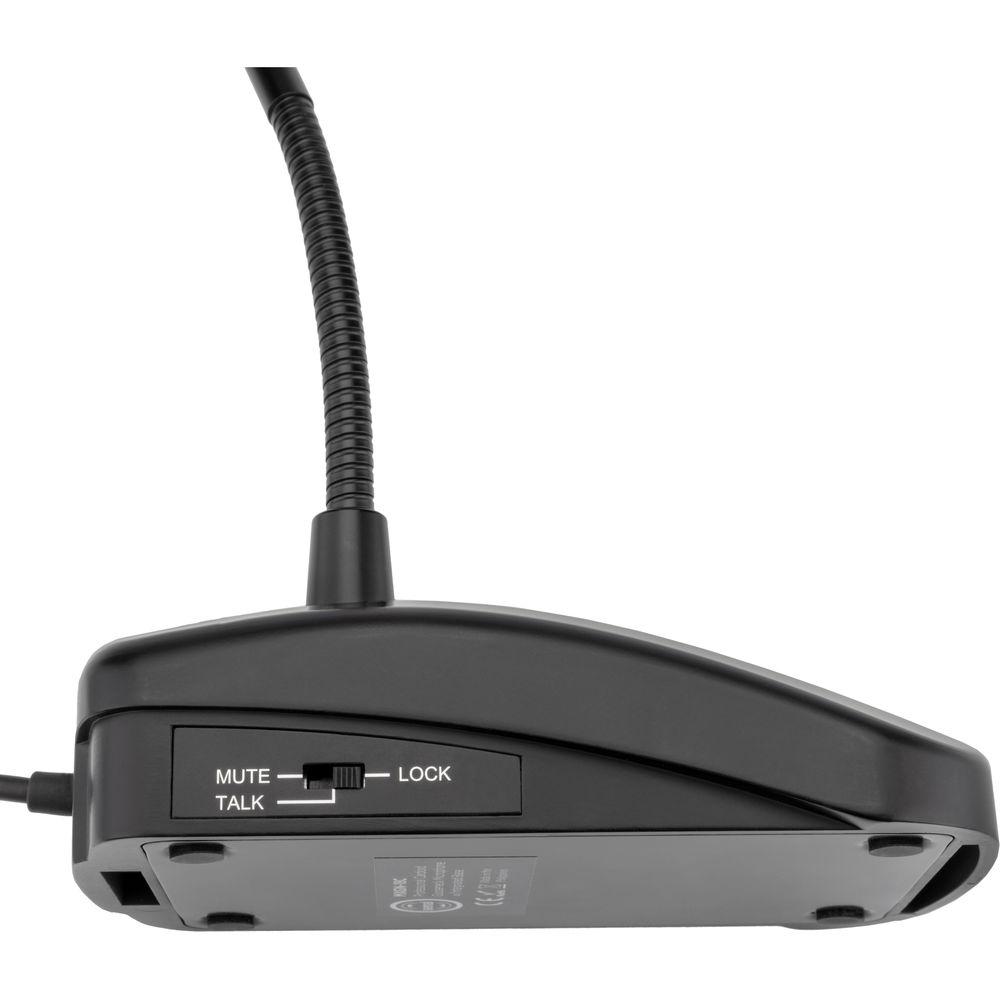

Silent Touch Pad
• Quickly and silently mute/open the mic signal by gently tapping the touch pad. Being programmable, it can operate in one of three modes to accommodate different preferences such as tap-to-talk, tap-to-mute, and more.

LED Ring Indicator
• Just below the mic capsule, an LED ring indicator displays the talk/mute status of the MXGN-18C. Get a clear assessment of whether microphones are active or muted at a glance.

RF/EM Interference Rejection
• Conference spaces and meeting rooms are common sources of Wi-Fi and cellular activity, noise from lights, and unintended radio-frequency paths. The MXGN-18C utilizes a balanced XLR output to inhibit such RF and EM interference over short and long cable runs.

Slip-On Windscreen
• Slip on the supplied foam windscreen to reduce the inevitable vocal plosives from "P" and "B" sounds. Additionally, the windscreen guards the mic capsule against mouth-born moisture, which can corrode microphone components and degrade signal quality over time.

Dual Gooseneck Sections
• Upper and lower gooseneck sections on the microphone shaft enable you to position the mic precisely in front of the subject.

Sturdy Construction
• All-metal construction enables long-lasting performance and dependability; it won't warp or crack under pressure or temperature-related stress.

Integrated Nonslip Padding
• Thanks to the MXGN-18C's nonslip padding, the microphone can remain stationary and stable on a table or podium.

Unobtrusive Appearance
• The slim profile of the MXGN-18C doesn't obscure or distract from the speaker, and its matte black finish won't cause distracting reflections or glare.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Senal MXGN-18C Specs

Sound Field	Mono
Operating Principle	Pressure Gradient
Transducer	Electret Condenser
Tube	No
Polar Pattern	Cardioid
Frequency Range	50 Hz to 18 kHz
Maximum SPL	120 dB SPL (at 1 kHz, THD < 1%)
Pad	None
Impedance	100 Ohms
Sensitivity	-38 dB Rating 90% users recommend this product to others. And what about you? This product has already been rated by 93 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
