User Manual for Senal OLM-2 Lavalier Microphone & Power Supply with 3.5 mm Connector for Sennheiser Transmitters Click to enlarge the picture
Contents of the user manual for the Senal OLM-2 Lavalier Microphone & Power
- Product category: Microphones for Wireless Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Microphones for Wireless
 |
User manual for the Senal OLM-2 Lavalier Microphone & Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|

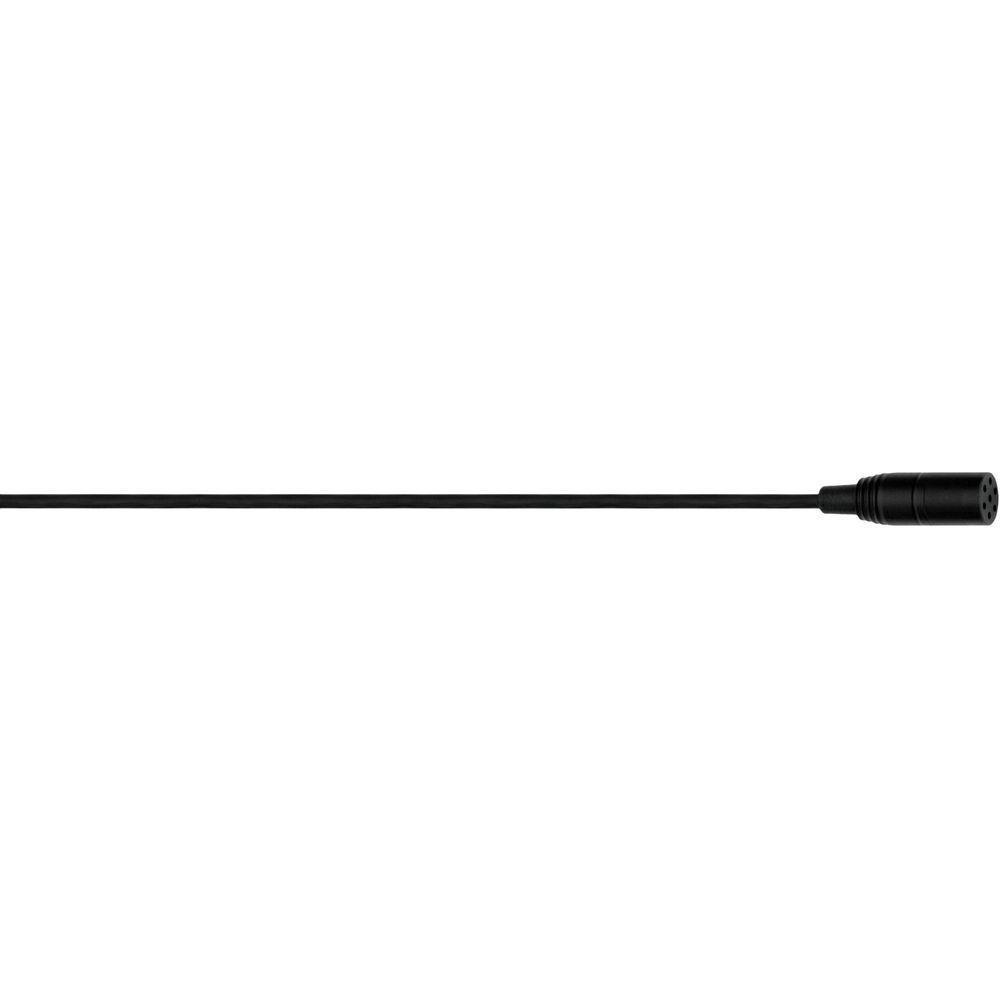

Product description The OLM-2 Lavalier Microphone and Power Supply with 3.5 mm Connector for Sennheiser Transmitters by Senal is a high-performance professional lavalier microphone. Its miniature, lightweight design allows for discrete placement without compromising sound quality. This versatile workhorse microphone is ideal for broadcast, video, and stage applications.

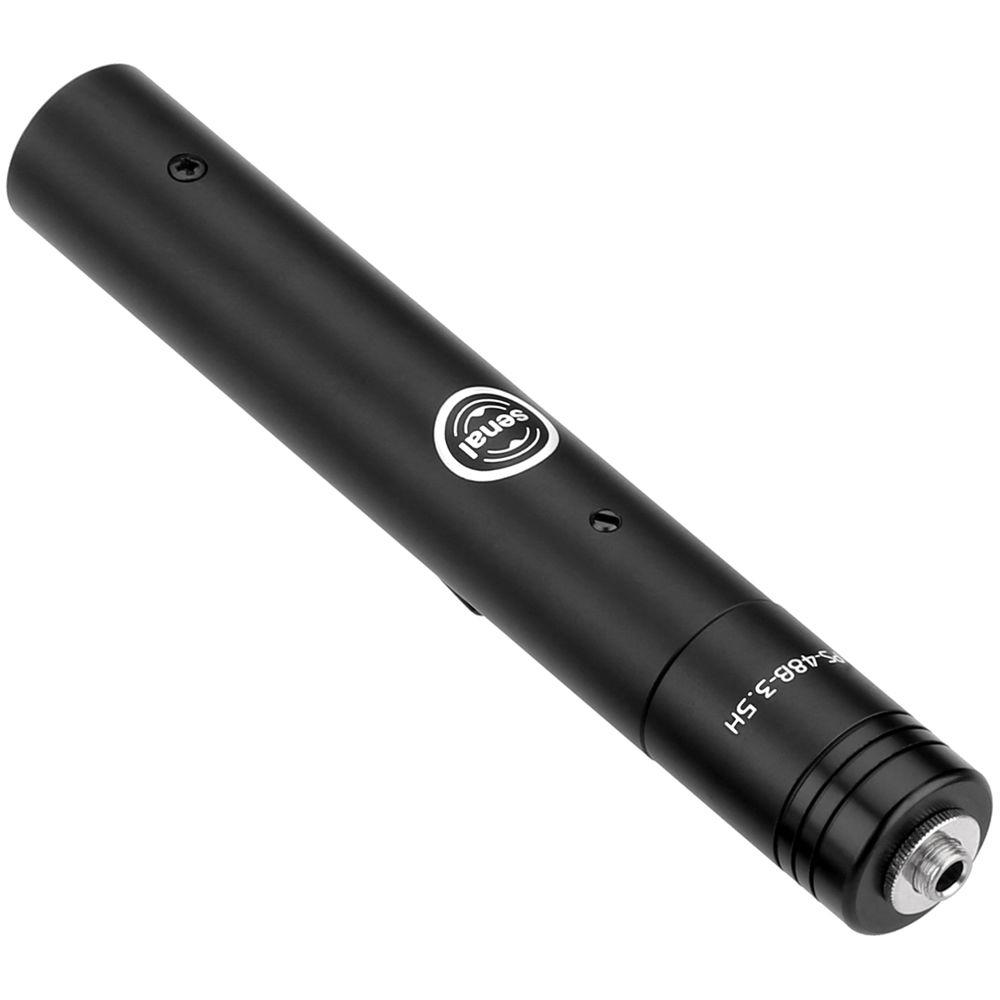

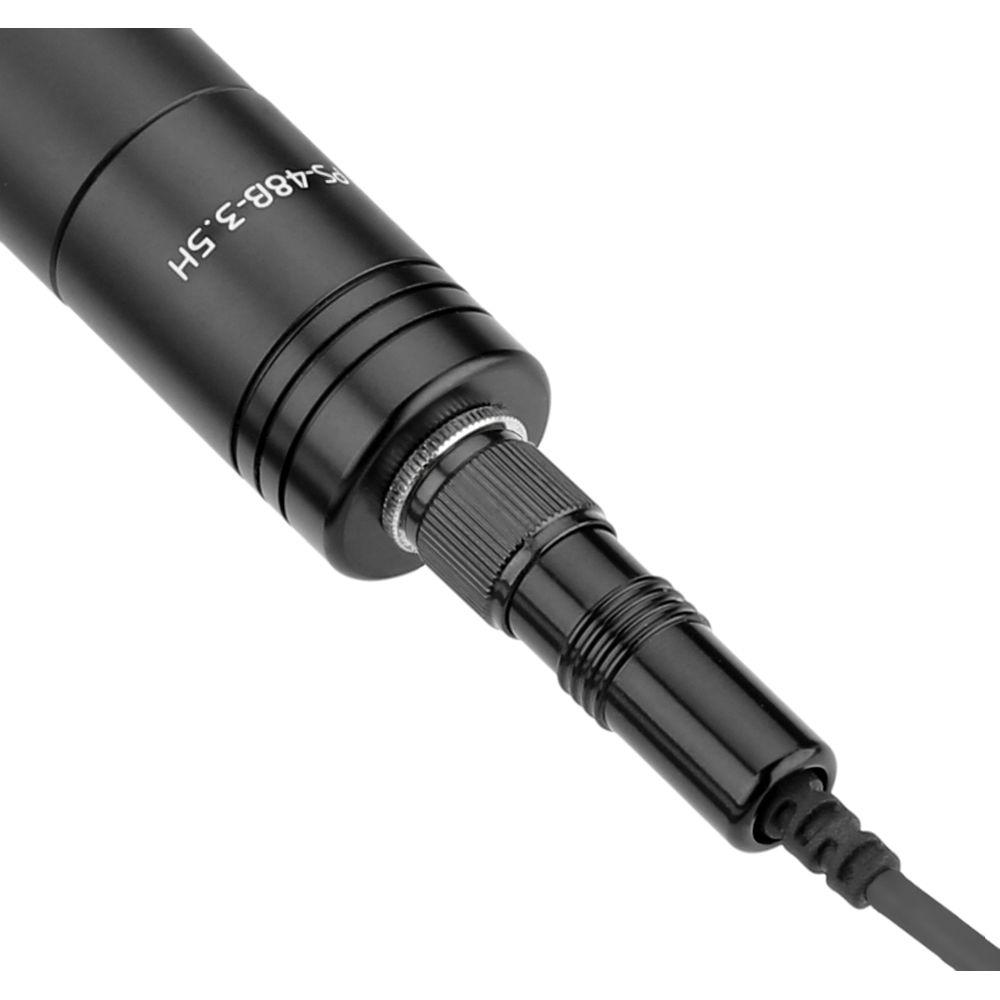

Utilizing a broadcast-quality electret condenser element, it features a smooth frequency response and a wide dynamic range. Its omnidirectional polar pattern enables 360° sound pickup, capturing a natural blend of voice and ambiance with low sensitivity to wind and handling noise, as well as to vocal plosives. In addition to being designed to connect to Sennheiser bodypack transmitters, the OLM-2 can be combined with the included Senal PS-48B Power Supply to operate on phantom or battery power, enabling it to plug into any XLR microphone input or be used as a backup microphone. Note: Due to inconsistent voltage requirements for lavalier microphones, the PS-48B Power Supply included in this package is only recommended for use with the included OLM-2 microphone. - 3.5 mm connector for Sennheiser wireless transmitters

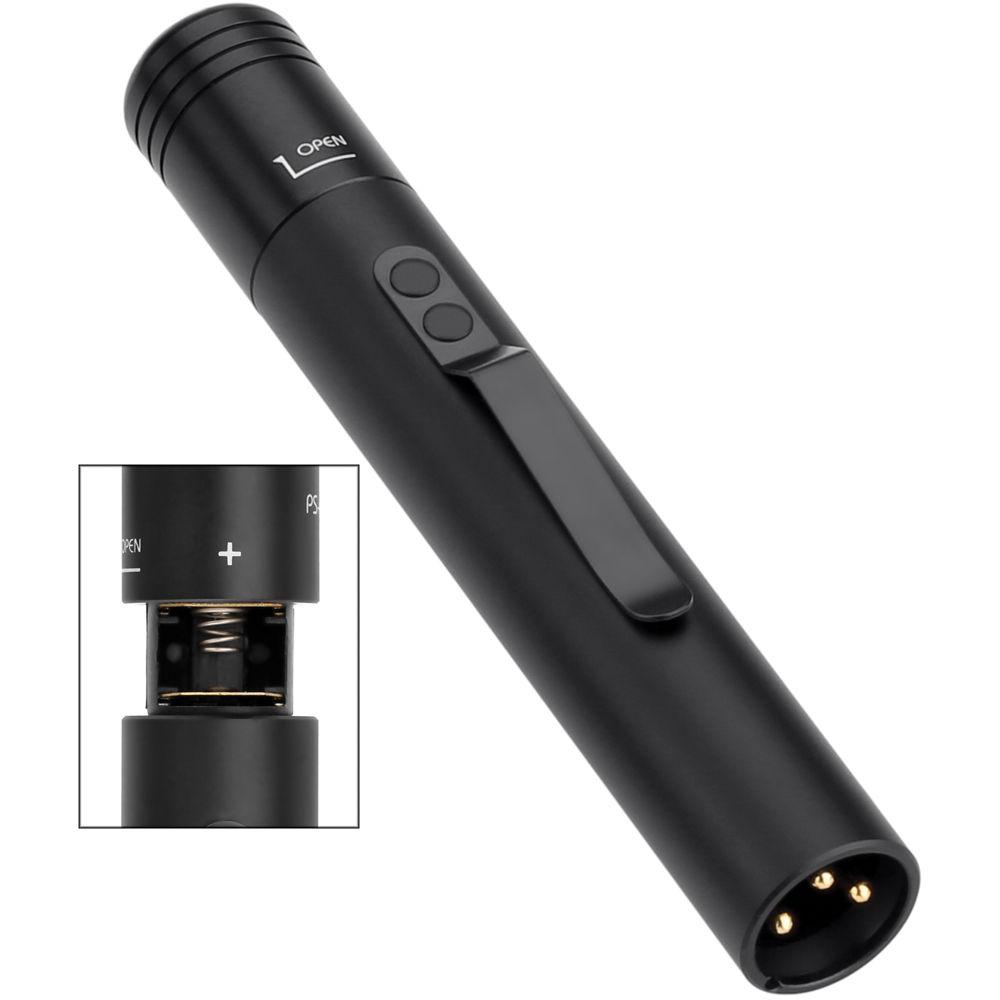

- 48V phantom power supply is included, enabling you to plug into any XLR microphone input

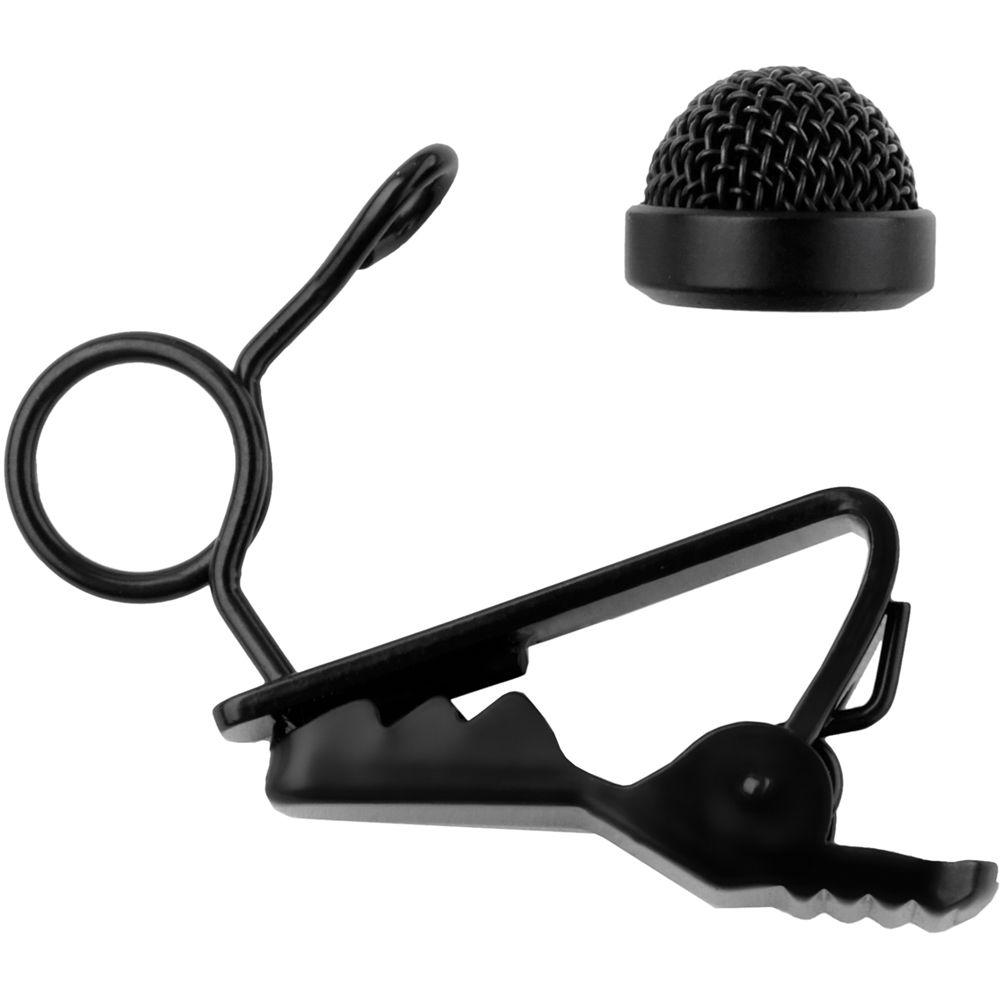

- Metal windscreen reduces wind noise and vocal plosives

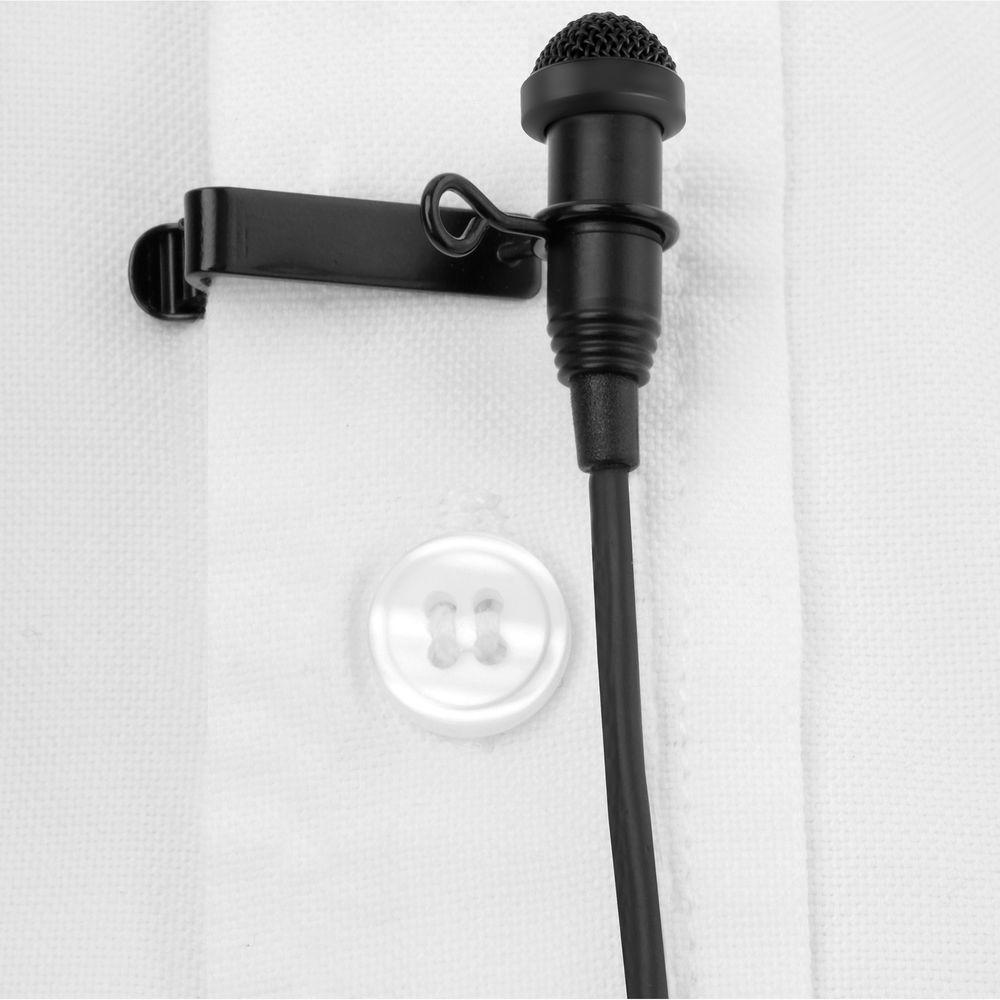

- Tie clip for securing mic to clothing
- 16.3 x 6.5mm (length x diameter) head size
UPC: 847628566316 In the Box Senal OLM-2 Lavalier Microphone & Power Supply with 3.5 mm Connector for Sennheiser Transmitters Senal PS-48B Power Supply LR44 Battery Tie Clip Metal Windscreen Limited 1-Year Warranty User Manual PDF 413.1kbbzquydyfubuexzecxfct Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal OLM-2 Lavalier Microphone & Power Supply with 3.5 mm Connector for Sennheiser Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal OLM-2 Specs | Transducer | Electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz to 20 kHz | | Sensitivity | -63 dB ±3 dB (0 dB = 1 v/microbar @ 1 kHz) | | Impedance | 15,000 Ω ±30% @ 1 kHz | | Operating Voltage | 1 - 10 V DC | | Connector | 3.5 mm connector for Sennheiser wireless transmitters | | Cable Length | 5.3' (1.6 m) | | Head Diameter | 0.3" (6.5 mm) | | Head Length | 0.6" (16.3 mm) | | Total Weight | 1 oz (28.3 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 10.315 x 3.78 x 1.26" |
