User Manual for Senal OLM-2 Lavalier Microphone with 3.5mm Connector for Sony UWP Transmitters Click to enlarge the picture
Contents of the user manual for the Senal OLM-2 Lavalier Microphone with 3.5mm
- Product category: Microphones for Wireless Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Microphones for Wireless
 |
User manual for the Senal OLM-2 Lavalier Microphone with 3.5mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|

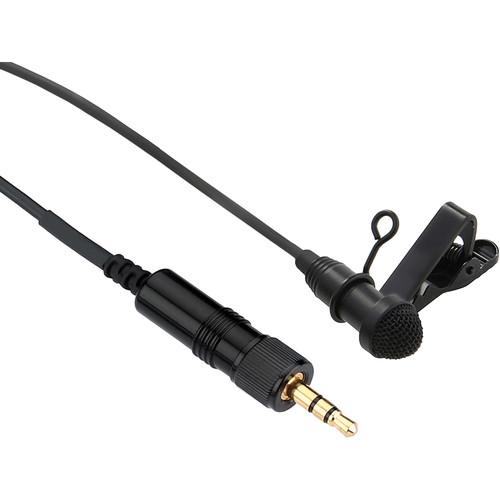

Product description This Senal OLM-2 Lavalier Microphone is a high-performance professional lavalier microphone with a locking 1/8" connector for Sony UWP wireless transmitters. Its miniature, lightweight design allows for discrete placement without compromising sound quality. This versatile workhorse microphone is ideal for broadcast, video, and stage applications.
Utilizing a broadcast-quality electret condenser element, it features a smooth frequency response and a wide dynamic range. Its omnidirectional polar pattern enables 360° sound pickup, capturing a natural blend of voice and ambiance with low sensitivity to wind and handling noise, as well as to vocal plosives. In addition to being designed to connect to a Sony UWP bodypack transmitter, the OLM-2 can be combined with the Senal PS-48B Power Supply (sold separately) to operate on phantom or battery power, enabling it to plug into any XLR microphone input. - Gold-plated locking 1/8" connector for Sony UWP wireless transmitters

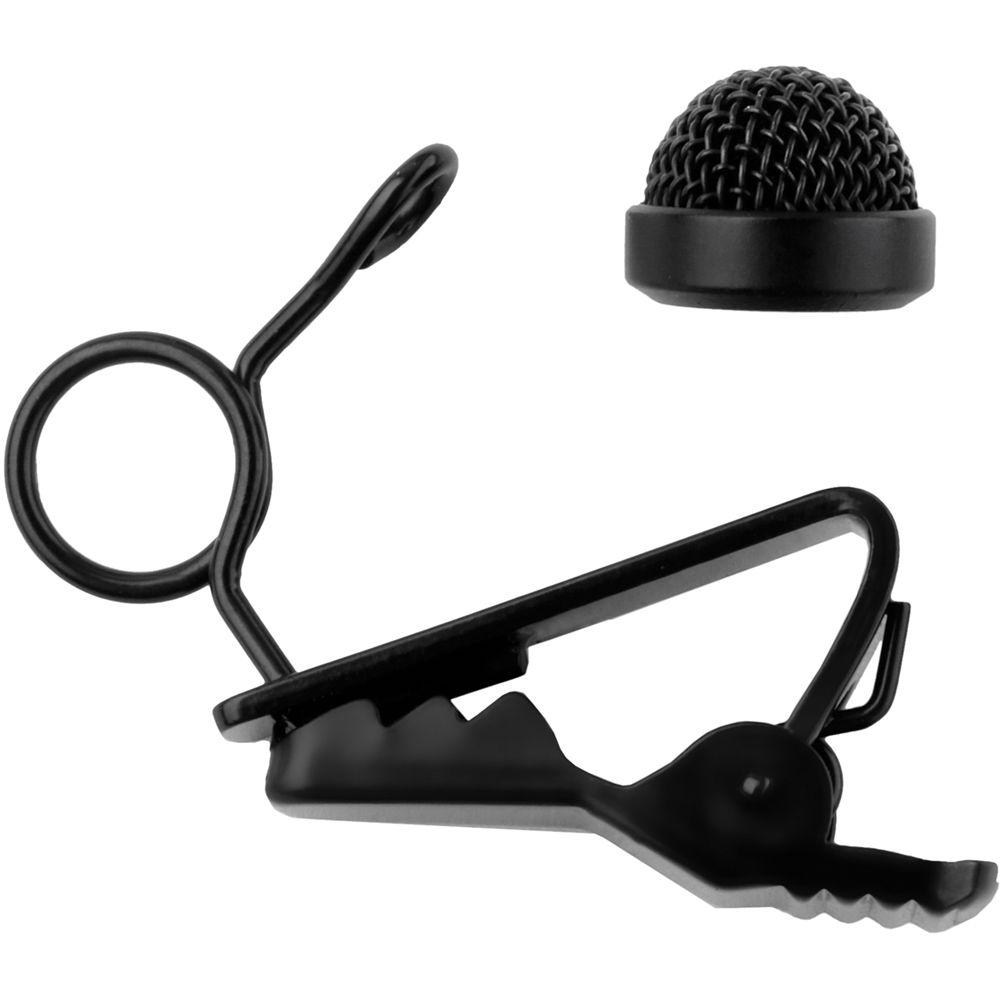

- Metal windscreen reduces wind noise and vocal plosives

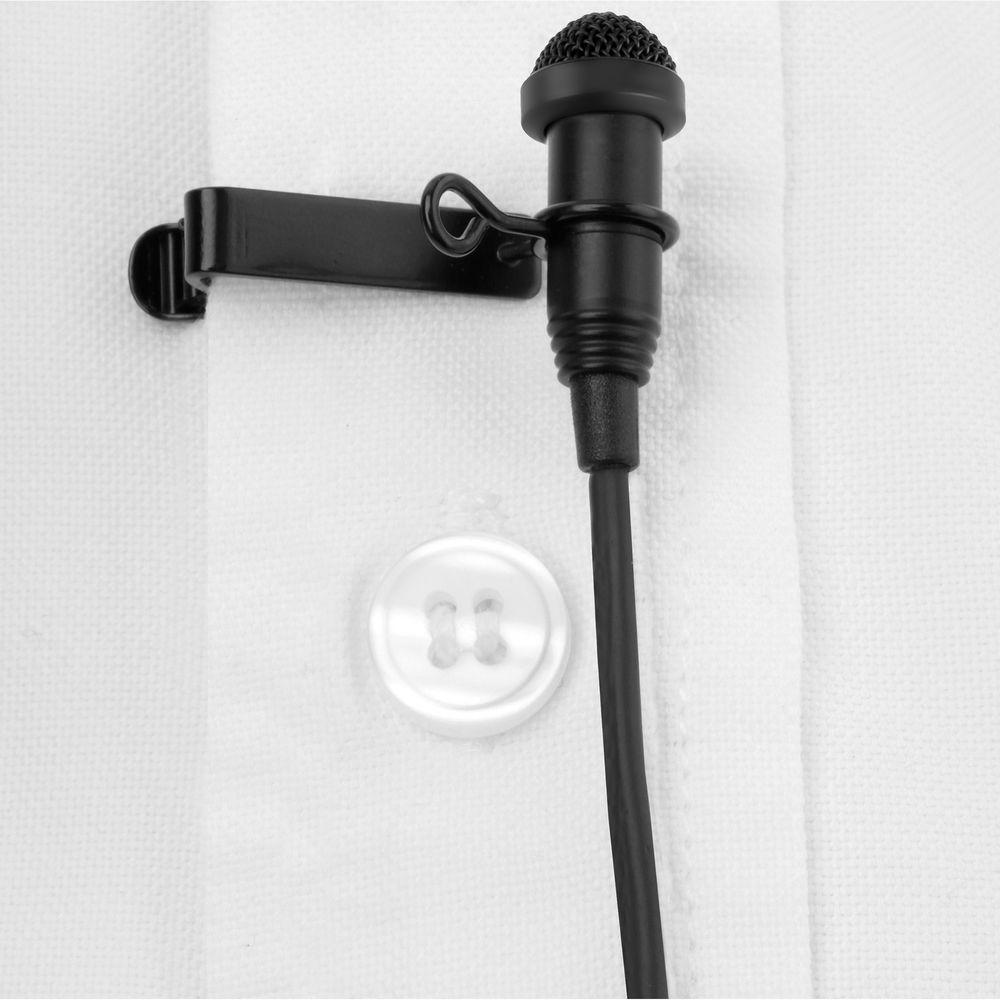

- Tie clip for securing mic to clothing
- 16.3 x 6.5mm (length x diameter) head size
UPC: 847628562677 In the Box Senal OLM-2 Lavalier Microphone with 3.5mm Connector for Sony UWP Transmitters Tie Clip Metal Windscreen Limited 1-Year Warranty User Manual PDF 413.1kbrqexqzrrfczecebscwrf Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal OLM-2 Lavalier Microphone with 3.5mm Connector for Sony UWP Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal OLM2 Specs | Transducer | Electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz to 20 kHz | | Sensitivity | -63 dB ±3 dB (0 dB = 1 v/microbar @ 1 kHz) | | Impedance | 15,000 Ω ±30% @ 1 kHz | | Operating Voltage | 1 - 10 VDC | | Connector | Gold-plated 1/8" (3.5 mm) locking connector jack | | Cable Length | 5.3' (1.6 m) | | Head Diameter | 0.3" (6.5 mm) | | Head Length | 0.6" (16.3 mm) | | Total Weight | 1 oz (28.3 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 3.4 x 3.3 x 1.6" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
