User Manual for Senal PMC-II Passive Monitor Controller Click to enlarge the picture
Contents of the user manual for the Senal PMC-II Passive Monitor Controller
- Product category: Studio Monitor Controllers Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Studio Monitor Controllers
 |
User manual for the Senal PMC-II Passive Monitor Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|

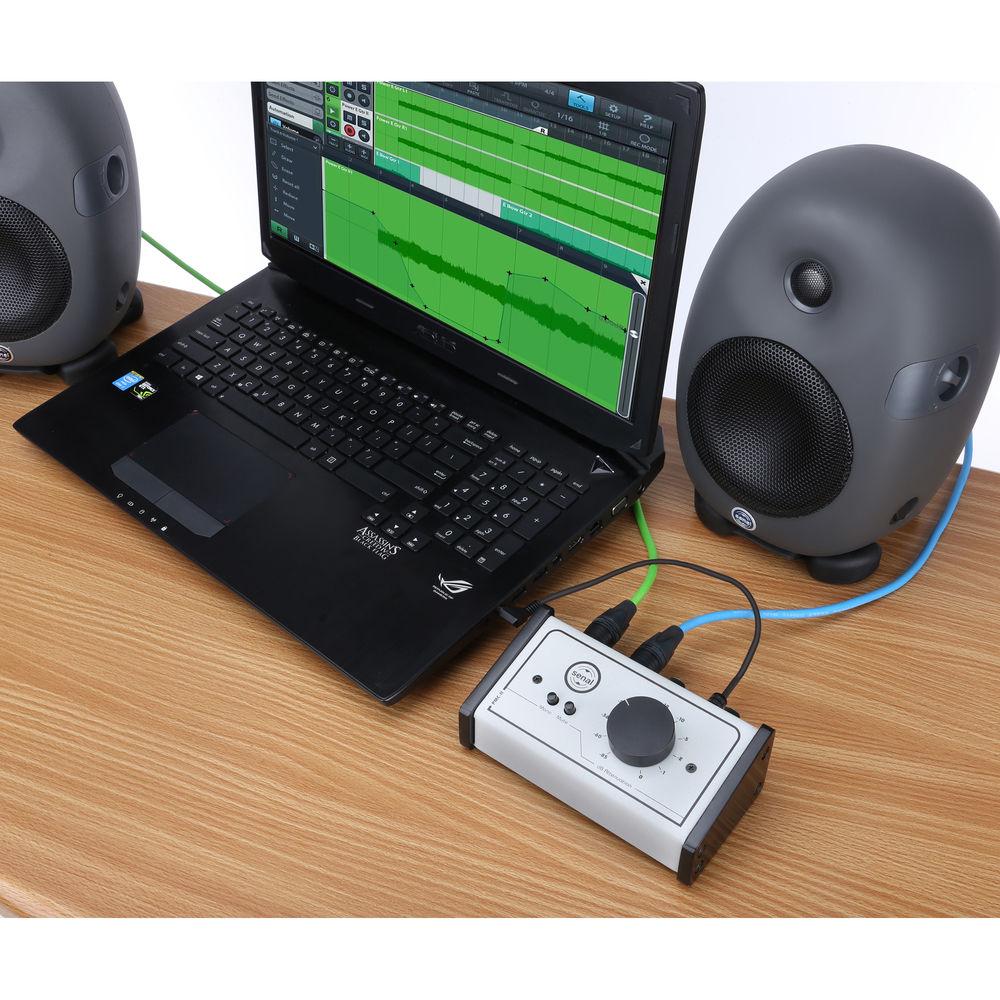

Product description The PMC-II Passive Monitor Controller from Senal is for anyone using powered monitors that needs a precise and easy way to control monitor volume. Featuring XLR/TRS combo inputs as well as TRS stereo mini-jack inputs, the controller is compatible with a variety of professional and consumer audio equipment, and it can be used anywhere a separate volume controller is needed. Designed to be inserted between powered monitors and a computer, a sound card, or an audio interface, the PMC-II adds the convenience of accurately adjusting your monitors' volume without having to access the computer or sound card's volume control. In addition, it is equipped with a 1/8" TRS stereo mini-input jack and is compatible with any smartphone, tablet, MP3 player, or device with a stereo mini-jack output. The PMC-II's passive design won't alter or color the sound originating from the computer or device that it is connected to. Built with a steel housing and solid wood panels, the PMC-II is an effective, stylish, and dependable addition to any workstation or studio. - Precision Volume Control
- The PMC-II allows you to accurately adjust the volume of your monitors without having to access your computer or sound card's volume controls
- Passive Design
- There is no need for a power supply to operate it, and thanks to its passive design, it doesn't alter or color the original sound from your computer or other device

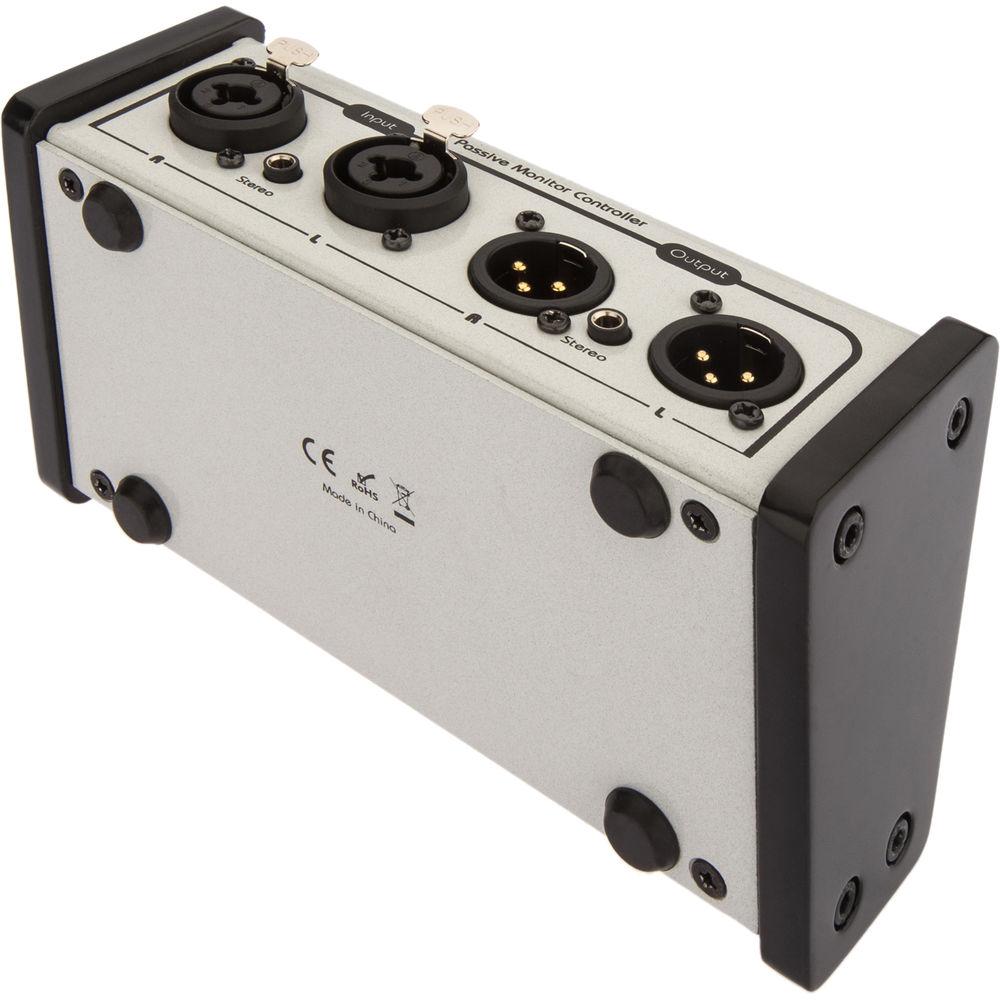

- Multiple Inputs
- XLR/TRS combo and 1/8" stereo mini inputs offer compatibility with computers, sound cards, and portable devices with a 1/8" stereo output such as an iPhone or tablet

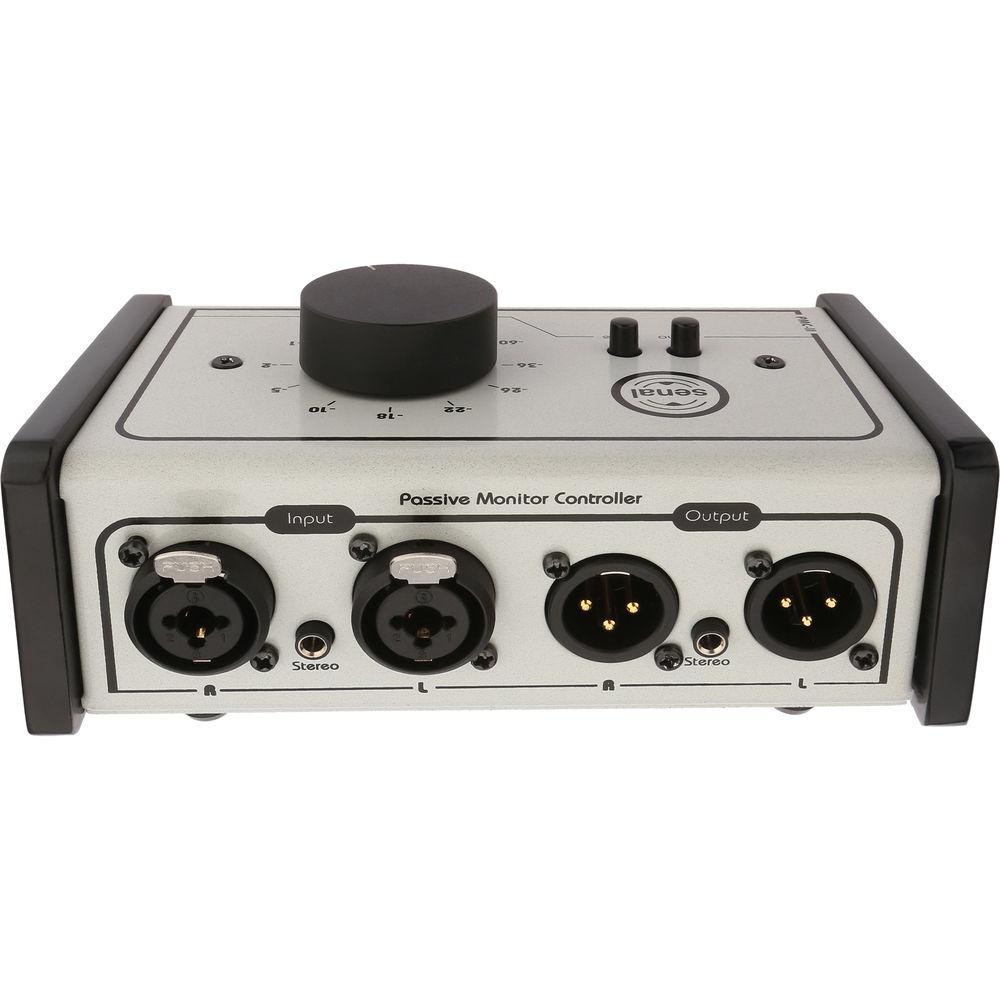

- Multiple Outputs
- XLR and 1/8" stereo mini-jack outputs ensure compatibility with several monitor formats for professional, project, or home studio applications

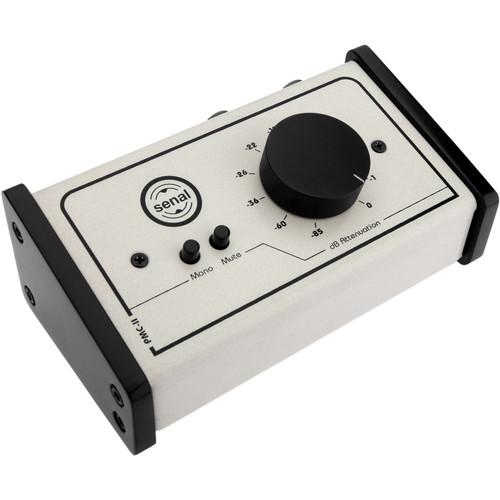

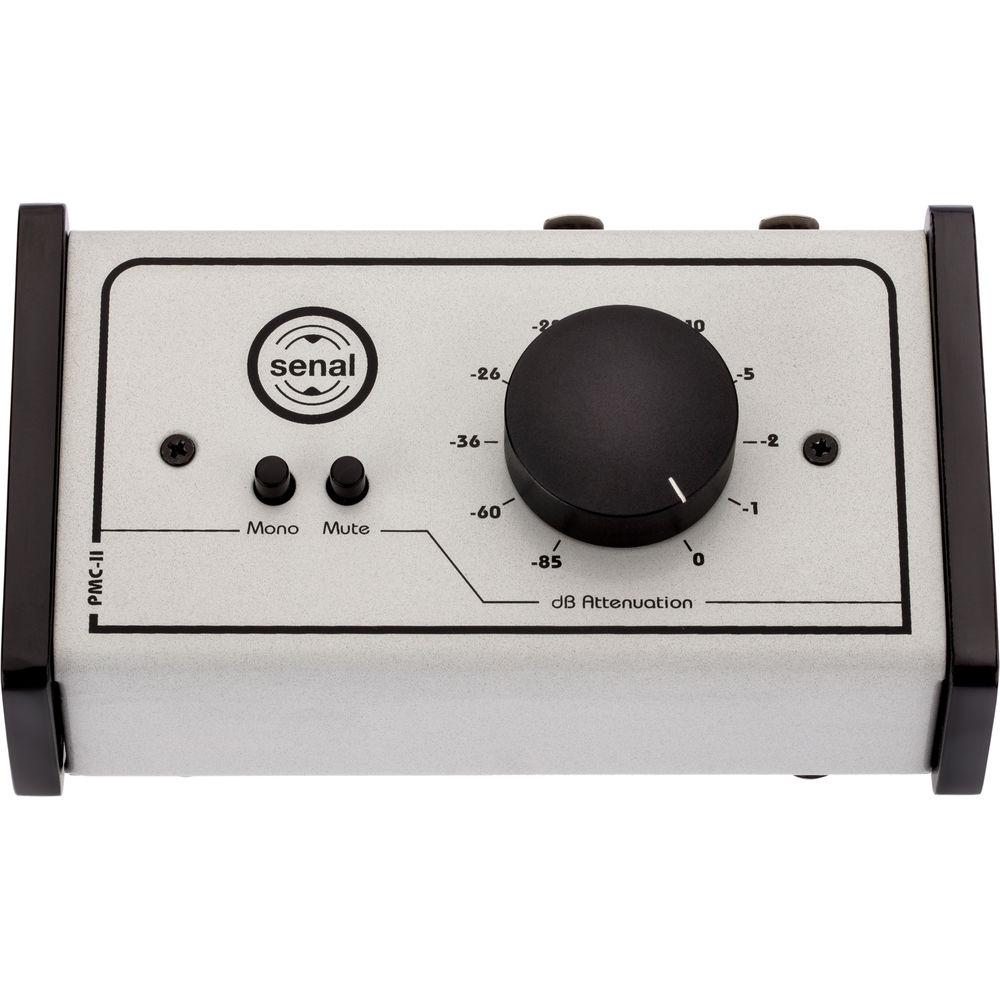

- Oversize Control Knob
- The oversize control knob ranges from 0 to -85 dB of attenuation so that you can easily and accurately control monitor volume
- Mute Button
- A mute button allows you to quickly silence the output
- Mono Button
- The mono button is ideal for listening to mixes in mono to check for balance or phasing issues
- Steel Housing
- The PMC-II is a durable and stylish addition to any workstation or studio
UPC: 847628594135 In the Box Senal PMC-II Passive Monitor Controller Limited 5-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal PMC-II Passive Monitor Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal PMC-II Specs | Product Type | Monitor controller | | Design | Passive | | Channels | 2 | | Input Connections | 2 x XLR/1/4" (6.3 mm) TRS combo
1/8" (3.5 mm) stereo TRS mini-jack | | Output Connections | 2 x XLR
1/8" (3.5 mm) stereo TRS mini-jack | | Line Output Level | Max: 20 dBu | | Output Level | -20 dB | | Output Impedance | 600 Ohms | | Input Impedance | 10,000 Ohms balanced, 5000 Ohms unbalanced | | Frequency Response | 10 Hz to 40 kHz | | Total Harmonic Distortion | 0.001% | | Attenuation | 85 dB (attenuator)
112 dB (attenuator and mute) | | Controls | Volume knob, mute button, mono button | | Dimensions (H x W x D) | 2.4 x 6.4 x 3.3" (6.2 x 16.4 x 8.5 cm) | | Weight | 1.6 lb (726 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.0 x 3.8 x 3.2" |
