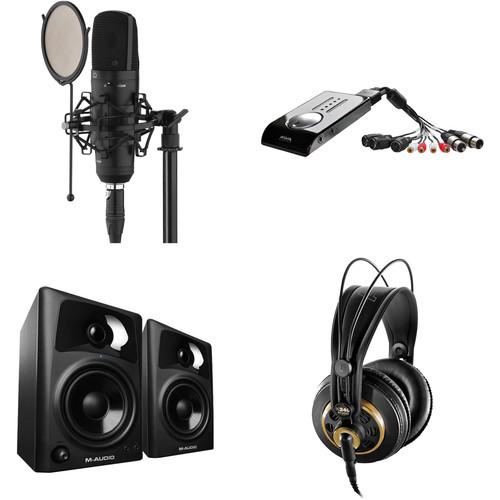

Senal Project Studio in a Box

User Manual for Senal Project Studio in a Box

• Product category: Audio Interfaces & Systems Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Audio Interfaces & Systems

Product description

• Senal SC-550X Professional Cardioid Condenser Microphone Designed to provide both professional and project studios a workhorse microphone that can be used in a wide variety of applications, the SC-550X Professional Cardioid Condenser Microphone from Senal boasts a wide, linear frequency response coupled with a precise transient response and high signal-to-noise ratio for accurate sound capture. It has a high SPL handling of 140 dB, and is at home not only in front of vocalists, but for tracking acoustic and electric guitars, brass, strings, pianos, and overhead drums.

  Thanks to its cardioid polar pattern, the SC-550X has a generous pickup range while minimizing off-axis noise. A selectable -10 dB pad allows you to use it in front of particularly loud sources without distorting, while the selectable high-pass filter provides an on-board low-frequency roll off. A shockmount, pop filter, and case are all included.
  Condenser Element
  • The Senal SC-550X is a studio condenser microphone with a warm, full-bodied sound, accurate transient response, and high signal-to-noise ratio
  Cardioid Polar Pattern
  • The SC-550X's cardioid polar pattern provides excellent off-axis rejection and enables the microphone to capture detailed sound from directly in front of the capsule
  High-Pass Filter
  • The high-pass filter helps prevent the SC-550X from picking up low-frequency noises like the rumble from an air conditioner, which can interfere with your recording
  Attenuation Pad
  • The attenuation pad adds further adaptability to the SC-550X, lowering the output by 10 dB to prevent distortion when recording loud sounds like cymbals and electric guitar cabinets
  All-Metal Construction
  • The microphone's rugged all-metal construction maintains an overall high standard of durability. With the included hard-shell case to store the microphone and all the included accessories, it's easy to take the SC-550X with you on the road
  Flat Frequency Response
  • With its flat frequency response, the SC-550X delivers accurate, detailed sound reproduction designed for use in all recording environments. Capable of capturing vocals in the studio, the SC-550X also offers versatility for recording guitars, brass, strings, and piano, as well as overhead drum miking. It can also be used for nonmusical applications like podcasting, voiceovers, and broadcast use
  140 dB Maximum SPL
  • The SC-550X's 140 dB maximum SPL optimizes the microphone to accurately capture loud signals without distorting
  Shockmount
  • The included shock mount isolates the SC-550X to prevent it from picking up unwanted noise caused by vibrations. The universal 5/8" threaded socket is compatible with most microphone stands, and the locking knob enables vertical adjustment for customized placement
  Pop Filter
  • The included pop filter is indispensable for recording vocals. The metal mesh screen reduces noise from aspirated plosives like p and b sounds and keeps corrosive moisture away from the capsule. Just mount the pop filter onto the rim of the shock mount and adjust it to suit your vocalist
  UPC: 847628582774
• ALVA Nanoface 12-Channel USB Audio/MIDI Interface The bus-powered and breakout cable equipped Alva Nanoface 12-Channel USB Audio/MIDI Interface affords an ideal combination of analog/digital connectivity, features, flexibility and mobility. It's the perfect tool for working musicians with a home or mobile studio. It also integrates seamlessly into a DJ setup or your home theater surround sound system. The Nanoface is equipped with a total of six audio inputs and six audio outputs. Plus, it's ultra-portable, weighs next-to-nothing, and is easy to operate. It even features a large multicontroller that facilitates simple adjustments and control over I/O features including management, monitoring and phantom power for microphones.The Nanoface was designed to work seamlessly with both Windows and Mac operating systems. Plus, it supports real analog hardware monitoring, as well as low latency drivers. The Nanoface really lives up to its name by hosting a variety of analog and digital interfaces. It supports dual RCA L/R audio analog inputs and dual RCA L/R analog outputs. It also features dual XLR analog mic inputs, which both come equipped with their own mic preamps, as well as phantom power. There's even a 1/4" Hi-Z instrument input and a 1/4" stereo headphones output. In fact, the stereo RCA outputs can even be routed through the stereo headphones output.The Nanoface affords a wide variety of digital connection points as well. These include a single MIDI input and dual MIDI outputs. There's also a digital optical S/PDIF input and a digital optical S/PDIF output. For any musicians or DJs that want to record directly onto their music production software of choice, the Nanoface features a USB 3.0/2.0 interface. This lets you use the Nanoface as a link between your analog or digital recordings and your computer. You'll easily be able to transfer any audio or MIDI data in and out of your Mac or windows computer - no matter if you're sitting at your desk or in the back of a tour bus. The Nanoface is designed to handle all situations.The USB 3.0/2.0 interface also doubles as the Nanoface's bus-power source, which means you won't need to drag around an external power supply. The Nanoface is free from any extraneous mixers or software option dialogs as well. This means it functions as a high-speed driver with most modern digital audio workstations (DAWs). All modern audio programs promote a low latency engine and an integrated mixer with plug-in support. Plus, they're also equipped with monitoring features. This allows the Nanoface to be as streamlined as possible. Plus, all device features are controlled by a single multicontroller called, the Encoder. With a wide variety of digital/analog inputs and outputs, a streamlined design and a single Encoder controller - the Nanoface promotes a simple learning curve and flexible usability for home musicians, road musicians, DJs and home theater aficionados with hi-fi surround systems.
  Portable & Functional
  • Sound quality, extraordinary features and ease of use with real analog hardware monitoring and low latency drivers for both Windows and Mac OS X - all together in a lightweight and portable housing
  Supports Six Audio Inputs & Six Audio Outputs
  • The Nanoface provides six audio inputs and six audio outputs - enough for a small home studio, a DJ setup or even a home theater surround sound setup. There's a MIDI input and two MIDI outputs, which forms a perfect combination to connect a keyboard and external synthesizers/samplers
  Analog Inputs x 4
  • The two analog XLR inputs are equipped with two high-quality mic preamps, which allow the simultaneous recording of different sources at the same time - like a microphone, electric guitar and synthesizer. Plus, there are stereo analog RCA Left and Right audio inputs as well
  Analog Outputs x 4
  • With stereo analog RCA Left and Right audio outputs, as well as a stereo two-channel headphone output jack, the four analog outputs provide a flexible setup for monitoring two stereo signals at the same time like main speakers and headphones. Plus, the RCA output signal can be routed to the stereo headphone output and individually adjusted
  Hi-Z Instrument Input Jack
  • There's even a 1/4" Hi-Z instrument input jack, which can be used alternatively instead of the RCA analog input second channel. When Hi-Z input is great for electrical instruments like guitar or bass. Plus, it features characteristics for direct recording and is routable to any of the four analog inputs. It's ideal for spontaneous jam sessions with a laptop or as a mobile recording input without the need for more equipment - live or with band rehearsals
  Digital Optical S/PDIF Input & Output
  • The digital input and output works in standard S/PDIF format, which makes the Nanoface a perfect partner for a digital signal from a CD player or an effect unit as a source for a surround sound receiver
  Analog Sound Quality
  • Alva has put years of experience into their development team in order to make sure they've integrated a very sophisticated circuit design that will result in excellent specification numbers and an extraordinary audiophile sound
  Mic Preamps
  • The Nanoface provides two mic preamps with very low noise specifications, low distortion specifications and switchable 48V phantom power for use with condenser mics
  Pocket Studio
  • The Nanoface lives up to its name; it measures only a quarter of the size of most bigger interfaces, while affording more inputs and outputs as well. This yields one of the lightest audio interfaces around
  USB 3.0/2.0 Interface
  • The Nanoface is the perfect solution for musicians and DJs that require a full recording studio not only at home, but also on the road for composing and mixing in high-quality no matter where they happen to be. The USB 3.0/2.0 interface allows you to listen with the best possible headphone quality as well. Most importantly, it affords transfer of all audio and MIDI data in and out of your Mac or Windows computer
  Bus-Powered via USB Connection
  • The Nanoface requires only the power from the USB connection to operate. This means no annoying power supply and the freedom to work in a park, cafe, train, bus, airport or even an airplane
  Partner to Modern Digital Audio Workstations (DAWs)
  • The Nanoface takes advantage of Alva's sensible downsizing without sacrificing total functionality. It's designed as a partner to modern DAWs. There are no software option dialogs or integrated mixers - just a high-speed driver. ASIO/WDM for Windows and Core Audio for Mac OS X. Plus, since all modern audio programs provide a low latency engine, integrated mixer with plug-in support, and monitoring features - they already emulate a complete studio workflow, which means the Nanoface can do more with less
  Simple Learning Curve & Easy Operation
  • All Nanoface features like management, monitoring and phantom power for the microphones is operated by a single multi-controller or "Encoder" located directly on the unit. The "Encoder" and an audio sequencer is all most musicians need. This results in a simple learning curve and extraordinary usability that's ideal for live situations
  Encoder Operation
  • The Encoder controls all four analog output gain; route RCA output to headphone output; output RCA on headphones output (gain); RCA input gain for microphone/instrument preamps; XLR input gain; 48V phantom power for both XLR inputs; switching an RCA input to Hi-Z input; hardware monitoring for RCA inputs; reset to default values
• M-Audio AV42 Desktop Speakers for Professional Media Creation (Pair) The M-Audio AV42 Desktop Speakers for Professional Media Creation (Pair) use acoustically-inert MDF cabinets to eliminate resonances, and 20W per Channel into 4 ohms per channel into a 4" polypropylene woofer in a bass reflex design. The woofer is complemented by a 1" wave-guided ferrofluid cooled silk dome tweeter to deliver a frequency response of 75 to 20,000 Hz and an RMS SPL level of 101.5 dB at 1 meter.

  The rear panel of the monitors feature RCA inputs for connecting gaming systems, DJ gear, mixers and more. A front panel 1/8" (3.5mm) stereo auxiliary input allows for the connection of a laptop, smartphone, or other mobile device. A front panel 1/8" headphone output allows you to monitor directly using headphones. The monitors are suitable for a wide range of professional and consumer applications. UPC: 694318017135
• AKG K 240 Studio Professional Semi-Open Stereo Headphones The K 240 Studio headphones from AKG feature a semi-open circumaural design, and use patented Varimotion technology and extra-large transducers to deliver extremely precise, detailed sound.

  The headphones have a self-adjusting headband, as well as thick around-ear cushions for lasting comfort. The single-sided detachable straight cable resists tangles and can be easily replaced. The cable has a gold-plated 3.5mm plug with a 1/4" screw-on adapter to provide wide compatibility with consumer and professional audio devices.
  • Semi-open, circumaural design
  • XXL speakers with patented Varimotion technology for crisp, detailed sound
  • Self-adjusting headband fits virtually any head size
  • Thick around-ear cushions for lasting comfort
  • Single-sided detachable cable resists tangles and offers easy replacement
  • Gold-plated stereo 3.5mm mini plug with 1/4" adapter for compatibility with a variety of consumer and professional devices
  UPC: 885038026730

• SC-550X Professional Cardioid Condenser Microphone xvcuavzwrfdyuvebrbvxdyb
• Shockmount
• Pop Filter
• Carry Case
• Limited 1-Year Warranty

• ALVA - Nanoface 12-Channel USB Audio/MIDI Interface

• M-Audio - AV42 Desktop Speakers for Professional Media Creation (Pair)

• AKG - K 240 Studio Professional Semi-Open Stereo Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal SC-550X Professional Cardioid Condenser Microphone

  Element	Condenser
  Polar Pattern	Cardioid
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	-36 dB ±2 dB @ 1 kHz
  Signal to Noise Ratio	79 dB (1 kHz at 1 Pa)
  Maximum Input Sound Level	140 dB
  Impedance	200 ohms
  Power Requirements	+ 48 V
  Output Connector	3-pin XLR
  Pad	-10 dB
  High Pass Filter	80 Hz
  Dimensions (Ø x L)	2 x 7.2" / 5.1 x 18.2 cm
  Weight	13.6 oz / 386 g

  Box Dimensions (LxWxH)	13.7 x 11.0 x 3.7"

• ALVA Nanoface 12-Channel USB Audio/MIDI Interface

  Max Sample Rate/Resolution	96 kHz / 24-Bit

  Host Connection	USB Type-B (USB 3.0)
  Analog I/O	1 x 1/4" (6.3 mm) TS Hi-Z Input 1 x 1/4" (6.3 mm) TRS Headphone Output 2 x XLR 3-Pin Input 1 x Stereo RCA Input 1 x Stereo RCA Output XLR and Stereo RCA I/O on Included Breakout Cable
  Phantom Power	+48 V
  Digital I/O	1 x TOSLINK / S/PDIF Input 1 x TOSLINK / S/PDIF Output
  MIDI I/O	1 x 5-Pin MIDI In (On Breakout Cable) 2 x 5-Pin MIDI Out (On Breakout Cable)

  Gain Range	Inputs: 50.5 dB

  Sample Rates	Up to 96 kHz
  Bit Depth	24-Bit

  OS Compatibility	Windows macOS 10

  Box Dimensions (LxWxH)	11.15 x 8.9 x 2.25"

• M-Audio AV42 Desktop Speakers for Professional Media Creation (Pair)

  Type	Two-way desktop reference speaker
  Input Connectors	2x RCA (left and right line inputs) 1x 1/8" aux input
  Low Frequency Driver	4.0" (10.2 cm) polypropylene-coated woofer with high-temperature voice coil
  High Frequency Driver	1.0" (2.5 cm) silk cone tweeter
  Frequency Response	80 to 20,000 Hz
  Crossover Frequency	2.7 kHz
  RMS Level	101.5 dB at 1 m
  SNR	>90 dB (typical, A-weighted)
  Polarity	Positive signal at "+" input produces outward low-frequency cone displacement
  Dynamic Power	20 W per channel at 4 ohm
  Input Impedance	10 kilOhm unbalanced
  Input Sensitivity	100 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum
  Protection	RF interference Output current limiting Over temperature Turn on/off transient Subsonic filter
  Indicators	Blue power LED for aligning wave guide
  Power Requirements	100 to 120 V at 50/60 Hz 200 to 240 V at 50/60 Hz Powered via detachable 2-conductor line cord
  Cabinet	Vinyl-laminated MDF
  Dimensions (H x W x D)	8.75 x 6.0 x 7.25" ( 22.2 x 15.2 x 18.4 cm)
  Weight	14.0 lb (6.4 kg)

  Box Dimensions (LxWxH)	16.4 x 12.1 x 10.5"

• AKG K 240 Studio Professional Semi-Open Stereo Headphones

  Driver Type	Dynamic
  Design	Over-Ear (Circumaural)
  Earcup Style	Semi-Open-Back

  Frequency Response	15 Hz to 25 kHz
  Sensitivity	91 dB
  Impedance	55 Ohms
  Maximum Power Handling	200 mW

  Audio Connector	1/8" (3.5 mm) TRS
  Connector Plating	Gold
  Adapter (Included)	1/4" (6.3 mm)

  Detachable	Yes
  Cable Length	9.8' / m

  Weight	8.5 oz / 240 g

  Box Dimensions (LxWxH)	9.25 x 8.8 x 4.35"
