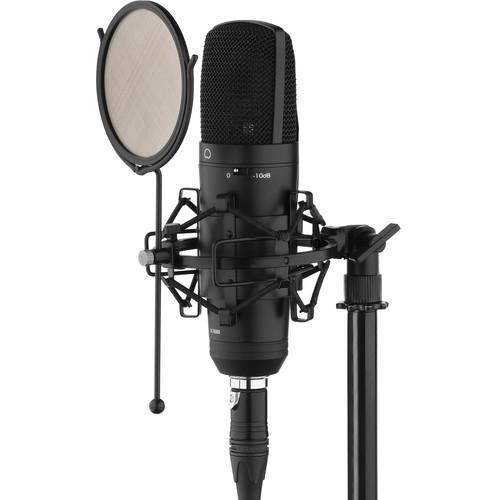

User Manual for Senal SC-550X Professional Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Senal SC-550X Professional Cardioid Condenser Microphone
- Product category: Large Diaphragm Condenser Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Large Diaphragm Condenser
 |
User manual for the Senal SC-550X Professional Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|

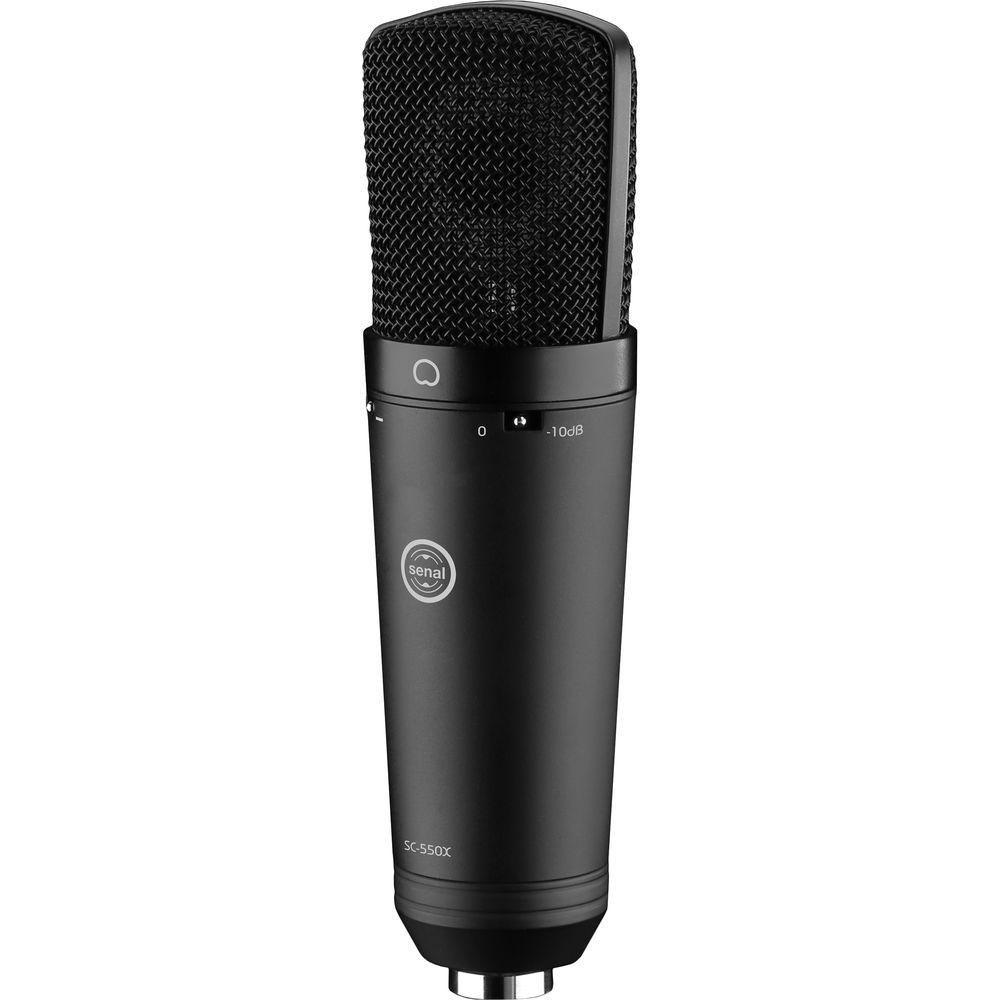

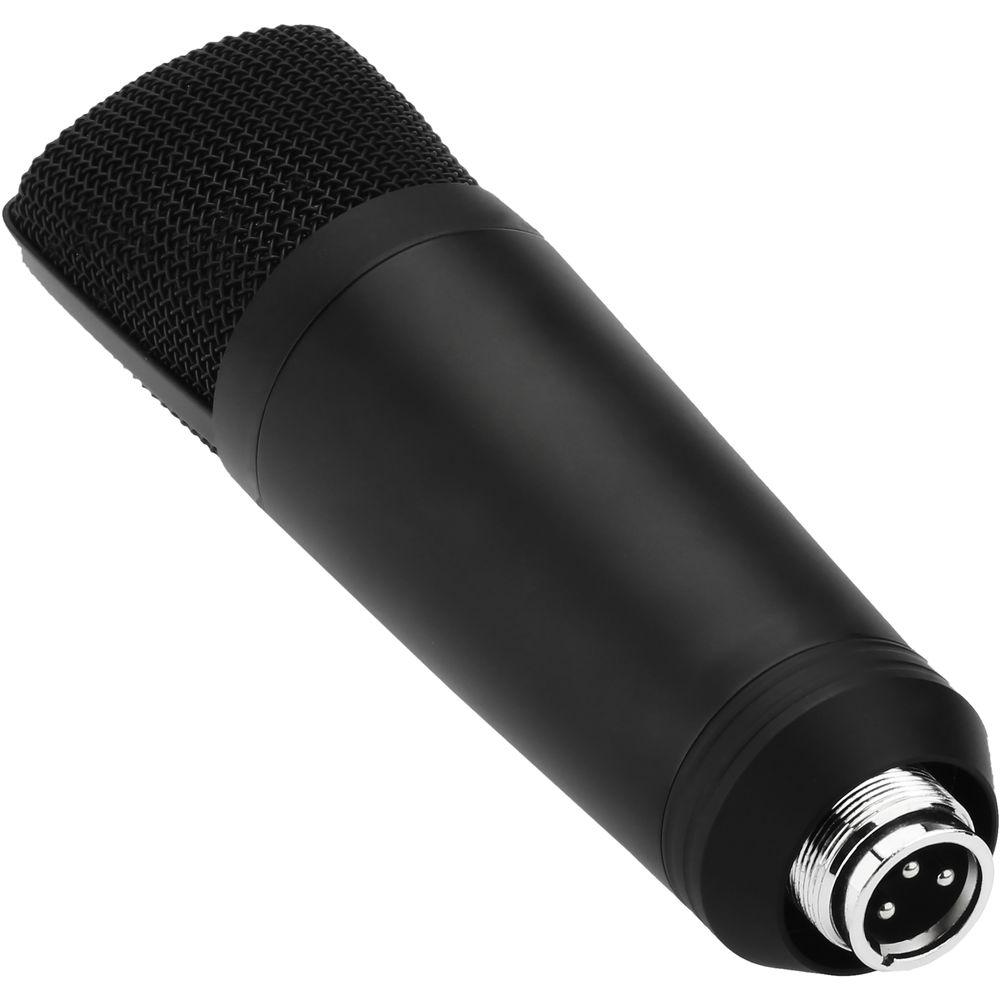

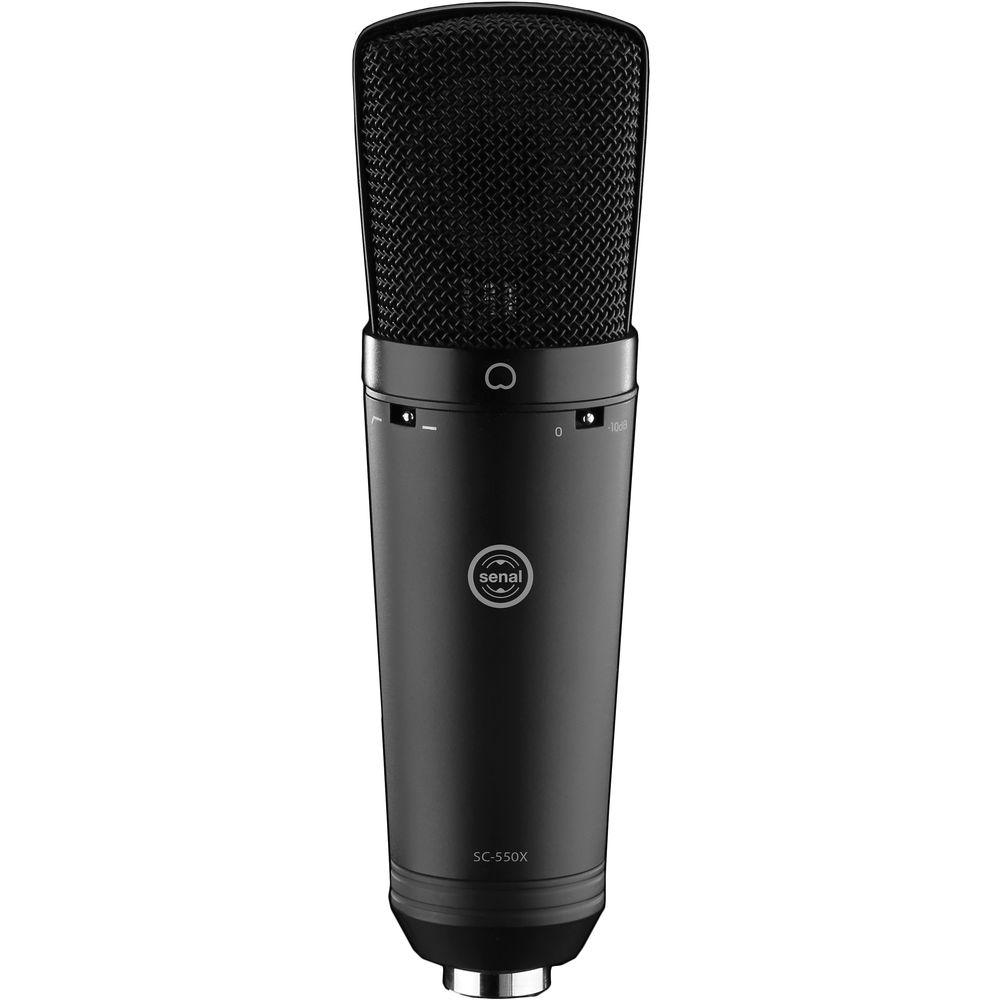

Product description Designed to provide both professional and project studios a workhorse microphone that can be used in a wide variety of applications, the SC-550X Professional Cardioid Condenser Microphone from Senal boasts a wide, linear frequency response coupled with a precise transient response and high signal-to-noise ratio for accurate sound capture. It has a high SPL handling of 140 dB, and is at home not only in front of vocalists, but for tracking acoustic and electric guitars, brass, strings, pianos, and overhead drums.
Thanks to its cardioid polar pattern, the SC-550X has a generous pickup range while minimizing off-axis noise. A selectable -10 dB pad allows you to use it in front of particularly loud sources without distorting, while the selectable high-pass filter provides an on-board low-frequency roll off. A shockmount, pop filter, and case are all included. - Condenser Element
- The Senal SC-550X is a studio condenser microphone with a warm, full-bodied sound, accurate transient response, and high signal-to-noise ratio
- Cardioid Polar Pattern
- The SC-550X's cardioid polar pattern provides excellent off-axis rejection and enables the microphone to capture detailed sound from directly in front of the capsule
- High-Pass Filter
- The high-pass filter helps prevent the SC-550X from picking up low-frequency noises like the rumble from an air conditioner, which can interfere with your recording
- Attenuation Pad
- The attenuation pad adds further adaptability to the SC-550X, lowering the output by 10 dB to prevent distortion when recording loud sounds like cymbals and electric guitar cabinets

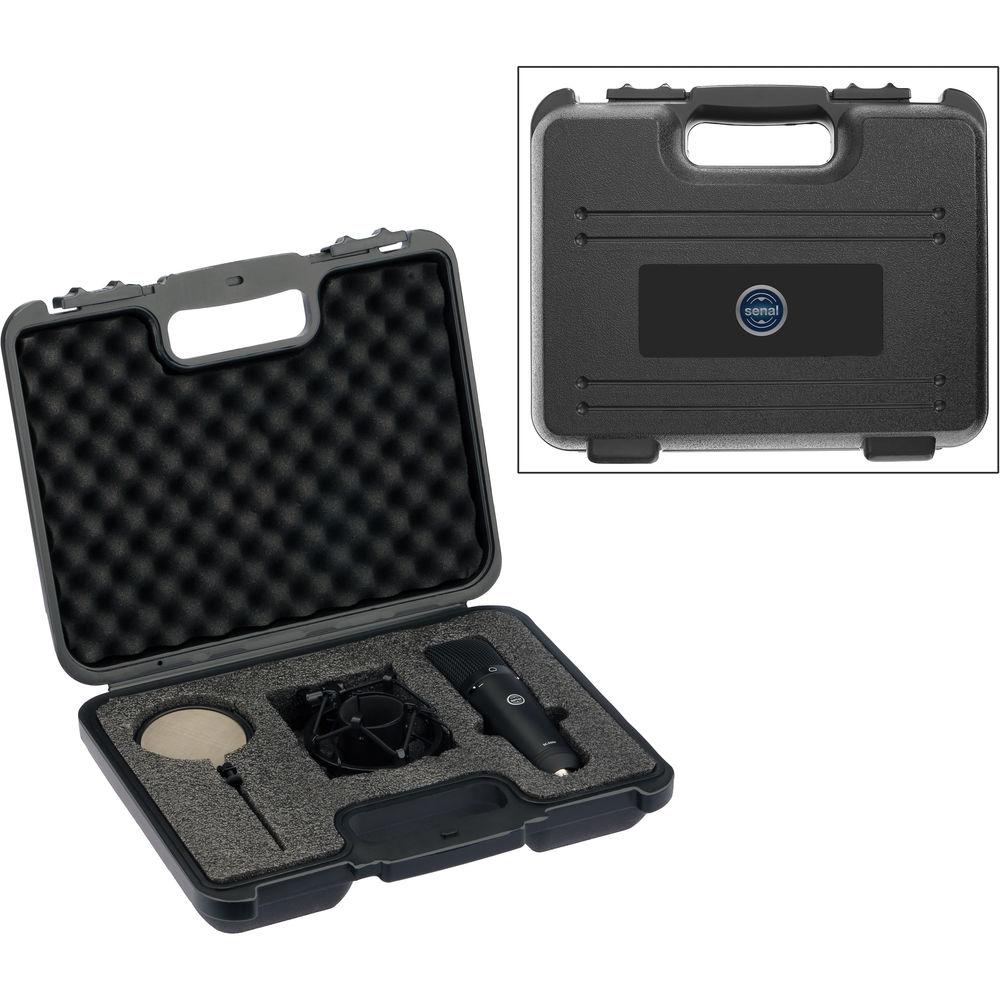

- All-Metal Construction
- The microphone's rugged all-metal construction maintains an overall high standard of durability. With the included hard-shell case to store the microphone and all the included accessories, it's easy to take the SC-550X with you on the road
- Flat Frequency Response
- With its flat frequency response, the SC-550X delivers accurate, detailed sound reproduction designed for use in all recording environments. Capable of capturing vocals in the studio, the SC-550X also offers versatility for recording guitars, brass, strings, and piano, as well as overhead drum miking. It can also be used for nonmusical applications like podcasting, voiceovers, and broadcast use
- 140 dB Maximum SPL
- The SC-550X's 140 dB maximum SPL optimizes the microphone to accurately capture loud signals without distorting

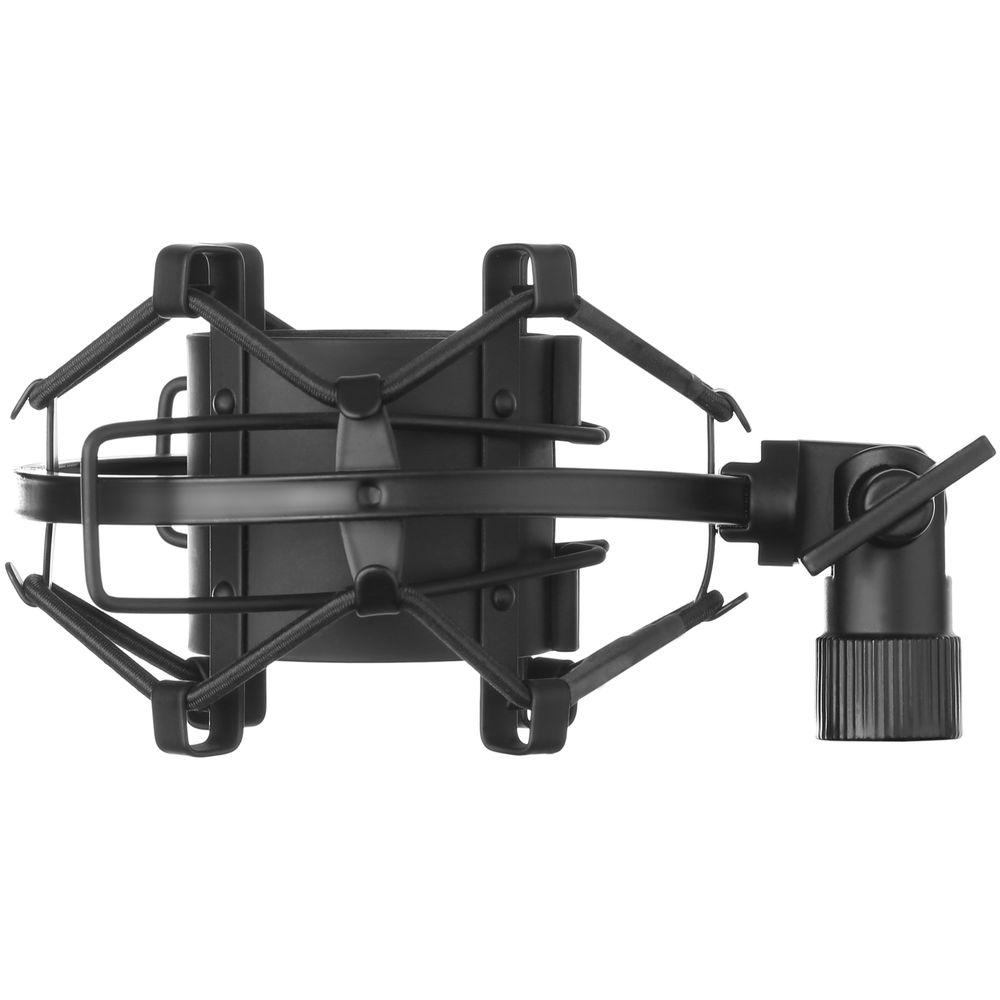

- Shockmount
- The included shock mount isolates the SC-550X to prevent it from picking up unwanted noise caused by vibrations. The universal 5/8" threaded socket is compatible with most microphone stands, and the locking knob enables vertical adjustment for customized placement

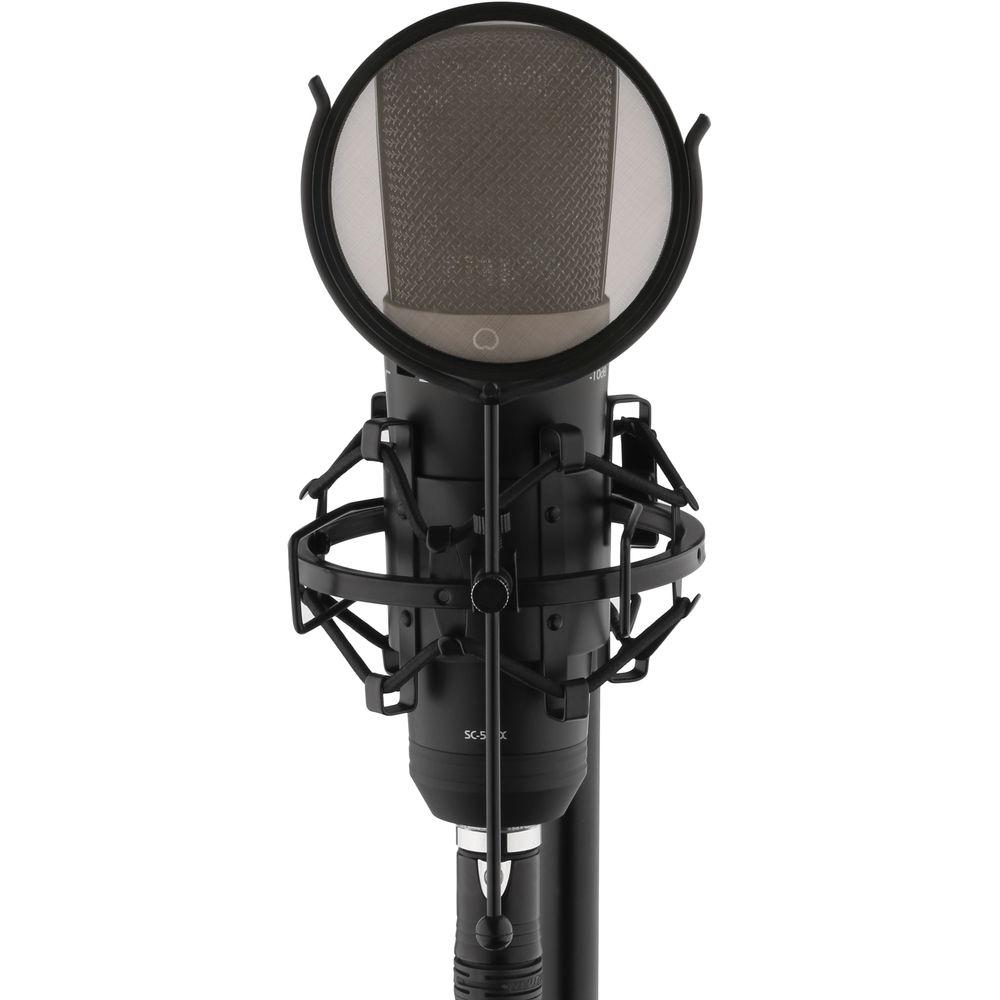

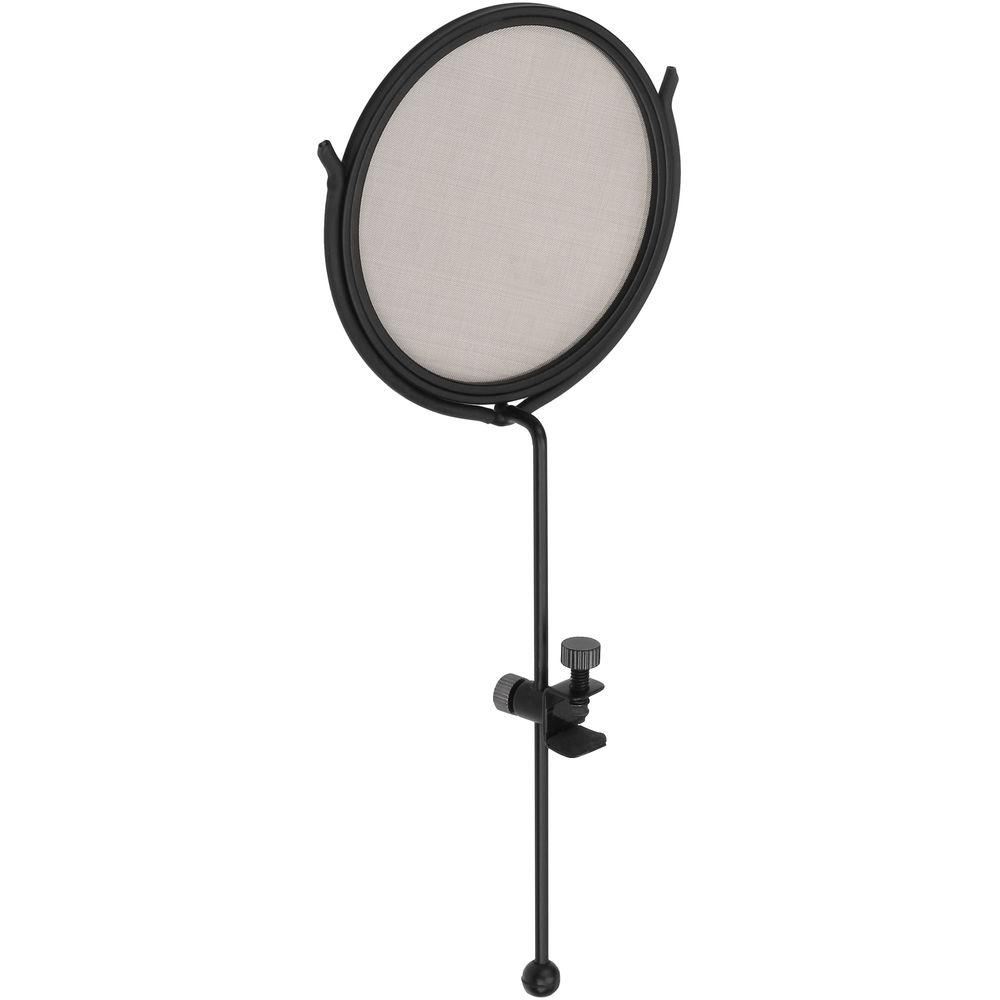

- Pop Filter
- The included pop filter is indispensable for recording vocals. The metal mesh screen reduces noise from aspirated plosives like p and b sounds and keeps corrosive moisture away from the capsule. Just mount the pop filter onto the rim of the shock mount and adjust it to suit your vocalist
UPC: 847628582774 In the Box Senal SC-550X Professional Cardioid Condenser Microphone Shockmount Pop Filter Carry Case Limited 1-Year Warranty User Manual PDF 1.2mbfyxefbscsdxfwraffw Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal SC-550X Professional Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal SC-550X Specs | Element | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -36 dB ±2 dB @ 1 kHz | | Signal to Noise Ratio | 79 dB (1 kHz at 1 Pa) | | Maximum Input Sound Level | 140 dB | | Impedance | 200 ohms | | Power Requirements | + 48 V | | Output Connector | 3-pin XLR | | Pad | -10 dB | | High Pass Filter | 80 Hz | | Dimensions (Ø x L) | 2 x 7.2" / 5.1 x 18.2 cm | | Weight | 13.6 oz / 386 g | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 13.7 x 11.0 x 3.7" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
