User manual

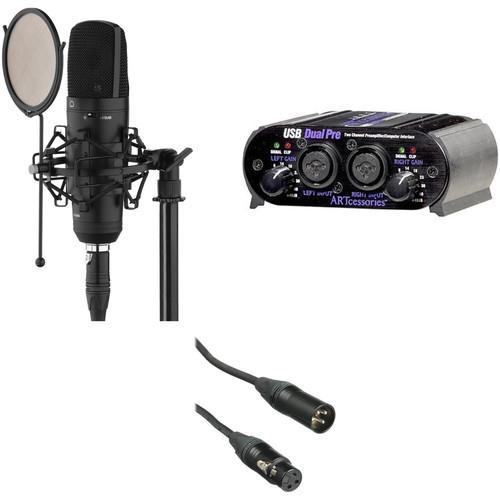

Senal SC550X Cardioid Condenser Mic with

User Manual for Senal SC550X Cardioid Condenser Mic with USB Dual Audio Interface & Cable Kit

• Product category: Large Diaphragm Condenser Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Large Diaphragm Condenser

Product description

• Senal SC-550X Professional Cardioid Condenser Microphone Designed to provide both professional and project studios a workhorse microphone that can be used in a wide variety of applications, the SC-550X Professional Cardioid Condenser Microphone from Senal boasts a wide, linear frequency response coupled with a precise transient response and high signal-to-noise ratio for accurate sound capture. It has a high SPL handling of 140 dB, and is at home not only in front of vocalists, but for tracking acoustic and electric guitars, brass, strings, pianos, and overhead drums.

  Thanks to its cardioid polar pattern, the SC-550X has a generous pickup range while minimizing off-axis noise. A selectable -10 dB pad allows you to use it in front of particularly loud sources without distorting, while the selectable high-pass filter provides an on-board low-frequency roll off. A shockmount, pop filter, and case are all included.
  Condenser Element
  • The Senal SC-550X is a studio condenser microphone with a warm, full-bodied sound, accurate transient response, and high signal-to-noise ratio
  Cardioid Polar Pattern
  • The SC-550X's cardioid polar pattern provides excellent off-axis rejection and enables the microphone to capture detailed sound from directly in front of the capsule
  High-Pass Filter
  • The high-pass filter helps prevent the SC-550X from picking up low-frequency noises like the rumble from an air conditioner, which can interfere with your recording
  Attenuation Pad
  • The attenuation pad adds further adaptability to the SC-550X, lowering the output by 10 dB to prevent distortion when recording loud sounds like cymbals and electric guitar cabinets
  All-Metal Construction
  • The microphone's rugged all-metal construction maintains an overall high standard of durability. With the included hard-shell case to store the microphone and all the included accessories, it's easy to take the SC-550X with you on the road
  Flat Frequency Response
  • With its flat frequency response, the SC-550X delivers accurate, detailed sound reproduction designed for use in all recording environments. Capable of capturing vocals in the studio, the SC-550X also offers versatility for recording guitars, brass, strings, and piano, as well as overhead drum miking. It can also be used for nonmusical applications like podcasting, voiceovers, and broadcast use
  140 dB Maximum SPL
  • The SC-550X's 140 dB maximum SPL optimizes the microphone to accurately capture loud signals without distorting
  Shockmount
  • The included shock mount isolates the SC-550X to prevent it from picking up unwanted noise caused by vibrations. The universal 5/8" threaded socket is compatible with most microphone stands, and the locking knob enables vertical adjustment for customized placement
  Pop Filter
  • The included pop filter is indispensable for recording vocals. The metal mesh screen reduces noise from aspirated plosives like p and b sounds and keeps corrosive moisture away from the capsule. Just mount the pop filter onto the rim of the shock mount and adjust it to suit your vocalist
  UPC: 847628582774
• ART USB Dual Pre - USB 1.1 Digital Audio Interface with Dual Microphone Preamps The USB Dual Pre from ART is a combination portable preamplifier and computer interface, housed in a compact rugged case. The unit is suitable for a wide variety of applications including remote field work to desktop/studio recording. The 2 input channels can accept either a microphone or line input and provide up to 48dB of gain. Phantom power is available for use with condenser microphones even when running from the USB bus or any of the other powering options. Those include using an optional external power supply, or an optional internal 9V battery. When running off the battery, operational hours are in excess of 50 hours with phantom power off. A stereo mini headphone jack is provided for monitoring and the rear level and monitor mix controls allow for latency-free recording. The monitor mix is also routed to the main outputs. The USB interface is fully compliant with the USB 1.1 specification and uses USB adaptive mode for playback and USB asynchronous mode for record.
  • Portable USB interface with dual microphone preamps
  • Low-noise, fully balanced XLR and 1/4" TRS combi inputs
  • Preamps provide up to 48dB of gain and feature independent gain controls
  • Built-in, low-noise phantom power supply
  • Signal present and clip LED indicators
  • Latency free monitoring with mix and level controls
  • Includes Audacity recording and production software
  • 3-way powering options - via the USB bus, an optional external power supply, or with an optional 9V battery
  UPC: 804040201904
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274

• SC-550X Professional Cardioid Condenser Microphone zzbrzaudux
• Shockmount
• Pop Filter
• Carry Case
• Limited 1-Year Warranty

• ART - USB Dual Pre - USB 1.1 Digital Audio Interface with Dual Microphone Preamps

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal SC-550X Professional Cardioid Condenser Microphone

  Element	Condenser
  Polar Pattern	Cardioid
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	-36 dB ±2 dB @ 1 kHz
  Signal to Noise Ratio	79 dB (1 kHz at 1 Pa)
  Maximum Input Sound Level	140 dB
  Impedance	200 ohms
  Power Requirements	+ 48 V
  Output Connector	3-pin XLR
  Pad	-10 dB
  High Pass Filter	80 Hz
  Dimensions (Ø x L)	2 x 7.2" / 5.1 x 18.2 cm
  Weight	13.6 oz / 386 g

  Box Dimensions (LxWxH)	13.7 x 11.0 x 3.7"

• ART USB Dual Pre - USB 1.1 Digital Audio Interface with Dual Microphone Preamps

  Max Sample Rate/Resolution	48 kHz / 16-Bit

  Host Connection	USB Type-B (USB 1.0)
  Analog I/O	2 x Combo XLR / 1/4" TRS Input 2 x 1/4" (6.3 mm) TRS Balanced Output 1 x 1/8" (3.5 mm) TRS Headphone Output
  Digital I/O	None
  MIDI I/O	None

  Frequency Response	20 Hz to 20 kHz +0/-1 dB
  THD+N	< 0.01%

  Sample Rates	44.1 and 48 kHz
  Bit Depth	16-Bit

  OS Compatibility	macOS 9.1 macOS Windows 2000 Windows XP Windows Vista
  Required Hardware	Available USB 1.1 Port

  Power Requirements	AC/DC Power Adapter (Not Included), USB Bus-Power
  AC/DC Power Adapter	9.5 to 12 V (Not Included)
  Battery Type	1 x 9V

  Box Dimensions (LxWxH)	9.3 x 6.2 x 3.7"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"
