User Manual for Senal SCM-600 Large-Diaphragm Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Senal SCM-600 Large-Diaphragm Cardioid Condenser Microphone
- Product category: Large Diaphragm Condenser Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Large Diaphragm Condenser
 |
User manual for the Senal SCM-600 Large-Diaphragm Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|
Product description - Senal SCM-600 Product Demo

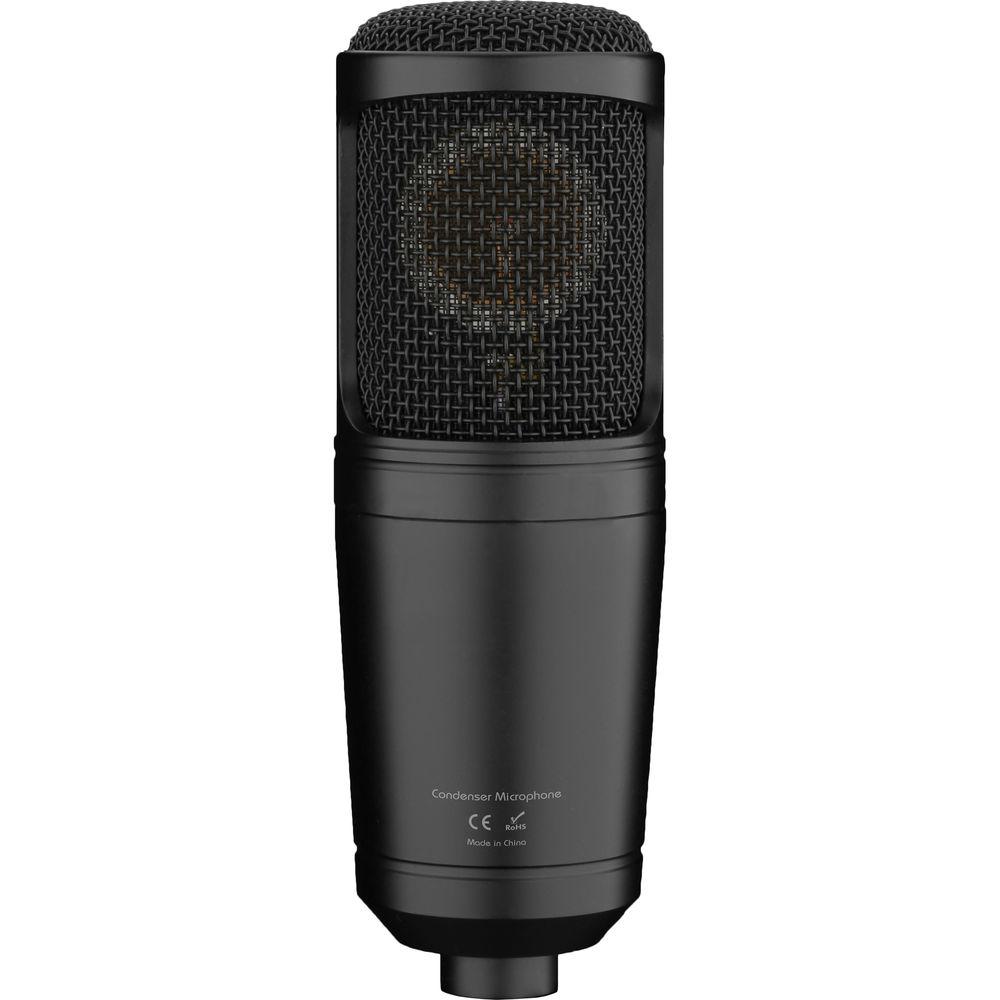

The Senal SCM-600 is a professional-grade, large-diaphragm, true condenser microphone that's equipped with a 1.3" gold-plated transducer element. The microphone offers a full, rich tone, making it an ideal choice for studio recording, broadcasting, podcasting, or live recording. With an SPL handling of 140 dB, the SCM-600 captures vocals and instruments accurately and with pristine clarity.
The cardioid polar pattern minimizes off-axis noise and reflections, while the on-board -10 dB attenuation pad allows you to achieve optimal signal levels when in front of loud sound sources, such as guitar cabinets or singers. The 110 Hz high-pass filter removes low-frequency noise and rumble caused by room noise, air conditioners, fans, or microphone movement.

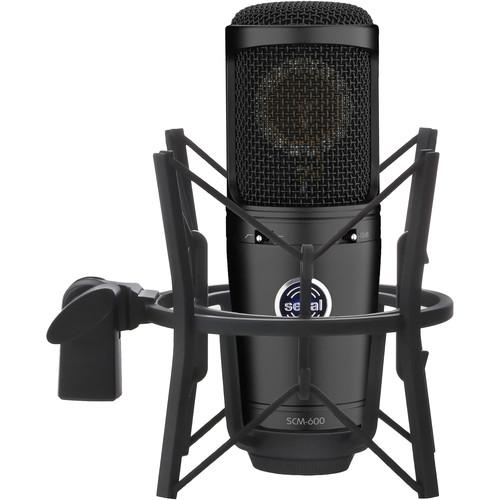

The rugged all-metal enclosure provides durability during transport or demanding studio conditions. The included shockmount reduces unwanted vibration that can radiate up through the mic stand. The SCM-600 ships with a protective carry pouch and an aluminum case fitted with high-density foam cutouts. - Large Gold-Plated Diaphragm
- The 1.3ʺ transducer element gives detailed and accurate sound that is ideal for a wide variety of broadcast, podcast, or studio applications. Gold plating assures superb conductivity for accurate sound reproduction
- Cardioid Polar Pattern
- The SCM-600's cardioid polar pattern provides a generous pickup area while minimizing off-axis noise and reflections. It's ideal for recording vocals or voice-overs as well as providing clarity and accuracy when recording guitars, brass, or strings
- High-Pass Filter
- The 110 Hz high-pass filter rolls off low-frequency noise from air conditioners, fans, and general room noise that can add unwanted rumble to your recording
- Attenuation Pad
- The selectable -10 dB pad provides additional headroom for capturing louder sound sources such as a guitar cabinet, a singer, brass instruments, or drums without distortion
- Shockmount

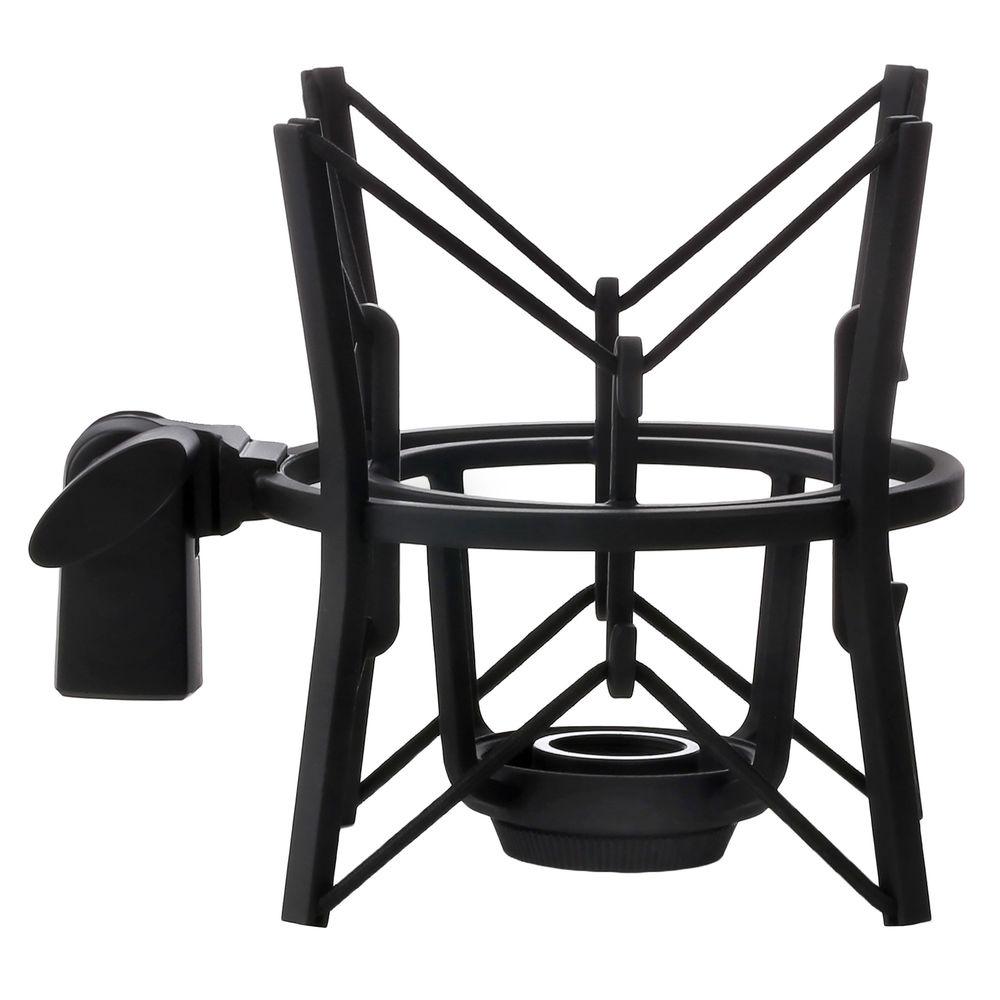

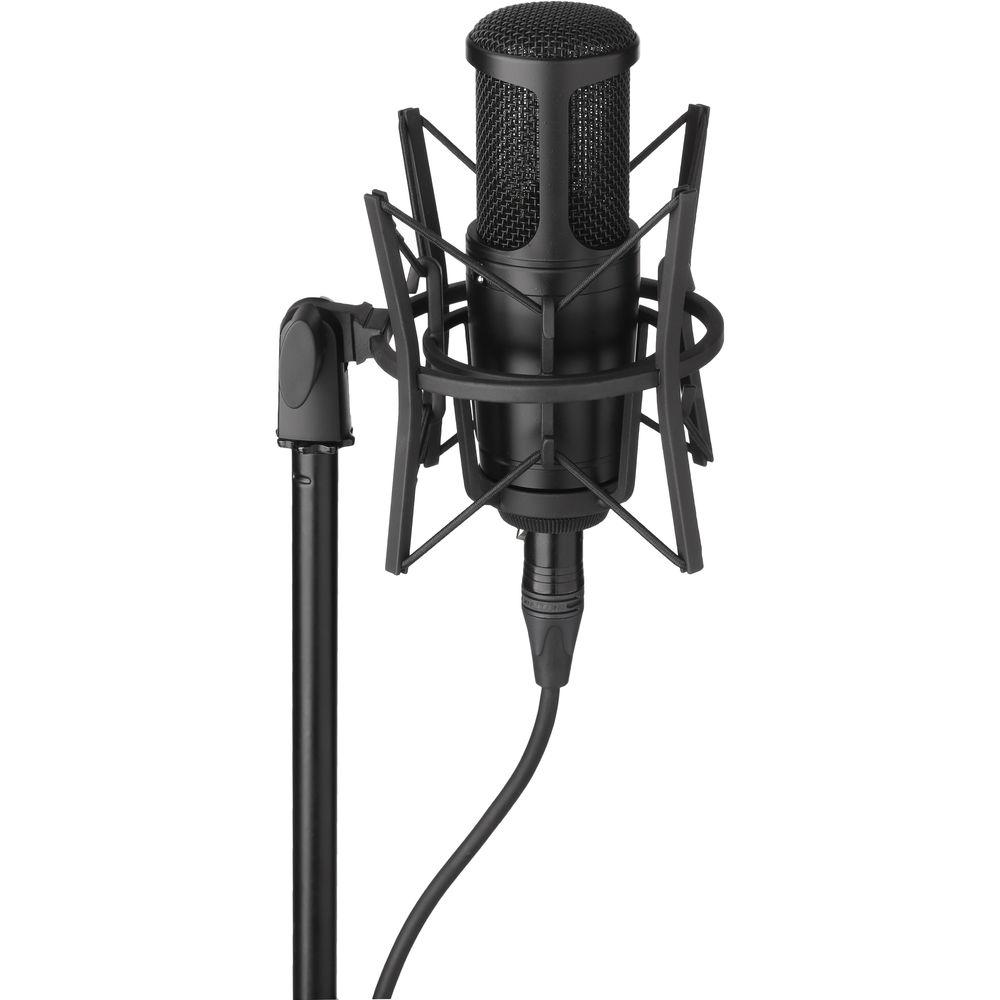

- The included basket-style shockmount minimizes vibrations that can radiate up through the mic stand and adversely affect your recording with preventable mic noise
- Extras

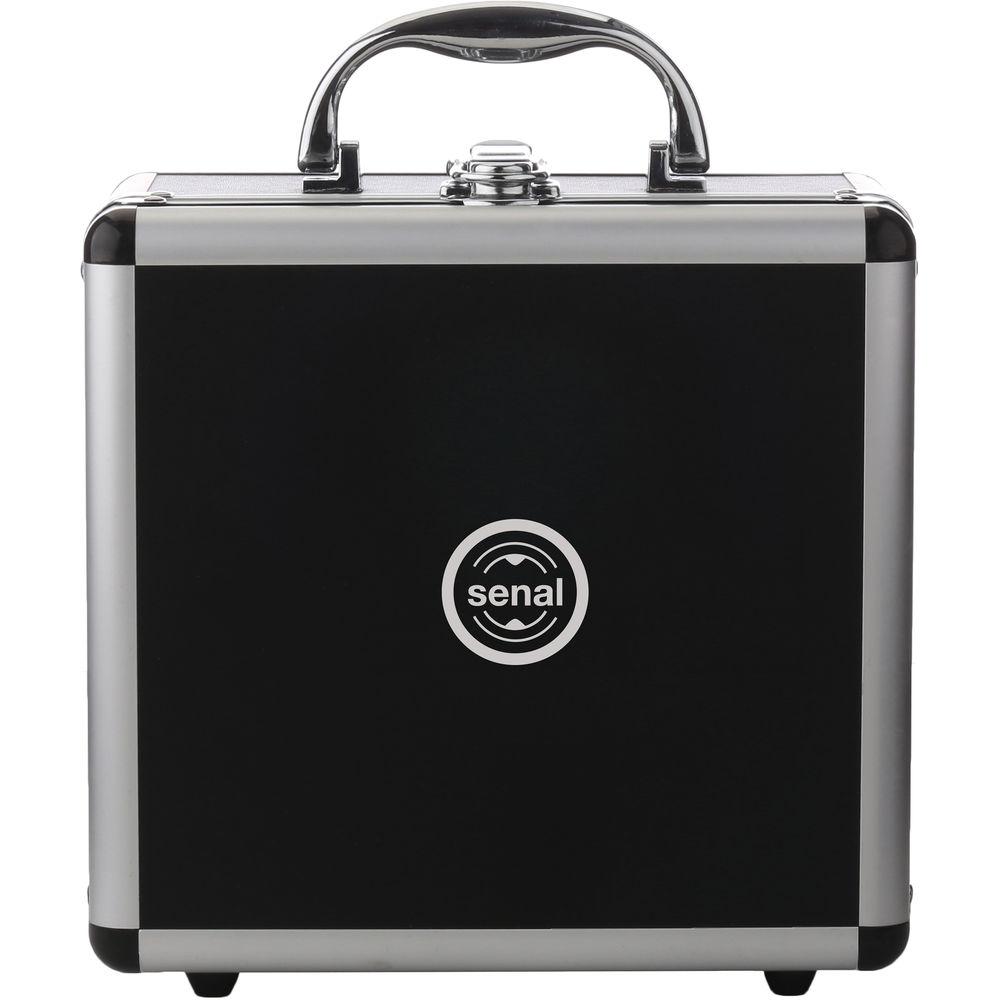

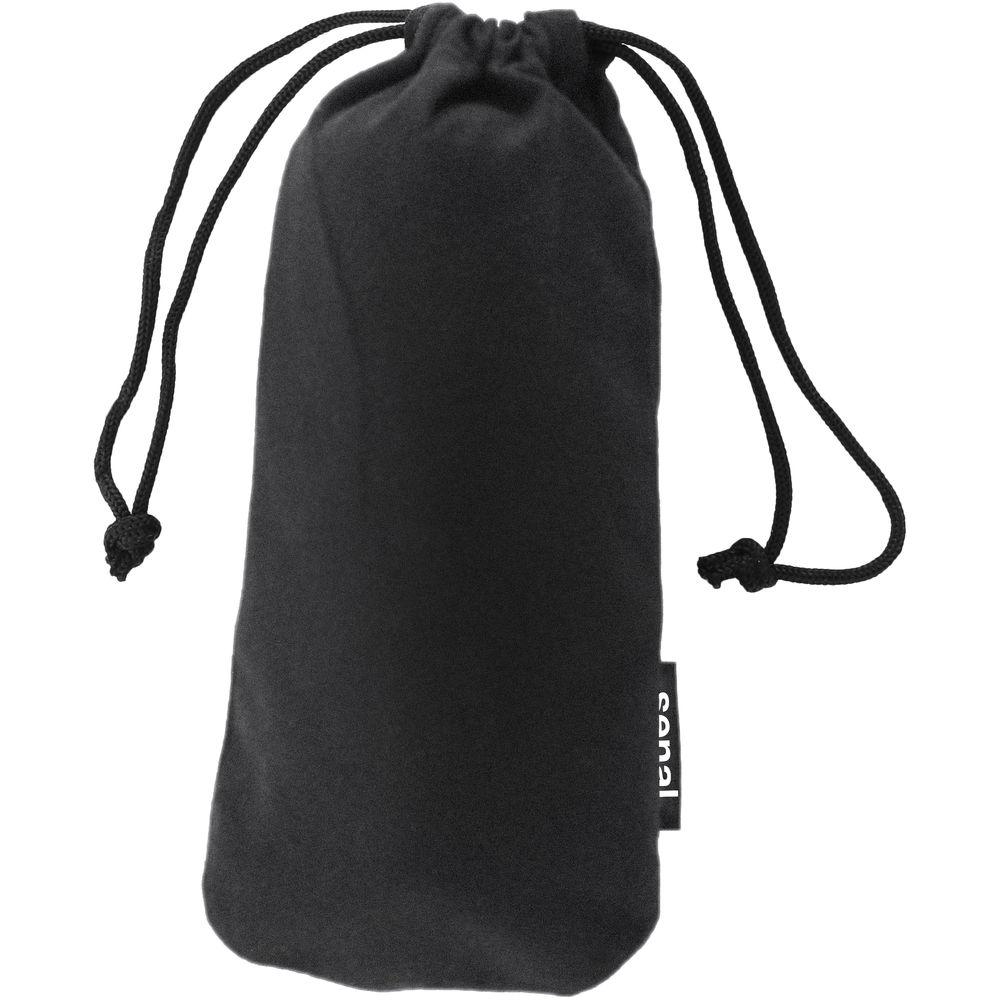

- A rugged aluminum carry case with high-density foam cutouts cradle and protect the microphone. For extra protection from dust and moisture, a carry pouch is included
UPC: 847628588110 In the Box Senal SCM-600 Large-Diaphragm Cardioid Condenser Microphone Shockmount Aluminum Carry Case Carry Pouch Limited 2-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal SCM-600 Large-Diaphragm Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal SCM-600 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.3" / 33.02 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB | | Maximum SPL | 130 dB SPL Peak | | Pad | -10 dB | | THD | < 1% | | Impedance | 50 Ohms | | Sensitivity | -36 dB | | Low-Cut Filter | 10 dB/Octave @ 110 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 6" / 15.24 cm | | Diameter | 2" / 50.80 mm | | Weight | 1.2 lb / 0.54 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 9.0 x 8.5 x 5.5" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
