User Manual for Senal SCM-660 Large-Diaphragm Multi-Pattern Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Senal SCM-660 Large-Diaphragm Multi-Pattern Condenser Microphone
- Product category: Large Diaphragm Condenser Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Large Diaphragm Condenser
 |
User manual for the Senal SCM-660 Large-Diaphragm Multi-Pattern Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|
Product description Senal SCM-660 Large-Diaphragm Condenser Microphone Records Nuances Read More - Senal SCM-660 Unboxing & Overview

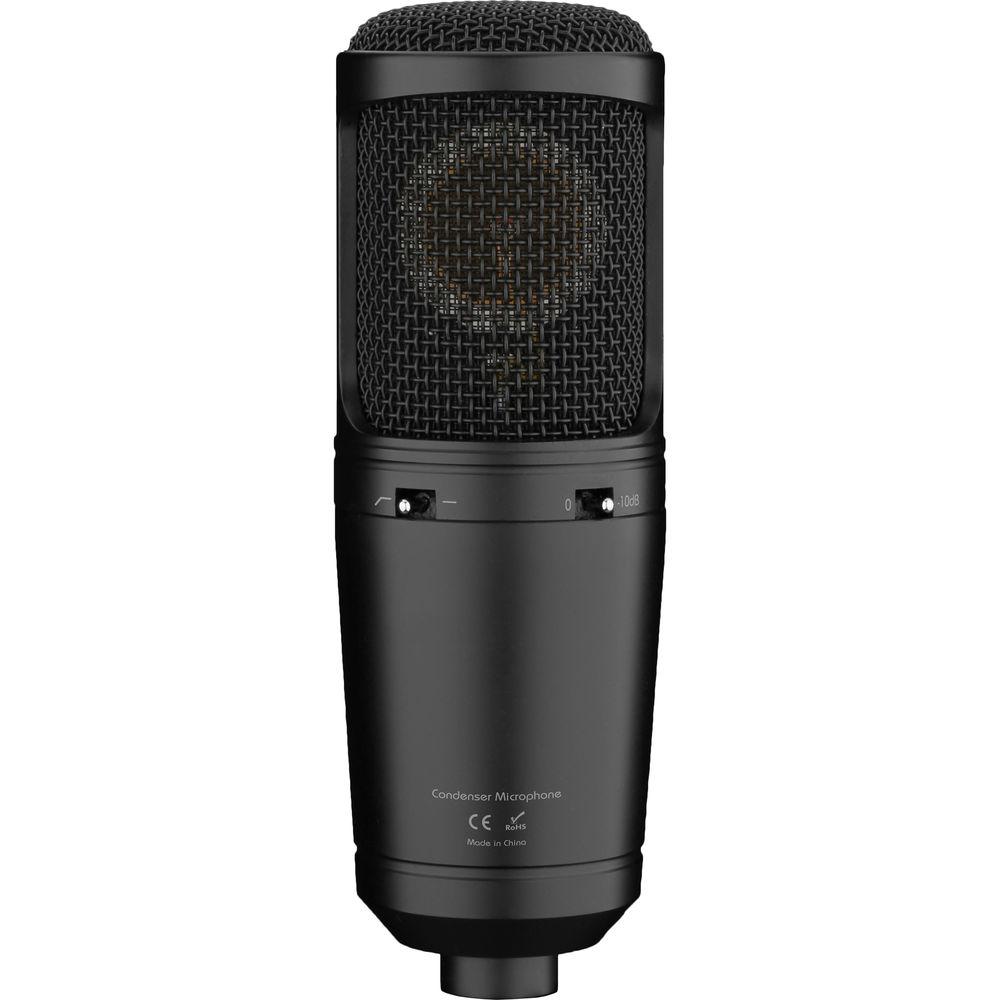

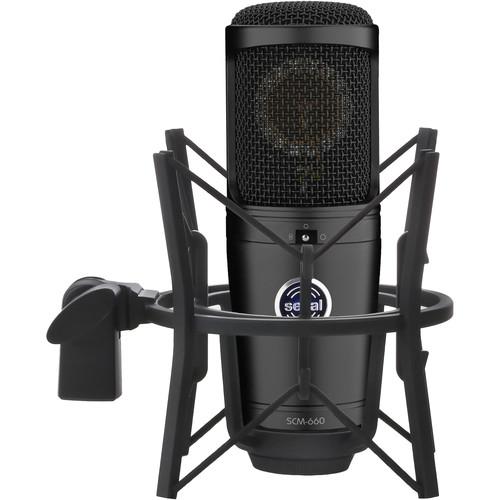

The SCM-660 from Senal is a professional-grade, multi-pattern, true condenser microphone that features a large 1.3" gold-plated transducer element. The microphone offers a full, rich tone, making it an ideal choice for studio recording, broadcasting, podcasting, or live recording. With an SPL handling of 140 dB, the SCM-600 captures vocals and instruments accurately and with pristine clarity.With three selectable polar patterns, cardioid, omnidirectional, and figure-8, the SCM-660 is capable of a wide range of miking techniques and configurations. In addition, the onboard -10 dB attenuation pad optimizes signal levels, and the integrated 80 Hz high-pass filter rolls off unwanted low-frequency noise and rumble when recording.Built with all-metal construction, the microphone comes with a suspension shockmount with additional suspension bands to reduce unwanted vibrations. A rugged aluminum carry case, a protective pouch, and a 5/8" threaded adapter are also included. - Dual 1.3" Diaphragm
- The Senal SCM-660 uses a large dual gold-plated diaphragm that is 1.3ʺ in diameter. It is tailored for a superior frequency response with a wide dynamic range
- Selectable Polar Pattern
- The microphone's polar pattern is selectable from cardioid, omnidirectional and figure-8. It offers greater flexibility in a variety of recording applications
- High-Pass Filter
- The high-pass filter switch delivers roll-off for unwanted frequencies below 80 Hz that are associated with low-frequency noises and rumble, which can also degrade your recording
- Attenuation Pad
- A -10 dB attenuation pad prevents distortion when recording loud sounds such as cymbals and electric guitar cabinets
- 140 dB Maximum Sound-Pressure Level
- To get optimal signal level without compromising the original audio source, this microphone handles a maximum SPL of 140 dB
- Rugged All-Metal Construction

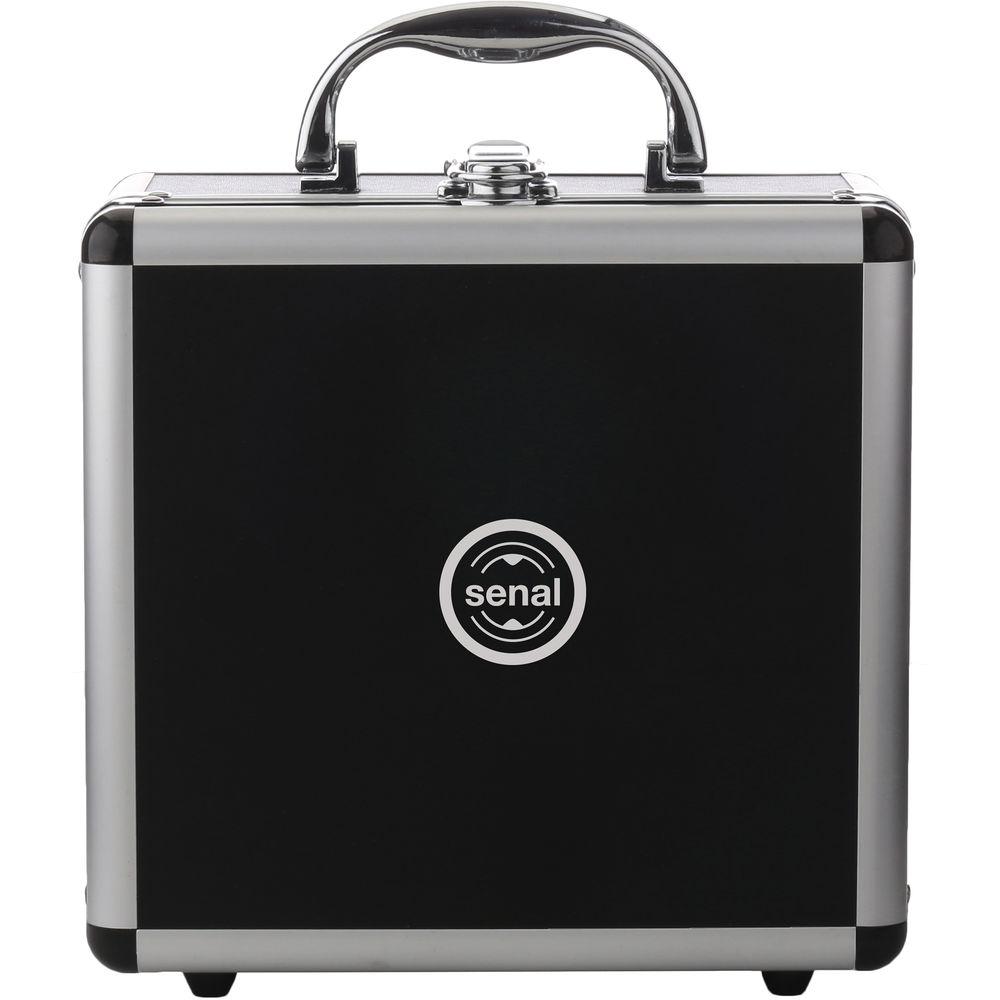

- The SCM-660 is built with an all-metal construction that maintains an overall high standard of durability. A hard-shelled case is also included, is suitable for storage, and provides protection when taking the SCM-660 on the road

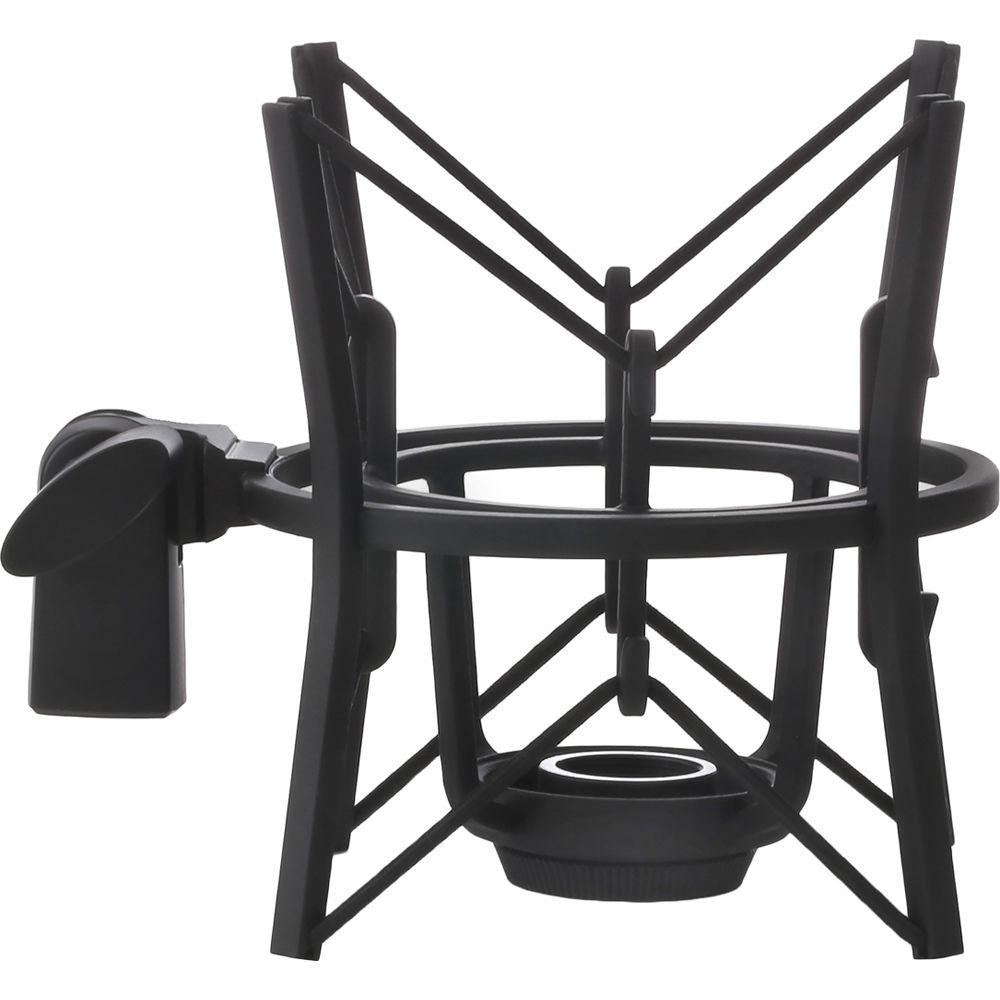

- Shockmount
- The included shockmount reduces unwanted vibrations and comes with a universal 5/8" threaded-socket adapter. It is designed with a locking knob that enables vertical adjustment for customized placement

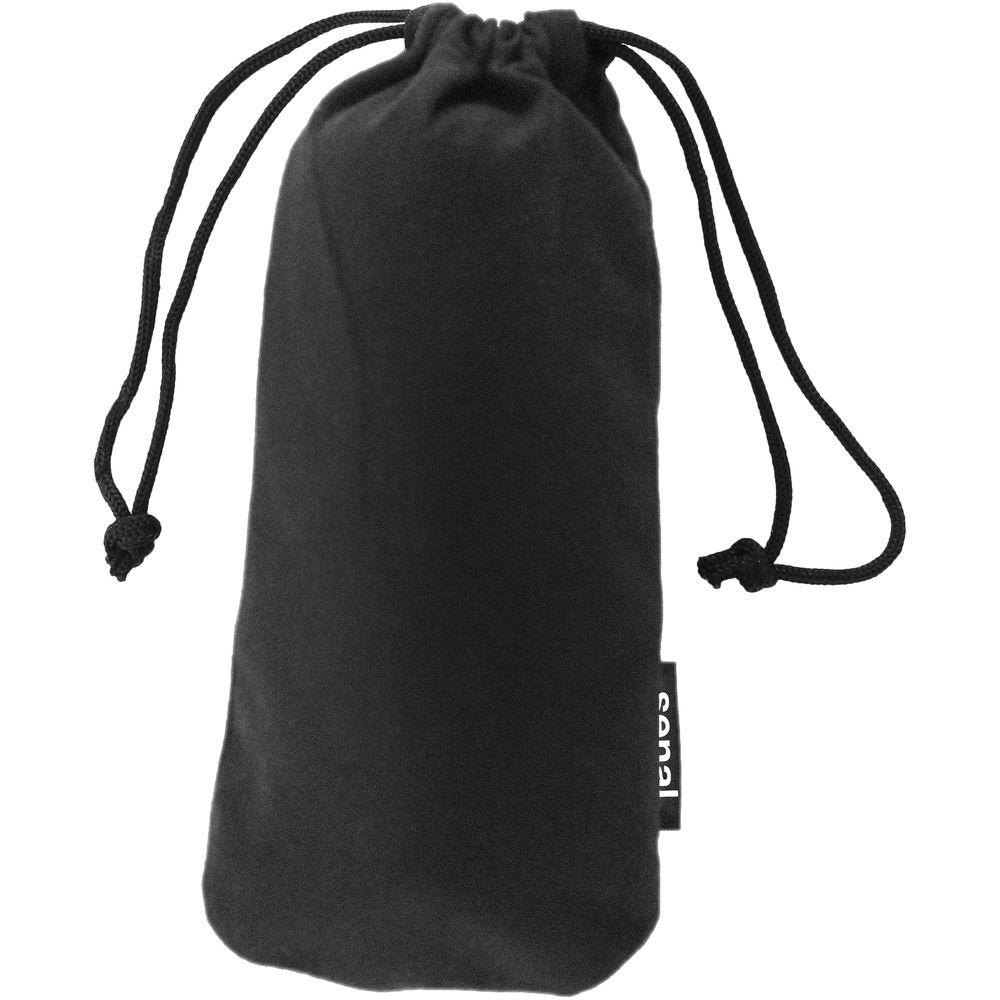

UPC: 847628587502 In the Box Senal SCM-660 Large-Diaphragm Multi-Pattern Condenser Microphone Suspension Shockmount 2 x Additional Suspension Bands 5/8" Threaded Adapter Protective Pouch Hard Carry Case Limited 2-Year Warranty User Manual PDF 2.1mbrdyvxfxxsevwfddsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal SCM-660 Large-Diaphragm Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal SCM-660 Specs | | | Transducer | Condenser | | Diaphragm | 1.3" / 33.02 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB | | Maximum SPL | 130 dB SPL RMS | | Pad | -10 dB | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 100 Ohms +/- 20% | | Sensitivity | Cardioid: -33 dB at 1 kHz
Figure 8: -39 dB at 1 kHz
Omnidirectional: -38 dB at 1 kHz | | Low-Cut Filter | 10 dB/Octave @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 6" / 152.40 mm | | Diameter | 2" / 50.80 mm | | Weight | 1.15 lb / 0.52 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 9.4 x 9.3 x 5.6" |
