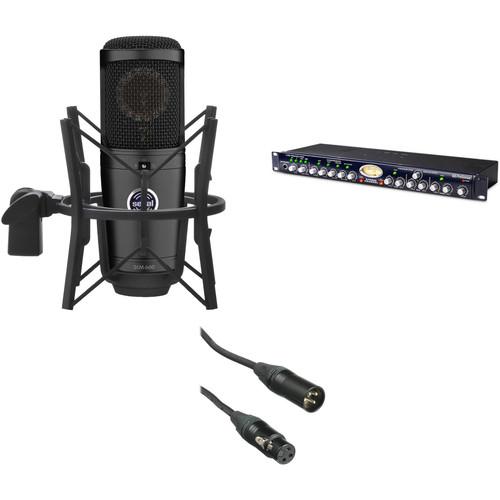

Senal SCM-660 Multi-Pattern Condenser Mic with

User Manual for Senal SCM-660 Multi-Pattern Condenser Mic with Studio Channel Preamp & Vocal Kit

• Product category: Large Diaphragm Condenser Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Large Diaphragm Condenser

Product description

• Senal SCM-660 Large-Diaphragm Multi-Pattern Condenser Microphone
  • Senal SCM-660 Unboxing & Overview
  The SCM-660 from Senal is a professional-grade, multi-pattern, true condenser microphone that features a large 1.3" gold-plated transducer element. The microphone offers a full, rich tone, making it an ideal choice for studio recording, broadcasting, podcasting, or live recording. With an SPL handling of 140 dB, the SCM-600 captures vocals and instruments accurately and with pristine clarity.With three selectable polar patterns, cardioid, omnidirectional, and figure-8, the SCM-660 is capable of a wide range of miking techniques and configurations. In addition, the onboard -10 dB attenuation pad optimizes signal levels, and the integrated 80 Hz high-pass filter rolls off unwanted low-frequency noise and rumble when recording.Built with all-metal construction, the microphone comes with a suspension shockmount with additional suspension bands to reduce unwanted vibrations. A rugged aluminum carry case, a protective pouch, and a 5/8" threaded adapter are also included.
  Dual 1.3" Diaphragm
  • The Senal SCM-660 uses a large dual gold-plated diaphragm that is 1.3ʺ in diameter. It is tailored for a superior frequency response with a wide dynamic range
  Selectable Polar Pattern
  • The microphone's polar pattern is selectable from cardioid, omnidirectional and figure-8. It offers greater flexibility in a variety of recording applications
  High-Pass Filter
  • The high-pass filter switch delivers roll-off for unwanted frequencies below 80 Hz that are associated with low-frequency noises and rumble, which can also degrade your recording
  Attenuation Pad
  • A -10 dB attenuation pad prevents distortion when recording loud sounds such as cymbals and electric guitar cabinets
  140 dB Maximum Sound-Pressure Level
  • To get optimal signal level without compromising the original audio source, this microphone handles a maximum SPL of 140 dB
  Rugged All-Metal Construction
  • The SCM-660 is built with an all-metal construction that maintains an overall high standard of durability. A hard-shelled case is also included, is suitable for storage, and provides protection when taking the SCM-660 on the road
  Shockmount
  • The included shockmount reduces unwanted vibrations and comes with a universal 5/8" threaded-socket adapter. It is designed with a locking knob that enables vertical adjustment for customized placement
  UPC: 847628587502
• PreSonus Studio Channel
  • Senal SCM-660 Unboxing & Overview
  The Presonus Studio Channel is a channel strip that features a tube preamp, a VCA compressor, and a 3-band parametric EQ. The tube preamp section features two knobs: Gain and Tube Drive. This allows you to adjust the amount of signal that hits the tube circuitry, opening up a wide range of sonic options. The VCA compressor section is well-suited to help all different kinds of audio sit nicely in a mix, whether it's percussion with fast transients, or smooth and silky vocals. The parametric EQ features a custom amplifier with a gain control on each of the 3 bands, with a variable Q knob on the mid frequency.If you're curious about outboard gear and want to upgrade your signal path from the stock preamp found on most audio interfaces, the Presonus Studio Channel is an excellent choice for deeper sonic exploration. Likewise, experienced professionals will appreciate the Studio Channel's solid set of sound shaping tools, as well as its afforable pricetag.
  Class-A Vacuum Tube Preamp
  • The Studio Channel features a high-voltage 12AX7 tube with both Gain and Tube Drive controls, giving you the ability to dial in a variety of different tones.
  VU Meter
  • The illuminated VU meter displays both output level and gain reduction.
  A Host of Useful Tools and Controls
  • • 80 Hz High-Pass Filter
    • 20 dB Pad
    • Phase Invert
    • Make-Up Gain, Auto, and Soft (Compressor Section)
    • Low Noise Design
  UPC: 673454001000
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
  • Senal SCM-660 Unboxing & Overview
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274

• SCM-660 Large-Diaphragm Multi-Pattern Condenser Microphone zvxfsfwwrdswrsbudyweqcs
• Suspension Shockmount
• 2 x Additional Suspension Bands
• 5/8" Threaded Adapter
• Protective Pouch
• Hard Carry Case
• Limited 2-Year Warranty

• PreSonus - Studio Channel

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal SCM-660 Large-Diaphragm Multi-Pattern Condenser Microphone

  Transducer	Condenser
  Diaphragm	1.3" / 33.02 mm
  Polar Pattern	Cardioid, Figure-8, Omnidirectional
  Pattern Selection	Switched
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	76 dB
  Maximum SPL	130 dB SPL RMS
  Pad	-10 dB
  THD	< 1%
  Impedance	100 Ohms
  Load Impedance	100 Ohms +/- 20%
  Sensitivity	Cardioid: -33 dB at 1 kHz Figure 8: -39 dB at 1 kHz Omnidirectional: -38 dB at 1 kHz
  Low-Cut Filter	10 dB/Octave @ 80 Hz

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	48 V
  Length	6" / 152.40 mm
  Diameter	2" / 50.80 mm
  Weight	1.15 lb / 0.52 kg

  Box Dimensions (LxWxH)	9.4 x 9.3 x 5.6"

• PreSonus Studio Channel

  Number of Channels	Single
  Inputs	1 x XLR 1 x 1/4" TS, unbalanced
  Outputs	1 x XLR 1 x 1/4" TRS, balanced
  Frequency Response	10 Hz to 50 kHz
  Noise	-96 dBu

  Gain Range	-6 to +66 dB (+/-10 dB trim on line input)
  Maximum Output	+22 dBu
  Phantom Power	+48V

  Threshold Range	-40 to +2 dBu
  Ratio	1-10 (1:1 to 2:1)
  Attack Time	0.1 to 200 ms
  Release Time	0.05 to 3S ms
  Sidechain	No
  Frequency Bands	Low frequencies = variable from 40 to 500 Hz Mid frequencies = variable from 200 Hz to 3 kHz High frequencies = variable from 2 to 20 kHz
  Range (Boost/Cut)	Low and high frequencies = variable between +/-10 dB Mid frequencies = variable from -10 to +10 dB

  Power Requirements	120 VAC, 60 Hz for included external power adapter
  Dimensions (WxDxH)	19 x 5.5 x 1.75" (483 x 140 x 44 mm)
  Weight	5 lb (2.3 kg)
  Specialties	Tube gain and tube drive EQ Pre/Post compressor switch

  Box Dimensions (LxWxH)	23.8 x 12.0 x 4.9"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"
