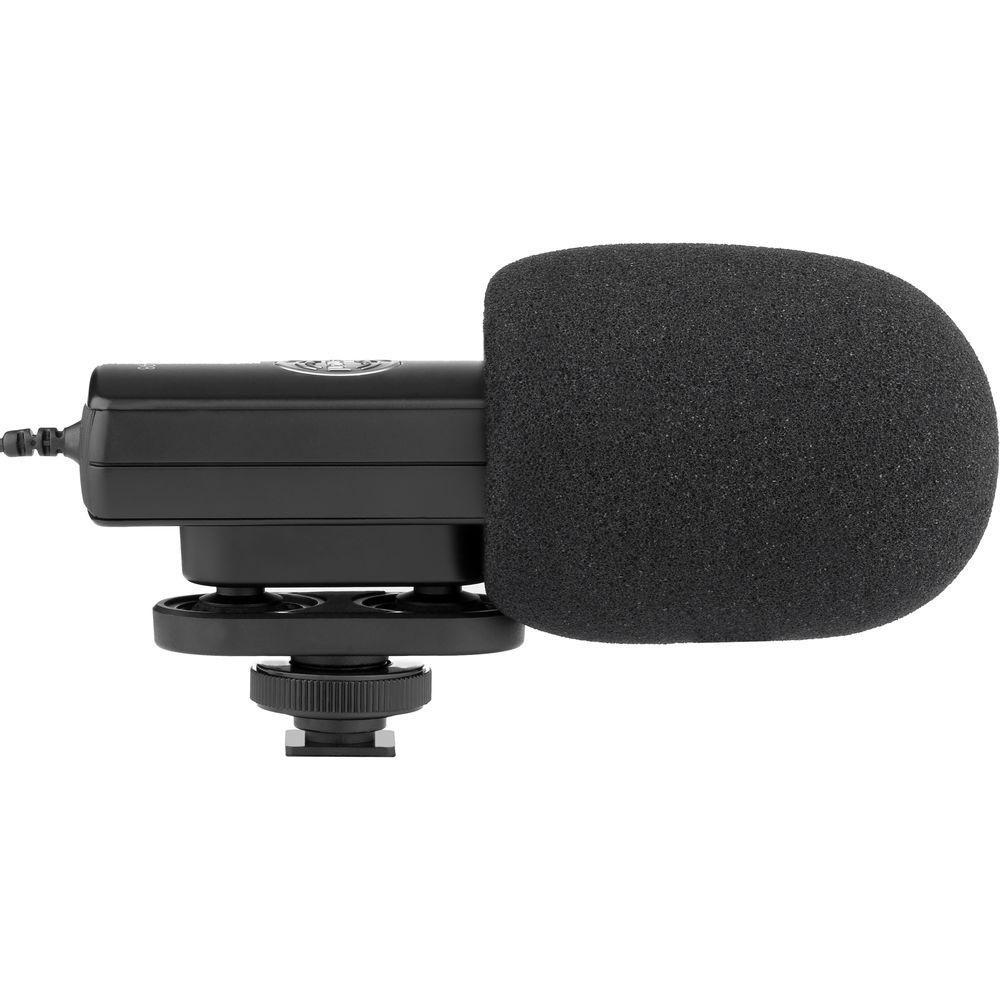

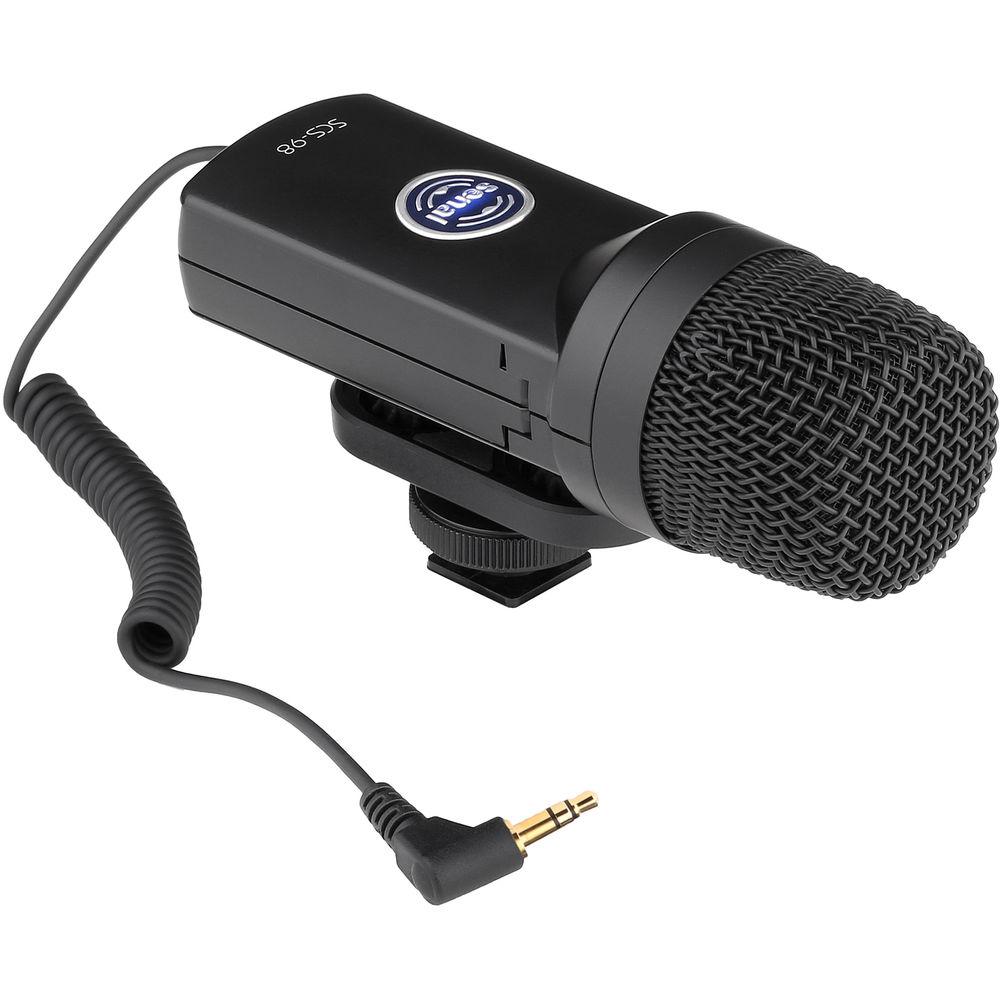

Product description - SCS-98 Stereo DSLR Microphone in New York City

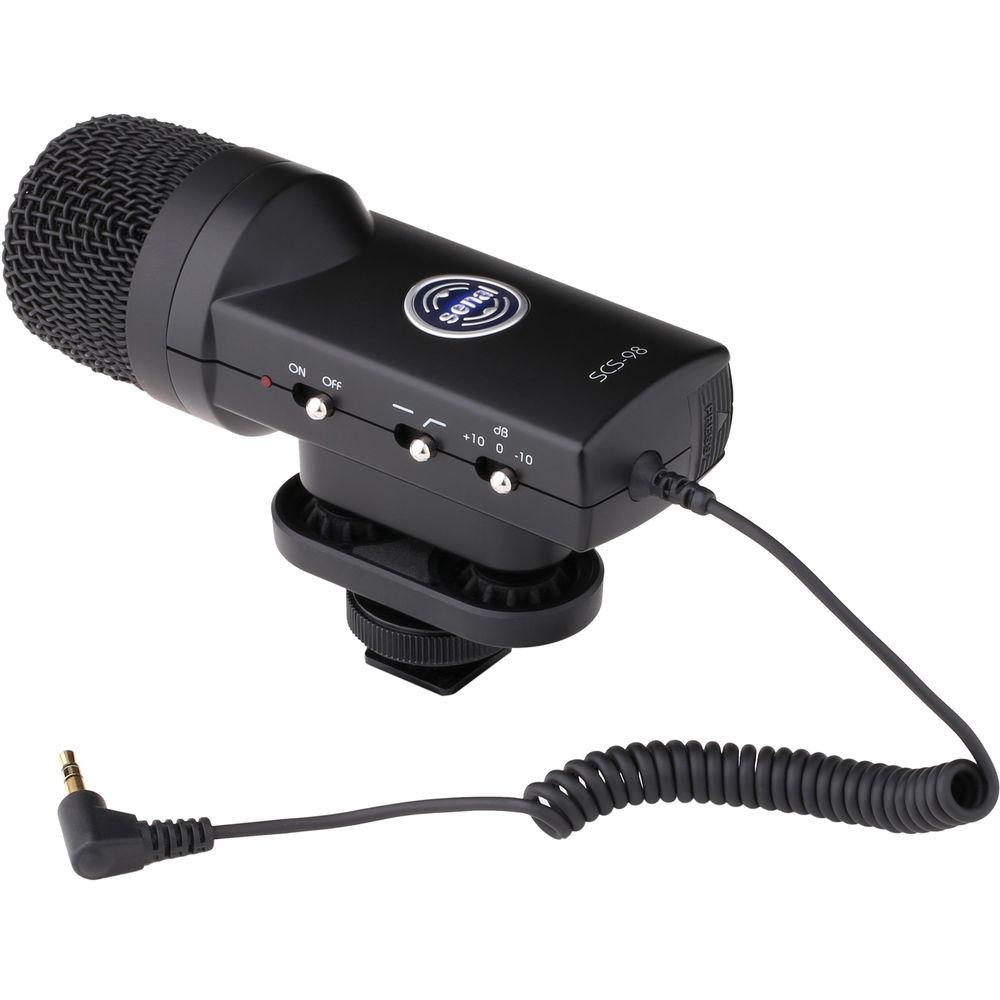

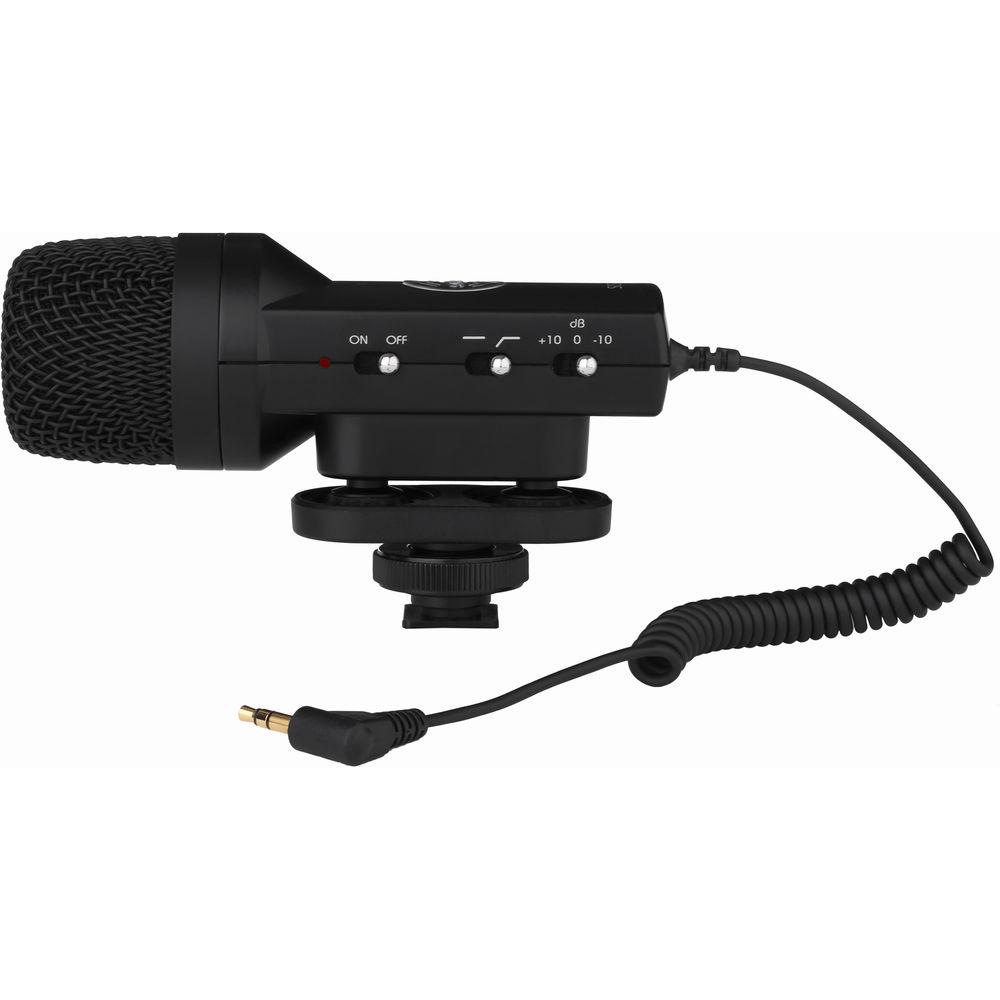

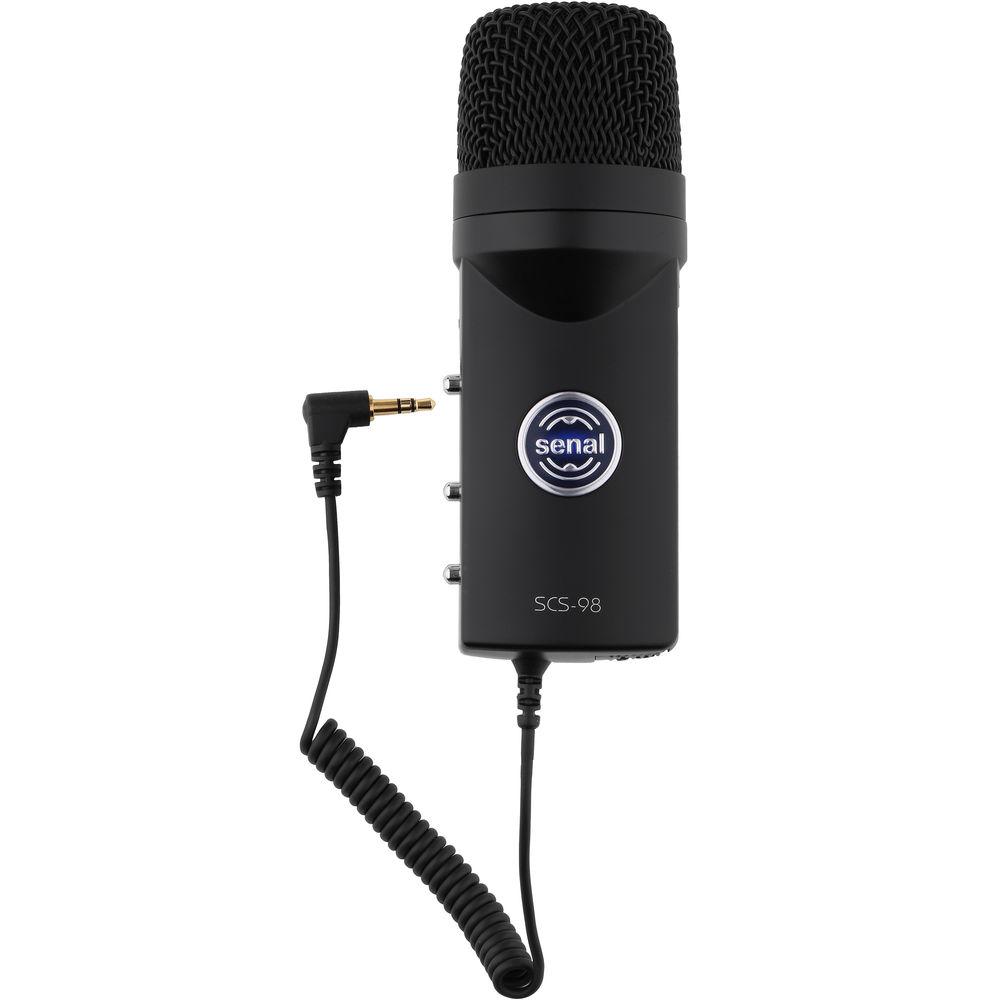

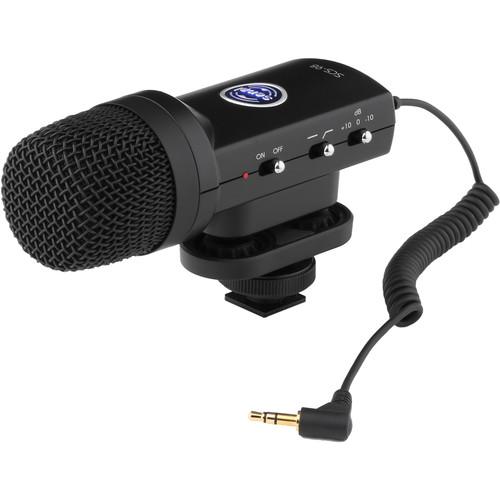

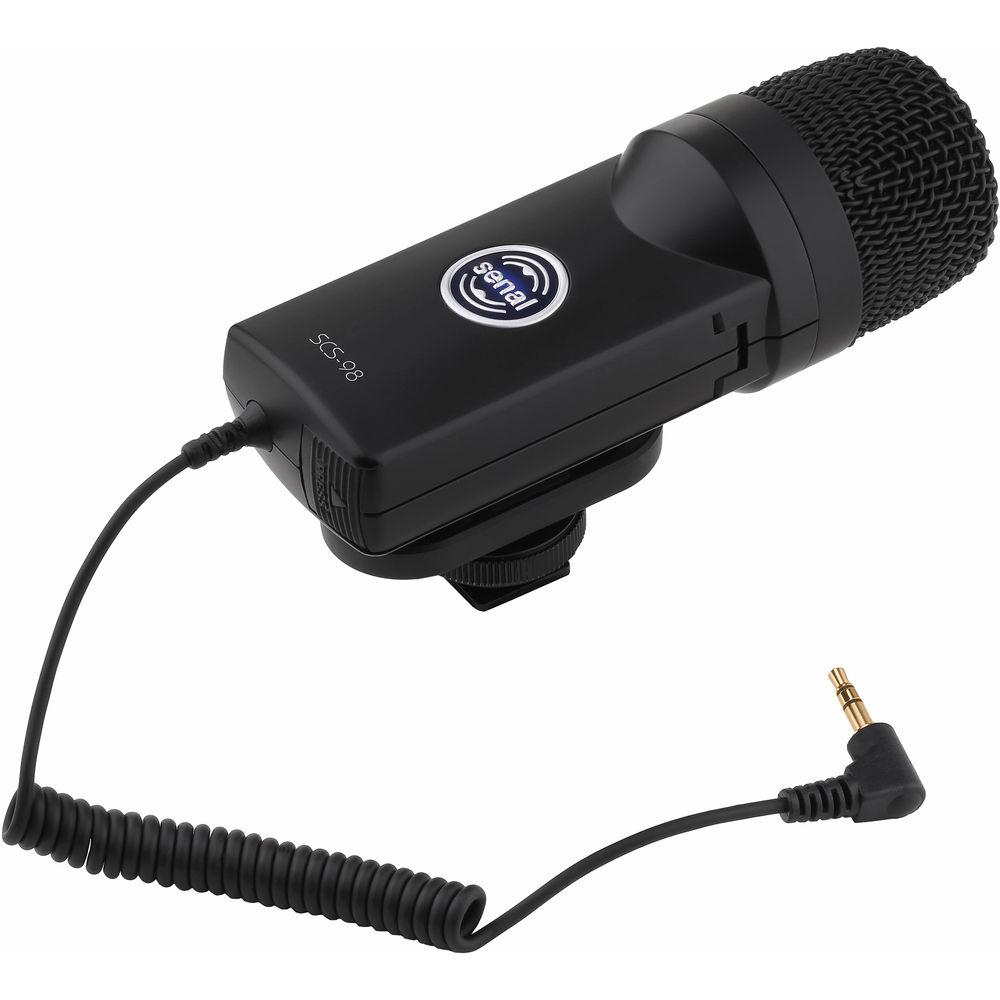

The Senal SCS-98 DSLR/Video Stereo Microphone features a matched pair of cardioid condenser capsules that are arranged in an XY pattern to achieve accurate, natural stereo imaging. This makes it ideal for location recording, broadcast applications, live performances and capturing soundscapes in outdoor environments.
Compact and lightweight, the SCS-98 attaches to your camera's shoe mount and plugs directly into its audio input, or your portable recorder's microphone input, to capture pristine audio with realistic stereo imaging for your video productions.
The 80 Hz high-pass filter helps prevent the microphone from picking up disruptive low-frequency noise, while the three-level gain switch provides a +10 dB boost, 0 dB unity gain, or a -10 dB pad. The -10 dB pad can be used for recording louder sound sources without distortion, while the +10 dB boost can be used to achieve a higher gain signal to avoid having to use the noisy preamps aboard many cameras and camcorders, resulting in a much cleaner recording.

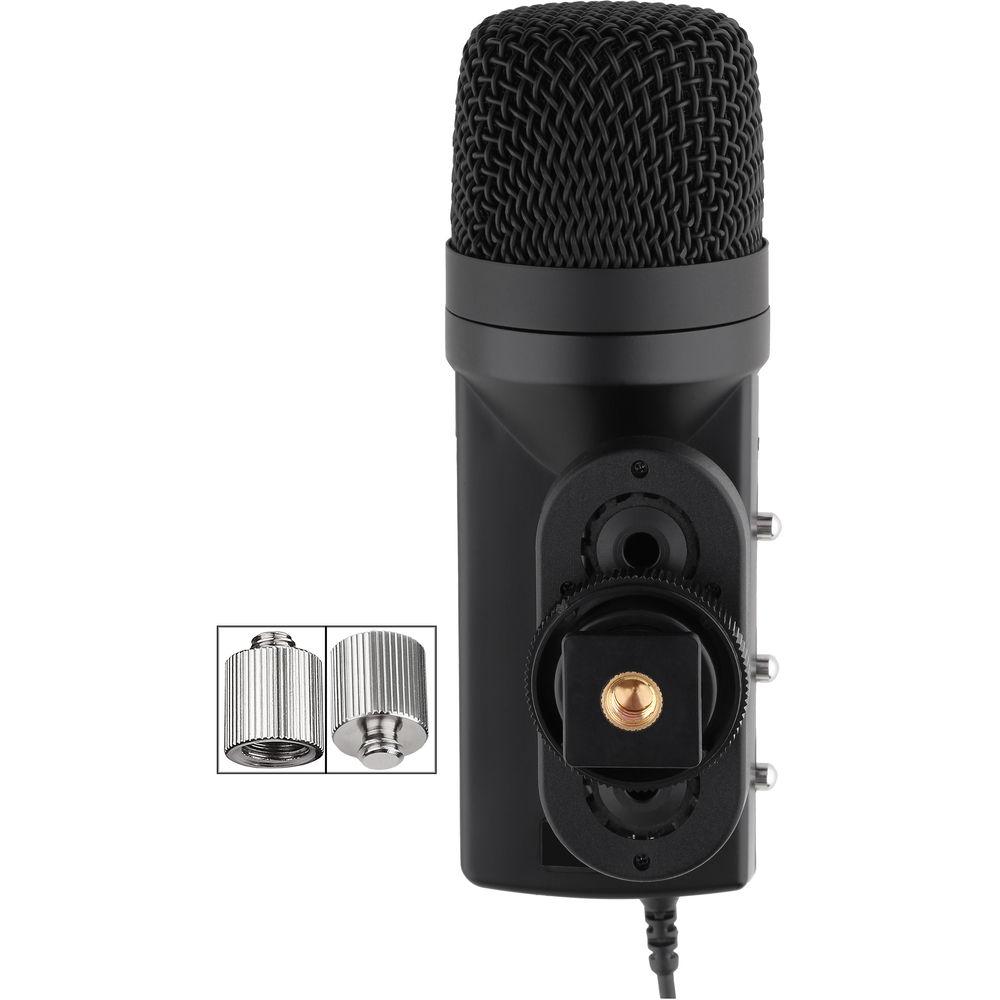

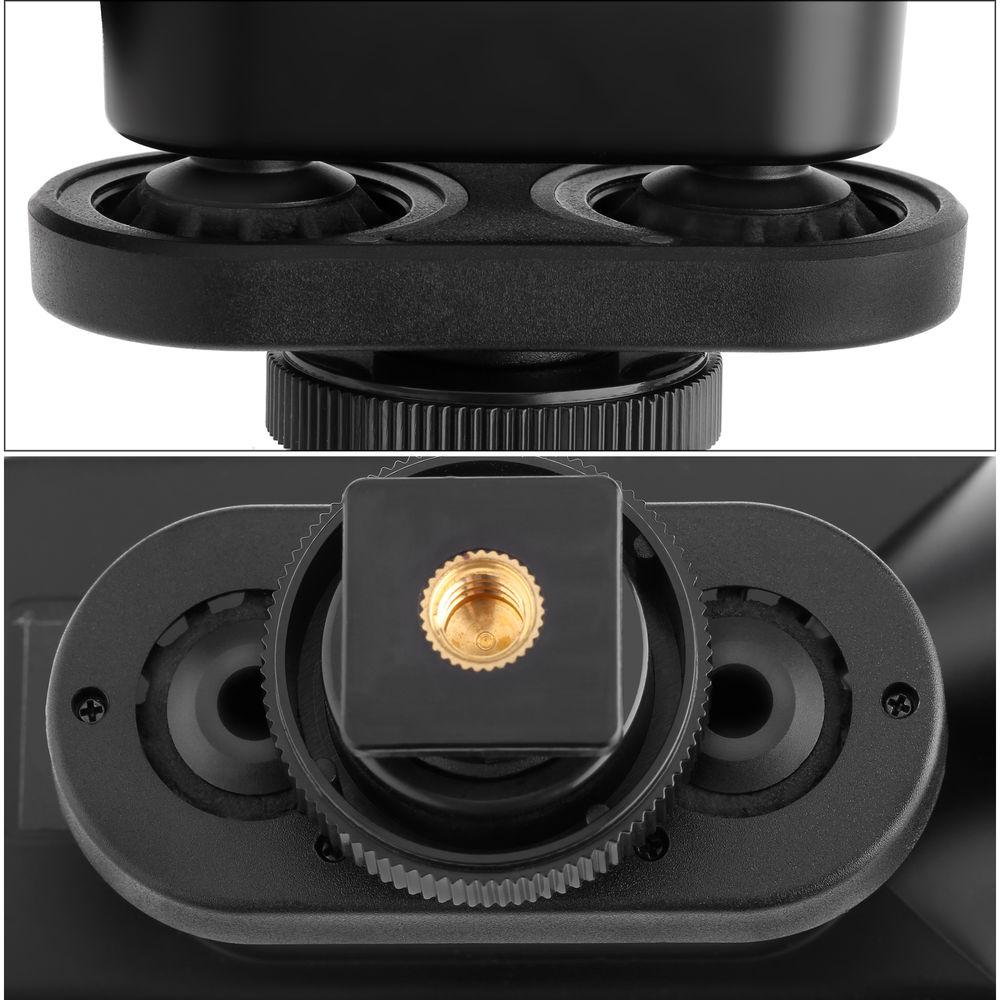

The SCS-98 also boasts a dual shockmount design. The two back electret condenser capsules are enclosed within a rubber decoupling system inside the microphone. This, combined with the integrated shockmount, isolates the microphone from handling noise, providing maximum isolation from vibrations and mechanical noise. The SCS-98 also features an integrated shoe-mount with a 1/4"-20 threaded socket, which lets you mount it onto a camera or boompole. In addition, a male 1/4"-20 to female 3/8" adapter is also included. The durable, 7" coiled output cable is terminated with a 1/8" (3.5mm) stereo output connector and is shielded for maximum protection against interference. - Professional quality recording for DSLR or camcorder
- Matched pair of condenser capsules in XY stereo configuration
- Compact, lightweight design
- Switchable 80 Hz high-pass filter
- Three-level gain switch (-10 dB, 0 dB, +10 dB)
- Integrated shock mount and shoe mount with ¼"-20 threaded socket for use with boom pole
- 7" coiled output cable with 3.5mm stereo output connector
- Power LED glows momentarily to indicate that power is on and battery is charged, and turns off to conserve power

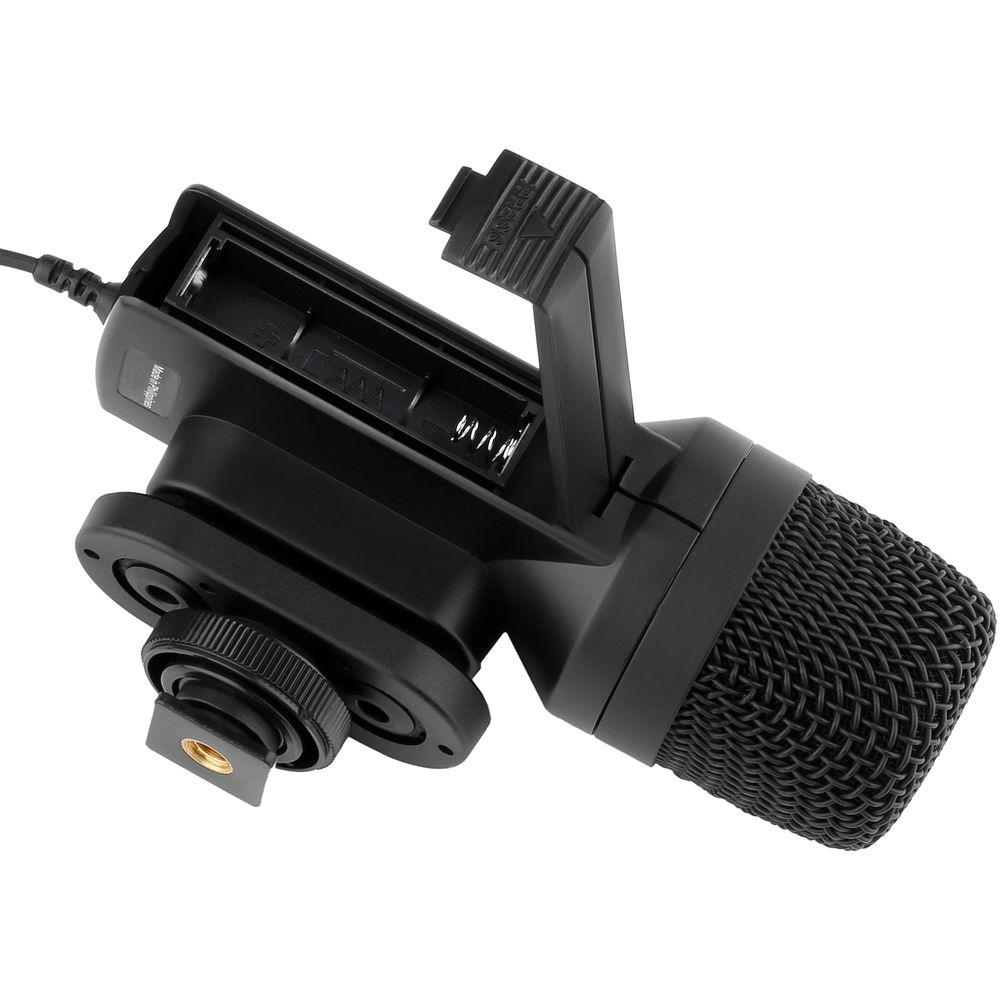

- Runs on a single AAA battery (not included)
- Approximately 100 hours of operation time
- Male 1/4"-20 to female 3/8" adapter included
UPC: 847628574731 In the Box Senal SCS-98 DSLR/Video Stereo Microphone Foam Windscreen Male 1/4"-20 to Female 3/8" Adapter Limited 10-Year Warranty User Manual PDF 713.8kbzqvftvyezzutzdfrrtzyfz Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal SCS-98 DSLR Video Stereo Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal SCS-98 Specs | Transducer Type | Back electret condenser | | Pattern | XY stereo cardioid | | Frequency Response | 50 Hz to 18 kHz | | Sensitivity | -69 dB ±3 dB (0 dB = 1 V/microbar at 1 kHz indicated by open circuit) | | Gain Selection | -10, 0, +10 dB | | Output Impedance | 200 ohms ±30% (at 1 kHz) | | Connector | Right-angle 3.5 mm stereo male | | Power Requirement | One AAA battery (not included) | | Cable | Fixed, 7" / 17.8 cm (2" / 5.1 cm straight + 3" / 7.6 cm coiled + 2" / 5.1 cm straight) | | Dimensions | 5 x 1.8 x 2.8" / 12.7 x 4.5 x 7.2 cm | | Weight | 5.4 oz / 152 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 9.055 x 4.803 x 2.835" |
