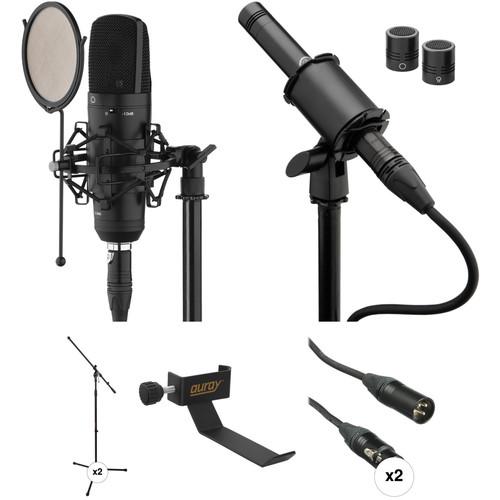

User Manual for Senal Singer Songwriter Recording Kit for Guitar & Vocals

• Product category: Large Diaphragm Condenser Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Large Diaphragm Condenser

Product description

• Senal SC-550X Professional Cardioid Condenser Microphone Designed to provide both professional and project studios a workhorse microphone that can be used in a wide variety of applications, the SC-550X Professional Cardioid Condenser Microphone from Senal boasts a wide, linear frequency response coupled with a precise transient response and high signal-to-noise ratio for accurate sound capture. It has a high SPL handling of 140 dB, and is at home not only in front of vocalists, but for tracking acoustic and electric guitars, brass, strings, pianos, and overhead drums.

  Thanks to its cardioid polar pattern, the SC-550X has a generous pickup range while minimizing off-axis noise. A selectable -10 dB pad allows you to use it in front of particularly loud sources without distorting, while the selectable high-pass filter provides an on-board low-frequency roll off. A shockmount, pop filter, and case are all included.
  Condenser Element
  • The Senal SC-550X is a studio condenser microphone with a warm, full-bodied sound, accurate transient response, and high signal-to-noise ratio
  Cardioid Polar Pattern
  • The SC-550X's cardioid polar pattern provides excellent off-axis rejection and enables the microphone to capture detailed sound from directly in front of the capsule
  High-Pass Filter
  • The high-pass filter helps prevent the SC-550X from picking up low-frequency noises like the rumble from an air conditioner, which can interfere with your recording
  Attenuation Pad
  • The attenuation pad adds further adaptability to the SC-550X, lowering the output by 10 dB to prevent distortion when recording loud sounds like cymbals and electric guitar cabinets
  All-Metal Construction
  • The microphone's rugged all-metal construction maintains an overall high standard of durability. With the included hard-shell case to store the microphone and all the included accessories, it's easy to take the SC-550X with you on the road
  Flat Frequency Response
  • With its flat frequency response, the SC-550X delivers accurate, detailed sound reproduction designed for use in all recording environments. Capable of capturing vocals in the studio, the SC-550X also offers versatility for recording guitars, brass, strings, and piano, as well as overhead drum miking. It can also be used for nonmusical applications like podcasting, voiceovers, and broadcast use
  140 dB Maximum SPL
  • The SC-550X's 140 dB maximum SPL optimizes the microphone to accurately capture loud signals without distorting
  Shockmount
  • The included shock mount isolates the SC-550X to prevent it from picking up unwanted noise caused by vibrations. The universal 5/8" threaded socket is compatible with most microphone stands, and the locking knob enables vertical adjustment for customized placement
  Pop Filter
  • The included pop filter is indispensable for recording vocals. The metal mesh screen reduces noise from aspirated plosives like p and b sounds and keeps corrosive moisture away from the capsule. Just mount the pop filter onto the rim of the shock mount and adjust it to suit your vocalist
  UPC: 847628582774
• Senal SCI-3212 Small-Diaphragm Condenser Microphone with Interchangeable Capsules The SCI-3212 Small-Diaphragm Condenser Microphone with Interchangeable Capsules from Senal is an electret condenser microphone with omnidirectional, cardioid, and supercardioid polar patterns. The microphone's quick transient response and high sensitivity assure detailed and accurate sound in capturing audio for instruments such as pianos, acoustic guitars, and percussion, as well as for dialog when recording outdoors in high-noise environments. The SCI-3212 is built with a durable metal chassis and has a gold-plated XLR connector, which resists corrosion and delivers better signal transfer. The mic's high-SPL-handling is suitable for recording in high-noise situations and enables close-mic placement to snares and cymbals without distortion. A shockmount is included for easy boompole-mounting when capturing dialog indoors or in the studio, and a foam windscreen minimizes wind noise when shooting outdoors.
  Three Interchangeable Capsules
  • The adaptability of the SCI-3212 is its greatest asset. The omnidirectional, cardioid, and supercardioid capsules can be changed effortlessly. The multiple polar patterns allow you to use the microphone in a wide variety of configurations when capturing music, dialog, or ambiance in a studio or in the field.
  Accurate Sound
  • The natural response of the SCI-3212, together with its wide-frequency response and sensitivity, translate to better sound in diverse recording scenarios.
  High-SPL-Handling
  • The microphone's high-SPL-handling makes it a suitable choice for recording drum overheads, snares, cymbals, or other audio sources in high-noise environments.
  Gold-Plated Connector
  • The gold-plated XLR connector resists corrosion and assures better signal transfer.
  Durable Metal Chassis
  • The durable metal chassis allows the microphone to withstand the rigors of the road, as well as in studios or on location.
  Tools for Recording in the Field
  • A shockmount is included to minimize noise from handling or vibration, and a foam windscreen is provided to minimize wind noise for outdoor use.
  UPC: 847628592582
• 2 x Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
• Auray COHH-2 - Clamp On Headphone Holder For Mic Stand The Auray COHH-2 - Clamp-On Headphone Holder for Microphone Stand easily attaches to microphone stands that are up to 1.2" (30mm) in diameter to provide a hanging hook that supports two pairs of studio headphones. With a sturdy all-metal construction, the holder attaches to the microphone stand using a durable threaded locking knob which ensures the headphones remain in place and are conveniently accessible while tracking in the studio.
  Organize your Studio
  • Keep headphones accessible and uncluttered when tracking
  Supports Two Pairs of Headphones
  • Provides sufficient support for two full-size pairs of studio headphones
  Durable Locking Knob
  • Assures that hook will not slip once firmly attached to mic stand
  Versatile
  • Fits mic Stands with tube diameters up to 1.2" (30mm)
  Sturdy
  • All-metal construction ensures years of reliable use
  UPC: 847628580312
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558281

• SC-550X Professional Cardioid Condenser Microphone bfxewbtbdutbcwcvcqxz
• Shockmount
• Pop Filter
• Carry Case
• Limited 1-Year Warranty

• SCI-3212 Small-Diaphragm Condenser Microphone with Interchangeable Capsules

• 2 x Auray - MS-5230F Tripod Microphone Stand with Fixed Boom

• Auray - COHH-2 - Clamp On Headphone Holder For Mic Stand

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal SC-550X Professional Cardioid Condenser Microphone

  Element	Condenser
  Polar Pattern	Cardioid
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	-36 dB ±2 dB @ 1 kHz
  Signal to Noise Ratio	79 dB (1 kHz at 1 Pa)
  Maximum Input Sound Level	140 dB
  Impedance	200 ohms
  Power Requirements	+ 48 V
  Output Connector	3-pin XLR
  Pad	-10 dB
  High Pass Filter	80 Hz
  Dimensions (Ø x L)	2 x 7.2" / 5.1 x 18.2 cm
  Weight	13.6 oz / 386 g

  Box Dimensions (LxWxH)	13.7 x 11.0 x 3.7"

• Senal SCI-3212 Small-Diaphragm Condenser Microphone with Interchangeable Capsules

  Sound Field	Mono
  Transducer	Electret Condenser
  Polar Pattern	Cardioid, Omnidirectional, Supercardioid
  Pattern Selection	Switched
  Frequency Range	30 Hz to 18 kHz
  Equivalent Noise Level	-27 dB A-Weighted
  Maximum SPL	135 dB SPL RMS
  Load Impedance	1000 Ohms
  Sensitivity	-36 dB at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	9 to 52 V
  Length	5" / 127.00 mm
  Diameter	0.8" / 20.32 mm
  Weight	3.8 oz / 108 g

  Box Dimensions (LxWxH)	9.685 x 6.535 x 2.756"

• 2 x Auray MS-5230F Tripod Microphone Stand with Fixed Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	31.5" / 80 cm

  Material	Steel
  Weight	4.5 lb / 2 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Auray COHH-2 - Clamp On Headphone Holder For Mic Stand

  Dimensions (H x W x L)	1.75 x 3 x 5.25" (4.4 x 7.6 x 13.3 cm)
  Weight	0.25 lb (113.4 g)

  Box Dimensions (LxWxH)	6.0 x 4.0 x 2.0"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	15' / 4.6 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.8 x 2.9 x 1.3"
