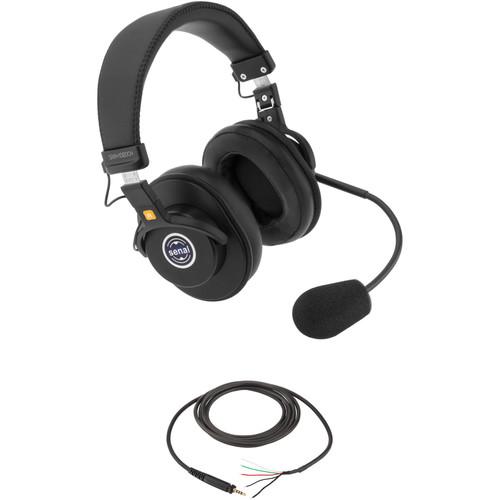

User Manual for Senal SMH-1020CH Dual-Sided Communication Headset with Pigtail Cable Click to enlarge the picture
Contents of the user manual for the Senal SMH-1020CH Dual-Sided Communication Headset with
- Product category: Headsets Senal
- Brand: Senal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Senal Headsets
|
User manual for the Senal SMH-1020CH Dual-Sided Communication Headset with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Senal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Senal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Senal product will considerably shorten its lifespan!
|
Product description The Senal SMH-1020CH Dual-Sided Communication Headset with Pigtail Cable (No Connector) from includes everything you need in a communications headset for TV or radio broadcast settings, as well as sports applications and behind-the-scenes theater environments. It features deep, padded ear cushions for isolation and noise-reduction in noisy venues. The 40mm neodymium drivers give you a wide frequency response of 20 Hz to 20 kHz. The microphone is a cardioid dynamic capsule. It is designed to minimize pickup of off-axis sound while capturing your voice clearly and intelligibly. The microphone is built on a durable gooseneck that can be rotated 180° and can be configured to be used on the left or right side of the headset. In addition, a switch is built into the gooseneck that automatically mutes the signal when it's swiveled into the vertical position. To mute the microphone, flip the gooseneck into the upright position. The SMH-1020CH interfaces with a variety of optional cables that offer compatibility with many major wired and wireless systems such as Telex, PortaCom, broadcast consoles, mixers, and computers. The SMH-1020CH features a twist-locking jack that makes it quick and easy to change cables. Finally, the headphones are collapsible, making storage and transportation a cinch. - Senal SMH-1020CH Communication Headset (Dual-Sided) Designed for wired and wireless communications alike, the Senal SMH-1020CH is a dual-sided communications headset for use in TV or radio broadcast settings, as well as sports applications and behind-the-scenes theater environments. First, you'll notice its deep, padded ear cushions, which offer not only comfort, but isolation and noise-reduction in noisy scenarios. Behind the ear cushions, 40mm neodymium drivers give you a wide frequency response of 20 Hz to 20 kHz, as well as an expansive dynamic range.
The microphone supplied with the SMH-1020CH is a cardioid dynamic capsule, designed to minimize pickup of off-axis sound while capturing your voice clearly and intelligibly. It sits upon a durable gooseneck that can be rotated 180°. This configuration can be used on the left or right side of the SMH-1020CH. Additionally, a switch is built into the gooseneck that automatically mutes the signal when it's swiveled into the vertical position; thus, to mute your microphone, all you have to do is flip the gooseneck into the upright position.
The SMH-1020CH interfaces with a variety of cables that offer compatibility with many major wired and wireless systems, such as Telex and PortaCom. You can also use this communication headset with broadcast consoles, mixers, and computers. Simply plug your separately-available, corresponding cable into the SMH-1020CH's twist-locking jack, and you're good to go. The headphones are also collapsible, making storage and transportation a cinch. Note: Please note, the SMH-1020CH does not ship with an output cable; for a list of compatible cables, please see our various kit configurations, or contact one of our specialists online, over the phone, or at our illustrious SuperStore. - Intelligible Speech Reproduction
- A cardioid dynamic microphone has been deployed for clear and intelligible voice reproduction
- 40mm Neodymium Drivers
- The dual-sided headphone utilizes a 40mm neodymium driver, which offers a wide frequency response and expansive dynamic range for accurate monitoring
- Passive Noise Reduction
- The SMH-1020CH offers a closed-back, over-the-ear design, which provides isolation in noisy environments; this allows you to hear what's coming over the headphones, such as cues from the director, instructions from the team leader, or coaching from the sidelines
- Precise Microphone Positioning
- The microphone is mounted on a durable gooseneck that swivels 180°; it can be used on the left or right side
- Detachable Twist-Locking Cable Design
- The twist-locking jack allows for easy attachment of cables and accessories
- Compatibility with Multiple Terminations
- The SMH-1020CH can be used with various cables, allowing you to work with multiple wired and wireless communications systems
- Comfortable Fit
- Soft, deep, and replaceable ear cushions—as well as a padded headband—provide comfort throughout long listening sessions
- Durable Design
- This headset is designed to stand up to studio and field use, offering a reliable performance even in the most demanding environments
- Folding Design
- The SMH-1020CH's folding design allows you to store and transport your headphones as needed
UPC: 847628586765 - Senal SMH-PIGTAIL Cable for Senal SMH-Series Communication Headsets The Senal SMH-PIGTAIL is a replacement cable intended for use with SMH-series communication headsets. It can also be used to augment your headset's versatility—as well as your own soldering handiness—as it gives you the means to wire your SMH-series headset to whatever connection you choose.At one end, you'll find the 3.5mm TRRS connector and corresponding locking jack; this twists into your SMH-1010CH or SMH-1020CH communication headset, establishing a secure and reliable connection all the while. At the other end, you'll note the previously mentioned unterminated wire, with which you can forge a connection to your preferred communication system.The SMH-PIGTAIL is part of a whole ecosystem of SMH-series cables, all of which let you swap between the pin-outs of different communication and broadcast systems with ease.
- Compatible with Senal SMH-Series Headsets
- The SMH-PIGTAIL fits perfectly into the twist-lock of your SMH-1010CH or SMH-1020CH, ensuring a secure connection to your headset.
- Compatible with Whatever System You Choose
- The SMH-PIGTAIL sports an unterminated cable, allowing you to wire your SMH-1010CH or 1020CH headset with the connector that's already compatible with your communication system.
UPC: 847628582569 In the Box - SMH-1020CH Communication Headset (Dual-Sided) zdavqxwxfctbcduyueawq
- Limited 3-Year Warranty
- SMH-PIGTAIL Cable for Senal SMH-Series Communication Headsets
Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal SMH-1020CH Dual-Sided Communication Headset with Pigtail Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Senal SMH-1020CH Communication Headset (Dual-Sided)
| | | Element | Moving coil, dynamic | | Polar Pattern (Microphone) | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Sensitivity | -79 dB ±3 dB (0 dB = 1 V/microbar, 1 kHz indicated by open circuit) | | Impedance | 200 Ohms ±30% at 1 kHz | | | | Ear Cup | Dual-Sided | | Speaker Dimensions | 1.6" / 40.0 mm | | Magnet Type | 20 Hz to 20 kHz | | Sensitivity | 84 dB | | Impedance | 200 Ohms, parallel | | Distortion | <5% | | Weight | 9.4 oz / 266.5 g | | | | Box Dimensions (LxWxH) | 10.0 x 6.4 x 4.4" | - Senal SMH-PIGTAIL Cable for Senal SMH-Series Communication Headsets
| Connectors | TRRS to unterminated wire | | Length | 48.3" / 122.6 cm | | Weight | 1.7 oz / 48.2 g | | | | Box Dimensions (LxWxH) | 6.5 x 5.0 x 0.6" |
