Product description

• Senal UB-440 Professional USB Microphone
  • Senal UB-440 Unboxing & Overview

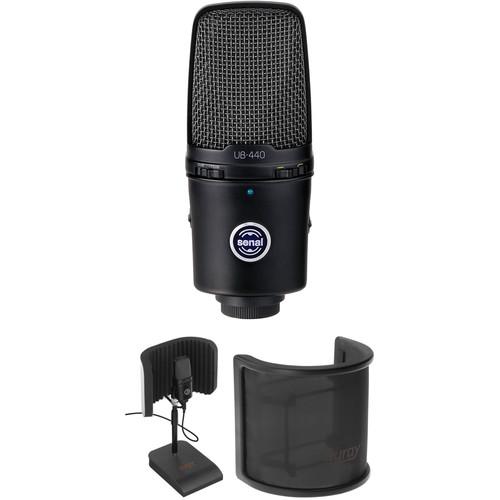

  The UB-440 Professional USB Microphone from Senal is a cardioid condenser mic that combines professional quality sound capture with the ease of plug-and-play USB connectivity on both Mac and Windows computers. A full solution for recording, the UB-440 allows you to track studio-quality audio in higher-than-CD quality, 16-bit/48 kHz resolution without the need for an external mic preamp, audio interface, and headphone amplifier. Its cardioid polar pattern offers pristine and accurate capture.
  Studio Workhorse
  • The UB-440 provides a high level of versatility, excelling at tracking vocals, voice-overs, and instruments. Its integrated preamp provides ample gain that can be controlled via the mic's continuous gain slider
  Selectable Pad and High-Pass Filter
  • A selectable 10 dB pad allows you to track louder sources, while the selectable high-pass filter at 80 Hz can eliminate unwanted low-noise rumble
  Headphone Monitoring
  • The 1/8" headphone output features an independent gain control and provides monitoring for real-time playback and multi-tracking. You can use it to monitor playback from your DAW of choice, even when not recording. The continuous headphone control assures you will be able monitor at necessary volume levels
  Power LED
  • The bright blue power LED lights up when the UB-440 is properly connected to your computer
  UPC: 847628566736
• Auray RFDT-128 Desktop Reflection Filter and Mic Stand
  • Senal UB-440 Unboxing & Overview
  Designed to be an all-in-one solution for desktop recording where isolation is needed, the RFDT-128 Desktop Reflection Filter and Mic Stand from Auray features high-density acoustic foam and a perforated aluminum screen that absorb and block room noise and reflections that can commonly occur in acoustically untreated rooms. When recording in an untreated acoustic environment, vocals that reflect off of the walls and ceiling can be picked up by the microphone. These reflections can interfere with the sound of the voice and create a distant and "roomy" effect. By absorbing and diffusing these reflections, the RFDT-128 creates a closer and drier sound truer to your voice, making it easier to work with during the mixing process, and is more desirable for broadcasts, podcasts, voiceover, and desktop recording applications.

  An aluminum and acoustic-foam base provide additional noise protection by isolating the filter and your microphone against vibrations from your desk or table. The filter sits on a telescoping shaft that can be adjusted from 7 to 12" of height, for flexibility in mic positioning. Not limited to desktop applications, the RFDT-128's shield can be attached to a broadcast arm with the included mounting hardware. Its threaded mount is compatible with 5/8"-27 mic clips and shockmounts.
  • Compact, all-in-one solution for providing sound isolation in desktop recording applications
  • High-density acoustic foam works with the perforated aluminum shield to absorb and diffuse acoustic reflections while isolating your microphone
  • The telescoping shaft with twist lock allows for easy and precise height adjustment of microphone and filter
  • The standard 5/8"-27 threaded mount accepts most microphone clips and shock mounts
  • The sliding bracket makes it easy to position the microphone inside the reflection filter
  • The base is constructed of an aluminum plate for stability, and a 1.5" layer of high density acoustic foam for absorbing vibrations from a desk or tabletop
  UPC: 847628578555
• Auray OMPF-33 On-Microphone Pop Screen
  • Senal UB-440 Unboxing & Overview
  Designed to eliminate vocal plosives and prevent moisture from reaching your large-diaphragm condenser microphone without the need for connecting a gooseneck to your mic stand, the OMPF-33 On-Microphone Pop Screen from Auray features an elegant, easy to clean multi-layer mesh surface and will fit side-address condenser microphones with a diameter between 1.8 and 2.5" (45 to 65 mm).

  The included heavy-duty elastic bands make attaching the OMPF-33 to your mic a snap. Since it attaches directly to the mic itself, it stays in the perfect spot even when you have to adjust the mic's height or position and is a great space saver, making it ideal for use with desktop mic stands, where space is often at a premium. Thanks to its space age, lightweight ABS construction, it will not weigh down your mic.
  • Acoustically transparent- does not affect your sound
  • Easily attaches in seconds
  • Stops plosive sounds
  • Prevents moisture from hitting your mic's capsule
  • Moves with your microphone
  UPC: 847628579576

• UB-440 Professional USB Microphone wxwectrezfxszcwyrrvszzsbayu
• Microphone Clip
• Desktop Microphone Stand
• 4' USB Cable
• Limited 2-Year Warranty

• Auray - RFDT-128 Desktop Reflection Filter and Mic Stand wxwectrezfxszcwyrrvszzsbayu

• Auray - OMPF-33 On-Microphone Pop Screen

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal UB-440 Professional USB Microphone

  Transducer	Electret Condenser
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 18 kHz
  Signal to Noise Ratio	60 dB
  Maximum SPL	125 dB SPL
  Pad	-10 dB
  Sensitivity	-42 dB -46 dB -50 dB

  Bit Depth	16-Bit
  Sample Rate	48 kHz
  Operating System Support	Windows, macOS/OS X

  Output Connectors	1 x USB Type-B
  Headphone Connector	1 x 1/8" (3.5 mm)
  Operating Voltage	5 V
  Length	5.5" / 139.70 mm
  Weight	0.95 lb / 0.43 kg

  Box Dimensions (LxWxH)	8.7 x 6.8 x 4.1"

• Auray RFDT-128 Desktop Reflection Filter and Mic Stand

  Filter	Dimensions (H x L x D): 7.9 x 12.4 x 4.3" (20 x 31.6 x 10.8 cm)
  Base	Dimensions: (L x W x H): 9.3 x 6.7 x 1.6" (23.5 x 17 x 4.1 cm)
  Adjustable Height Range	7 to 12" (17.8 to 30.4 cm)
  Weight	2.75 lb (1.25 kg)

  Box Dimensions (LxWxH)	12.2 x 8.4 x 5.4"

• Auray OMPF-33 On-Microphone Pop Screen

  Compatibility

  Fits large diaphragm condenser mics between 1.8 and 2.5" (45 to 65 mm)

  Box Dimensions (LxWxH)	8.2 x 4.0 x 2.6"
