Product description - Senal UTM-86: Appetite for a Premium Lavalier Mic

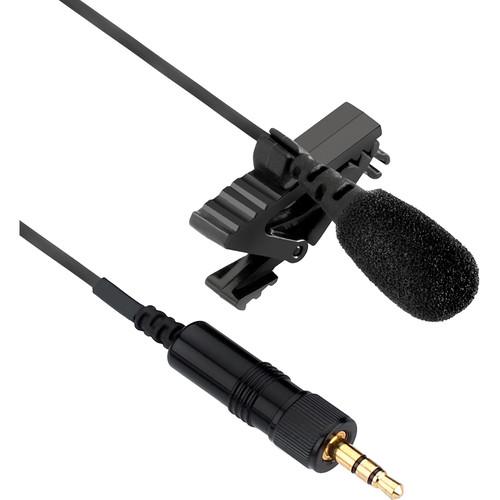

The UTM-86-35H Lavalier Mic with 3.5mm Connector for Sennheiser & Senal Wireless Transmitters from Senal features an omnidirectional polar pattern and a frequency response optimized for voices and dialog. It can be used to deliver realistic and robust broadcast-quality sound for TV, live stage, theater, or any other applications where an inconspicuous lavalier microphone is needed.The lavalier mic has a wide frequency response tailored for rich low frequencies and a natural-sounding mid range. The omnidirectional polar pattern provides minimal sensitivity to head movement and offers numerous options for discreetly positioning the microphone on a performer's clothing or wardrobe. A windscreen and a selection of various mounting accessories are included to accommodate miking scenarios for public speaking, interview, video, and film applications. Specially designed strain relief and cable insulation significantly minimize handling noise.The UTM-86-35H can also be combined with Senal's power supply (sold separately) enabling it to operate on phantom or battery power, which provides compatibility with any XLR mic input. - Sennheiser Evolution & Senal AWS-2000 Series Transmitters
- The UTM-86-35H terminates in a connector designed for Sennheiser & Senal transmitters
- Optimized for Speech
- The mic is built small, but doesn't skimp on quality. This lavalier features an electret condenser element with a wide dynamic range. The frequency response is tailored to capture rich, low frequencies and a natural-sounding mid range, which is ideal for speech and dialog.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern is minimally sensitive to head movement. If the subject turns his or her head while speaking, the UTM-86-35H will pick up the voice without any fluctuations in volume. The microphone captures sound that is slightly off-axis and is indispensable for minimizing vocal plosives and popping.
- Low Noise
- The cable can be a source of unwanted noise. A shielded cable protects against radio-frequency interference. Its insulation and specially designed strain relief minimize handling and cable noise if your subject is moving around while speaking.

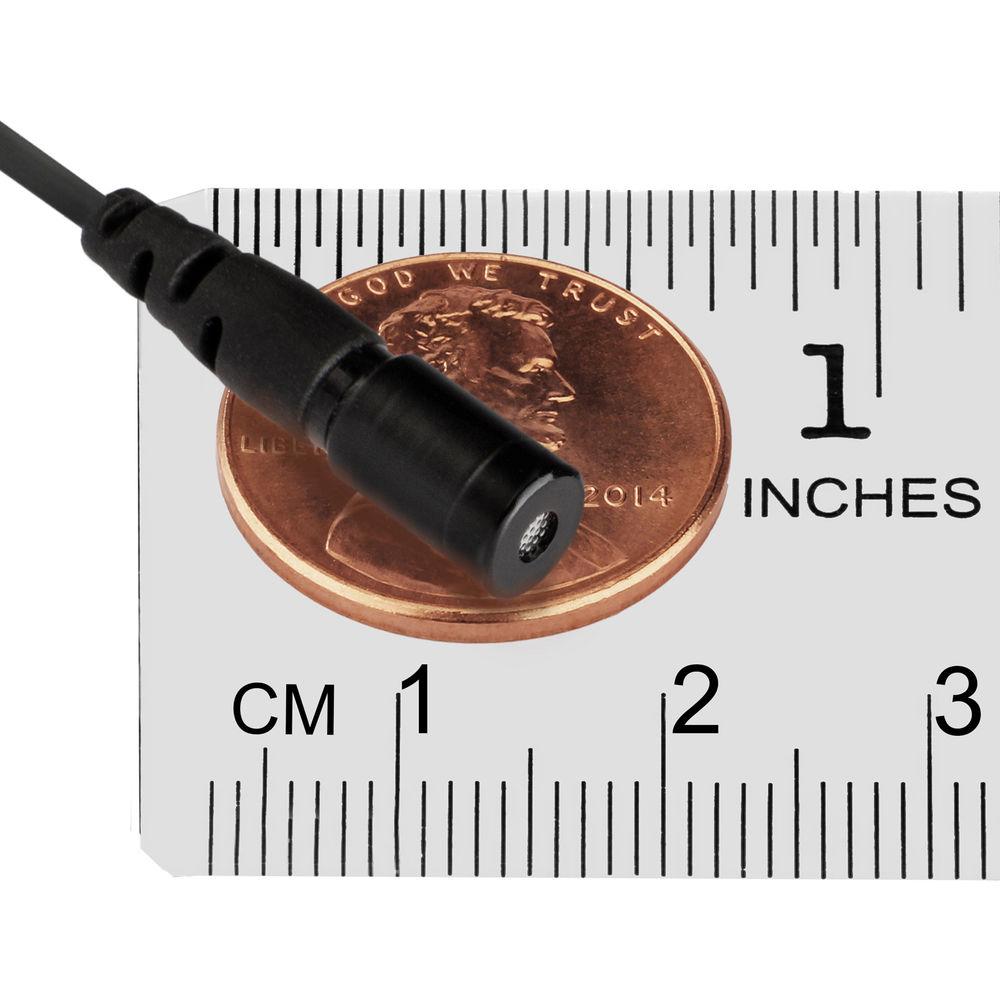

- Miniature Size
- The small and unobtrusive capsule has a head diameter of only 0.2" (5.5mm) and makes the UTM-86-35H easy to conceal in a performer's clothing or props for onscreen and onstage use. The microphone is inconspicuous and will capture great sound.

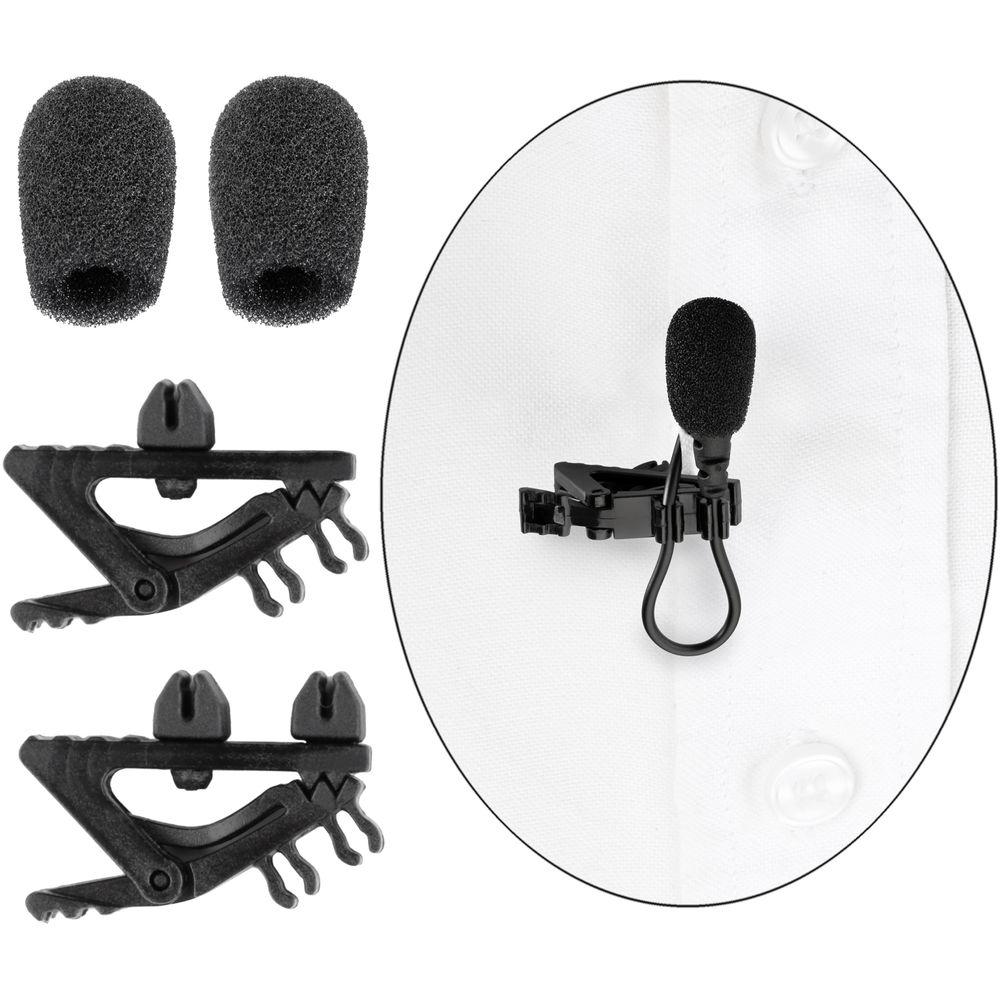

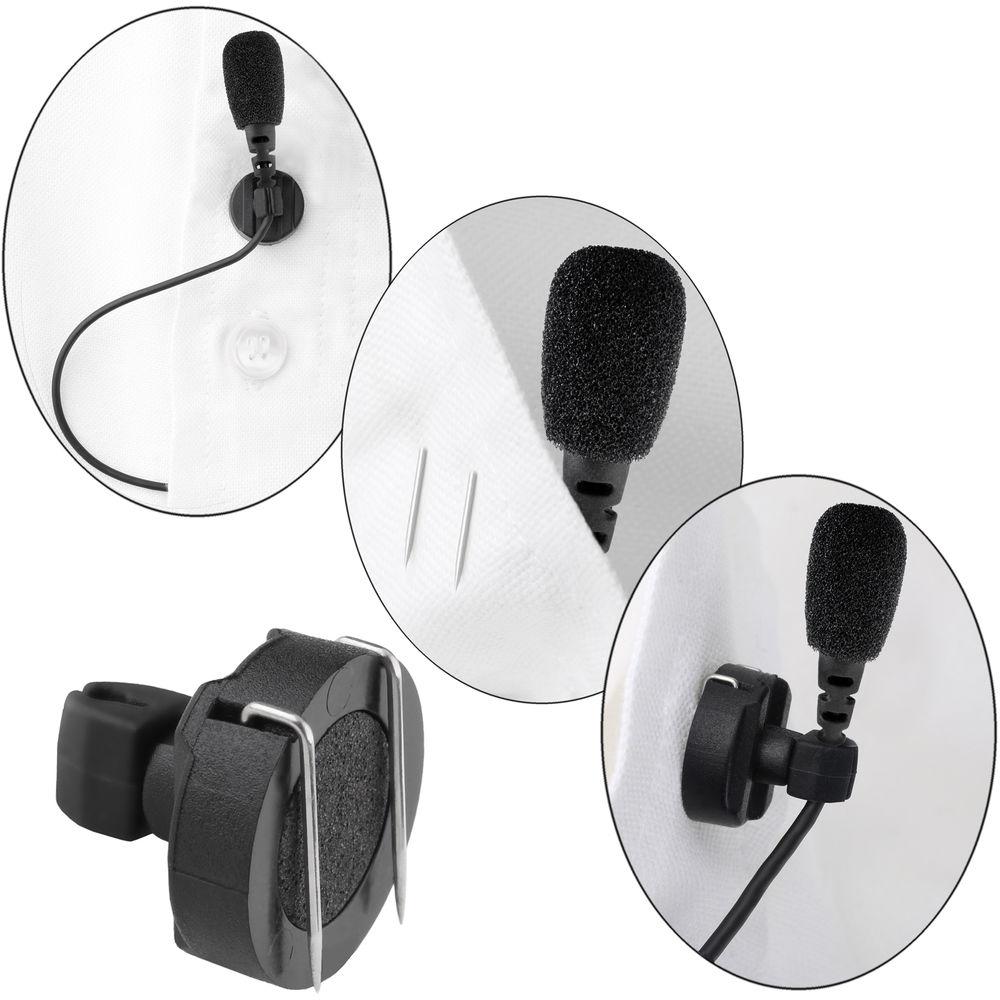

- Accessories

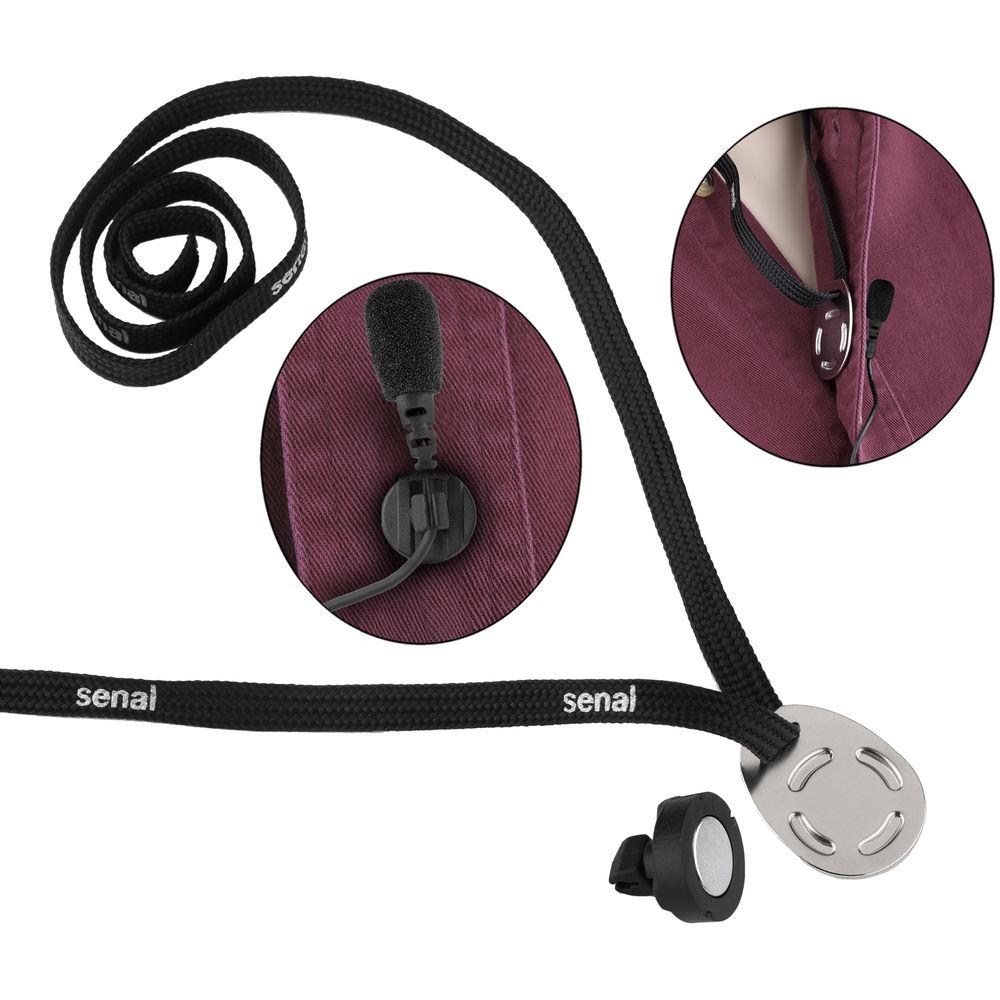

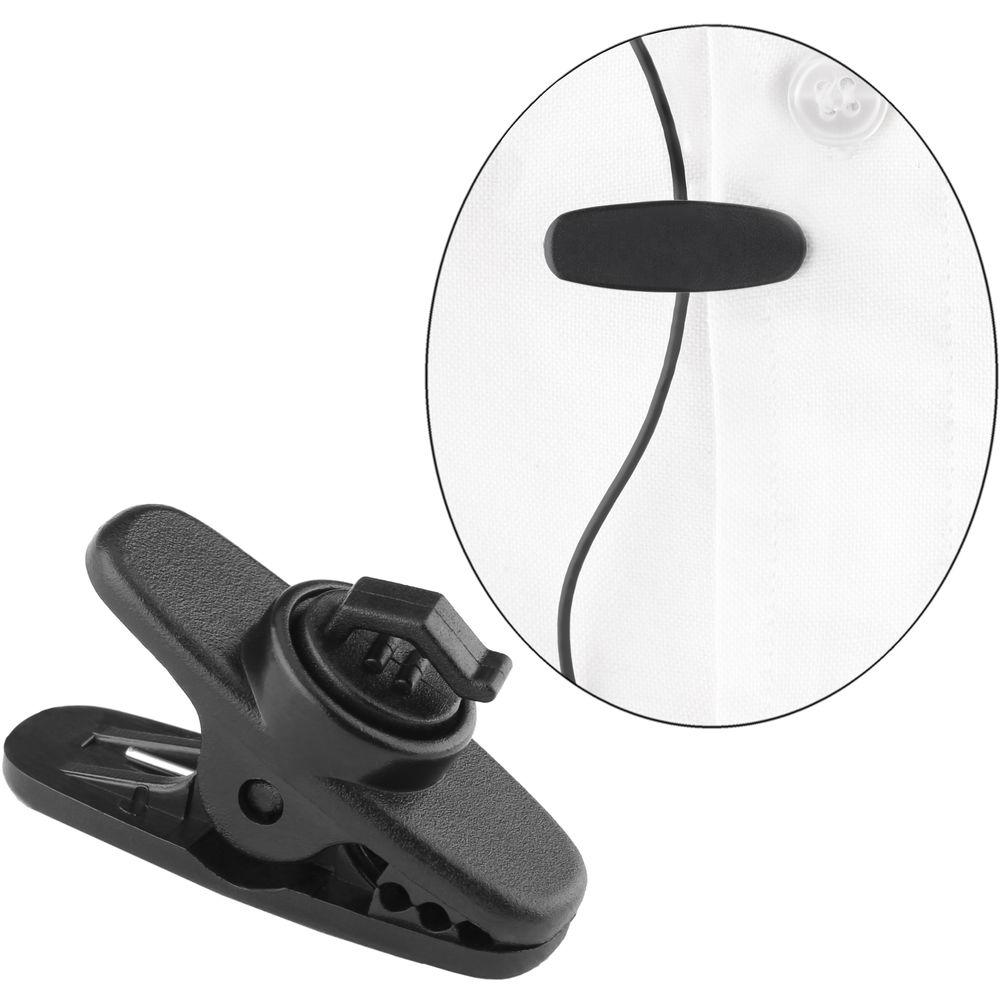

- The microphone is suitable for all kinds of applications and includes several mounting options such as a single tie clip, double tie clip, a cable clip, a magnetic clip with lanyard, and a viper clip. Two foam windscreens provide extra protection against wind noise and vocal plosives.
- Expanded Capability
- When combined with Senal's power supply (available separately), your lavalier microphone is compatible with any device that has an XLR mic input such as a mixing board, video camcorder, or portable audio recorder.

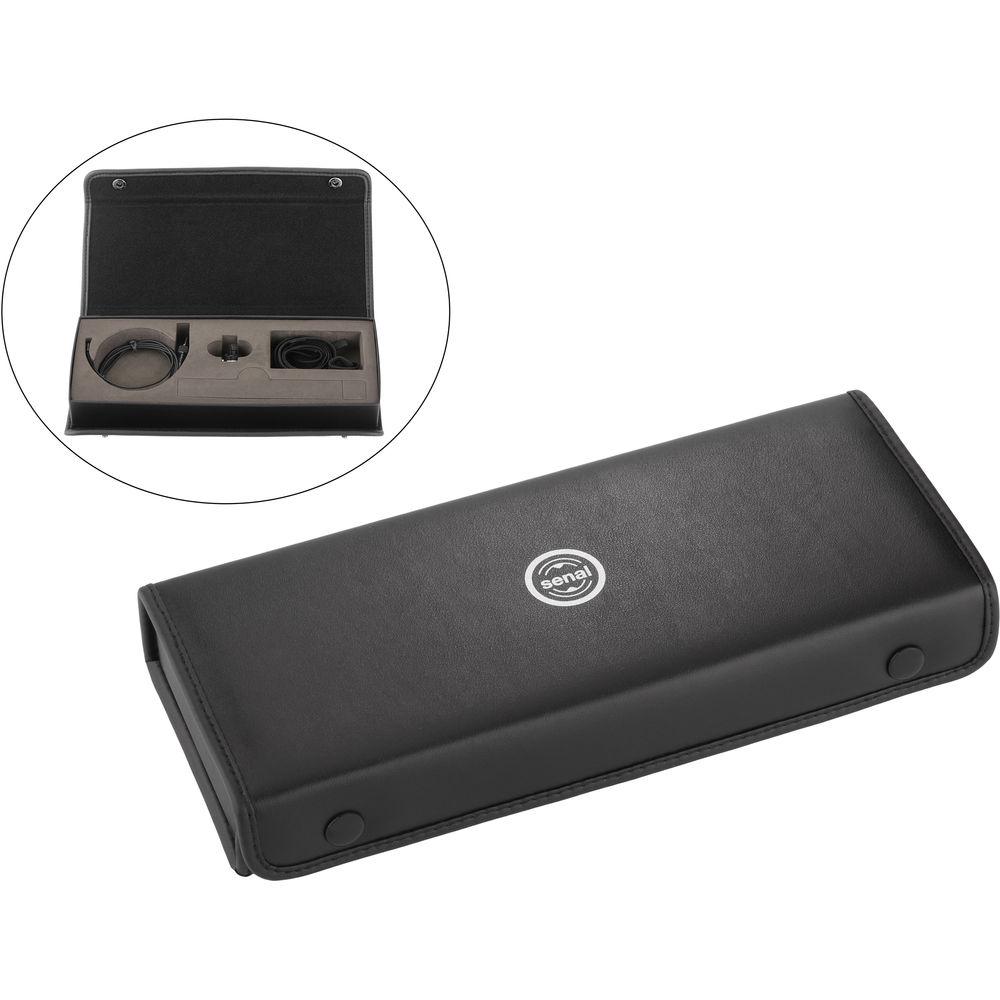

- Carry Case
- A padded carry case holds the microphone and accessories securely and protects them from impact, dust, or moisture during transport.
UPC: 847628598799 In the Box Senal UTM-86-35H Lavalier Mic with 3.5mm Connector for Sennheiser & Senal Wireless Transmitters Single Tie Clip Double Tie Clip Cable Clip Magnetic Clip with Lanyard Viper Clip Windscreen Carry Case Limited 1-Year Warranty User Manual PDF 891.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Senal UTM-86-35H Lavalier Mic with 3.5mm Connector for Sennheiser & Senal Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSenal UTM-86 Specs | Transducer | Back-electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz to 18 kHz | | Sensitivity | -64 dB ±3 dB | | Impedance | 600 Ohms ±30% (@ 1 kHz) | | Signal-to-Noise Ratio | >70 dB @ 1 kHz | | Maximum Input Sound Level | 126 dB @ 1 kHz | | Operating Voltage | 2 VDC | | Connector | 3.5 mm | | Cable Length | 3.6' / 1.1 m | | Head Dimensions | Height: 1.0" / 24.3 mm
Diameter: 0.2" / 5.5 mm | | Cable Diameter | 0.06" / 1.6 mm | | Weight | 0.4 oz / 12 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 10.4 x 4.4 x 1.7" |
