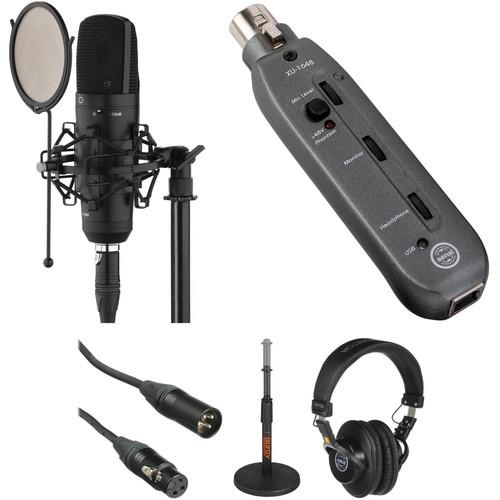

Senal Voice-Over Production Kit

User Manual for Senal Voice-Over Production Kit

• Product category: Large Diaphragm Condenser Senal
• Brand: Senal
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Senal Large Diaphragm Condenser

Product description

• Senal SC-550X Professional Cardioid Condenser Microphone Designed to provide both professional and project studios a workhorse microphone that can be used in a wide variety of applications, the SC-550X Professional Cardioid Condenser Microphone from Senal boasts a wide, linear frequency response coupled with a precise transient response and high signal-to-noise ratio for accurate sound capture. It has a high SPL handling of 140 dB, and is at home not only in front of vocalists, but for tracking acoustic and electric guitars, brass, strings, pianos, and overhead drums.

  Thanks to its cardioid polar pattern, the SC-550X has a generous pickup range while minimizing off-axis noise. A selectable -10 dB pad allows you to use it in front of particularly loud sources without distorting, while the selectable high-pass filter provides an on-board low-frequency roll off. A shockmount, pop filter, and case are all included.
  Condenser Element
  • The Senal SC-550X is a studio condenser microphone with a warm, full-bodied sound, accurate transient response, and high signal-to-noise ratio
  Cardioid Polar Pattern
  • The SC-550X's cardioid polar pattern provides excellent off-axis rejection and enables the microphone to capture detailed sound from directly in front of the capsule
  High-Pass Filter
  • The high-pass filter helps prevent the SC-550X from picking up low-frequency noises like the rumble from an air conditioner, which can interfere with your recording
  Attenuation Pad
  • The attenuation pad adds further adaptability to the SC-550X, lowering the output by 10 dB to prevent distortion when recording loud sounds like cymbals and electric guitar cabinets
  All-Metal Construction
  • The microphone's rugged all-metal construction maintains an overall high standard of durability. With the included hard-shell case to store the microphone and all the included accessories, it's easy to take the SC-550X with you on the road
  Flat Frequency Response
  • With its flat frequency response, the SC-550X delivers accurate, detailed sound reproduction designed for use in all recording environments. Capable of capturing vocals in the studio, the SC-550X also offers versatility for recording guitars, brass, strings, and piano, as well as overhead drum miking. It can also be used for nonmusical applications like podcasting, voiceovers, and broadcast use
  140 dB Maximum SPL
  • The SC-550X's 140 dB maximum SPL optimizes the microphone to accurately capture loud signals without distorting
  Shockmount
  • The included shock mount isolates the SC-550X to prevent it from picking up unwanted noise caused by vibrations. The universal 5/8" threaded socket is compatible with most microphone stands, and the locking knob enables vertical adjustment for customized placement
  Pop Filter
  • The included pop filter is indispensable for recording vocals. The metal mesh screen reduces noise from aspirated plosives like p and b sounds and keeps corrosive moisture away from the capsule. Just mount the pop filter onto the rim of the shock mount and adjust it to suit your vocalist
  UPC: 847628582774
• Senal XU-1648 XLR-to-USB Interface The XU-1648 from Senal is a compact XLR-to-USB adapter interface that allows you to plug your microphone into the USB port of any Mac or Windows computer for use with your favorite digital recording software. Its rugged build and plug-and-play operation make it perfect for bands, recording artists, podcasters and more.

  For use with dynamic or condenser microphones, the XU-1648 delivers 16-bit/48-kHz studio-quality sound. It also features a microphone preamp with gain control and switchable 48V phantom power. Its 1/8" headphone output features a volume control and allows for zero-latency monitoring. There is also a monitor level control to adjust the balance between the audio playback from your computer and the sound of your microphone.

  In addition, the XU-1648 features a tough, all-metal chassis with non-slip neoprene feet on the bottom to prevent it from slipping.
  • Plug-and-play XLR-to-USB adapter
  • Rugged metal chassis
  • 16-bit/48-kHz studio-quality sound
  • Low-noise mic preamp with gain control
  • 1/8"(3.5mm) latency-free headphone output with level control
  • Monitor output adjusts balance between audio playback and live mic
  • Peak level indicator to help avoid clipping
  • USB bus powered
  • 6.25' USB cable included
  UPC: 847628569874
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267
• Auray TT-6220 Telescoping Tabletop Microphone Stand (Black) The black TT-6220 Telescoping Tabletop Microphone Stand from Auray meets the needs of any desktop audio applications that require the use of a microphone by providing a solid, weighted round base with three nonslip rubber feet for additional stability. The telescoping shaft delivers flexibility when it comes to positioning the height of the microphone and includes a microphone cable guide. Durable steel construction ensures longevity.
  • Telescoping shaft for adjustable height
  • Weighted round base
  • Three nonslip rubber feet
  • Microphone cable guide
  • Durable steel construction
  UPC: 847628578234
• Senal SMH-1000 Professional Field and Studio Monitor Headphones The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.

  Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.

  The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.

  Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.

  The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening.
  • An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
  • Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
  • Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
  • Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
  • Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
  • Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
  • Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
  • Easy storage via collapsible folding mechanism.
  UPC: 847628015821

• SC-550X Professional Cardioid Condenser Microphone bfxewbtbdutbcwcvcqxz
• Shockmount
• Pop Filter
• Carry Case
• Limited 1-Year Warranty

• XU-1648 XLR-to-USB Interface bfxewbtbdutbcwcvcqxz

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

• Auray - TT-6220 Telescoping Tabletop Microphone Stand (Black)

• SMH-1000 Professional Field and Studio Monitor Headphones bfxewbtbdutbcwcvcqxz

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Senal SC-550X Professional Cardioid Condenser Microphone

  Element	Condenser
  Polar Pattern	Cardioid
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	-36 dB ±2 dB @ 1 kHz
  Signal to Noise Ratio	79 dB (1 kHz at 1 Pa)
  Maximum Input Sound Level	140 dB
  Impedance	200 ohms
  Power Requirements	+ 48 V
  Output Connector	3-pin XLR
  Pad	-10 dB
  High Pass Filter	80 Hz
  Dimensions (Ø x L)	2 x 7.2" / 5.1 x 18.2 cm
  Weight	13.6 oz / 386 g

  Box Dimensions (LxWxH)	13.7 x 11.0 x 3.7"

• Senal XU-1648 XLR-to-USB Interface

  Max Sample Rate/Resolution	48 kHz / 16-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	1 x XLR 3-Pin Input 1 x 1/8" (3.5 mm) TRS Headphone Output
  Phantom Power	+48 V ± 2 V
  Digital I/O	None
  MIDI I/O	None

  Frequency Response	25 Hz to 20 kHz
  Gain Range	Inputs: 35 dB
  Headphone Output Power	50 mW into 16 Ohms
  Impedance	Inputs: 1.2 kOhms

  Sample Rates	32, 44.1, and 48 kHz (D/A Conversion) 8, 11.025, 16, 22.05, 32, 44.1, and 48 kHz (A/D Conversion)
  Bit Depth	16-Bit

  Power Consumption	2.2 W
  Phantom Power Current	15 mA per Channel

  Dimensions	5.1 x 1.2 x 1.1" / 13 x 3.1 x 2.8 cm
  Weight	3.3 oz / 94.0 g

  Box Dimensions (LxWxH)	6.7 x 6.6 x 1.7"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"

• Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)

  Height	8.3 to 13.5" / 21 to 34.3 cm
  Base Type	Round
  Base Dimensions	6.2 x 6.2" / 15.7 x 15.7 cm

  Mounting Thread	5/8"-27
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	7.05 x 7.05 x 1.9"

• Senal SMH-1000 Professional Field and Studio Monitor Headphones

  Driver Size	1.6" / 40 mm
  Magnet Type	Neodymium
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	10 Hz to 20 kHz
  Sensitivity	102 dB at 1 kHz / 1 mW
  Impedance	58 Ohms
  Maximum Power Handling	1000 mW
  Total Harmonic Distortion (THD)	1%

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Detachable	Yes

  Weight	8 oz / 226.8 g

  Box Dimensions (LxWxH)	9.1 x 8.8 x 3.8"
