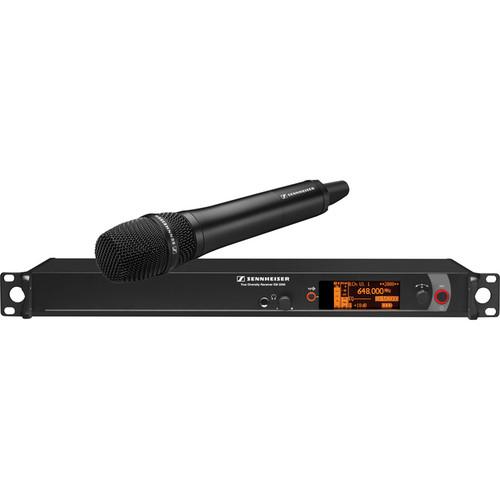

User Manual for Sennheiser 2000 Series Single Handheld Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Sennheiser 2000 Series Single Handheld Wireless
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
|
User manual for the Sennheiser 2000 Series Single Handheld Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser 2000 Series Single Handheld Wireless Microphone System consists of the Sennheiser EM 2000 Wireless Receiver and SKM 2000-XP Handheld Transmitter with the MMD 945 dynamic, supercardioid microphone capsule attached. The system yields up to 3000 UHF frequencies and 20 fixed frequency bands with up to 64 compatible presets.An integrated active splitter allows up to 16 channels without using external splitters, and True Diversity technology minimizes RF noise and drop-out while increasing range and clarity. Ethernet allows the system to be networked with a PC, and remotely controlled with Sennheiser's WSM software. Additional features include a full programmable EQ, channel scanning, infrared syncing between the transmitter and receiver, user-friendly back-lit LCD interface, adjustable headphone output and more. In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. Receiver - Rugged 19" all-metal housing with integrated power supply unit
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency bands with up to 64 compatible presets
- 6 banks each with up to 64 tunable channels
- True diversity technology for best reception quality
- Integrated antenna splitter for cascading up to 8 devices without using additional splitters
- Pilot tone squelch for interference-free operation
- Scan feature within the channel band system
- Continuous scanning together with Sennheiser's Wireless Systems Manager
- Frequency setting in 25 kHz steps
- Squelch setting always visible on the display
- Antenna cables for active antenna supply
- Transformer-balanced audio outputs
- HDX noise reduction system with signal-to-noise ratio less than 120 dB(A)
- Ethernet for connecting to a PC
- Monitoring and control using Sennheiser WSM PC software
- User-friendly menu interface with two-color backlit graphic display (red as a warning)
- Transmitters can be configured from the receiver menu
- Transmitters can be synchronized over the infrared interface
- 4 selectable equalizer presets
- Soundcheck mode for monitoring transmission conditions
- Adjustable headphone connection
Transmitter - Up to 75 MHz switching bandwidth
- 20 fixed frequency bands with up to 64 compatible presets
- 6 banks each with up to 64 tunable channels
- Frequency setting in 25 kHz steps
- Pilot tone squelch for interference-free operation
- External charging contacts for recharging battery BA 2015 in the transmitter
- Backlit display on transmitter (keystroke activation)
- Auto-lock feature to prevent buttons from accidently being pressed
- Audio and RF MUTE feature for muting the transmitter
- Transmitters can be configured from the receiver menu
- Possible to synchronize with the receiver using infrared interface
- Wide range of accessories for virtually any use
In the Box Sennheiser 2000 Series Single Handheld Wireless Microphone System (G: 558 to 626 MHz) EM 2000 Professional True Diversity Wireless Microphone Receiver (Gw: 558 - 626 MHz) SKM 2000 Handheld Transmitter with MMD 945 Capsule 3 x Mains Cables (EU, UK, and US) 2 x AA 1.5 V Batteries Microphone Clip 8 x Color-Coded Rings 2 x Rod Antennas Self-Adhesive Device Feet Instruction Manual Supplementary Frequency Sheet Supplementary RF Power Sheet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser 2000 Series Single Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser 2000H1-945BK-G Specs | | | Frequency | G: 558 to 626 MHz | | Carrier Frequency | Max. 3,000 | | Presets | 64 | | Bandwidth | Max. 75MHz | | Squelch | off, 5 - 25 dBμV can be set in 2dB steps | | Intermodulation Distortion | ≥ 75 dB | | Antenna Connector | 2 BNC (50Ω) | | Gain | 0 dB ±0.5 dB based on antenna inputs | | Operating Temperature | -10 °C - + 55 °C | | Deviation | +/- 48kHz (Peak) | | Compander | HDX | | Signal-to-Noise Ratio | > 120 dB(A) | | THD | < 0.9% | | Frequency Response | 25Hz to 18kHz | | Connector | XLR-3 + 1/4" Phone (6.3mm) jack | | Power Supply | 100 to 240 VAC, 50/60Hz | | Consumption | 0.25A | | Dimensions | 19.01 x 8.54 x 1.69" (483 x 217 x 43mm) | | Weight | 6.39 lb (2.9 kg) | | | | Modulation | FM | | Frequency | G: 558 to 626 MHz | | Carrier Frequency | Max. 3,000 | | Presets | Max. 64 | | Bandwidth | Max. 75Hz | | Signal-to-Noise Ratio | ≥ 120 dBA (@ 1mV peak deviation) | | Frequency Response | 80Hz - 18kHz | | Audio Output Power | Selectable from 10, 30, 50, or 100 mW | | Compander | HDX | | Deviation | Nominal: ±24 kHz
Peak: ± 48 kHz | | Operating Voltage | 2 x 1.5 V (AA)
8 Hours | | Dimensions | 1.96 x 10.43" (50 x 265mm) | | Weight | 0.99 lb (450g) |
