User Manual for Sennheiser 2000ENG Portable Wireless Combo System Click to enlarge the picture
Contents of the user manual for the Sennheiser 2000ENG Portable Wireless Combo System
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
|
User manual for the Sennheiser 2000ENG Portable Wireless Combo System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

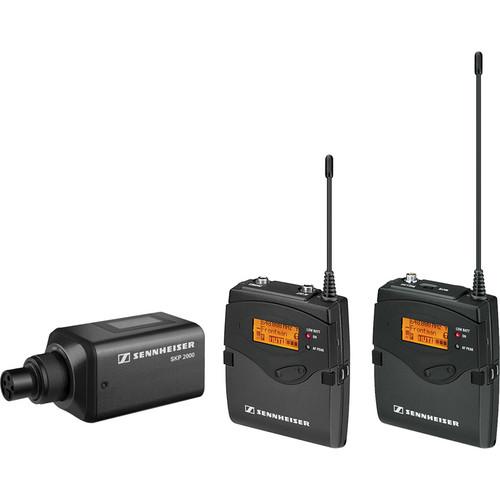

Product description The Sennheiser 2000ENG Portable Wireless Combo System features the Sennheiser EK 2000 portable receiver, SK 2000XP bodypack transmitter and SKP 2000-XP plug-in transmitter with +48V phantom power for use with condenser microphones. The 2000 series delivers a superior feature set over the Sennheiser 100, 300 and 500 series wireless systems.The 2000 series is specifically optimized for professional mobile and location recording in video, film, ENG broadcast, sound design and more. Both transmitters and receiver feature a sturdy all-metal housing (including battery door). The ultra-wide 72MHz switching bandwidth provides up to 2,880 frequencies and adaptive diversity technology minimizes drop-out, noise and RF interference, resulting in greater range and frequency stability.The receiver features separate headphone monitor and balanced main output via 1/8" (3.5mm) locking connections. Adjustable 10, 30, 50 or 100 mW RF output power settings provide increased range and stable transmission over long distances. Squelch control allows for precise settings in 2dB steps up to 25dBμV, and the transmitter / receiver settings are easily synced via infrared. - SKP 2000-XP plug-in transmitter supports +48V phantom power for use with dynamic and condenser microphones
- Sturdy metal housing - including battery compartment
- 72MHz bandwidth allows for up to 2880 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 26 banks and 64 compatible frequencies per bank
- Main balanced output and separate balanced headphone output on receiver
- High-quality adaptive diversity reception greatly minimizes noise and interference
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitter / receiver settings via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Programmable Mute function
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
In the Box Sennheiser 2000ENG Portable Wireless Combo System (Frequency G: 558 to 626 MHz) CA2 Shoemount Adapter CL-500 Balanced Cable 1/8"-M to XLR-M CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver POP 1 Protective Pouch for Plug-On Wireless Transmitters 6 x 1.5V Batteries Instruction Manual Supplementary Frequency Sheet 2 Year Warranty User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser 2000ENG Portable Wireless Combo System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser 2000ENGCOMBO-G Specs | | | Type of System | Camera-Mountable, Diversity UHF Wireless Combo System | | RF Carrier Frequency Range | G: 558 to 626 MHz
RF frequency range: 516 - 865MHzCarrier frequencies: max. 3,000
Preset channels: max. 64Switching bandwidth: max. 75MHz | | RF Output Power | Selectable from 10, 30, 50, or 100mW | | Diversity Circuitry | Adaptive Antenna Diversity | | Squelch | Adjustable in 2dB Steps up to 25dBμV; "Off" 5….25dBμV | | Overall Frequency Response | 25Hz - 18kHz | | Signal-to-Noise Ratio | > 120dB(A) (@ 1 mV, peak deviation) | | # Of Channels | Up to 2880
20 Channel Banks, 6 Fixed Bank, 64 Factory Preset Channels Each | | | | Type of Transmitter | SK2000-XP Bodypack | | Connector | Sennheiser 3-pin connection | | Impedance | Input impedance; mic: 40 kΩ, line: 1 MΩ | | Battery Type/Approx. Life | AA Batteries 1.5V x2
Life: 8 - 10 hours Input voltage range: mic 1.2V max | | Deviation | Nominal: +/-24kHz
Peak: +/-48kHz | | Compander | HDX | | Frequency Response | Line: 25 - 18kHz
Mic: 80 - 18kHz | | THD | < 0.9% | | Signal-to-Noise Ratio | > 120 dB(A) (@ 1 mV, peak deviation) | | Dimensions | 3.23 x 2.92 x 0.94" (82 x 64 x 24mm) | | Weight | 5.64 oz (160g) | | | | Transmitter Type | SKP 2000-XP Plug-in | | Connector | 3-pin XLR | | Deviation | Nominal deviation: ±24kHz
Peak deviation: ±48kHz | | Compander | HDX | | Frequency Response | 80Hz - 18kHz | | THD | < 0.9% | | Signal-to-Noise Ratio | ≥ 120 dBA (@ 1 mV peak deviation) | | Battery | 2x 1.5 V (AA)
Operating time: > 8 hours (P48: 5 hours) | | Input Voltage | 1.2 V max | | Dimensions | 4.13 x 1.69 x 1.69" (105 x 43 x 43mm) | | Weight | 6.87 oz (195g) | | | | Type of Receiver | EK2000 Portable Receiver | | Headphone Monitoring | Yes | | Connector | Balanced Locking 1/8" (3.5mm) Mini
Headphone Output: Locking 1/8" (3.5mm) Mini | | Battery Type/Approx. Life | AA 1.5V Batteries x2
Life: 6 - 10 hours | | Signal-to-Noise Ratio | > 120 dB(A) | | Squelch | off, 5 - 25dBμV in 2dB steps | | Compander | Sennheiser HDX | | Frequency Response | 25Hz - 18kHz | | Audio Output Level | +17dBu | | Display | Backlit LCD | | Dimensions (WxDxH) | 3.23 x 2.92 x 0.94" (82 x 64 x 25mm) | | Weight | 7.05 oz (200g) | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 15.2 x 8.3 x 6.7" |
