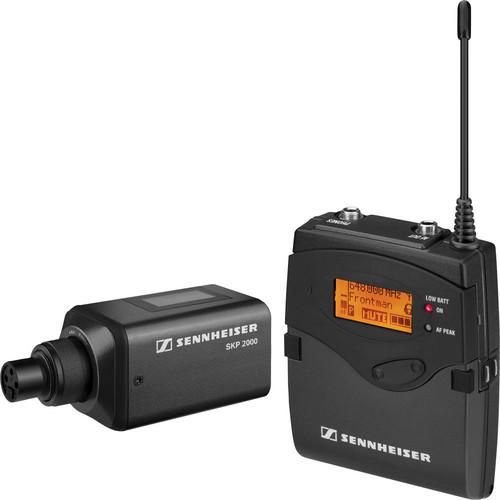

User Manual for Sennheiser 2000ENG-SKP Portable Wireless Plug-in System Click to enlarge the picture
Contents of the user manual for the Sennheiser 2000ENG-SKP Portable Wireless Plug-in System
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
|
User manual for the Sennheiser 2000ENG-SKP Portable Wireless Plug-in System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser 2000ENG-SKP Portable Wireless Plug-in System includes the EK 2000 portable receiver and SKP 2000XP plug-in transmitter. The system is compiled for portable recording applications in location video, ENG broadcast and recording, sound design and more. The Sennheiser 2000 series features a sturdy all-metal housing, up to 3000 frequencies in the 75 MHz switching bandwidth, adaptive diversity technology, headphone monitor output at the receiver and variable output power settings for increased range. - EK 2000 Battery-Powered Diversity Receiver (G - 566-608MHz) The EK 2000 from Sennheiser is a battery-powered wireless receiver. It's designed to receive wireless audio signals from the SK 2000 beltpack transmitter, the SKP 2000 plug-on transmitter, as well as being backward compatible with all Evolution, 3000, and 5000 Series wireless systems. You can scan for available frequencies with the EK 2000 and synchronize the found frequency with infrared technology to a 2000 Series transmitter.While the EK 2000 may visually resemble the Sennheiser Evolution EK 100, closer inspection reveals that the 2000 Series offers a lot more power and versatility. The EK 2000 is a diversity system that cleverly uses the output cable of the receiver as a second antenna (diversity systems can really help you avoid drop outs and interference). A headphone output is included that enables you to monitor your signal, as well as have the EK 2000 double as an IFB or remote listening device.Charging contacts on the sides of the EK 2000 receiver enable you to utilize the L 2015 charger and BA2015 rechargeable batteries (sold separately). The EK 2000 is a really powerful receiver for use on a video camera, in a field audio kit, or for any situation where you need to wirelessly receive audio in an ultra-compact component.
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency bands with up to 64 compatible presets
- 6 bands with up to 64 tunable channels
- Frequency settings in 25 kHz steps
- Adaptive diversity technology for high reliability
- Features a headphone output for optimum control
- Pilot tone squelch can be set in 2 dB steps for interference-free reception
- Frequency scan feature searches for available reception frequencies
- Cordless infrared synchronization of transmitters
- User-friendly menu interface with a back-lit graphic display
- HDX compander for crystal clear sound
- Enhanced AF frequency response
- 4-stage battery status display
- External charging contacts for recharging the BA2015 battery
- Auto-lock feature to prevent settings from being changed accidentally
UPC: 615104164512 - SKP2000 Wireless Plug-In Transmitter (G / 566 - 608 MHz ) Designed for use with the Sennheiser 2000 Series wireless microphone system, the SKP2000 is a plug-in transmitter that allows any standard dynamic or condenser microphone with a 3-pin XLR connection, to be used wireless. The transmitter provides up to 2,880 tunable frequencies, 26 banks and 64 frequency presets. A comprehensive LCD provides frequency and channel information as well as battery status, Mute status and more. The SKP2000 plug-in transmitter is lightweight yet durable enough for rigorous use in the field and is powered by 2x AA batteries or optional Sennheiser BA2015 accupack.
- Up to 72MHz switching bandwidth
- 26 fixed frequency bands with up to 64 compatible presets
- 6 banks each with up to 64 tunable channels
- Frequency setting in 25 kHz steps
- Pilot tone squelch for interference-free operation
- 48V switchable phantom powering
- Backlit display on transmitter (keystroke activation)
- Auto-lock feature to prevent buttons from accidently being pressed
- Audio and RF MUTE feature for muting the transmitter can be configured from the receiver menu
- Transmitter can be synchronized with the receiver using infrared interface
- Wide range of accessories for virtually any use
UPC: 615104173859 In the Box Bundle Items EK 2000 Battery-Powered Diversity Receiver (G - 566-608MHz) zqrybrrfywyescsc - CA2 Camera Attachment Kit
- CL 500 Line Connecting Cable
- CL 1 Line Connecting Cable
- Frequency Information Sheet
SKP2000 Wireless Plug-In Transmitter (G / 566 - 608 MHz ) - SKP 2000 Plug-on Transmitter
- Supplementary Frequency Sheet
- Supplementary RF Power Sheet
Also Includes User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser 2000ENG-SKP Portable Wireless Plug-in System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EK 2000 Battery-Powered Diversity Receiver (G - 566-608MHz)
| RF Carrier Frequency Range | 566-608MHz
75 MHz of Switching Bandwidth | | Signal-to-Noise Ratio | Line: 120 dBA rms (1 mV RF, Peak Deviation)
Headphones: 90 dBA rms | | # Of Channels | 3000 | | Power Requirements | 2 AA Batteries (2 x 1.5V)
Features contact points for rechargeable battery system | | Battery Type/Approx. Life | 8 Hours | | Display | Back-lit Display | | Mounting Options | Camera-Mountable Receiver
Belt-Clip on Beltpack Transmitter | | Antenna Type | Fixed Whip | | Dimensions (HxWxD) | 3.2 x 2.5 x 0.9" (82 x 64 x 24mm) | | Weight | 7.05 oz (200g) | | | | Box Dimensions (LxWxH) | 13.9 x 5.4 x 2.8" | - SKP2000 Wireless Plug-In Transmitter (G / 566 - 608 MHz )
| Type of Transmitter | SKP2000 Plug-In | | # Of Channels | Frequencies: 2,880 Presets: 26 banks, 24 presets each | | Type of Input Connector | 3-pin XLR female | | Type of Microphone | Not applicable, plug-in transmitters adapt to standard wired microphones | | Polar Pattern | Not applicable, plug-in transmitters adapt to standard wired microphones | | Interchangeable Mic Heads | Any Dynamic or Condenser Microphone with 3-pin XLR male Output | | Frequency Response | 25Hz to 20kHz | | RF Output | 10, 30, 50, 100mW | | Battery Type/Approx. Life | 2x AA Batteries | | Mute Switch | Yes | | Level Control | Yes, Variable Microphone Input Level | | Antenna Type | Utilizes Microphone Body as Antenna | | Display | Yes, LC Display: Channel, Low Battery Warning | | Dimensions | 4.13 x 1.69 x 1.69" (105 x 43 x 43mm) | | Weight | 6.88 oz (195 g) | | | | Box Dimensions (LxWxH) | 14.0 x 6.0 x 3.0" |
